Is this cooker hood suitable for both extraction and recirculation?

Yes. It is suitable for ducted extraction and recirculation. For recirculated extraction, various recirculation kits are available as optional accessories, including standard and Clean Air Plus options.

What is the maximum extraction rate of this canopy hood?

The maximum output air extraction in standard mode is 600 m³/h. In boost position, air extraction can reach up to 745 m³/h. In recirculation mode with the Clean Air Plus kit, intensive extraction can reach 700 m³/h.

How noisy is the hood during operation?

The noise level at maximum standard extraction is 61 dB(A) re 1pW. In exhaust mode, noise ranges from 45 dB(A) at Speed 1 to 65 dB(A) at intensive level. Recirculation noise levels depend on the chosen kit and speed, up to 74 dB(A).

Are the grease filters easy to clean?

Yes. The hood uses washable aluminium grease filters, and the metal grease filters are dishwasher-safe. The smooth surfaces and materials are also designed for easy cleaning.

What energy efficiency rating does this hood have?

The hood has an Energy Efficiency Class A on a scale from A+++ to D. The average energy consumption is 50.1 kWh/year*, with both blower and lighting efficiency classes rated A*.

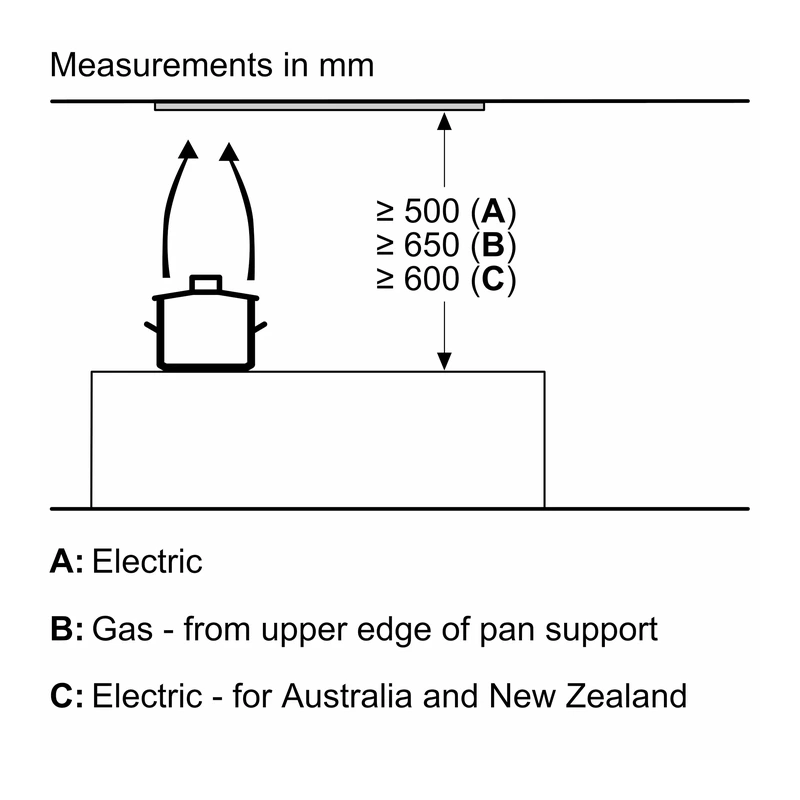

What are the minimum installation distances above the hob?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.

Product Information Sheet

Neff N70 Canopy Hood

SKU: D86NAC1S0B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 13 June 2026

Neff D86NAC1S0B N70 Canopy Hood

SKU: D86NAC1S0B · EAN: 4242004287216

Black

This 86 cm black canopy cooker hood is designed for flush-fitted installation in wall cupboards or cabinets, creating a hidden, seamless look. Suitable for both ducted extraction and recirculation, it offers a high extraction rate, optimised quiet motor and intensive setting with automatic reset. Two cool white LED lights provide clear illumination of the hob, while dishwasher-safe metal grease filters and easy-to-clean smooth surfaces support convenient everyday use.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Model	D86NAC1S0B
Product series	N 70 canopy cooker hood, 86 cm, black
Typology	Built-in / Built-under; canopy hood
Installation	Cabinet; flush-fitted in wall cupboards; suitable for ducted extraction and recirculation

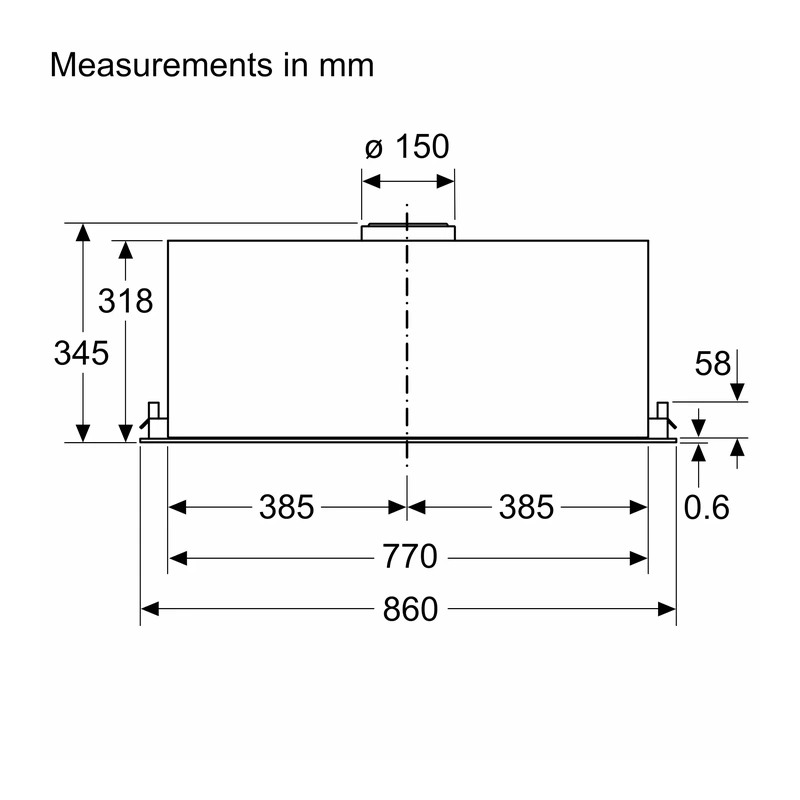

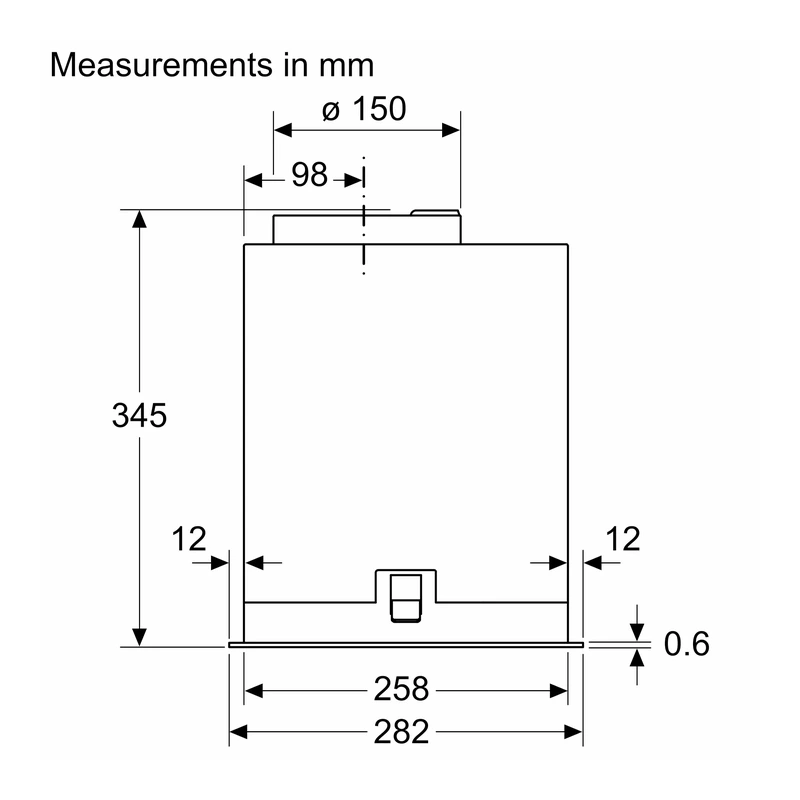

Dimensions (H × W × D)	345 × 860 × 282 mm
Recirculating dimensions (H × W × D)	345–345 × 860 × 282 mm

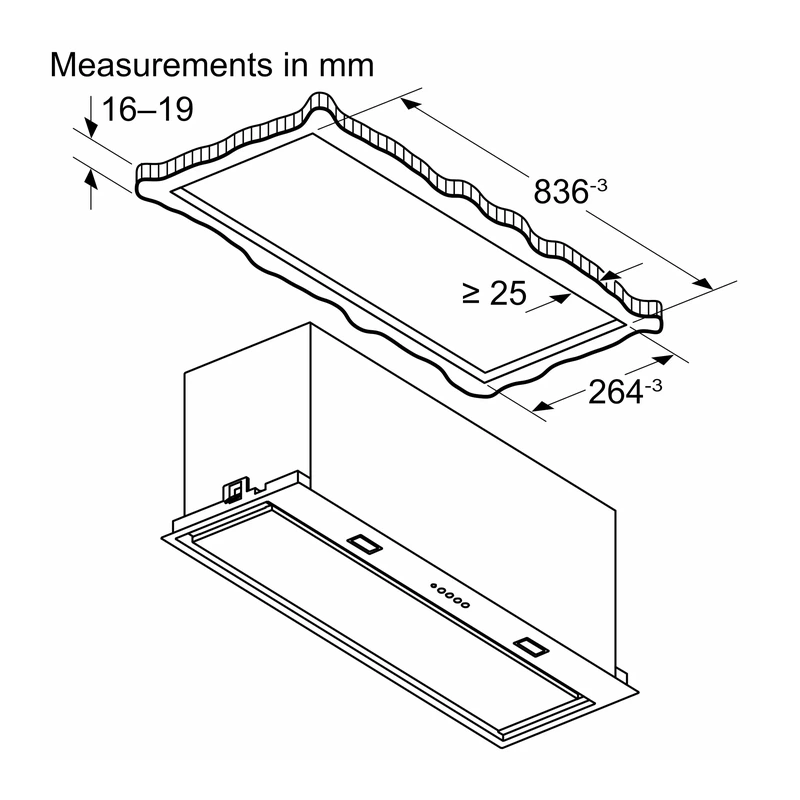

Built-in dimensions (H × W × D)	345 × 676 × 264 mm
Required niche size (H × W × D)	345 mm × 676.0 mm × 264 mm
Height of the appliance	345 mm
Minimum distance above electric hob	500 mm
Minimum distance above gas hob	650 mm
Net weight	10.0 kg
Type of control	Electronic soft touch with LED display
Speed settings	3 stages + intensive setting
Maximum output air extraction	600 m³/h
Boost position air extraction	745 m³/h
Maximum output recirculating air	580 m³/h
Boost position output recirculating	700 m³/h
Maximum air flow	600 m³/h
Noise level (max standard)	61 dB(A) re 1pW
Number of lights	2 × 1 W LED
Colour temperature	4000 K
Light intensity	400 lux
Grease filter material	Washable aluminium; 2 metal grease filters, dishwasher-safe
Air outlet diameter	150 mm (120 mm enclosed)
Back-pressure flap	Yes
Motor type	Capacitor motor
Energy Efficiency Class	A (range A+++ to D)
Average energy consumption*	50.1 kWh/year*
Blower Efficiency Class*	A*
Lighting Efficiency Class*	A*
Grease Filtering Efficiency Class*	D*
Power rating	252 W
Connection rating	252 W
Voltage	220–240 V nominal
Frequency	50; 60 Hz
Fuse protection	3 A
Plug type	GB plug
Electrical cable length	1.5 m (150.0 cm)
EAN code	4242004287216

*As stated in manufacturer performance data.
