| Product name / series |

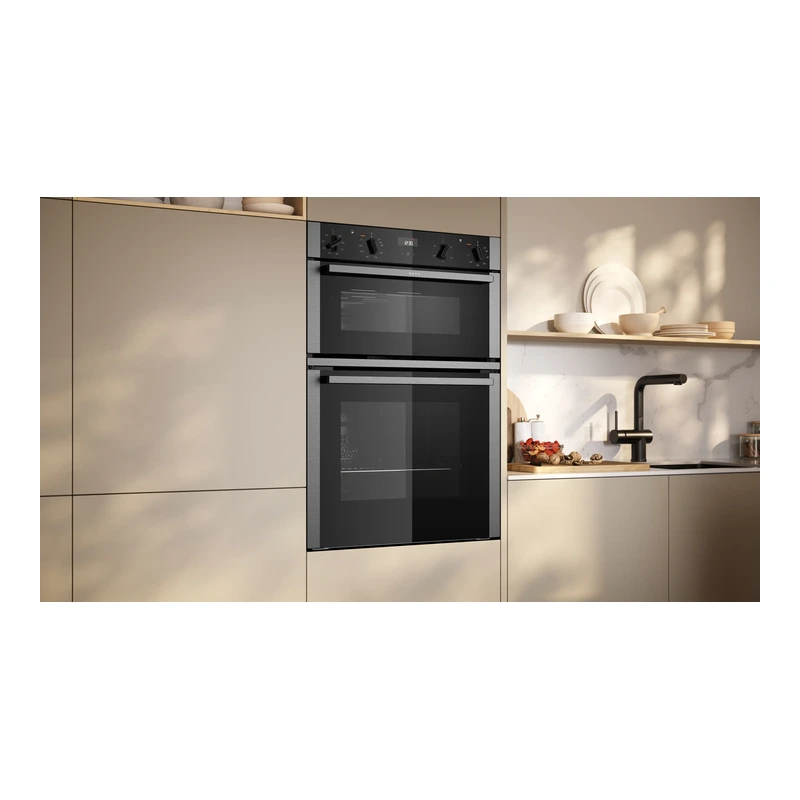

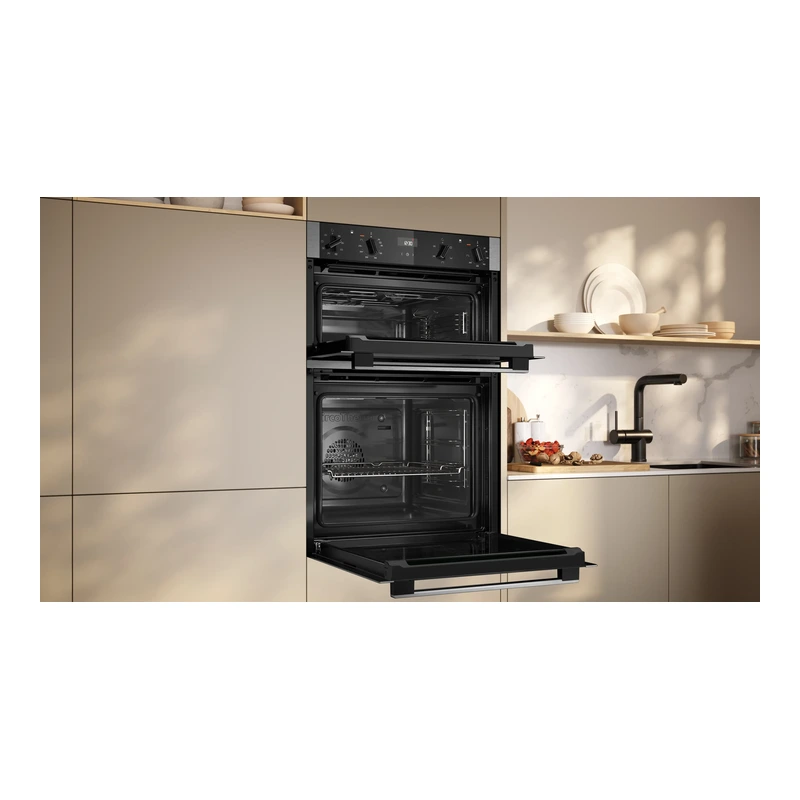

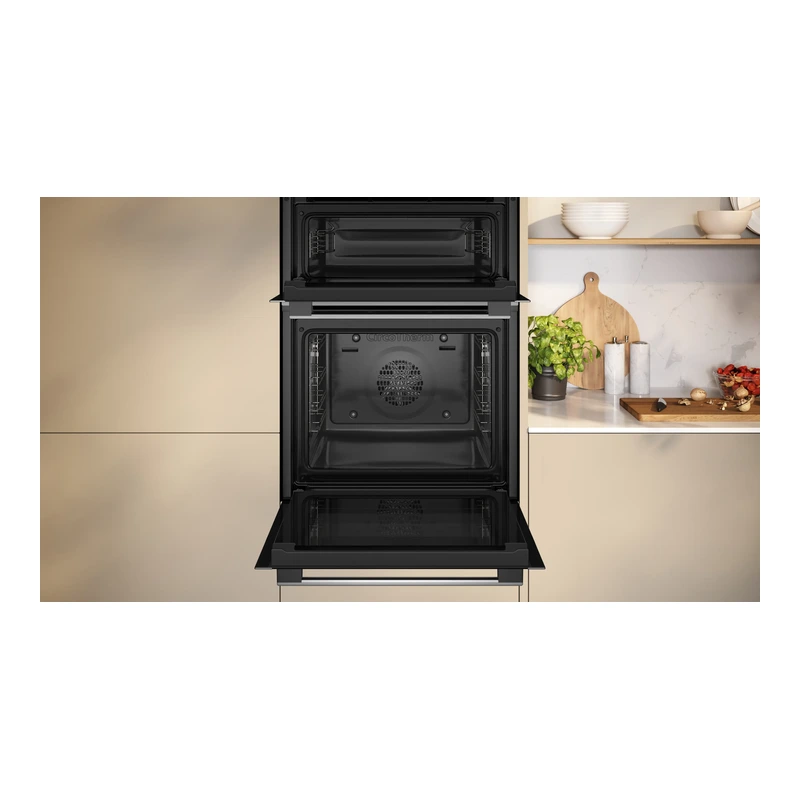

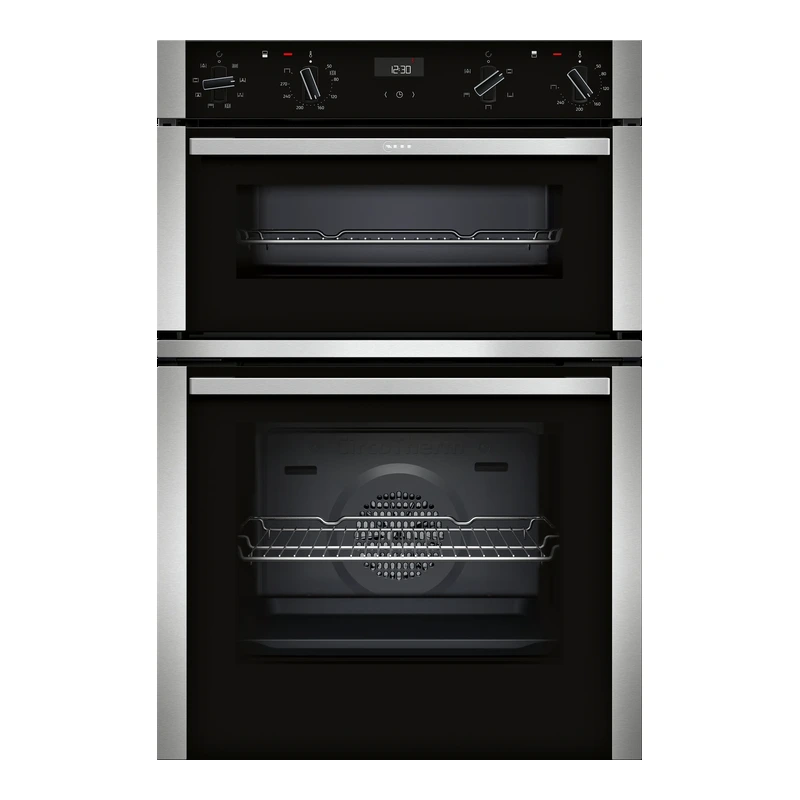

N 50, Built–in Double Oven U1ACE2AN3B |
| Built–in / Free–standing |
Built–in |
| Integrated cleaning system |
No (EasyClean cleaning aid in main oven) |

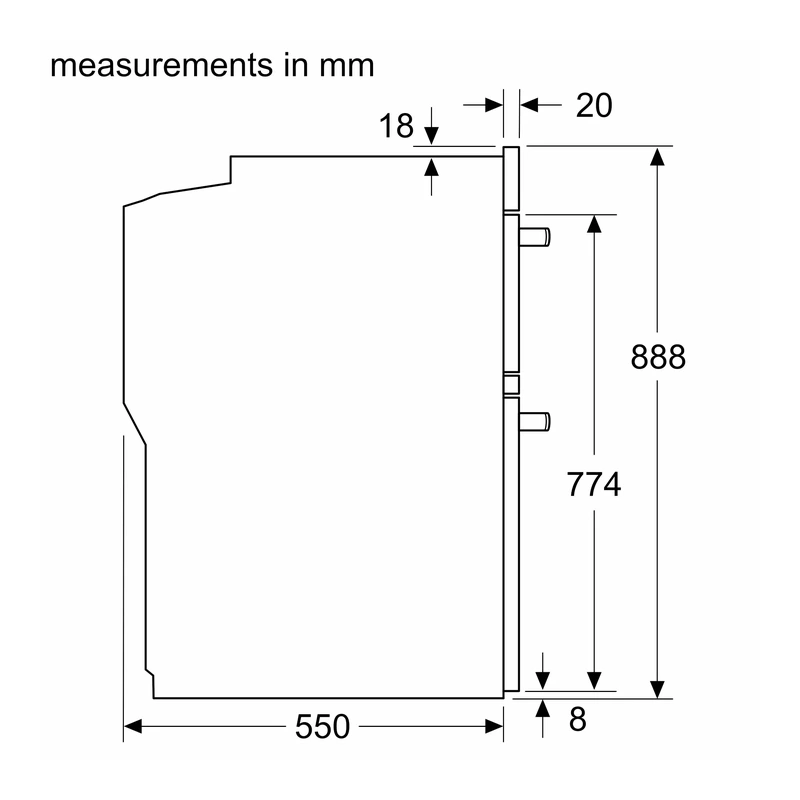

| Appliance dimensions (H x W x D) |
888 x 594 x 550 mm |
| Packed product dimensions (H x W x D) |
960 x 660 x 690 mm |

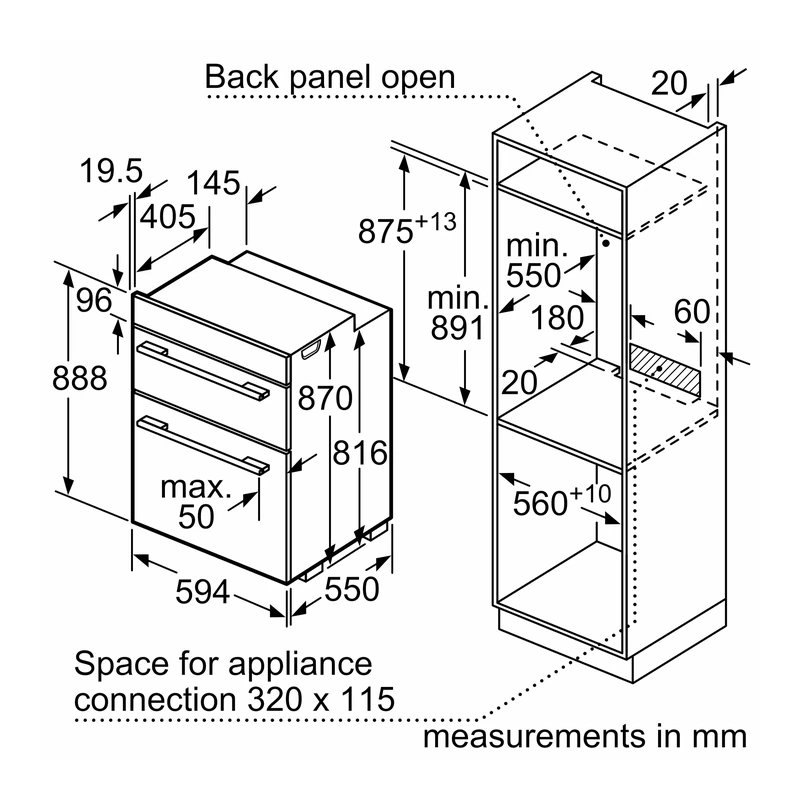

| Niche dimensions (H x W x D) |
875 mm – 888 mm x 560 mm – 568 mm x 550 mm |
| Control panel material |
Glass |
| Door material |
Glass |
| Cavity inner surface (top) |
Enamel grey |
| Cavity inner surface (bottom) |
Enamel anthracite |
| Net weight |
49.4 kg |
| Main oven usable volume |
71 litre |
| Top oven cavity volume |
34 litre |
| Cooking methods (overall) |
Full width grill, Hotair gentle, Hot Air, Conventional heat, Hot air grilling |
| Main oven heating methods |

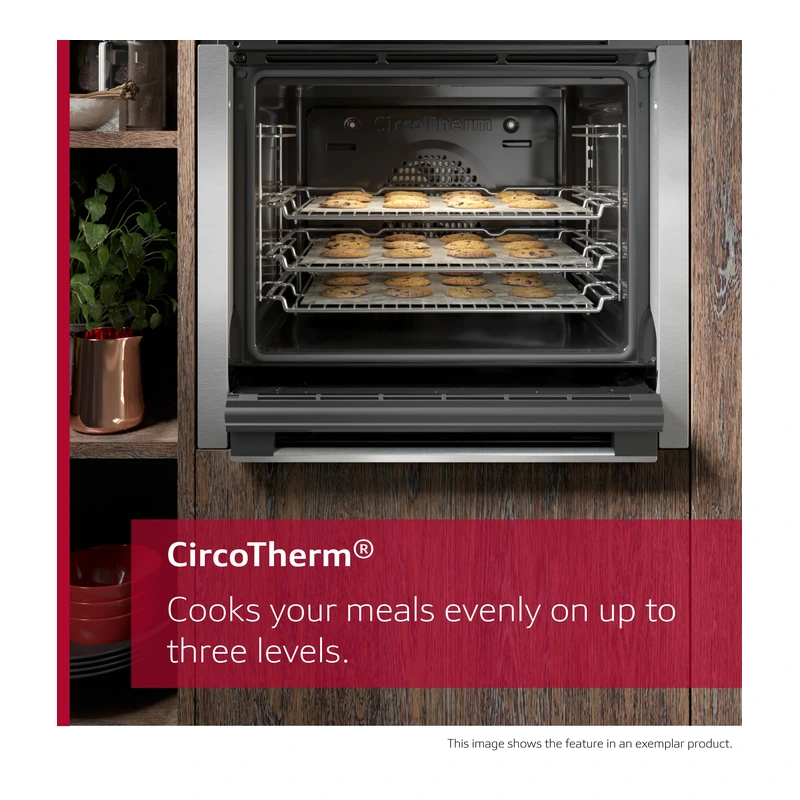

CircoTherm®, Top/bottom heat, Circo–roasting, Full surface grill, CircoTherm® gentle |
| Top oven heating methods |
Top/bottom heat, Full surface grill, Small area grill, Bottom heat |
| Temperature range (both ovens) |
50 °C – 275 °C |
| Shelf positions (main oven) |
4 shelf positions |
| Level independent telescopic rails |
Available as an accessory |
| Energy efficiency rating (main oven) |
A (2010/30/EC); B according to EU Nr. 65/2014 (at a range of energy efficiency classes from A+++ to D) |
| Energy efficiency class cavity 2 |
B (2010/30/EC; at a range of energy efficiency classes from A+++ to D) |
| Energy efficiency index (main oven) |
95.3 % |
| Energy efficiency index cavity 2 |
120.3 % |
| Energy consumption conventional (main) |
1.02 kWh/cycle (2010/30/EC); 0.83 kWh per cycle in conventional mode (acc. EU Nr. 65/2014) |
| Energy consumption forced air (main) |
0.81 kWh/cycle (2010/30/EC); 0.81 kWh per cycle in fan–forced convection mode |
| Energy efficiency rating (top oven) |
B (acc. EU Nr. 65/2014; at a range of energy efficiency classes from A+++ to D) |
| Energy consumption conventional (top) |
0.83 kWh per cycle in conventional mode |
| Number of cavities |
Main cavity; Top cavity |
| Heat source |
Electrical (both cavities) |
| Connection rating |
5900 W / 5.9 kW |
| Nominal voltage |
220 – 240 V |
| Frequency |
50 Hz |
| Fuse protection |
32 A |
| Plug type |
No plug (electrical connection by electrician), fixed connection (electrical connection by electrician) |
| Door hinge (top oven) |
Bottom (small cavity) |
| Door hinge (main oven) |
Drop down door (big cavity) |
| Door glazing |
Full glass inner door; heat reflective glass (main oven) |
| Display |
LCD Display (White) |

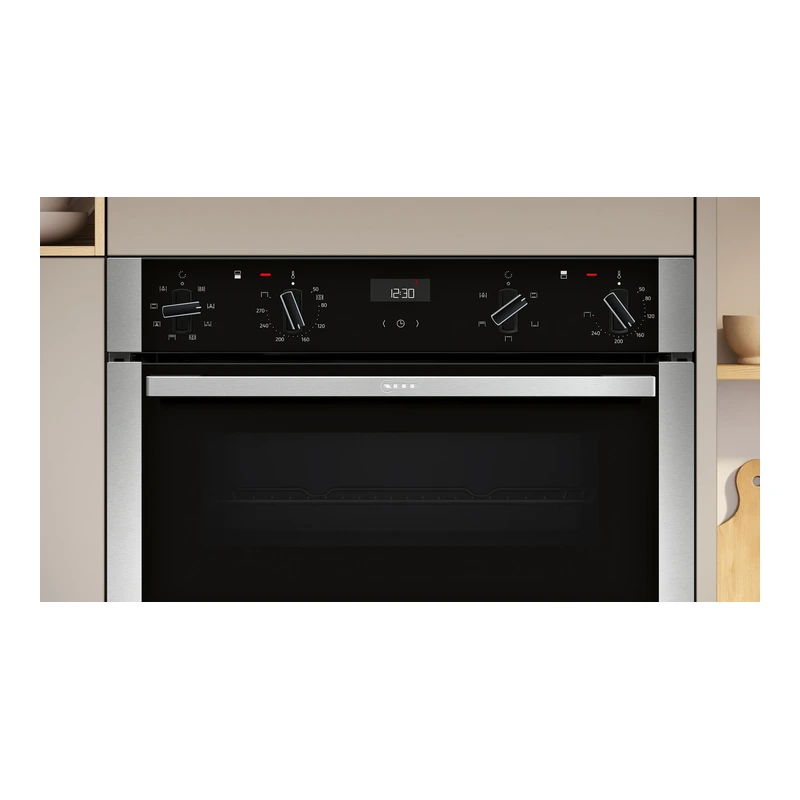

| Control features |
Electronic clock timer, automatic start, heating up indicator, manual rapid heating up, control panel lock |
| Handles |
Bar handle |
| Cooling |
Cooling fan |
| Interior light |
Interior halogen light |
| EAN code |
4242004281771 |
| Included accessories |

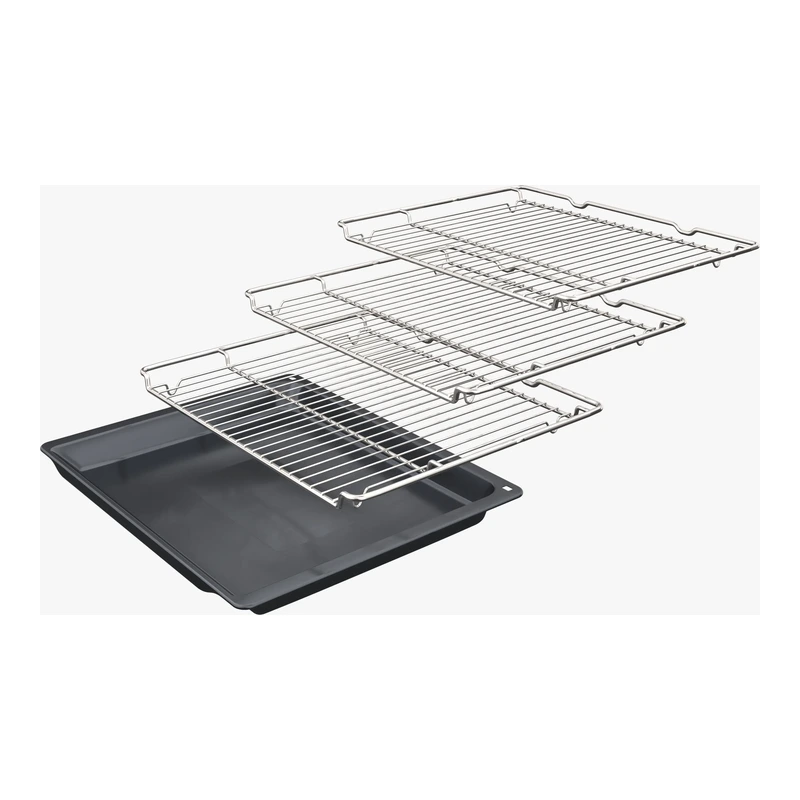

3 x combination grid, 1 x universal pan |
| Optional accessories |

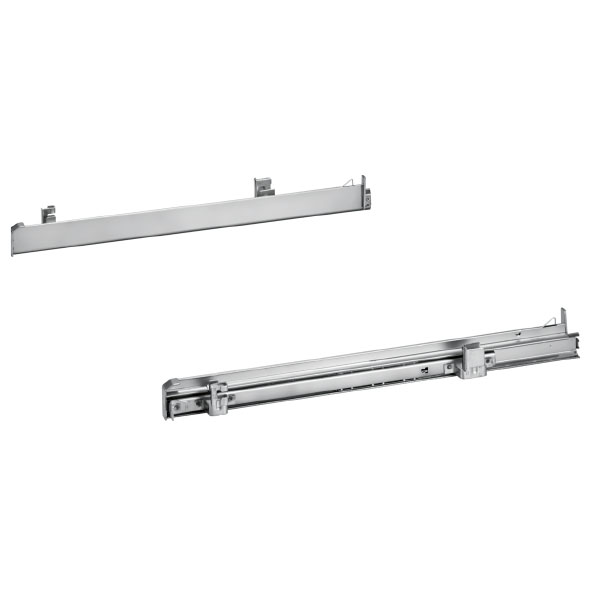

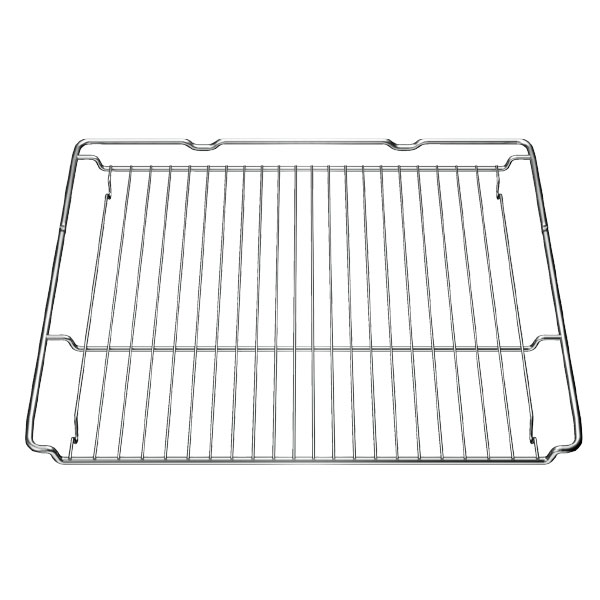

Z12CU10A0 Multipurpose pan, enamelled; Z1365WX0 Wireless food thermometer; Z1608BX0 Full ext rails, level independent; Z1650BE0 Half tray; Z1655CA0 Air Fry & Grill tray; Z1913X0 Baking Stone; Z11AB15A0 Baking tray, non–stick ceramic coated; Z11AU15A0 Universal pan, non–stick ceramic coated; Z11CR10X0 Baking and roasting grid (standard); Z11GU20X0 Glasspan; Z11TI15X0 Cliprails; Z12CB10A0 Baking tray, enamelled; Z12CL10A0 Lid for professional pan, enamelled; Z12CM10A0 Moussaka pan, enamelled; Z12CN10A0 Professional pan, enamelled; Z12CP10A0 Pizza pan, enamelled
|
