| Product group | Built-in oven, iQ500 |
|---|
| Model designation | HB578GBS7B |
|---|
| Colour / finish | Stainless steel, glass control panel and door |
|---|
| Built-in / Free-standing | Built-in |
|---|
| Integrated cleaning system | Pyrolytic (activeClean®) |
|---|
| Cavity volume | 71 litres / 71 l usable volume of cavity |
|---|
| Number of cavities | 1 (Main cavity) |
|---|
| Heat source | Electrical |
|---|
| Heating types (main) | Full width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, low temperature cooking, coolStart, Hot air grilling / 3D hot air, conventional top & bottom heating, hot air grilling, full width grill, Pizza setting, coolStart, low temperature cooking, Hotair gentle |
|---|
| Heating via Home Connect App | air fry, bottom heating, let rest, preheating |
|---|
| Temperature range | 30 °C – 275 °C |
|---|
| Energy efficiency rating | A+ (acc. EU Nr. 65/2014; 2010/30/EC) |
|---|
| Energy consumption conventional | 0.94 kWh/cycle (0.94 kWh per cycle in conventional mode) |
|---|
| Energy consumption forced air | 0.69 kWh/cycle (0.69 kWh per cycle in fan-forced convection mode) |
|---|
| Energy efficiency index | 81.2 % (2010/30/EC) |
|---|
| Connection rating | 3600 W / 3.6 kW total connected load electric |
|---|
| Nominal voltage | 220 – 240 V |
|---|
| Frequency | 50; 60 Hz |
|---|
| Fuse protection | 16 A |
|---|
| Plug type | No plug (electrical connection by electrician) |
|---|
| Cable length | 120 cm |
|---|
| Control panel material | Glass |
|---|
| Door material | Glass, quadruple glazed, heat reflective CoolTouch door |
|---|
| Maximum door temperature | 30 °C |
|---|

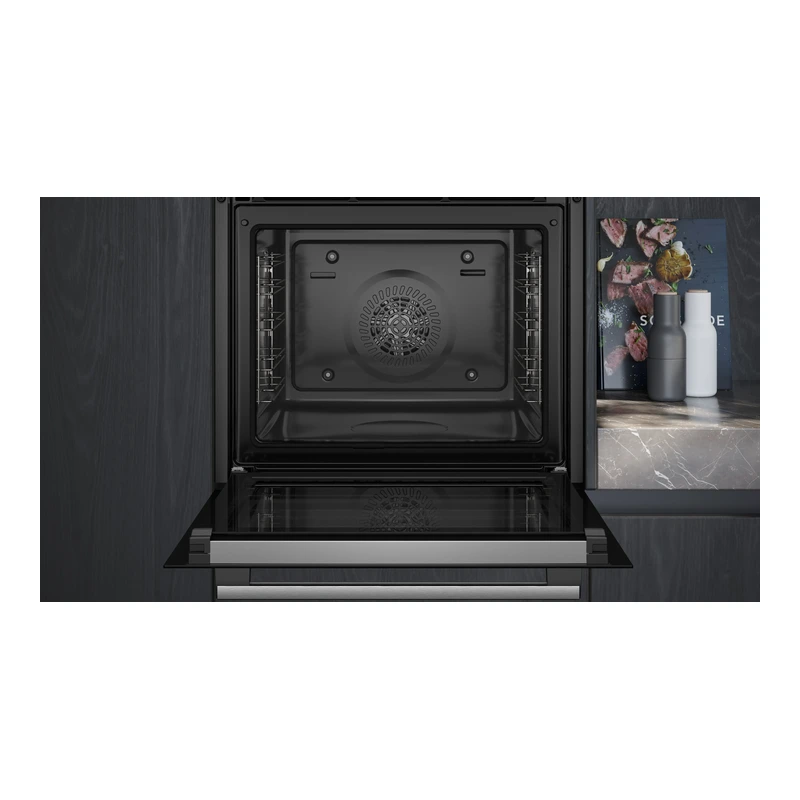

| Interior surface | Cavity inner surface: enamel anthracite; full glass inner door |
|---|
| Usable shelf positions | 5 shelf positions in oven; cavity with shelf support rails; level independent telescopic rails |
|---|

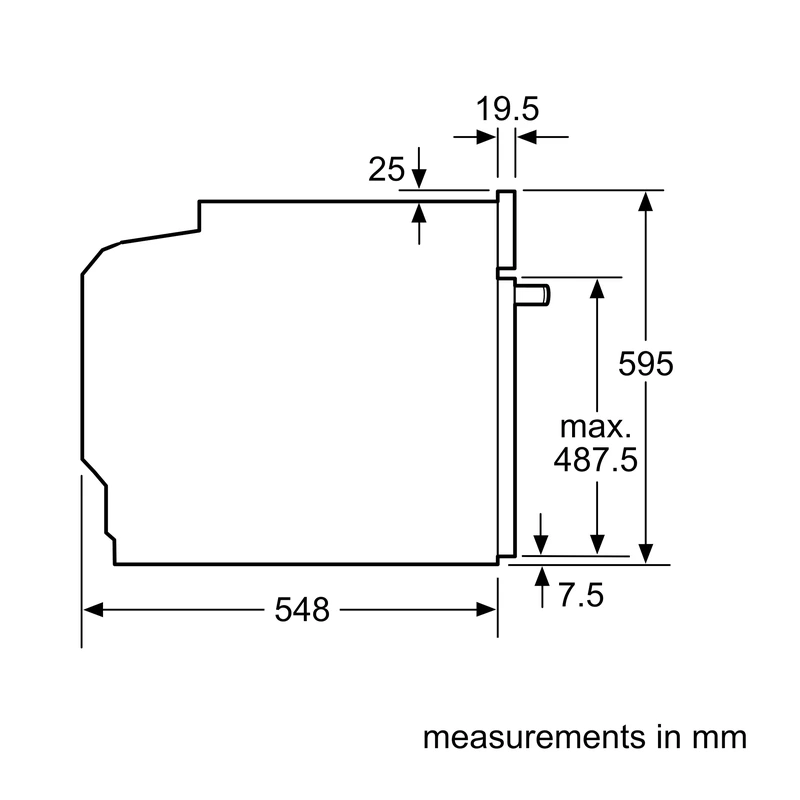

| Appliance dimensions (H × W × D) | 595 mm × 594 mm × 548 mm / 595 × 594 × 548 mm |
|---|

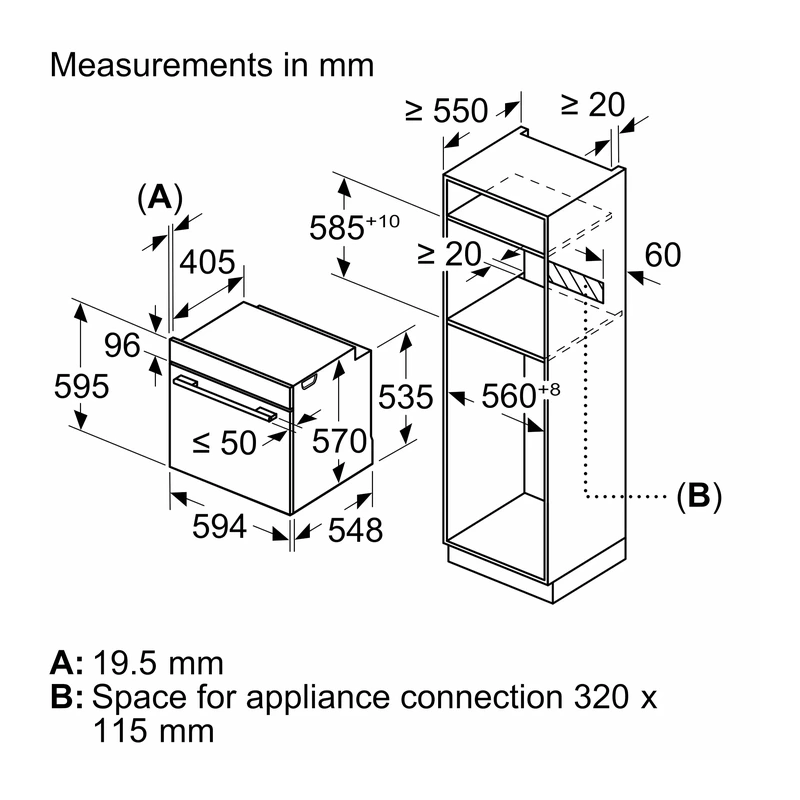

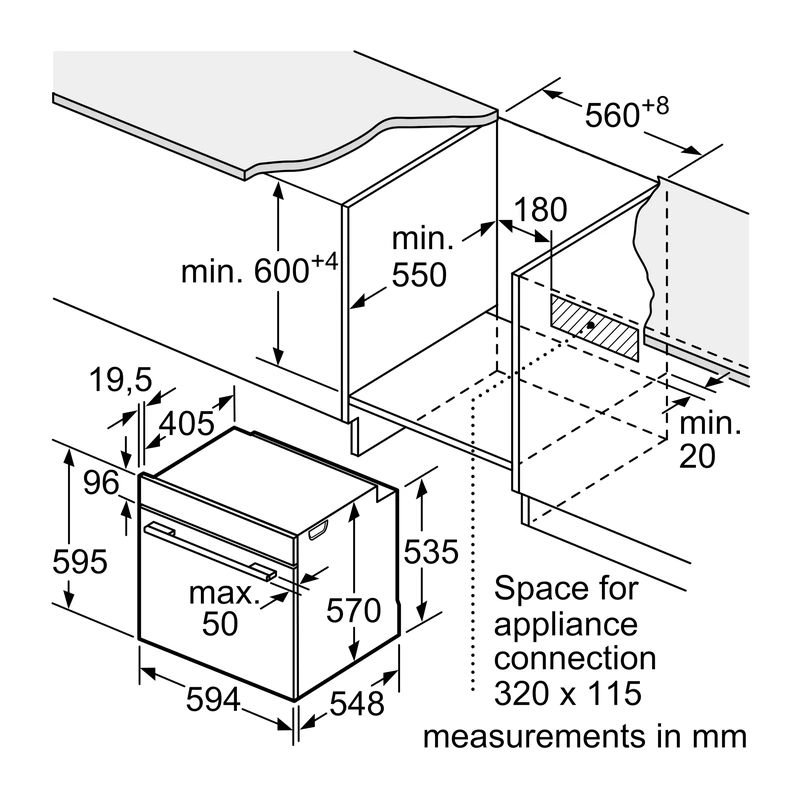

| Niche dimensions (H × W × D) | 585 mm – 595 mm × 560 mm – 568 mm × 550 mm / 585 – 595 × 560 – 568 × 550 mm |
|---|
| Packed product dimensions (H × W × D) | 675 × 660 × 690 mm |
|---|
| Weight | 36.9 kg |
|---|
| Interior lighting | Interior halogen light; light on/off when door opened/closed |
|---|
| Cooling | Integral cooling fan |
|---|
| Display and controls | LCD Display (White); stainless steel control dial with lightControl; electronic oven clock timer; digital temperature display with proposal; heating-up indicator; bar handle |
|---|
| Smart connectivity | WLAN – Home Connect enabled; Home Connect with Remote Control; Oven Assistant with Voice Control. 1 |
|---|
| EAN code | 4242003956274 |
|---|

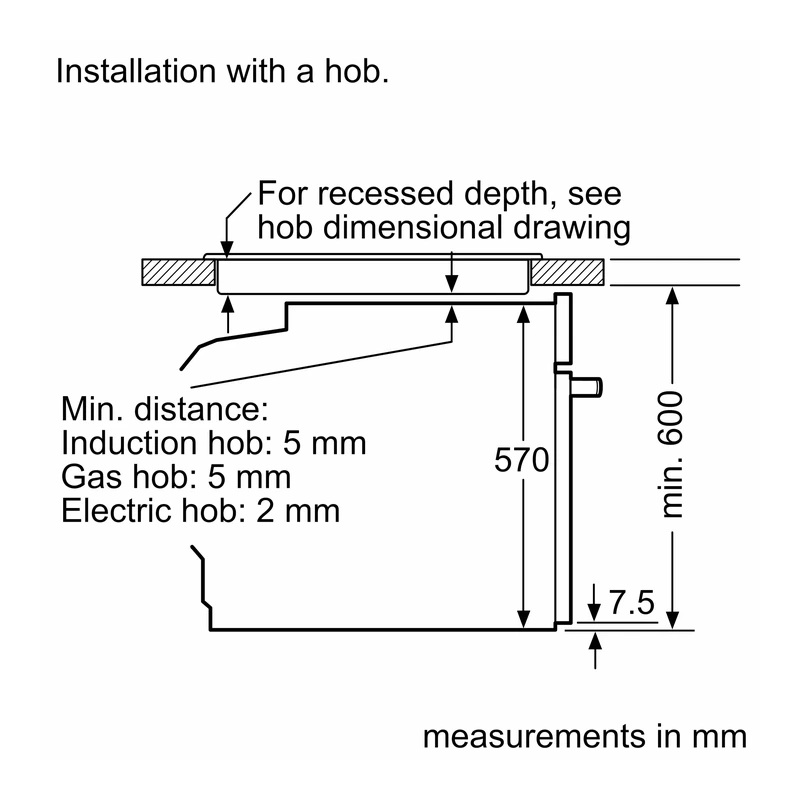

| Installation notes | For details on installation and ventilation requirements – please refer to the installation manual prior to fitting. |
|---|
| Brand design recommendation | Recommended to choose complementary products within iQ500 for optimal design combination of built-in appliances. |
|---|
1 Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH.
Cooking programmes and functions
The oven provides 8 main functions: 3D hot air, conventional top & bottom heating, hot air grilling, full width grill, Pizza setting, coolStart, low temperature cooking and Hotair gentle. Additional heating methods air fry, bottom heating, let rest and preheating are available only via the Home Connect App. cookControl30 offers automatic programmes, including automatic start and cookControl functions.

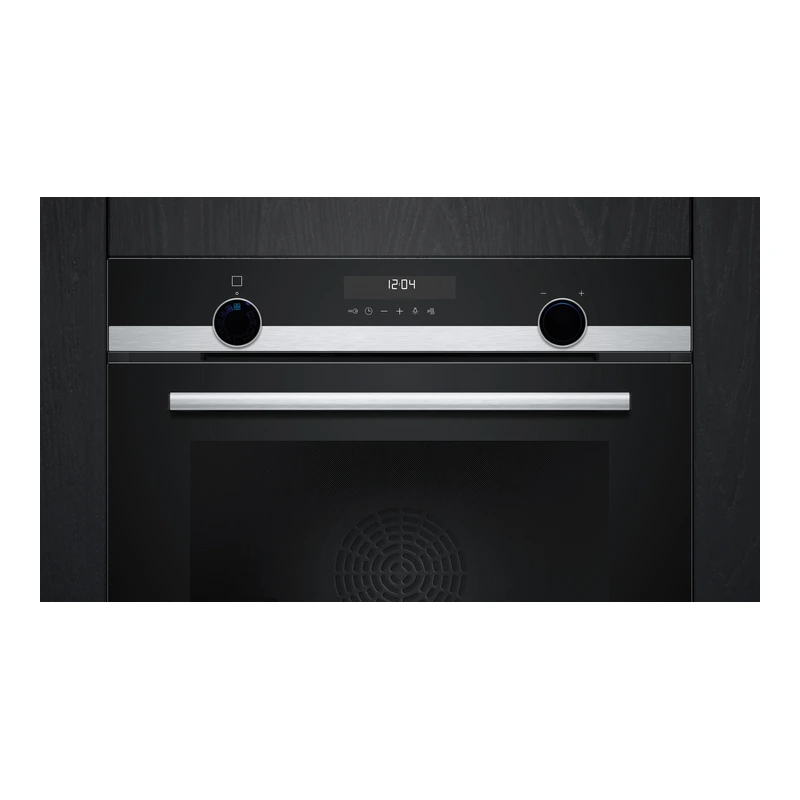

Controls and display
Operation is supported by an LCD Display (White), stainless steel control dial with lightControl and a bar handle. Features include an electronic oven clock timer, digital temperature display with proposal, a heating-up indicator, automatic programmes, fast preheat and coolStart.
Cleaning and maintenance
The activeClean pyrolytic system provides automatic, self-cleaning of the oven interior. The cavity inner surface in enamel anthracite and full glass inner door support cleaning, and the door maintains a low temperature during pyrolitic cleaning.

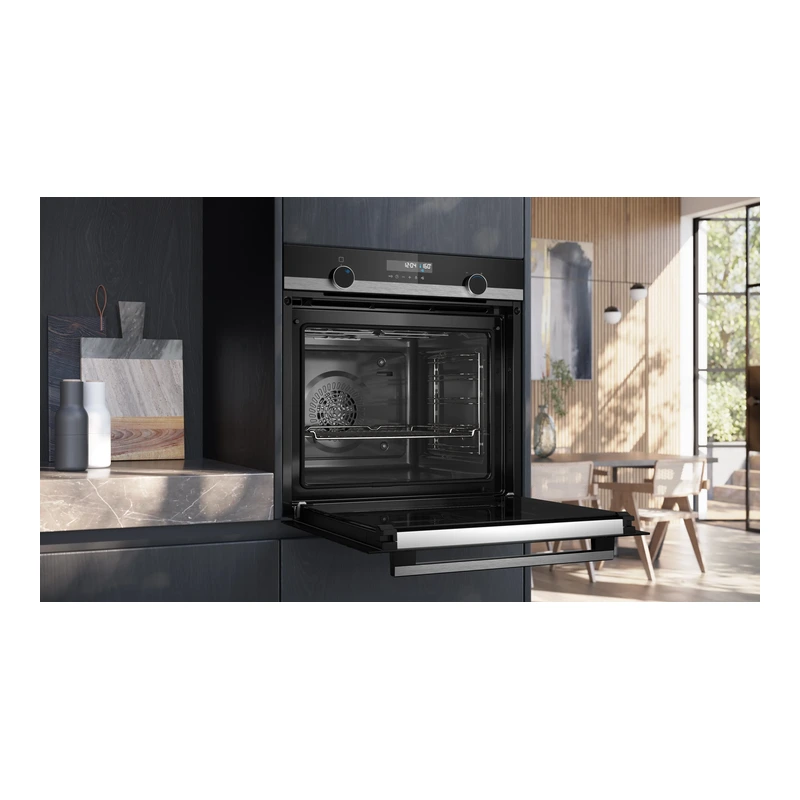

Door design and handling
The drop down oven door includes softClose and softOpen functions for gentle opening and closing. The quadruple glazed door with heat reflective glass forms a CoolTouch door with a maximum door temperature of 30 °C.
Safety features
- Electronic door lock
- Control panel lock
- Automatic safety switch off
- Residual heat indicator
- Door contact switch
- Low door temperature during pyrolitic cleaning
Accessories and compatibility

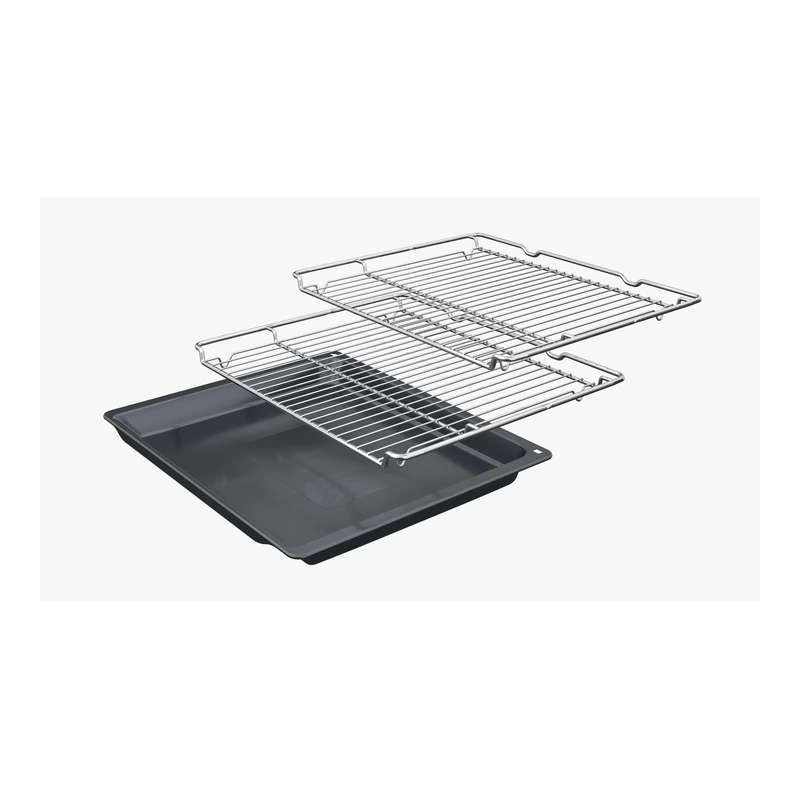

Included accessories:
- 2 × combination grid
- 1 × universal pan
Optional accessories:
- HZ327000 Baking stone
- HZ32WA00 wireless roastingSensor
- HZ530000 2 multipurpose pans, slim size
- HZ531010 Baking tray, non-stick ceramic coated
- HZ532010 Universal pan, non-stick ceramic coated

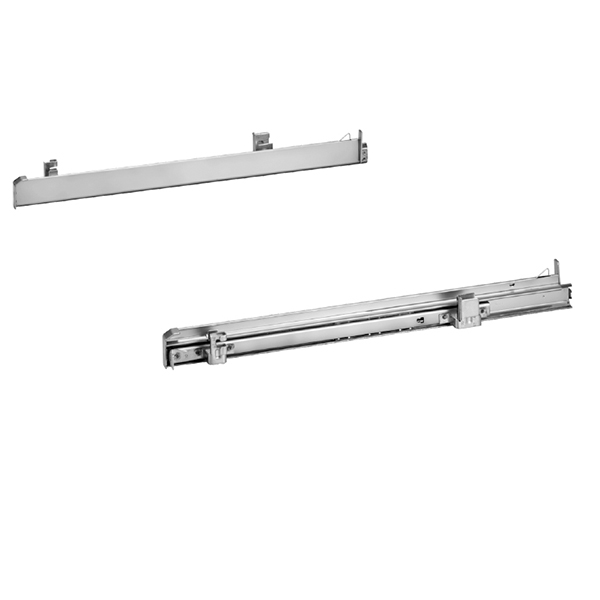

- HZ538000 varioClip rail
- HZ617000 Pizza pan, enamelled
- HZ629070 Air Fry & Grill tray
- HZ631070 Baking tray, enamelled
- HZ632070 Multipurpose pan, enamelled
- HZ633001 Lid for professional pan, enamelled
- HZ633070 Professional pan with grid, enamelled
- HZ633073 Professional pan, enamelled
- HZ634000 Baking and roasting grid (standard)
- HZ636000 Glass pan
- HZ638000 Full ext rails, level independent
- HZ65MA00 Assembly kit for vertical installation
- HZ664000 Baking and roasting grid (steam)
- HZ66X650 Cover Strip
- HZ915003 Glass roasting dish, 5,4 L
