What is the connection size of this adapter duct?

It is a flat to round converter with a ø 150 mm round connection and a round–flat adapter design. The round connection diameter A is ø 152.5.

How is the air flow performance of this adapter optimised?

It has an aerodynamically optimised design intended to minimise pressure loss and maximise air flow rate through the ducting.

What flammability standards does this adapter duct meet?

The element complies with the Needle Flame Test according to IEC 60695-11-5 and meets the V2 flammability class according to UL94.

What are the packed dimensions and weight?

The packed product dimensions are 190×235×220 mm with a weight of 0.3 kg and a gross weight of 0.5 kg.

Product Information Sheet

Siemens Straight Adaptor / Converter flat to round (Ø 150mm).

SKU: HZ9VDSI0

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 19 July 2026

Siemens HZ9VDSI0 Straight Adaptor / Converter flat to round (Ø 150mm).

SKU: HZ9VDSI0 · EAN: 4242003890899

The HZ9VDSI0 adapter duct is a flat to round converter with a ø 150 mm connection, designed as a round–flat male adapter accessory. Its aerodynamically optimised design helps minimise pressure loss and maximise air flow rate, while the element is easy to cut and easy to connect via the female connector sleeve element. It complies with the Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94).

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Adapter duct, ø 150 mm, round–flat
Model designation	HZ9VDSI0
Converter type	Flat to round converter ø 150 mm
Adapter style	Round–flat adapter accessory (male)
Dimensions of packed product (H×W×D)	190×235×220 mm
Pallet dimensions	205.0 × 80.0 × 120.0
Quantity per packing unit	6
Standard number of units per pallet	120
Weight	0.3 kg
Gross weight	0.5 kg
EAN code	4242003890899

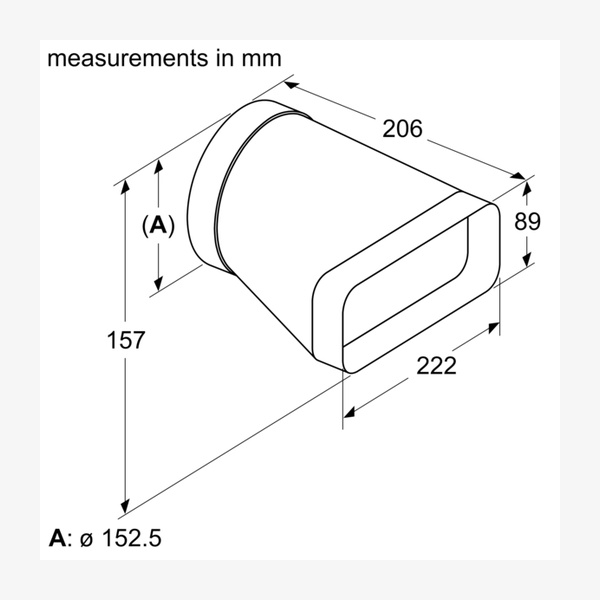

Round connection diameter A	ø 152.5
Overall length	222 mm
Overall height	157 mm
Overall width	206 mm
Flat outlet height	89 mm
