How many wine bottles can the Siemens iQ500 KU20WVHF0G hold?

The appliance has a capacity of 21 bottles of 75 cl. The total net fridge volume is 58 l, with 4 bottle shelves for 0.75 l bottles and 3 wooden grills.

What is the temperature range of this built–in wine cooler?

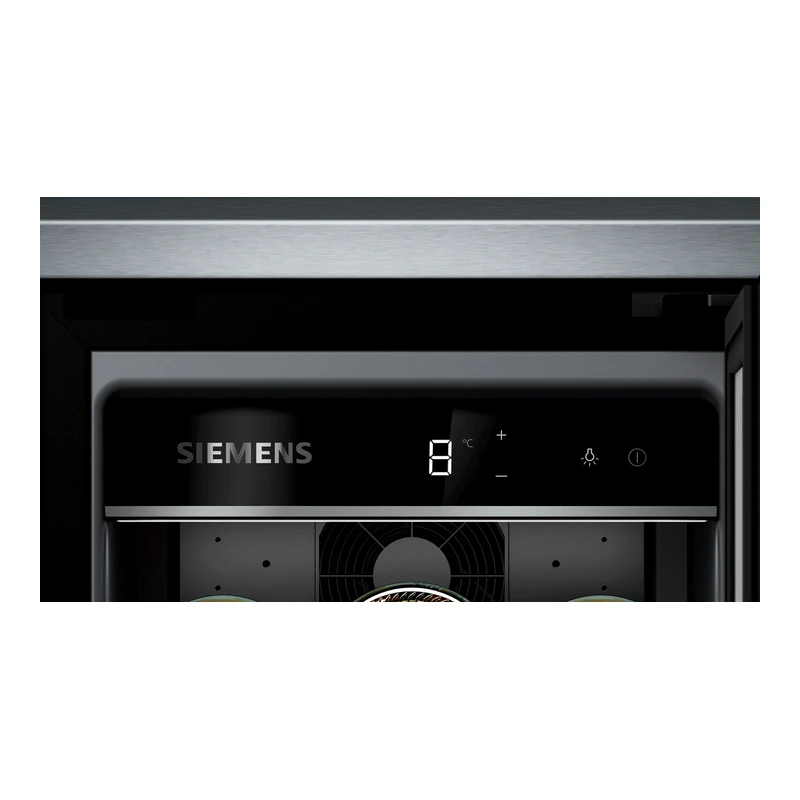

The wine cooler has one temperature zone with an adjustable temperature range from 5 to 20 °C. Electronic temperature control allows the target temperature to be set clearly and easily.

Is the door reversible and does it protect wine from light?

Yes. The appliance has a right hinged door that is reversible and a door aperture angle of 115°. It features a triple glazed glass door with UV–filter to provide elegant protection for valuable wines.

What are the installation dimensions for this wine cabinet?

The wine cabinet itself measures 81.8 cm in height, 29.8 cm in width and 56.7 cm in depth. The required niche size for installation is 82 cm high, 30 cm wide and 55 cm deep.

How energy efficient and quiet is the Siemens iQ500 KU20WVHF0G?

The appliance has an energy efficiency class of F, with an average annual energy consumption of 100 kWh. The noise level is 38 dB with a noise emission class of C.

Is this appliance suitable for storing food or only wine?

This appliance is intended to be used exclusively for the storage of wine. It has a net fridge volume of 58 l dedicated to wine storage and no freezer volume.

Product Information Sheet

Siemens iQ500 Winecellar

SKU: KU20WVHF0G

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Siemens KU20WVHF0G iQ500 Winecellar

SKU: KU20WVHF0G · EAN: 4242003893630

Built Under Integrated Black & Glass

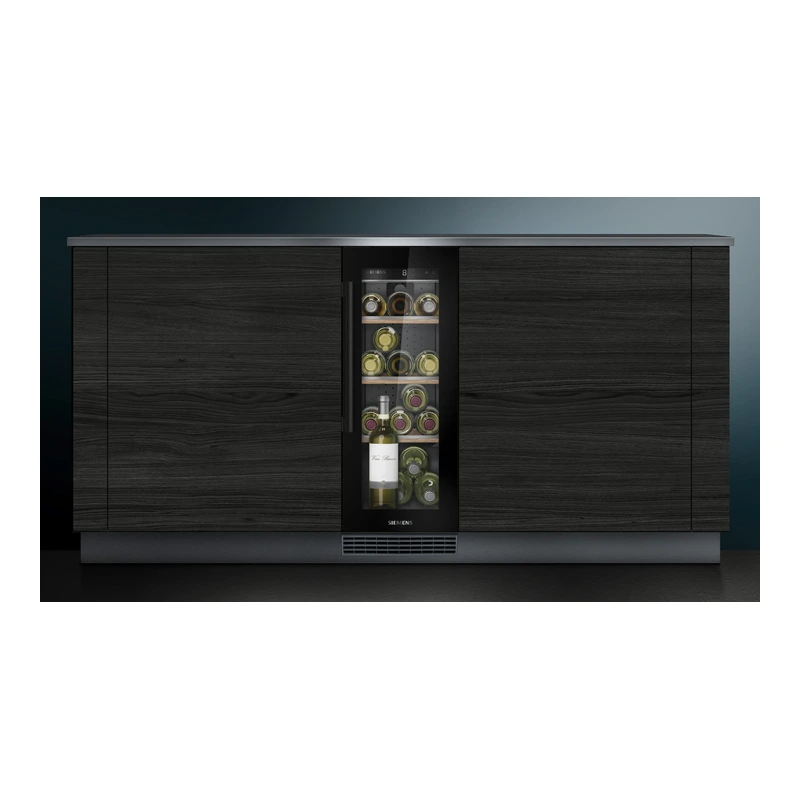

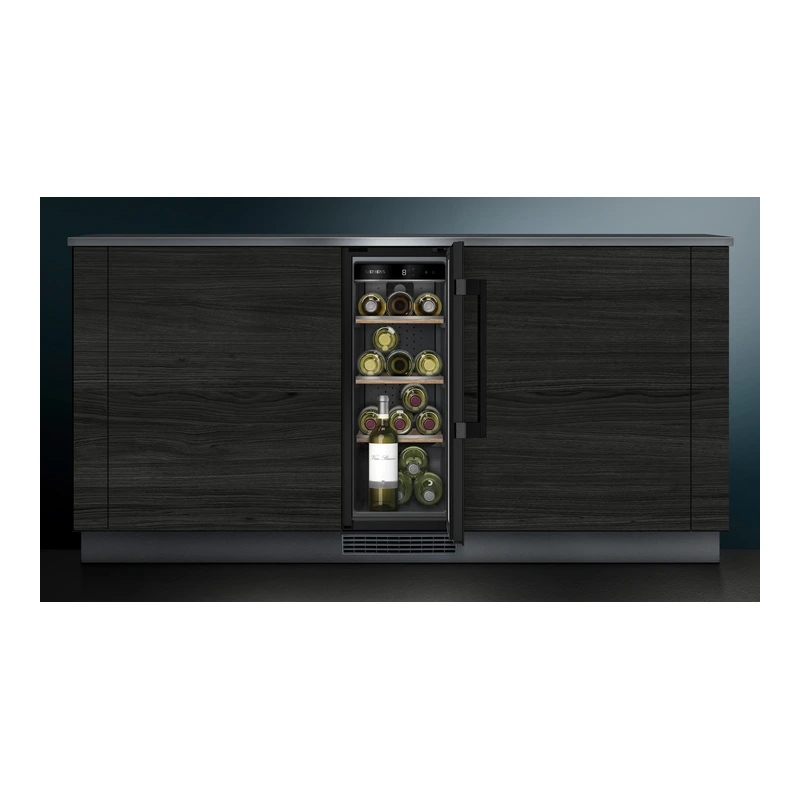

The Siemens iQ500 KU20WVHF0G is a built–under wine storage cabinet designed for exclusive wine storage with a total volume of 58 l for up to 21 bottles. It features electronic temperature control with a 5–20 °C range, oak shelves and a triple glazed glass door with UV filter to help protect valuable wines. With built–in installation, LED illumination with Soft Start and a reversible right–hinged door, it offers flexible integration and refined presentation.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Brand	Siemens
Product name / Commercial code	KU20WVHF0G
Product category	Winestorage / wine storage cabinet, built–under appliance
Installation type	Built–in, built–under appliance
Energy efficiency class	F (scale of energy efficiency classes from A to G)
Annual energy consumption	100 kWh/annum (100 kWh/a)
Total volume	58 l
Net fridge volume	58 l
Net freezer volume	0 l
Capacity of 75 cl bottles	21
Noise level	38 dB(A) re 1pW
Noise emission class	C (EU19_Noise emission class_D: C)
Climate class	SN–ST

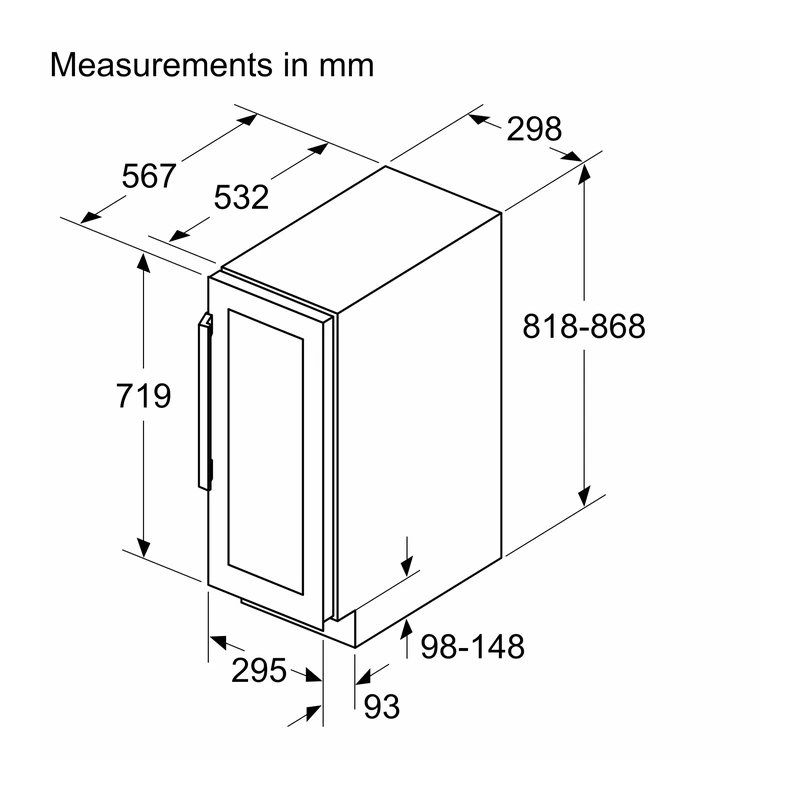

Height of appliance	818 mm (81.8 cm)
Width of appliance	298 mm (29.8 cm)
Depth of appliance (dimensions)	567 mm (56.7 cm)

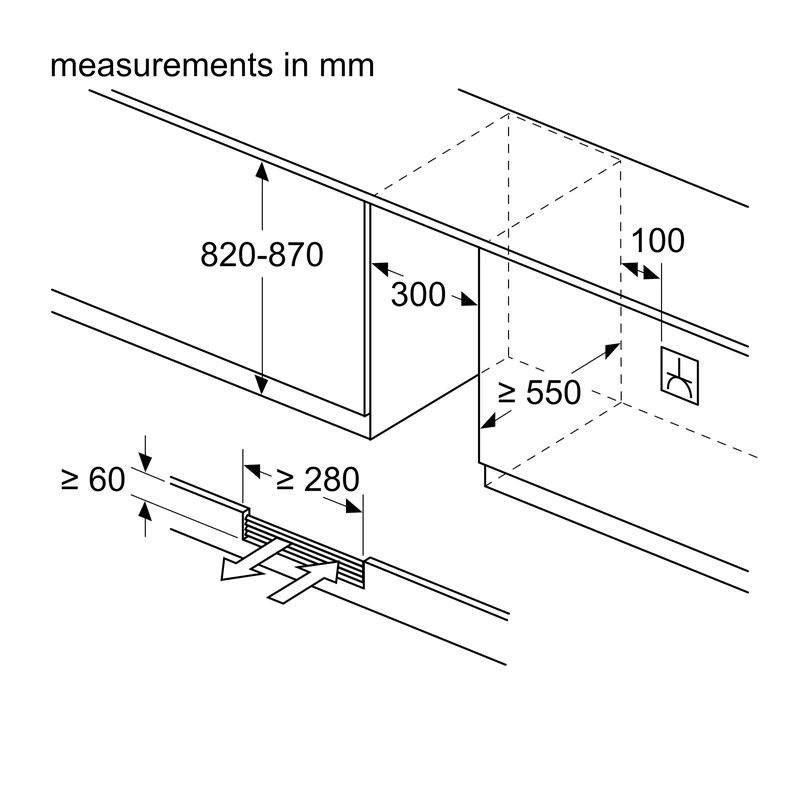

Required niche size (HxWxD)	820 × 300 × 550 mm (82 cm H × 30 cm W × 55 cm D)
Weight	27.2 kg
Temperature zones	1 temperature zone
Temperature range	5–20 °C

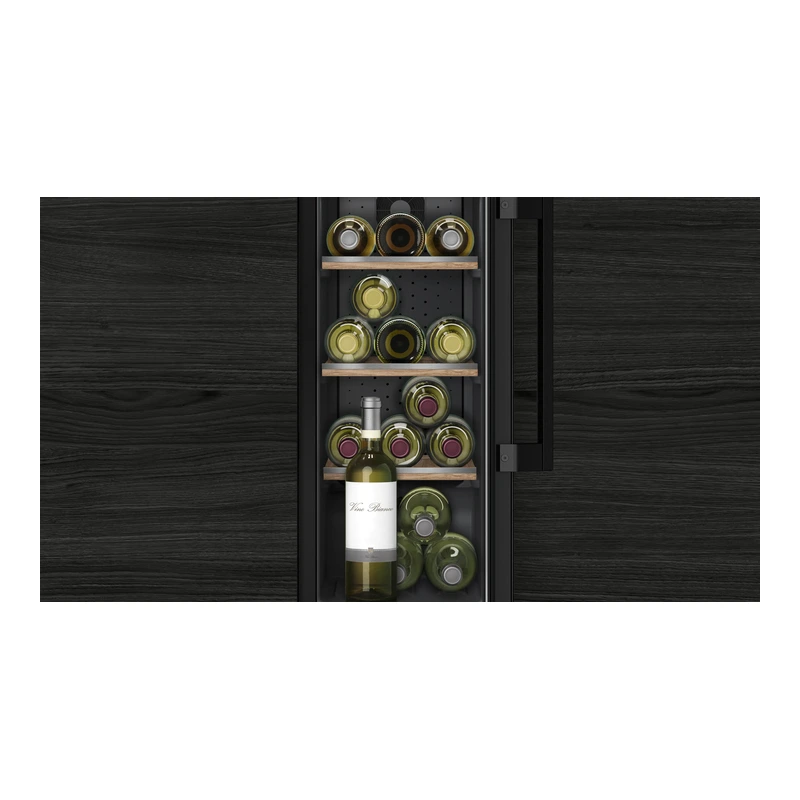

Bottle shelves	4 pc bottle shelves for 0.75 l, 3 pc wooden grills, standard shelf design
Interior light	LED with Soft Start; illumination on/off; Presenter Lighting; interior light switch: No
Door type	Glass, triple glazed door with UV–filter, right hinged door, door reversible

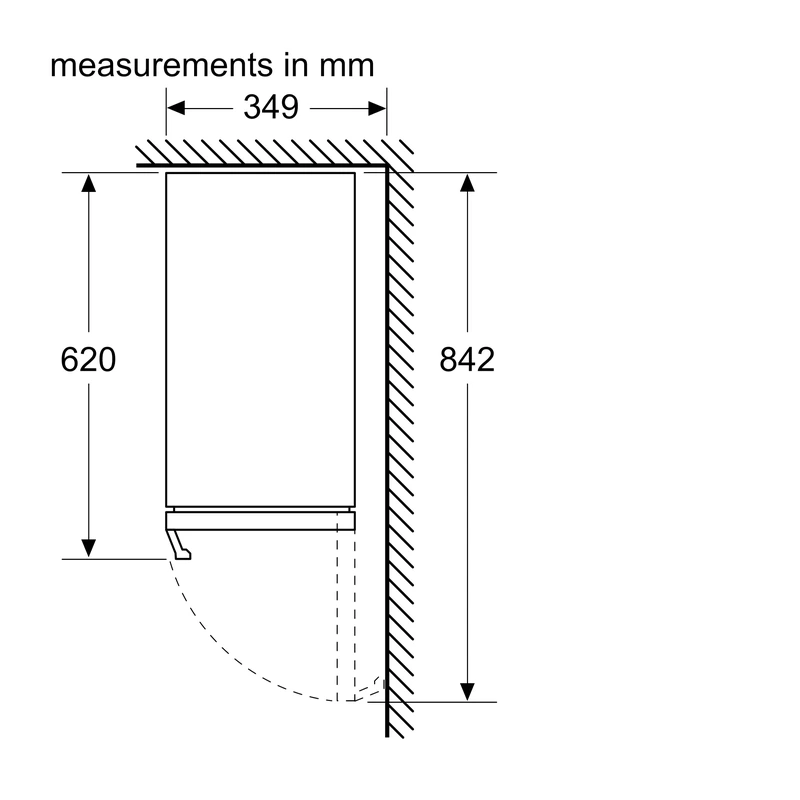

Door aperture angle	115°
Door panel options	Not possible
Lockable appliance	No
Child lock	Yes
Door open warning	Optical and acoustical door open warning system
Interior ventilator	Yes
Ventilation	Ventilation in plinth; plinth size can be varied; variable plinth adaption
Number of compressors	1
Independent cooling systems	1
Connection rating	70 W
Nominal power	220–240 V
Frequency	50–60 Hz
Fuse protection	6 A
Length of electrical supply cord	230 cm
Plug type	GB plug
EAN code	4242003893630
EU19_EEK_D	F
EU19_Fast freezer facility_D	Not stated in source
Intended use	This appliance is intended to be used exclusively for the storage of wine.
Based on standard 24–hour test	Actual consumption depends on usage/position of the appliance.
