What niche size is required for installation?

The required niche size for installation is 820 x 600 x 550 mm (height x width x depth). The appliance itself measures 82 cm H x 59.8 cm W x 54.8 cm D and is designed for ventilation through the plinth.

How much storage space does the fridge and freezer provide?

The total volume is 110 l, with 93 l net volume in the fridge section and 17 l net volume in the 4–star freezer section. The freezer includes an ice box and supports a freezing capacity of 3 kg in 24 hours.

What energy efficiency and noise levels does this appliance have?

The appliance is rated energy efficiency class D with an average annual energy consumption of 119 kWh. Airborne acoustical noise emissions are 35 dB(A) re 1pW and the noise emission class is B.

Does it have automatic defrosting and special cooling functions?

Yes. The fridge section benefits from automatic defrost. The superCooling function provides faster cooling for fresh food and switches off automatically. A fresh mode is available as part of the food freshness system.

Is the door reversible and what safety features are included?

The door is right hinged but reversible, and the appliance has a reversible door hinge. An optical and acoustical door open warning system serves as a door alarm to support worry–free cooling and freezing.

What connectivity and accessories are supplied?

Home Connect enables iService Remote plus remote monitoring and control via Wi–Fi. An ice cube tray is included. Optional accessories available are the KF10ZAX0 door panel with decor frame, KSZGGM00 butter box and KU20ZSX0 stainless steel attachment door.

Product Information Sheet

Siemens iQ500 Fridge inc Ice Box

SKU: KU22LVFD0G

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Siemens KU22LVFD0G iQ500 Fridge inc Ice Box

SKU: KU22LVFD0G · EAN: 4242003933695

Built Under Integrated

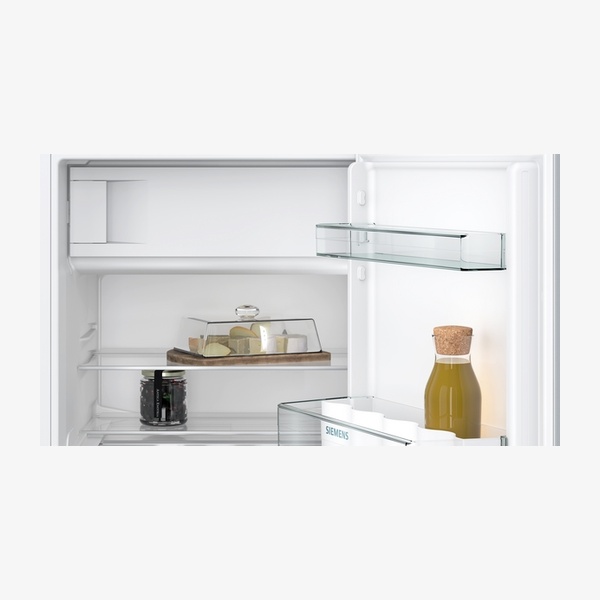

The Siemens iQ300 KU22LVFD0G is a fully integrated built-under fridge with 4–star freezer section, ideal where space is limited. With a total volume of 110 l, it offers 93 l fridge capacity and a 17 l freezer, plus superCooling for faster cooling of fresh food. LED lighting with Soft Start, easy–clean safetyGlass shelves and an optical and acoustical door alarm support convenient, worry–free cooling and freezing in a compact niche.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Brand	Siemens
Product family	iQ300 built-under fridge with freezer section
Product name / Commercial code	KU22LVFD0G
Product category	Upright fridge
Installation type	Fully integrated, built-in
Door panel options	Not possible
Energy efficiency class	D (EU19_EEK_D: D, scale A to G)
Average annual energy consumption	119 kWh/annum
Total volume	110 l
Net fridge volume	93 l
Net freezer volume	17 l
Sum of volume of chill compartments	93 l
Sum of volume of frozen compartments	17 l
Climate class	SN-T
Airborne acoustical noise emissions	35 dB(A) re 1pW
Noise emission class	B (EU19_Noise emission class_D: B)

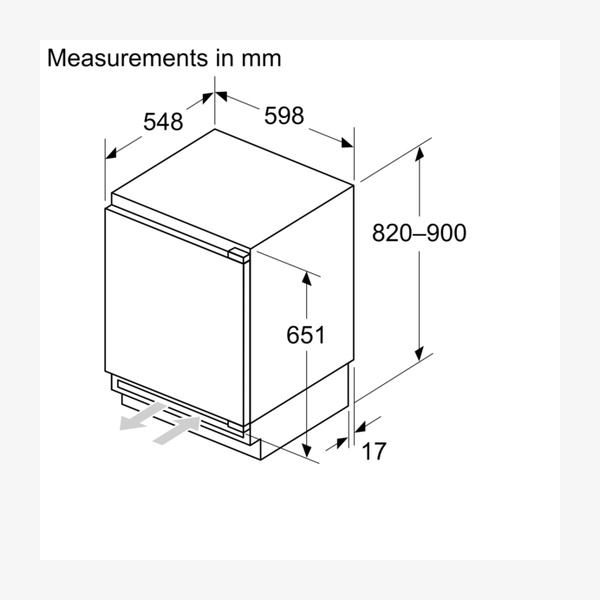

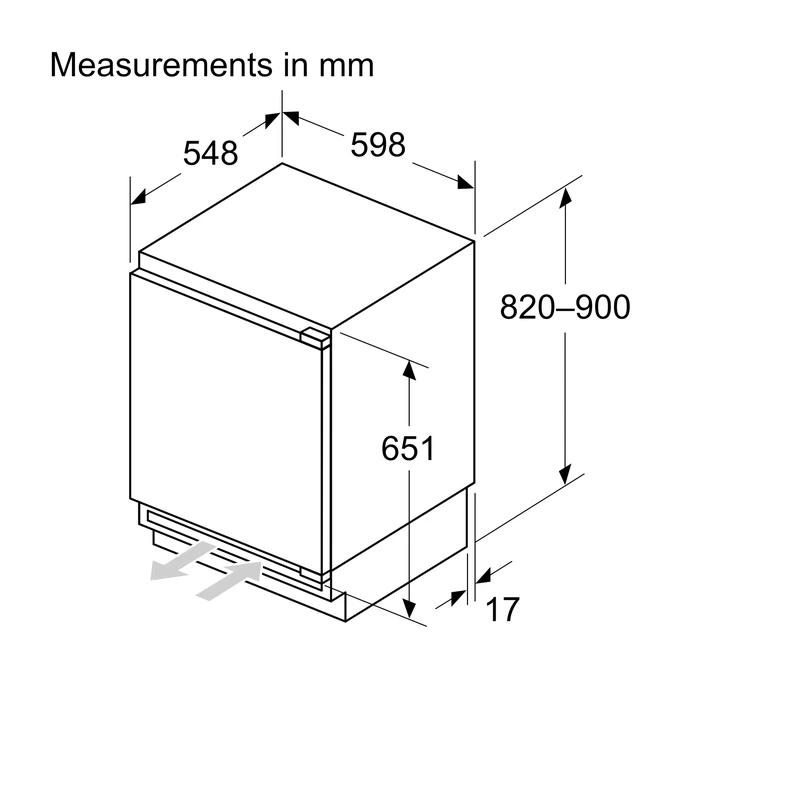

Height of appliance	820 mm (82 cm)
Width of appliance	598 mm (59.8 cm)
Depth of appliance	548 mm (54.8 cm)

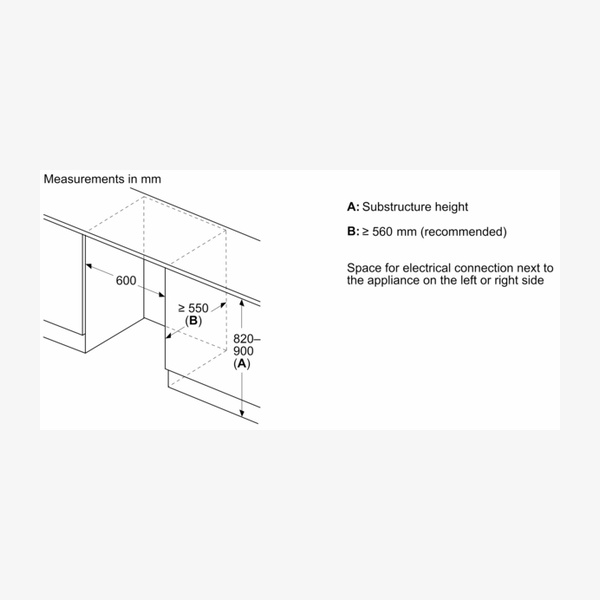

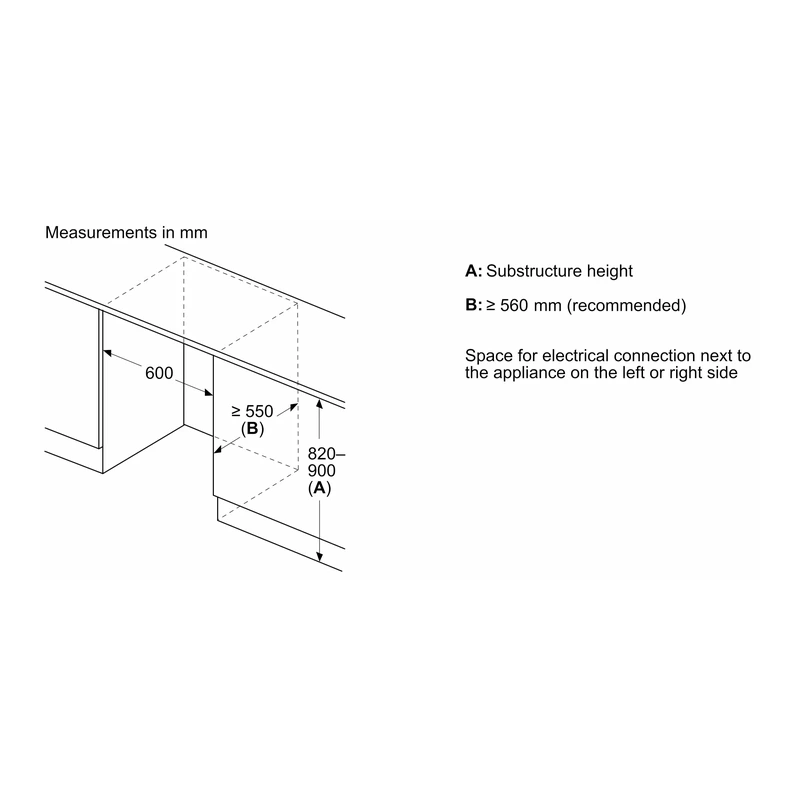

Required niche size (H x W x D)	820 x 600 x 550 mm (82 cm x 60 cm x 55 cm)

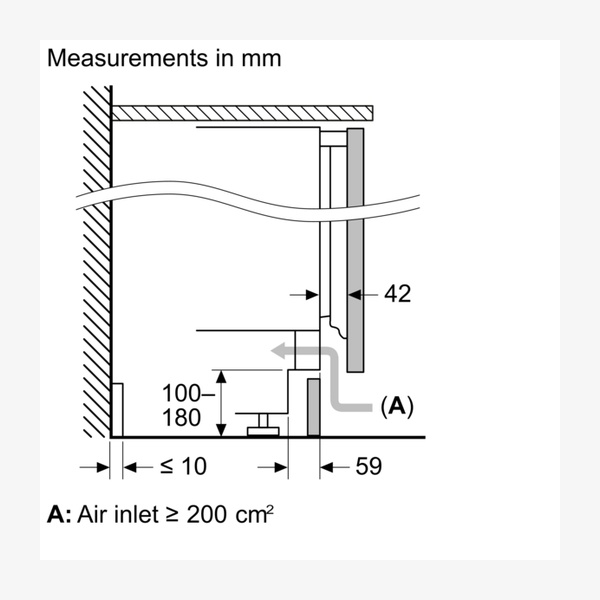

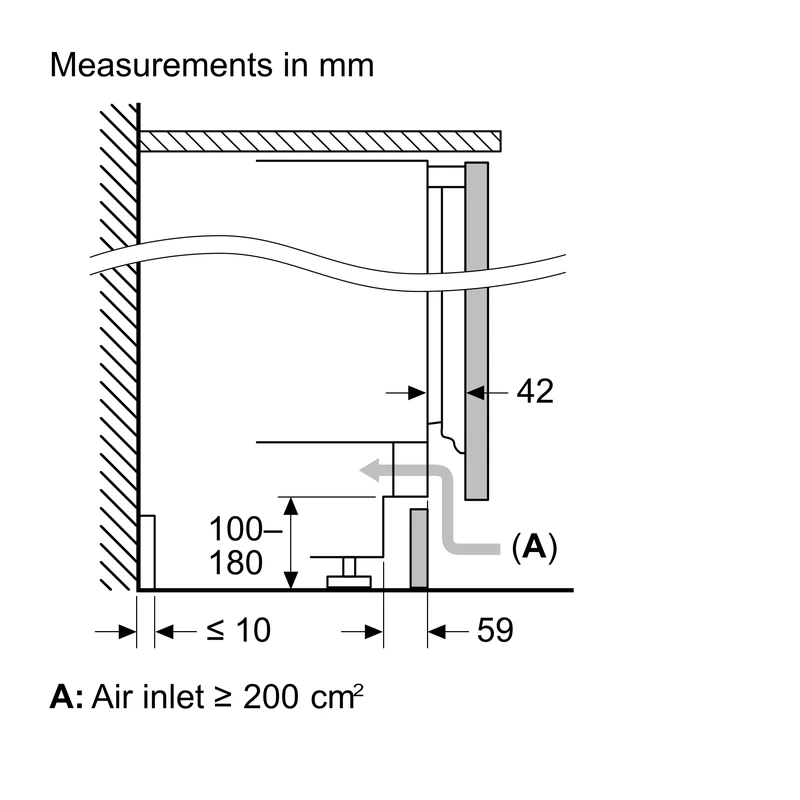

Ventilation	Ventilation through plinth
Weight	30.6 kg
Fuse protection	10 A
Nominal power / Voltage	220 – 240 V
Frequency	50 Hz
Length of power cord	230 cm
Number of compressors	1
Independent cooling systems	1
Interior ventilator	No

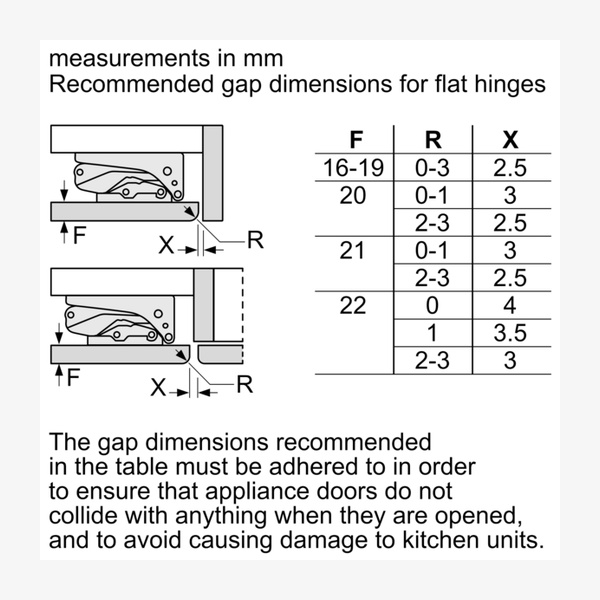

Reversible door hinge	Yes (right hinged door, reversible)
Number of adjustable shelves in fridge	1
Shelves for bottles	No (bottle holder in x–deep door tray)
Frost free system	N/A
Included accessories	1 x ice cube tray
Optional accessories	KF10ZAX0 door panel with decor frame; KSZGGM00 butter box; KU20ZSX0 attachment door, stainless steel
Temperature rise time	9 H (EU19_Temperature rise time_D: 9 H)
Fast freezer facility	EU19_Fast freezer facility_D
Freezing capacity (24 h)	3 kg

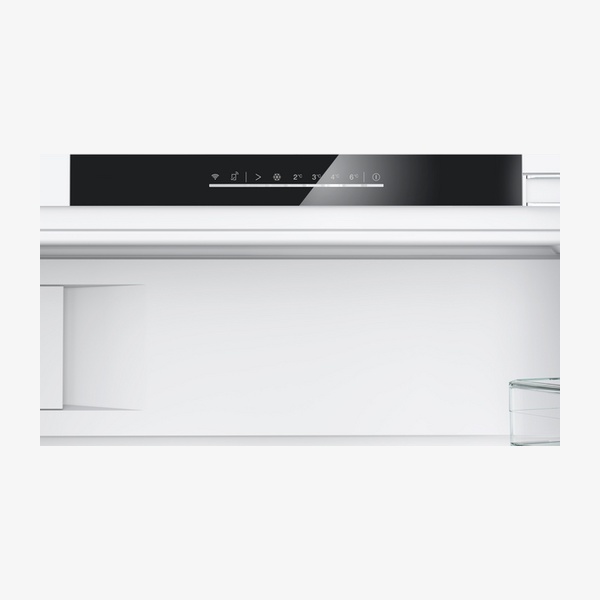

Control type	Electronic control (LED chain)
Lighting	LED fridge light with Soft Start
Freshness system	Fresh mode, food freshness system
Home Connect	iService Remote, Remote Monitoring and Control with Wi–Fi connectivity
Door opening	Right reversible
EAN code	4242003933695
