Siemens LB53NAA30B iQ100 Canopy Hood

SKU: LB53NAA30B · EAN: 4242003831717

Metallic Silver

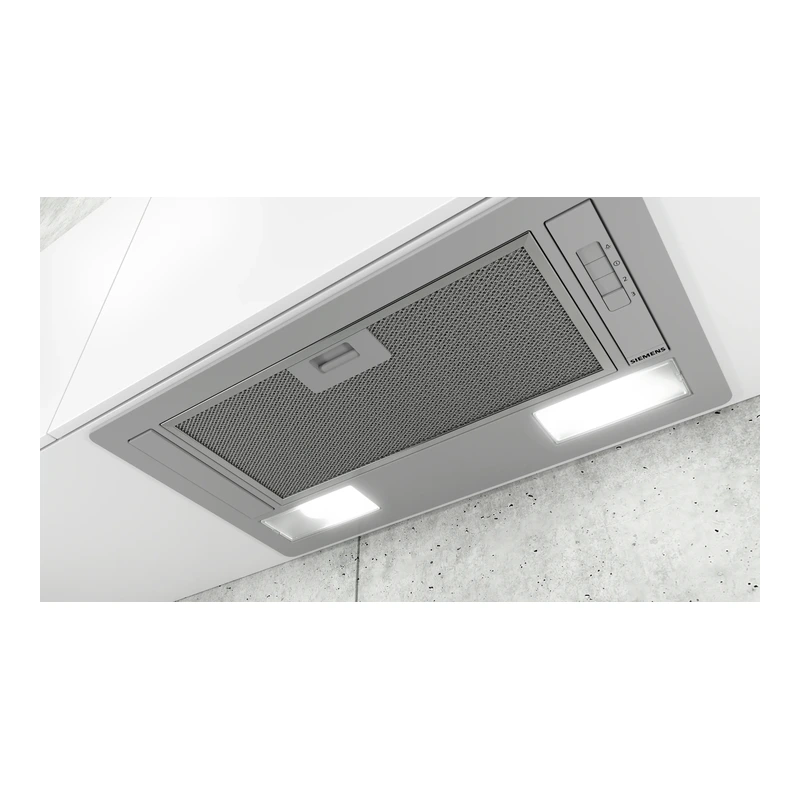

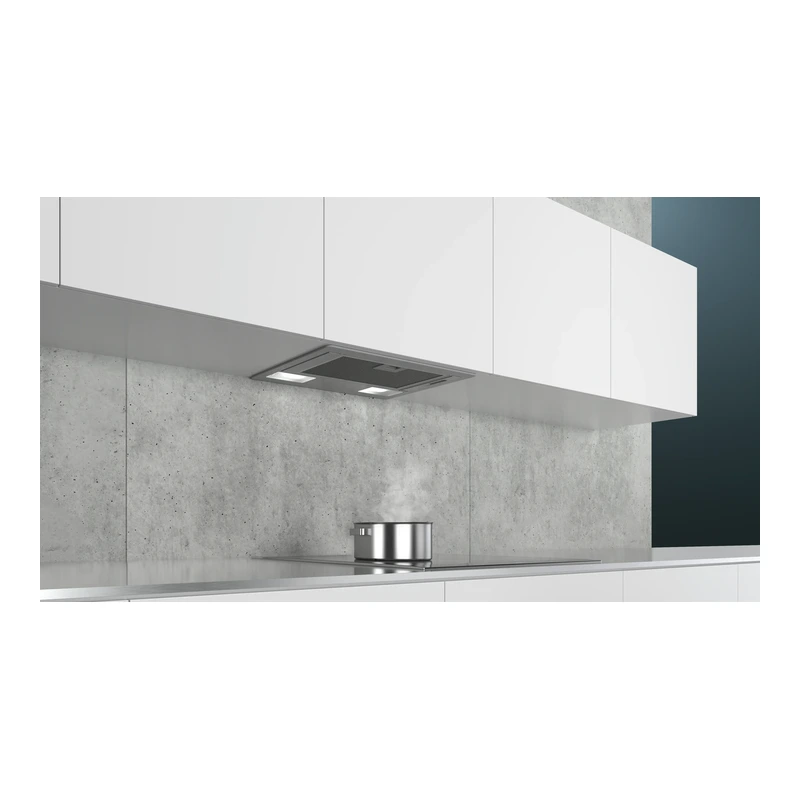

The iQ100 LB53NAA30B is a 53 cm grey canopy cooker hood designed for built-in installation above the hob. It offers a maximum extraction rate of 302 m³/h with three power levels, operated via mechanical push-button controls. Two 3 W LED lights with a warm 2700 K colour temperature illuminate the cooking area. Suitable for both ducted and recirculating operation, it features a washable metal grease filter cassette and a compact design for integration into kitchen units.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	iQ100, Canopy cooker hood, 53 cm, Grey
Model reference	LB53NAA30B
Typology	Built-in/Built-under
Installation type	Built-in, canopy hood, installation integrated in unit above hob
Energy Efficiency Class	D (at a range of energy efficiency classes from A+++ to D)
Max. extraction rate	302 m³/h (extraction rate according to EN 61591)
Max. recirculating air output	300 m³/h
Maximum air flow	302 m³/h
Noise level (max. normal setting)	62 dB(A) re 1 pW (48 dB(A) re 20 µPa sound pressure)

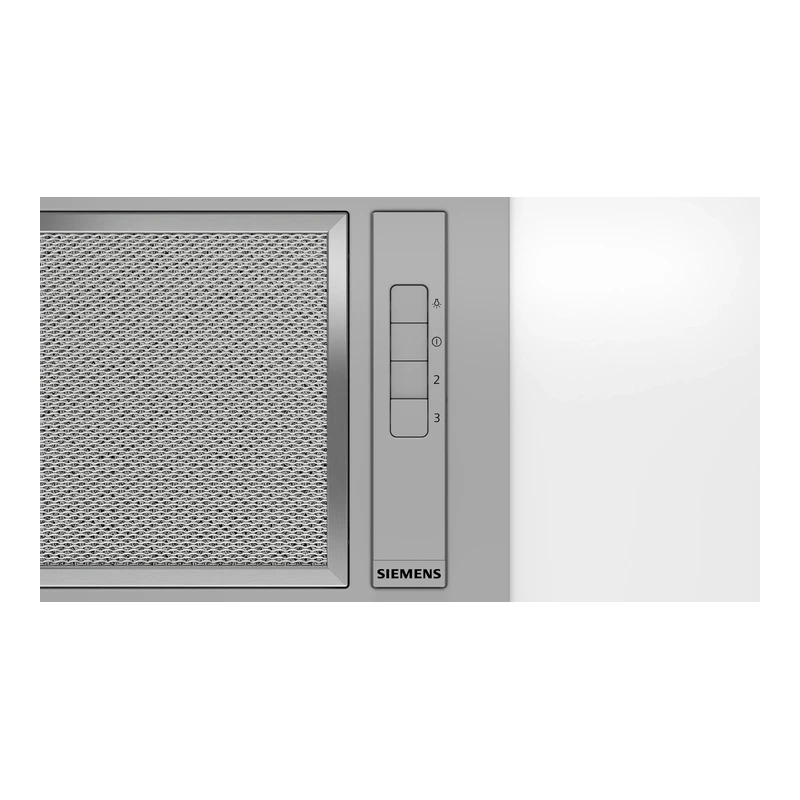

Control panel / operation	Mechanical, push button control for extractor speeds and light
Number of speed settings	3
Number of lights	2 × 3 W LED
Light colour temperature	2700 K
Light intensity	78 lux
Grease filter	1 × metal grease filter cassette, washable aluminium
Suitable for	Ducted and recirculating operation
Average energy consumption	67.7 kWh/year*
Blower Efficiency Class	E*
Lighting Efficiency Class	D*
Grease Filtering Efficiency Class	D*
Connection rating	121 W (Power rating: 121 W)
Electrical supply voltage	220–240 V
Frequency	50 Hz
Fuse protection	5 A
Plug type	GB plug
Electrical cable length	1.5 m (150 cm)
Diameter of air outlet / pipe	120 mm (Ø 120 mm enclosed)
Height of the appliance	208 mm

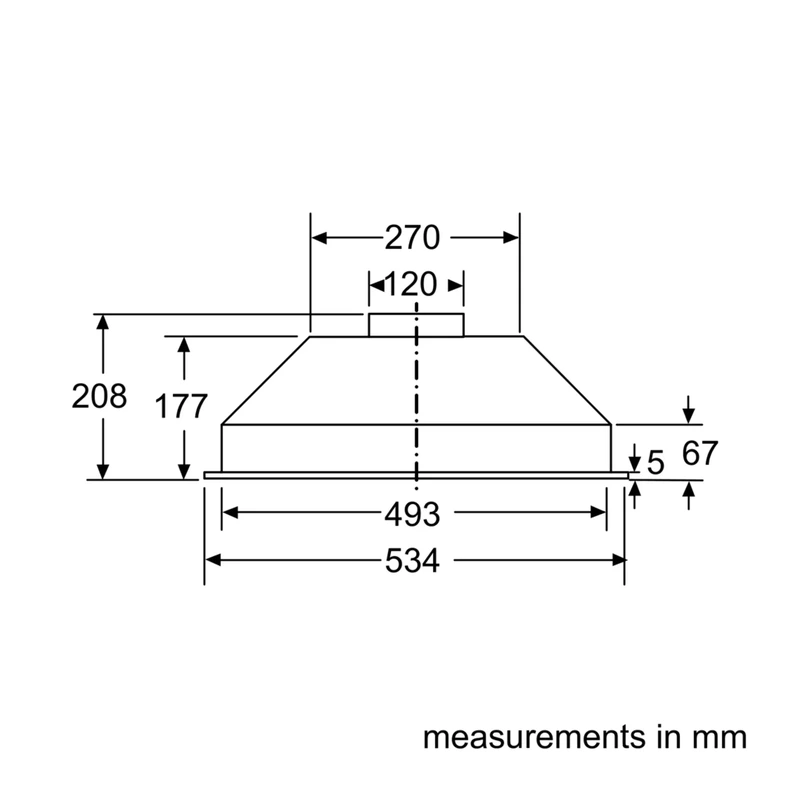

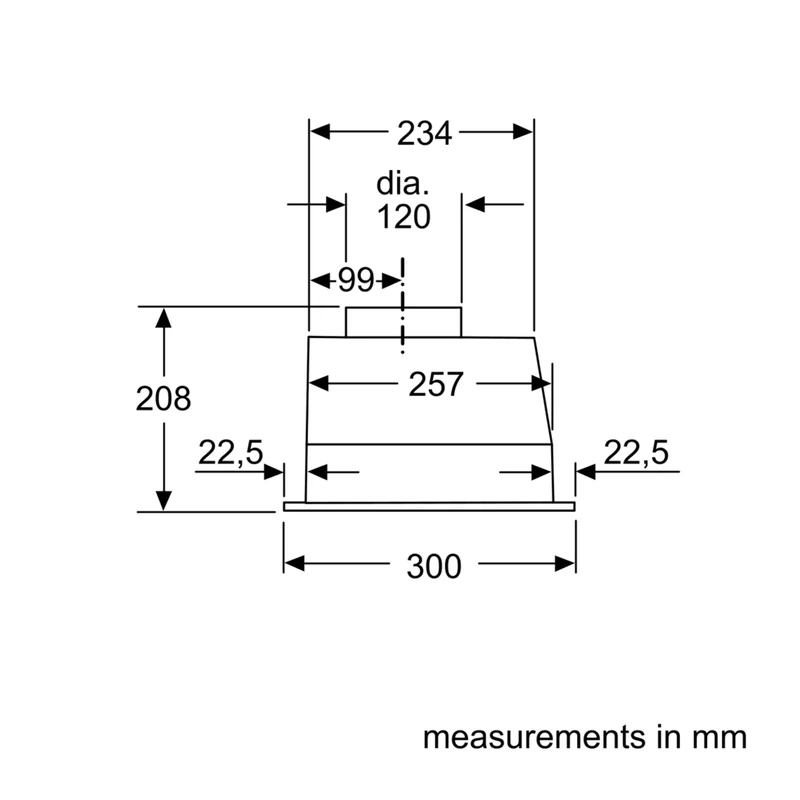

Dimensions exhaust air (HxWxD)	208–208 × 534 × 300 mm
Dimensions recirculating (HxWxD)	208–208 × 534 × 300 mm

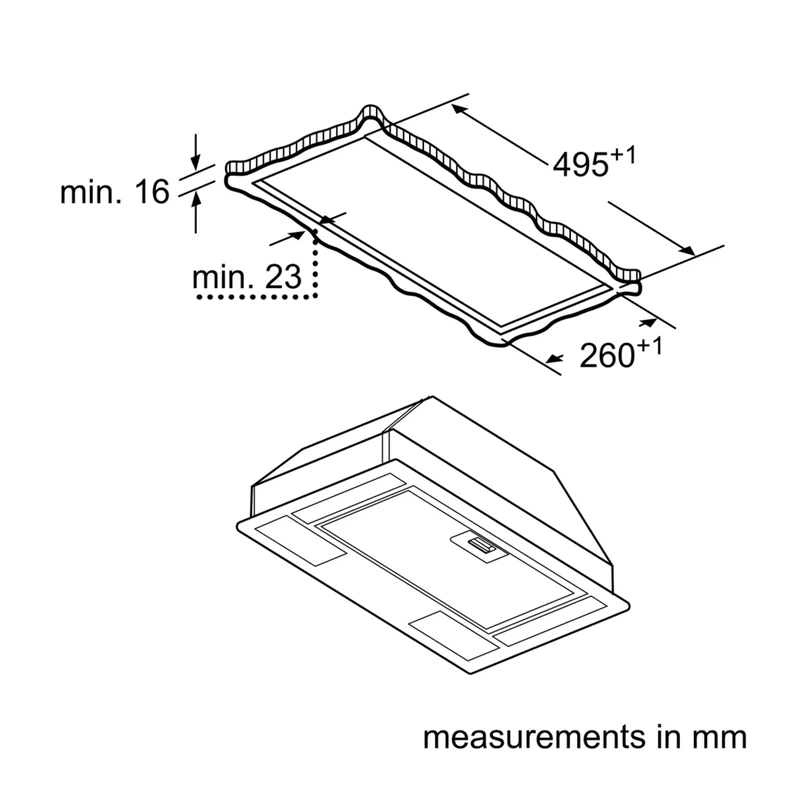

Required niche size (HxWxD)	208 mm × 493.0 mm × 257 mm
Built-in dimensions (HxWxD)	208 × 493 × 257 mm

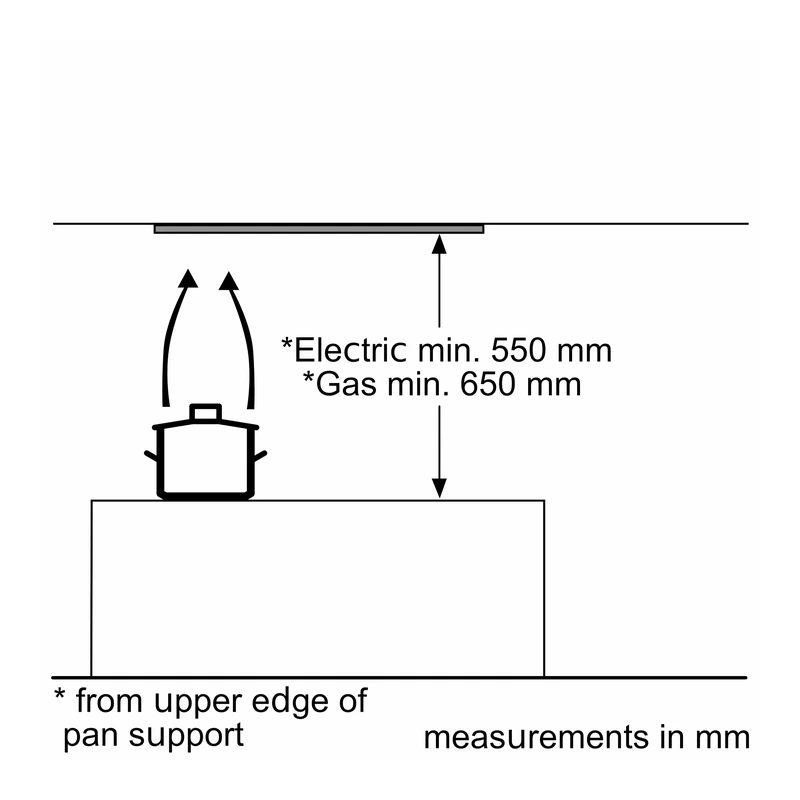

Minimum distance above electric hob	550 mm
Minimum distance above gas hob	650 mm
Width	53 cm nominal width; hood dimensions 534 mm wide
Weight	5.0 kg
Colour	Grey
EAN code	4242003831717

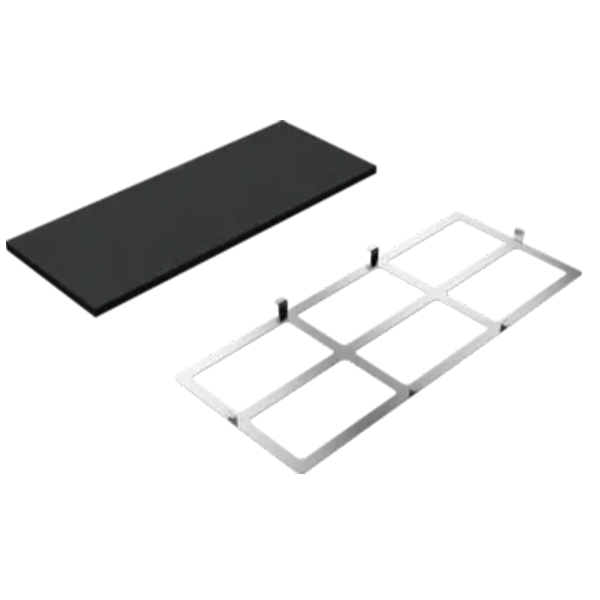

Optional accessories	LZ10INA00 Standard odour filter (replacement); LZ10INT00 Standard recirculation kit; Recirculating kit LZ10INA00; for recirculated extraction a recirculating kit or a CleanAir recirculation kit (accessory) is needed
