Is the LJ97BAM60B suitable for both ducted and recirculating operation?

Yes, it is suitable for ducted and recirculating operation. For recirculated extraction, various recirculation kits are available as optional accessories, including Clean Air Plus and Clean Air Standard options.

What storage capacity does the integrated hood provide?

The space-efficient compact design offers extra storage possibilities on the hood, with up to a maximum storage weight of 10 kg per side. Mats are included to protect the storage areas and help prevent items moving.

How is the extraction and lighting controlled?

Extraction and lighting are automatically turned on and off by opening and closing the glass panel. Additionally, lighting can be turned on and off when the glass panel is closed with a quick hand touch on the electronic touchControl panel.

What are the noise levels during operation?

In exhaust air mode, the noise level is 63 dB(A) re 1 pW at maximum normal use and 73 dB(A) re 1 pW on intensive. With the Clean Air Plus recirculation kit (optional), the noise level in recirculation mode is 67 dB(A) re 1 pW (normal) and 74 dB(A) re 1 pW (intensive).

What minimum distance is required between the hood and the hob?

The minimum distance above an electric hob is 430 mm, and the minimum distance above a gas hob is 650 mm.

How energy efficient is the LJ97BAM60B?

The hood has an energy efficiency class B, with an average energy consumption of 64.7 kWh/year. It has blower efficiency class B, lighting efficiency class A and grease filtering efficiency class B, in accordance with EU-Regulation No 65/2014.

Product Information Sheet

Siemens iQ500 Canopy Hood

SKU: LJ97BAM60B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Siemens LJ97BAM60B iQ500 Canopy Hood

SKU: LJ97BAM60B · EAN: 4242003906385

Black body & fold out glass

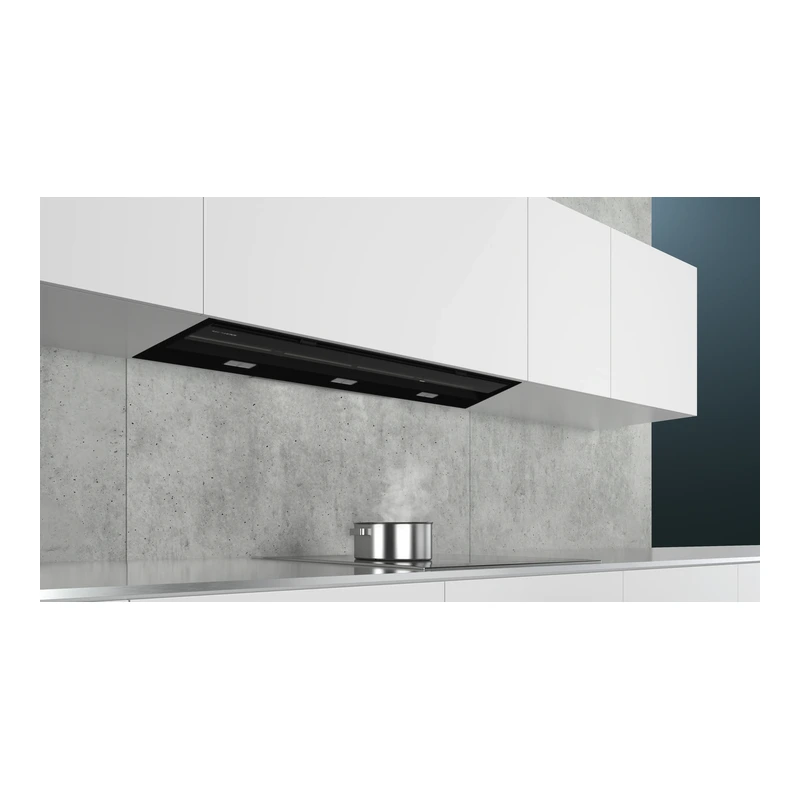

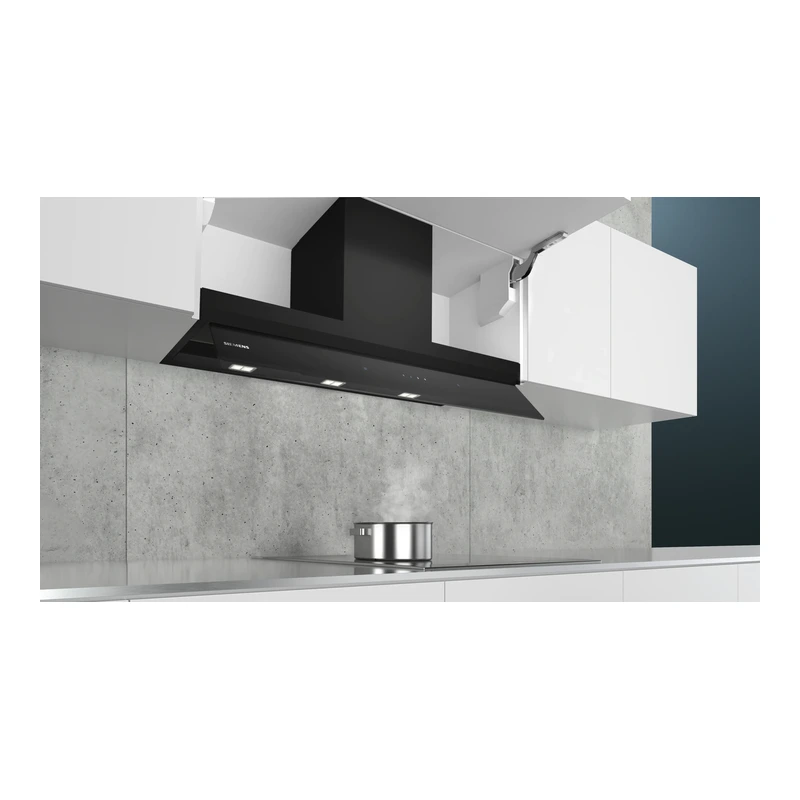

The Siemens iQ500 LJ97BAM60B is a 90 cm integrated design hood with clear glass black printed styling, designed for seamless, flush-fitted installation in wall cupboards. It offers built-in or built-under installation, with space-efficient storage on the hood of up to 10 kg per side. With electronic touchControl, three power levels plus intensive setting, efficient LED lighting and options for ducted or recirculating operation, it provides powerful extraction and convenient everyday use.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product series	iQ500 Integrated Design Hood
Model	LJ97BAM60B
Colour / finish	90 cm, clear glass black printed, black
Typology	Built-in/Built-under
Installation type	Built-in; Installation system: IDH comfort installation

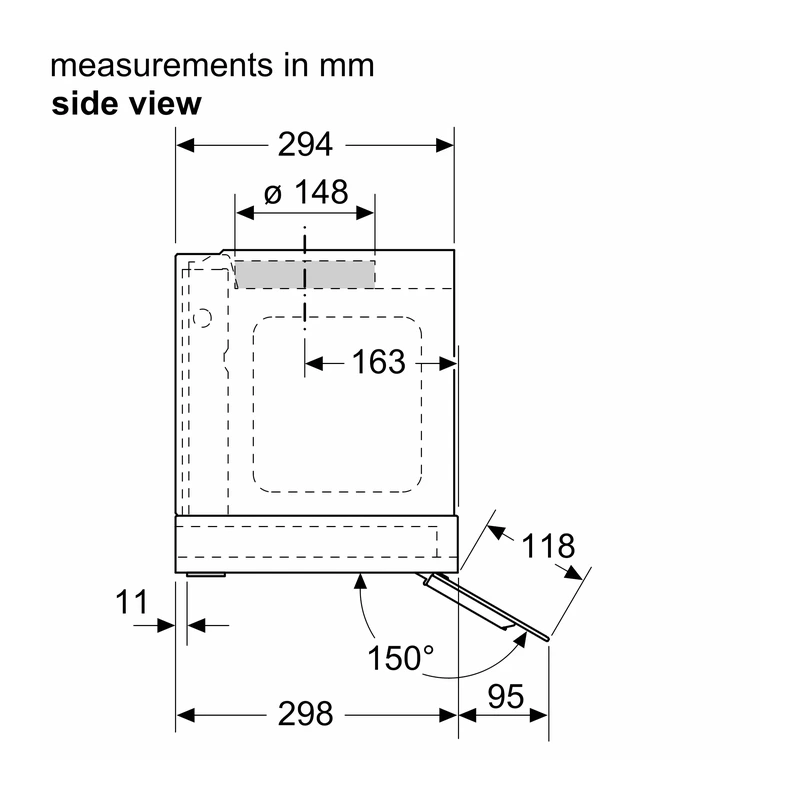

Width	90 cm wide; external dimensions 340 x 897 x 298 mm (HxWxD)

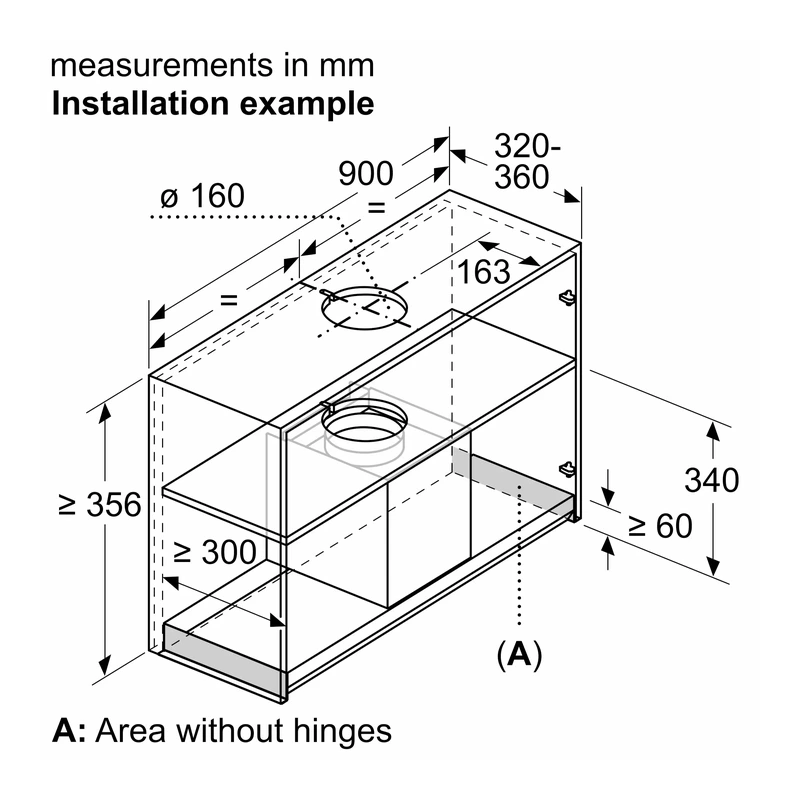

Built-in dimensions	340 x 860 x 300 mm (HxWxD)
Appliance height	60 mm
Required niche size (HxWxD)	340 mm x 860.0 mm x 300 mm
Minimum distance above electric hob	430 mm
Minimum distance above gas hob	650 mm
Weight	10.6 kg
Control panel	Electronic, glass panel with touch control / touchControl Plus
Speed settings	3-stages + intensive setting
Maximum extraction (exhaust, normal)	460 m³/h (EN 61591 ø 15 cm)
Maximum extraction (exhaust, intensive)	749 m³/h (Boost position air extraction)
Maximum airflow	460 m³/h
Max recirculation (normal)	451 m³/h with Clean Air Plus recirculation kit (optional)
Max recirculation (intensive)	652 m³/h Boost position (with Clean Air Plus kit, optional)
Noise level (exhaust, normal)	63 dB(A) re 1 pW (max. normal use)
Noise level (exhaust, intensive)	73 dB(A) re 1 pW
Noise level (recirculation, normal)	67 dB(A) re 1 pW (with Clean Air Plus kit, optional)
Noise level (recirculation, intensive)	74 dB(A) re 1 pW (with Clean Air Plus kit, optional)

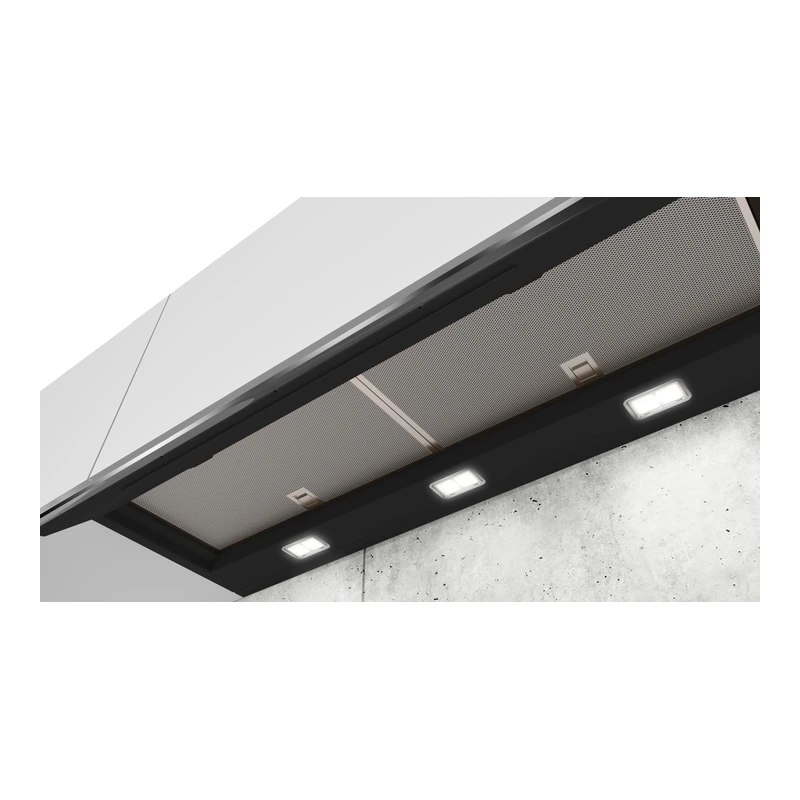

Number of lights	3 x 2 W LED lights
Light colour temperature	3500 K
Light intensity	517 lux

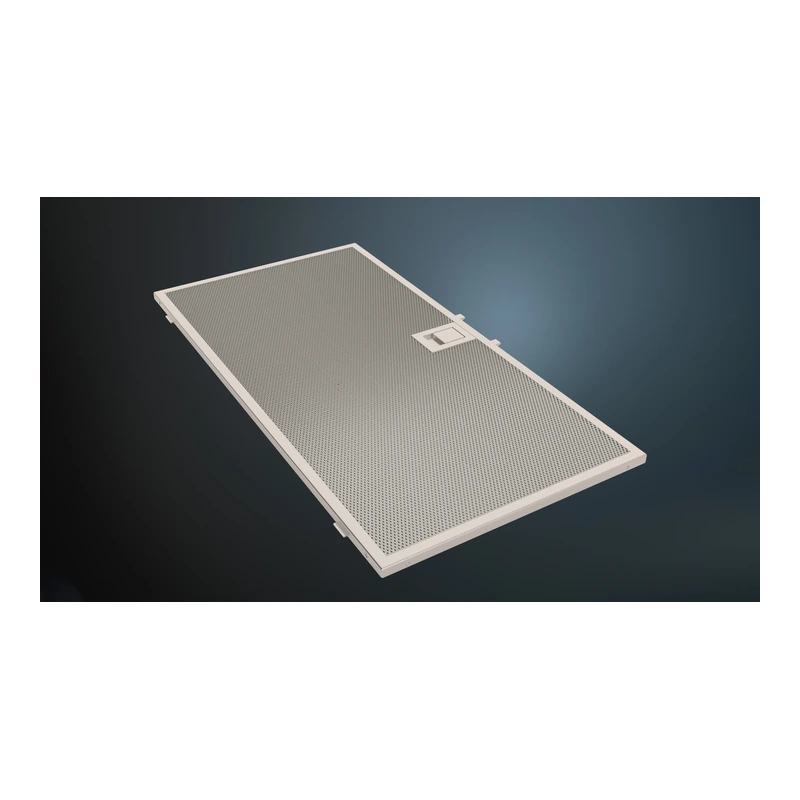

Grease filter material	Washable stainless steel; 2 x metal grease filter cassettes
Energy efficiency class	B (range A+++ to D)
Average energy consumption	64.7 kWh/year*
Blower efficiency class	B*
Lighting efficiency class	A*
Grease filtering efficiency class	B*
Connection rating	259 W (Power rating: 259 W)
Voltage	220–240 V
Frequency	50 Hz
Plug type	GB plug
Length of electrical supply cord	130 cm / 1.3 m
Air outlet diameter	120 / 150 mm (Diameter pipe Ø 150 mm; Ø 120 mm enclosed)
Back-pressure flap	Yes
EAN	4242003906385
Operation modes	Suitable for ducted and recirculating operation

*In accordance with EU-Regulation No 65/2014.

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Siemens →

Optional Accessories

— add individually to your enquiry

Optional

LZ11IXC16

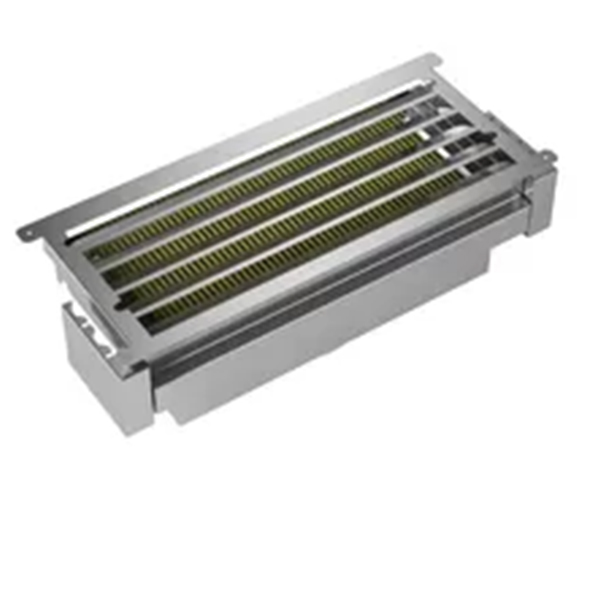

Siemens CleanAir Plus Anti-Pollen Recirculation Kit

Delivery & Returns

Delivery

Free delivery to London addresses to ground floor only (service lift access accepted). Some appliances carry standard manufacturer delivery charges — confirmed at time of quotation. UK mainland delivery available for an additional charge. Lead times vary by make, model, and manufacturer availability.

Installation

We do not install appliances. We can recommend vetted fitters operating within London — payments are made directly with the fitter. Woodalls accepts no responsibility for installation work carried out by any third party.

Returns

14-day return window from the day after delivery. Items must be unused, uninstalled, and in original packaging. View our full returns policy →

Authorised Dealer

All products are supplied as an authorised Siemens dealer, with full manufacturer warranty. Established 1967.
