What size space do I need for the Smeg DIFABCR dishwasher?

The dishwasher is 598 mm wide, 818 mm high and 545 mm deep. With the door open the depth is 1146 mm. Adjustable feet allow the height to be set from 820 to 890 mm, and the plinth height can range from 100 to 228 mm.

How many place settings and baskets does this dishwasher have?

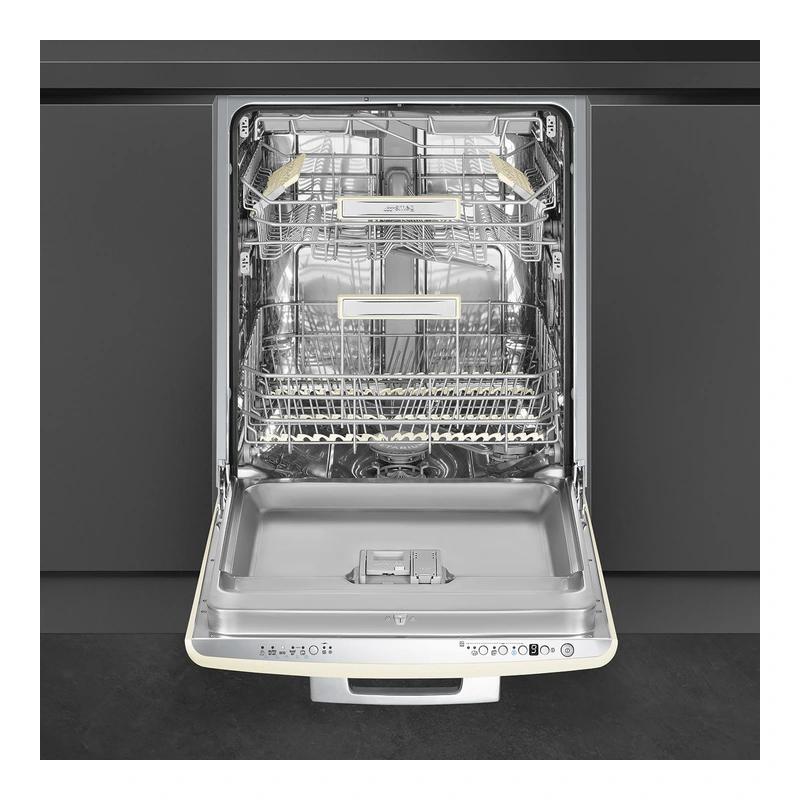

The Smeg DIFABCR has a rated capacity of 13 place settings and comes with three baskets, including a FlexiDuo 3rd cutlery basket. The upper and lower baskets both feature foldable racks for flexible loading.

Which washing programmes are available?

It offers 10+1 programmes: Soak, Express 27', Crystal, Full express – 60 minutes, ECO, Auto sensor 45–65, Mix, Quiet (–2 dB), Intense, Self clean and Hygiene 99,9%. Additional glossary descriptions include Normal, Rapid 27 mins and Ultraclean options.

What are the energy and water consumption figures?

The dishwasher has Energy Efficiency Class B with an energy efficiency index of 37.9. Energy consumption is 63 kWh per 100 cycles based on the ECO programme, water consumption is 9.0 litres per cycle, and the ECO programme duration is 4:25 h:min.

How loud is the Smeg DIFABCR in operation?

Airborne acoustical noise emissions are 44 dB(A) re 1 pW with a noise emission class of B. There is also a Quiet (–2 dB) programme, and the appliance benefits from excellent insulation and special devices to keep noise to a minimum.

What safety features does this dishwasher include?

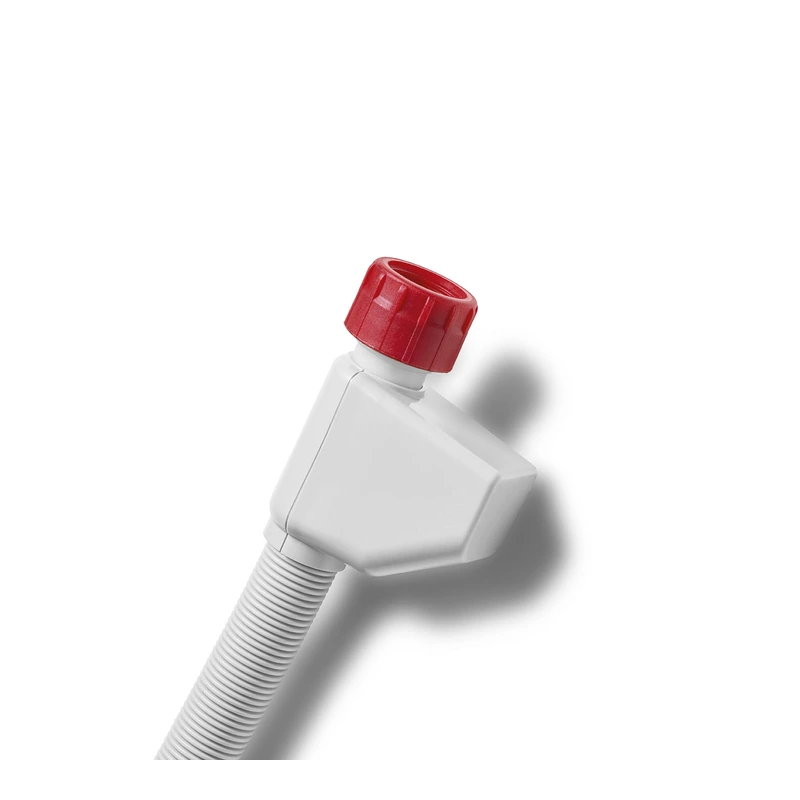

Safety features include the Total Acquastop flood protection system, which monitors water levels, detects hose leaks and switches off the water supply when necessary. The appliance also uses a concealed heating element and offers steam protection in plastic.

Product Information Sheet

Smeg 50's Style Integrated Dishwasher

SKU: DIFABCR

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 13 June 2026

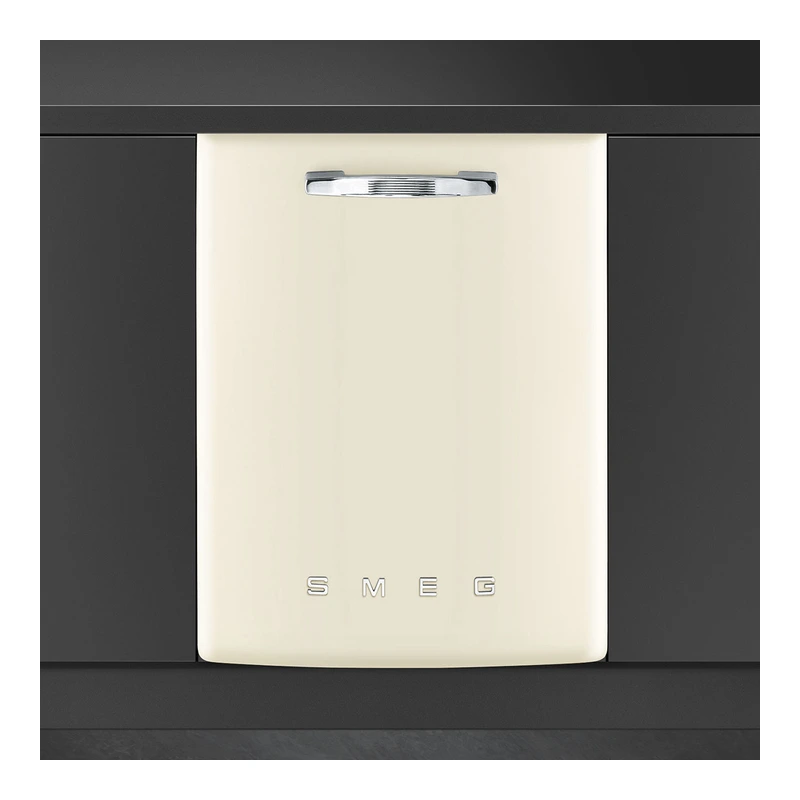

Smeg DIFABCR 50's Style Integrated Dishwasher

SKU: DIFABCR · EAN: 8017709307899

Cream

The Smeg DIFABCR is a 60 cm under counter built–in dishwasher with a 13 place setting capacity and Energy Efficiency Class B. It offers 10+1 programmes, including ECO, Auto 45–65 °C and Hygiene 99,9%, supported by an Inverter 2.0 motor and Planetarium washing system. With three grey baskets featuring FlexiDuo, EasyGlide and foldable racks, plus Dry Assist+ automatic door opening, it is designed for efficient cleaning and drying performance.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Dishwashers
Model	DIFABCR
EAN code	8017709307899
Installation	Under counter built–in
Kitchen panel	Not supplied
Width	60 cm / 598 mm
Commercial height	82 cm
Product height	818 mm
Depth	545 mm
Depth with open door	1146 mm
Rated capacity	13 place settings (ps)
Number of baskets	3, FlexiDuo
Basket colour	Grey
Basket components colour	Grey
Inner components colour	Cup shelves, handle, anti drop inserts, cutlery basket: same colour of dishwasher
Upper basket	With 3 foldable racks, glass holder, EasyGlide system, height adjustment on three levels
Lower basket	With 4 foldable racks, anti–drip inserts

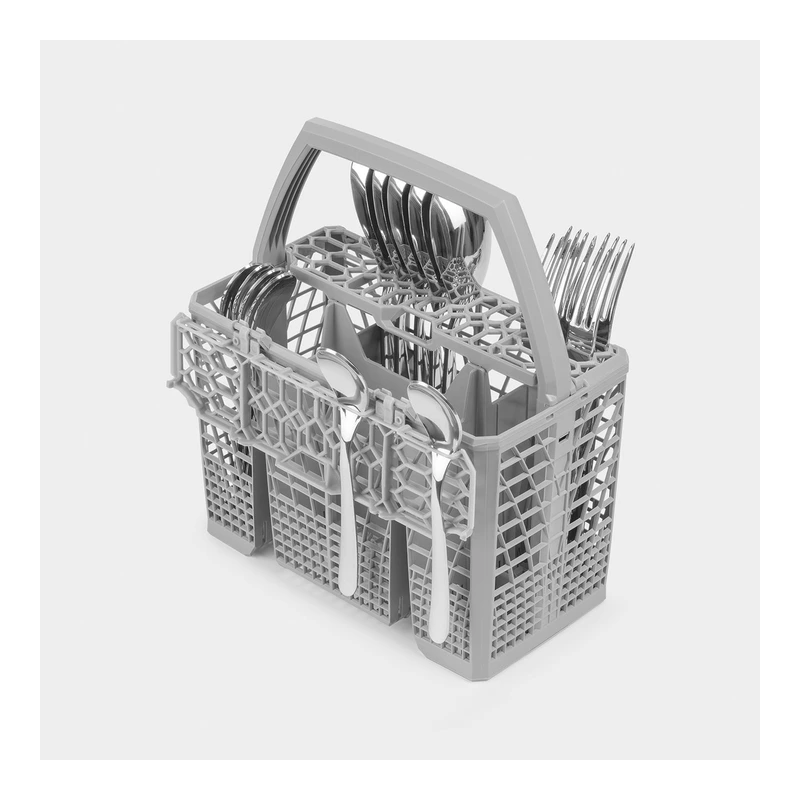

Cutlery basket	Yes (FlexiDuo 3rd basket)
Largest dish in upper basket	19.0 cm
Largest dish in lower basket	30.0 cm
Handle	In plastic on upper and lower basket
Motor	Inverter 2.0
Washing system	Planetarium
Third spray arm	Single
Water softener	With electronic setting
Turbidity sensor	Aquatest
Flood protection	Total Acquastop
Water supply	Single; cold/hot water max. 60 °C – energysave with hot water up to 35 °C
Max water hardness	100°fH;58°dH
Drying system	Natural condenser drying with Dry Assist+ automatic door opening system at end of cycle
Steam protection	In plastic
Tank material	Stainless steel
Filter	Stainless steel
Heating element	Concealed heating element
Hinges	Self balancing with fixed hinges
Min. and max plinth height	100 – 228 mm
Adjustable feet	7 cm, from 820 to 890 mm
Back cover	Yes
Back feet adjustable from front	Yes
Top cover	In plastic
Controls	Electronic
Display type	1 digit
Display functions	Delayed start; programme graphics with symbols and label
On/off indicator	Yes
Salt light indicator	Light
Rinse aid indicator	Light
End of cycle indicator	Acoustic signal
Number of programmes	10+1
Washing temperatures	38, 45, 50, 55, 65, 70, 75 °C
Energy Efficiency Class (washing cycle)	B
Energy consumption (per 100 cycles, ECO)	63 kWh
Water consumption (per cycle)	9.0 litres
Programme duration (ECO)	4:25 h:min
Airborne noise emissions	44 dB(A) re 1 pW
Noise emission class	B
Energy efficiency index (EEI)	37.9
Connected power	1800 W
Current	13 A
Voltage	220–240 V
Frequency	50 Hz
Type of connection	Single–phase
Power supply cable length	140 cm
Plug	(G) UK e Singapore
