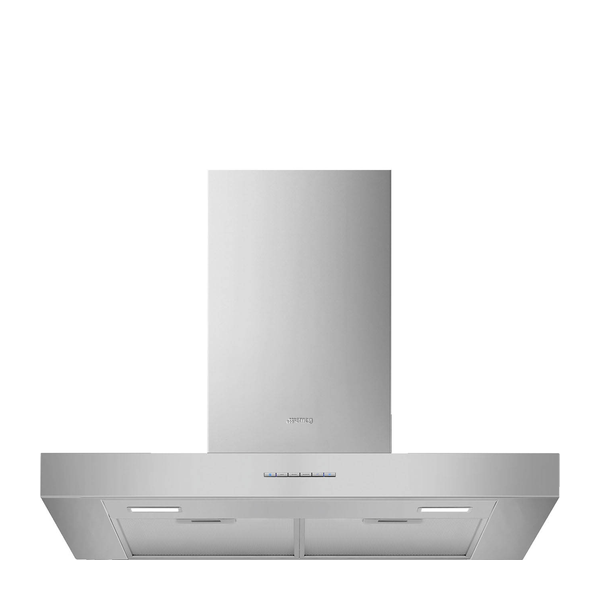

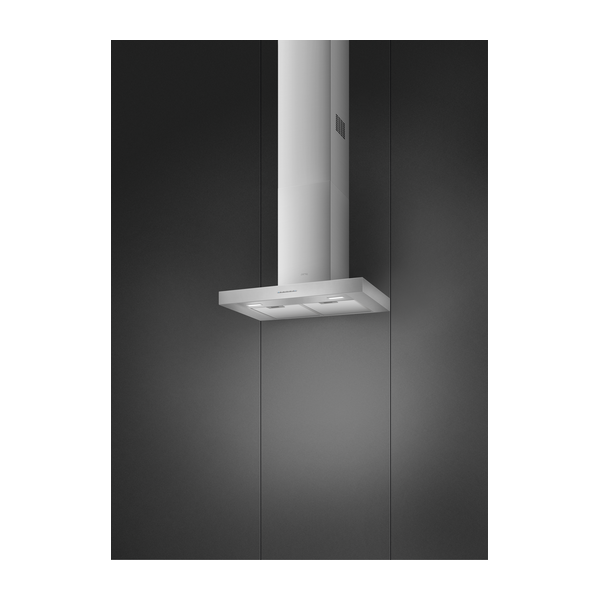

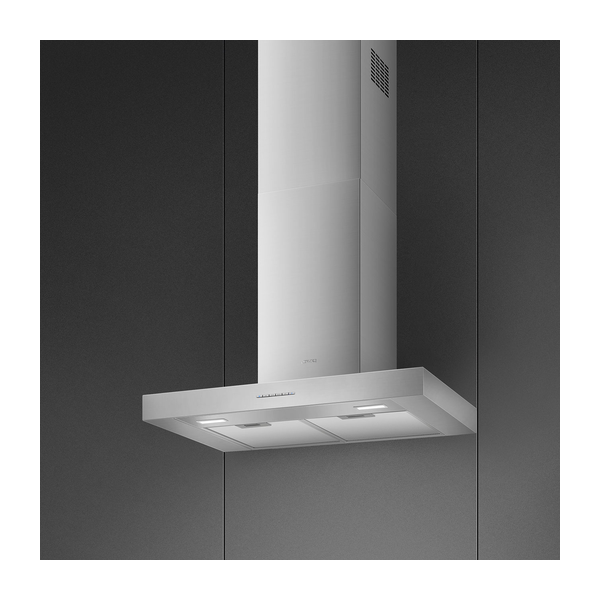

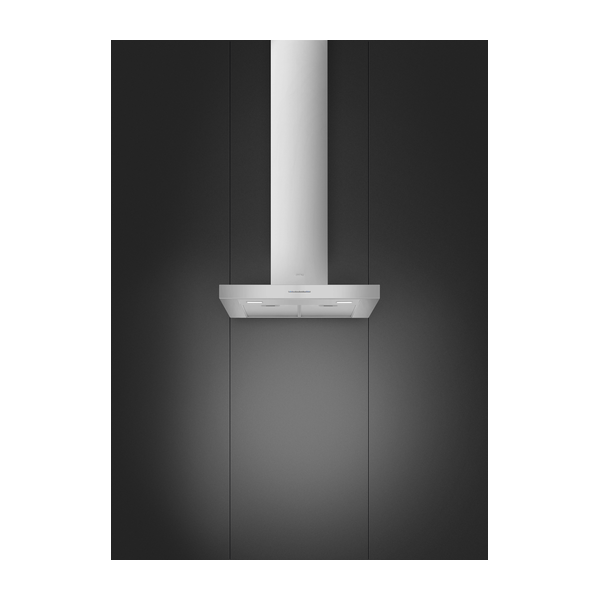

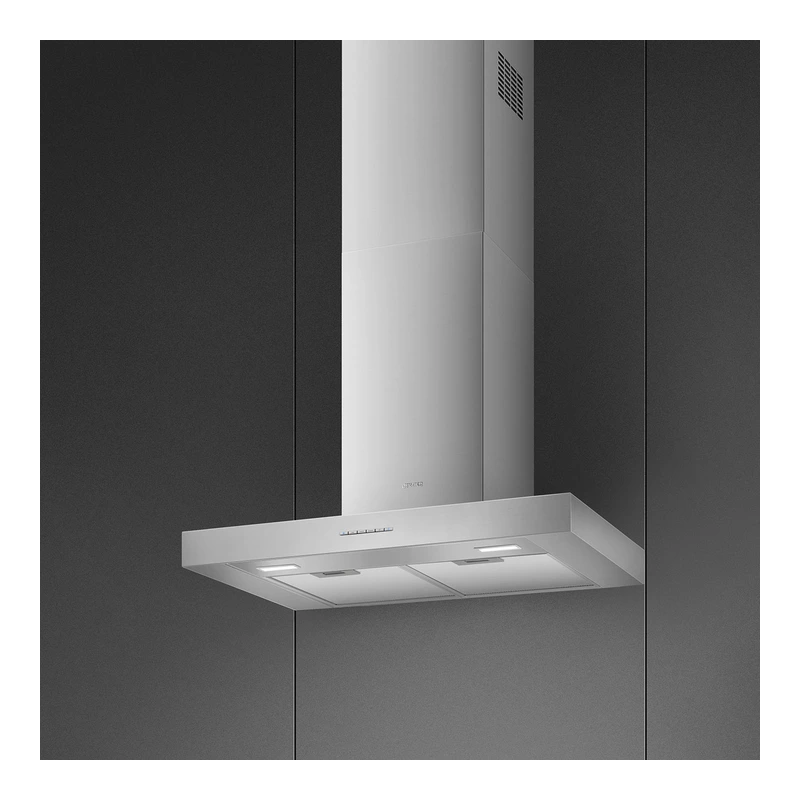

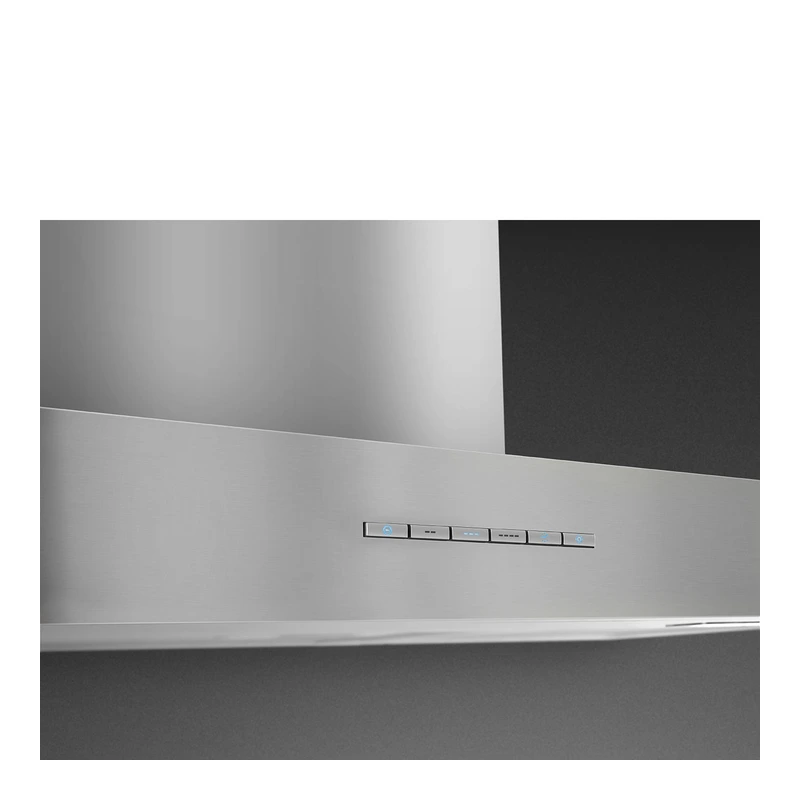

Smeg KBT700XE Chimney Hood

SKU: KBT700XE · EAN: 8017709286620

Stainless Steel T shape

The SMEG KBT700XE is a 70 cm T flat chimney cooker hood in brushed stainless steel from the Universal aesthetic family. It offers ducted out or re–circulation extraction with electronic button controls and three speeds plus intensive. With LED lighting at 3000 K and aluminium anti–grease filters with replacement indicator, it provides effective extraction performance up to 688 m³/h and an A energy efficiency class.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	T flat
Model code	KBT700XE
Extraction	Ducted out or re–circulation possible
Electronic control	Yes
Material	Stainless steel, brushed type of steel
EAN code	8017709286620
Hood width	70 cm
Aesthetics	Universal
Colour / Finishing	Stainless steel, brushed
Logo	Silk screen

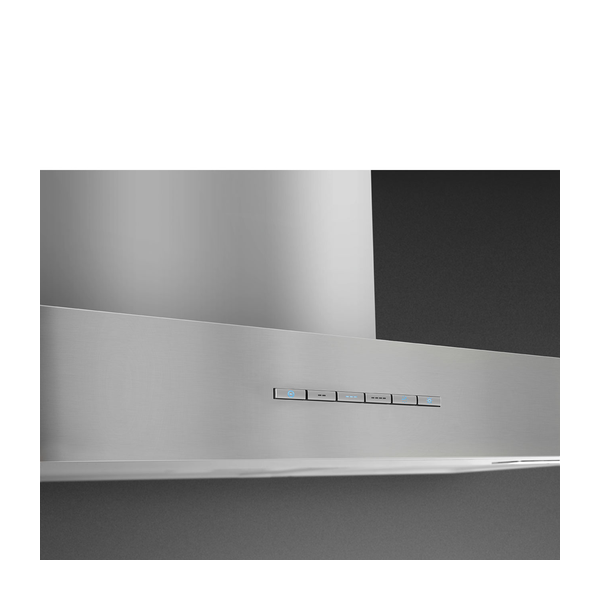

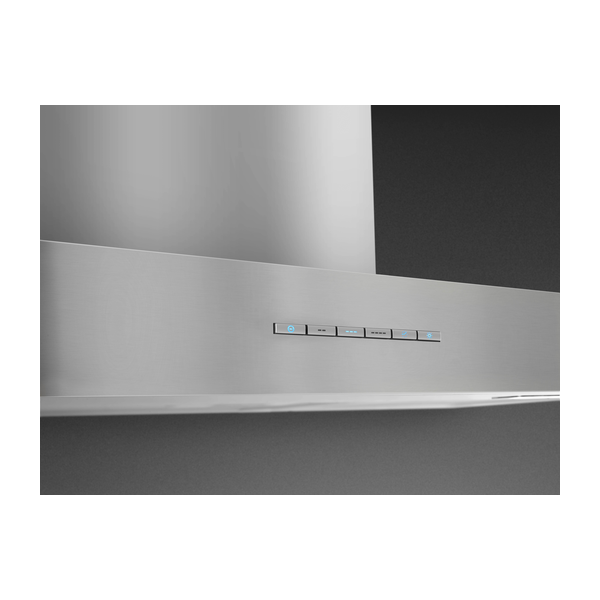

Control setting	Electronic buttons
Number of speeds	3 + intensive speed
24h air filter function	Yes
Time–setting options	Yes (switch off automatically setting)
Number of lights	2
Light type	LED
Light power	1.3 W
Normal power of light system	3 W
Light colour temperature	3000 K
Free outlet maximum capacity	610 m³/h
Motor power	230 W
Number of filters	2
Anti–grease filters	Aluminium
Filter replacement indicator	Yes (warning light(s))

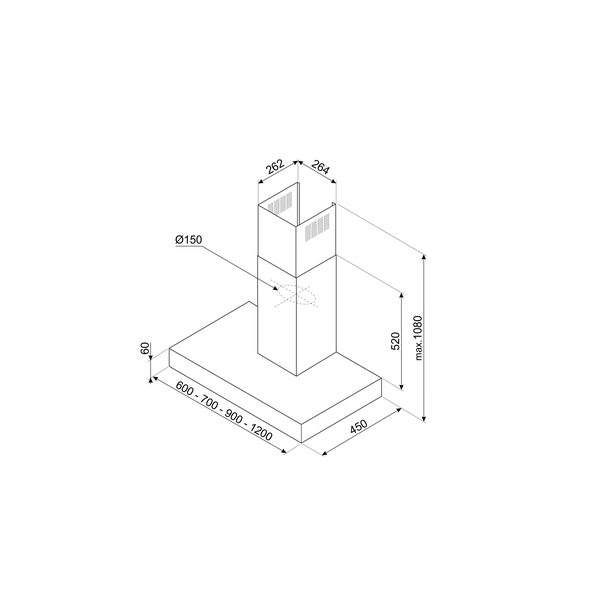

Vent outlet diameter	150 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Non return valve	Yes
Tube reduction	Yes (accessory included)
Annual efficiency consumption (AEChood)	54 kWh/year
Energy efficiency class (EEC)	A
Fluid Dynamic Efficiency (FDE)	29,2
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	65,0 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	79,8 %
Grease Filtering Efficiency Class (GFEC)	C
Air flow at minimum speed (Qmin)	256 m³/h
Maximum extraction rate	463 m³/h
Intensive extraction rate	688 m³/h
Airborne sound emission at minimum speed (SPEmin)	47 dBA
Airborne sound emission at maximum speed (SPEmax)	63 dBA
Airborne sound emission at boost speed (SPEboost)	71 dBA
Time increase factor (F)	0,9
Energy Efficiency Index per first cavity	51,9
Measured air flow rate at best efficiency point (Qbep)	386 m³/h
Measured air pressure at best efficiency point (Pbep)	428 Pa
Measured electric power input at best efficiency point (Wbep)	157 W
Average illumination on cooking surface (Emiddle)	157 lux
Sound power level at highest setting (Lwa)	63 dBA
Nominal power	230 W
Frequency	50–60 Hz
Voltage	220–240 V
Power supply cable length	1500 mm
Extraction rate IEC 61591 – Speed 1	256 m³/h
Noise level IEC 60704–2–13 – Speed 1	48 dBA
Extraction rate IEC 61591 – Speed 2	347 m³/h
Noise level IEC 60704–2–13 – Speed 2	55 dBA
Extraction rate IEC 61591 – Speed 3	463 m³/h
Noise level IEC 60704–2–13 – Speed 3	63 dBA
Extraction rate IEC 61591 – Intensive speed	688 m³/h
Noise level IEC 60704–2–13 – Intensive speed	72 dBA
