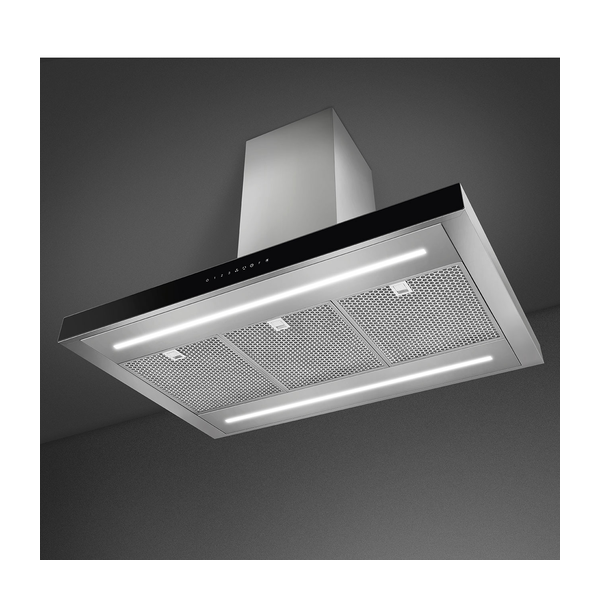

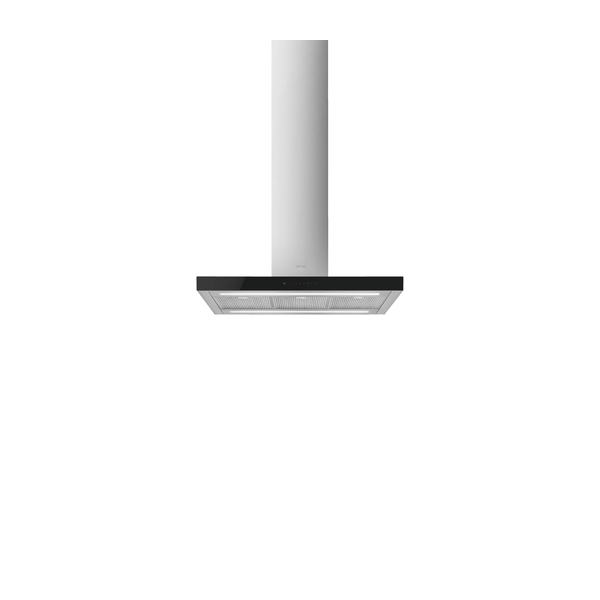

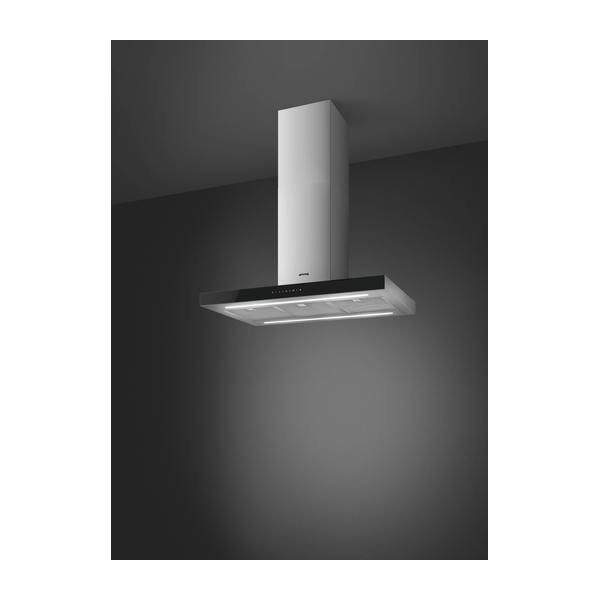

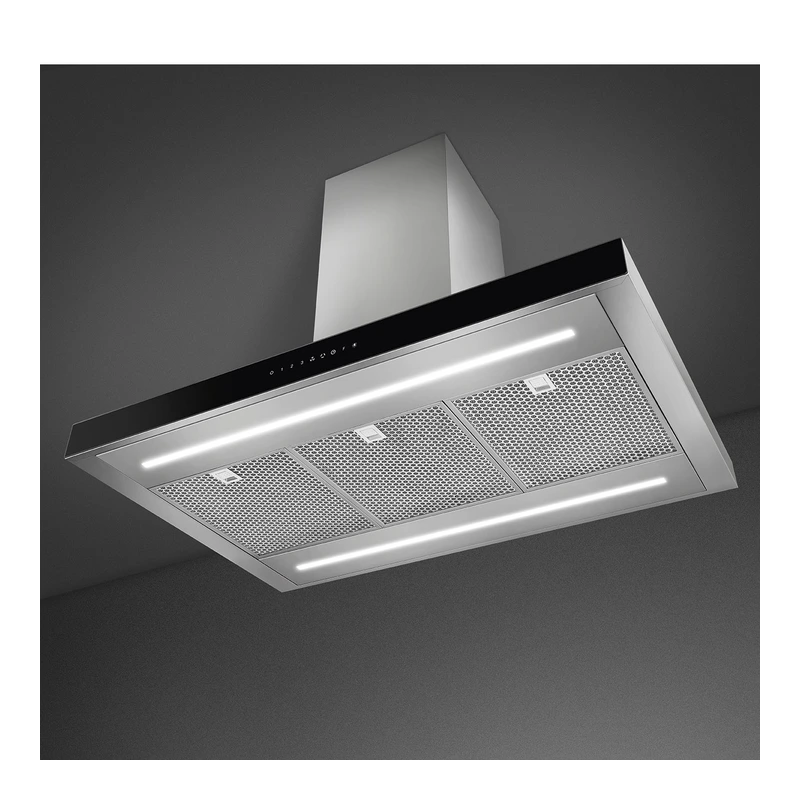

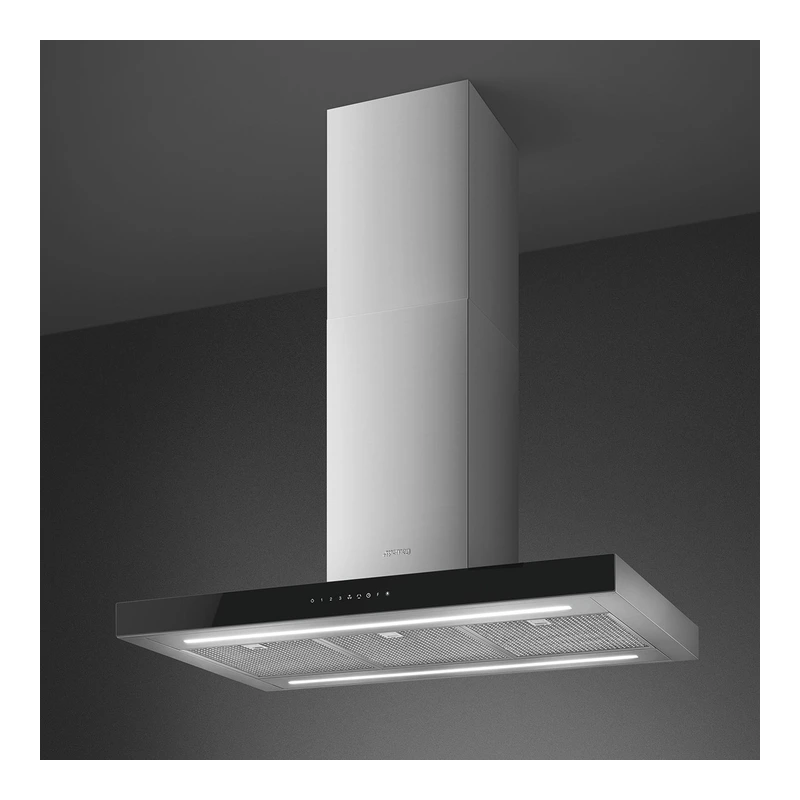

Smeg KBTI9L4VN Island Hood

SKU: KBTI9L4VN · EAN: 8017709305741

Stainless Steel & Black Glass Fascia

The SMEG KBTI9L4VN is a 90 cm T flat island cooker hood in brushed stainless steel and glass, designed for ducted out or re–circulation extraction. It features touch control with three speeds plus intensive, LED lighting with dimmer mode and a 24h air filter function. With an A energy efficiency class, aluminium anti–grease filters and a 150 mm vent outlet, it offers effective extraction for island installations above gas or electric hobs.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Island Cooker Hoods
Design	T flat
Model code	KBTI9L4VN
Extraction	Ducted out or re–circulation possible
Electronic control	Yes
Material	Stainless Steel + Glass
Type of steel	Brushed
Colour / finishing	Stainless steel, brushed
Aesthetics	Universal
Logo	Silk screen
EAN code	8017709305741

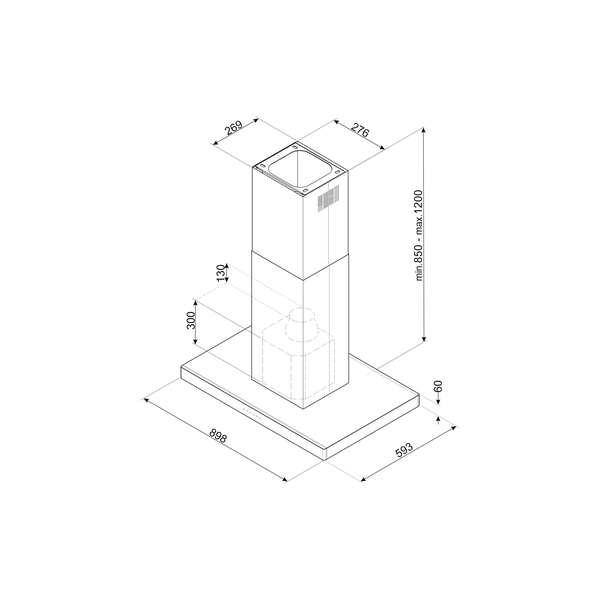

Hood width	90 cm

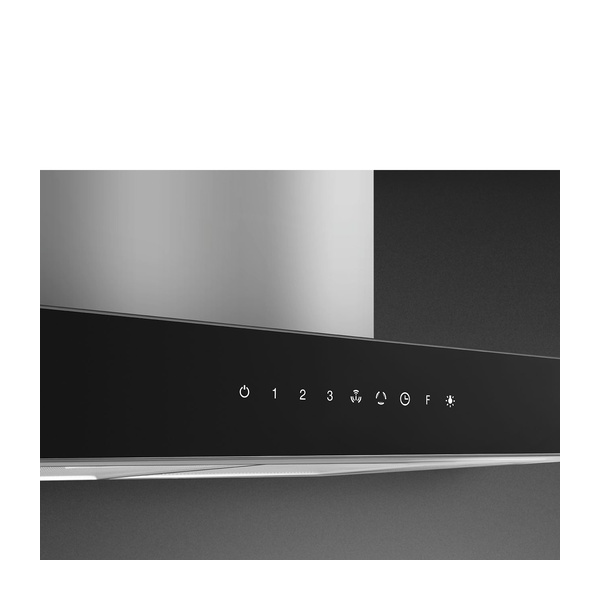

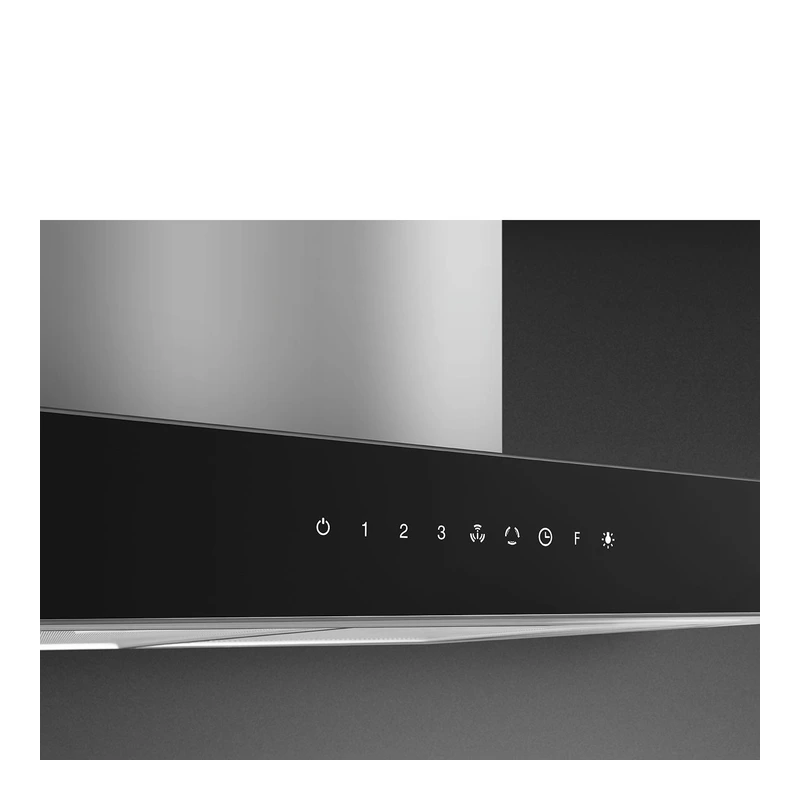

Controls	Touch control, LED colour white
Number of speeds	3 + intensive speed
24h air filter function	Yes
Time–setting options	Yes (switch off automatically after pre–set time)
Auto–Vent 2.0	Yes (connection between hob and hood)

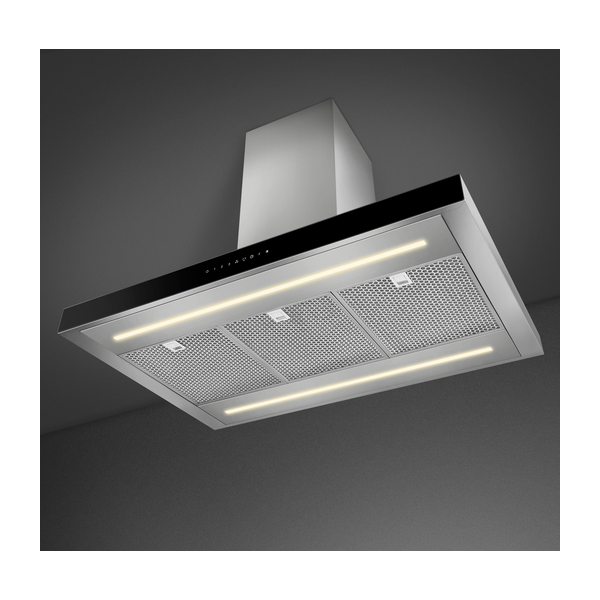

Number of lights	2
Light type	LED
Light power	7,3 W
Dimmer mode	Yes
Light colour temperature range	3000 – 5700 K
Free outlet maximum capacity	820 m³/h
Maximum extraction rate	626 m³/h
Intensive extraction rate	778 m³/h
Air flow at minimum speed (Qmin)	280 m³/h
Motor power	275 W
Number of filters	3
Filter type	Aluminium anti–grease filters
Filter replacement indicator	Yes (warning light(s) to advise when filters need changing)
Vent outlet	150 mm, tube reduction included
Non return valve	Yes
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	650 mm
Annual efficiency consumption (AEChood)	49 kWh/year
Energy efficiency class (EEC)	A
Fluid Dynamic Efficiency (FDE)	35,4
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	23,5 lux/W
Lighting Efficiency class (LEC)	B
Grease Filtering Efficiency (GFE)	77,4 %
Grease Filtering Efficiency class (GFEC)	C
Airbourne acoustical A–weighted sound power emission at minimum speed (SPEmin)	47 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	69 dBA
Airbourne acoustical A–weighted sound power emission at boost speed (SPEboost)	73 dBA
Energy Efficiency Index per first cavity	46,4
Measured air flow rate at best efficiency point (Qbep)	397 m³/h
Measured air pressure at best efficiency point (Qbep)	474 Pa
Measured electric power input at best efficiency point (Wbep)	175 W
Normal power of the light system (Wl)	15 W
Average illumination on cooking surface (Emiddle)	348 lux
Sound power level at highest setting (Lwa)	69 dBA
Extraction rate IEC 61591 [m³/h] – Speed 1	280
Noise level IEC 60704–2–13 [dBA] – Speed 1	48
Extraction rate IEC 61591 [m³/h] – Speed 2	415
Noise level IEC 60704–2–13 [dBA] – Speed 2	59
Extraction rate IEC 61591 [m³/h] – Speed 3	626
Noise level IEC 60704–2–13 [dBA] – Speed 3	69
Extraction rate IEC 61591 [m³/h] – Intensive speed	778
Noise level IEC 60704–2–13 [dBA] – Intensive speed	74
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
