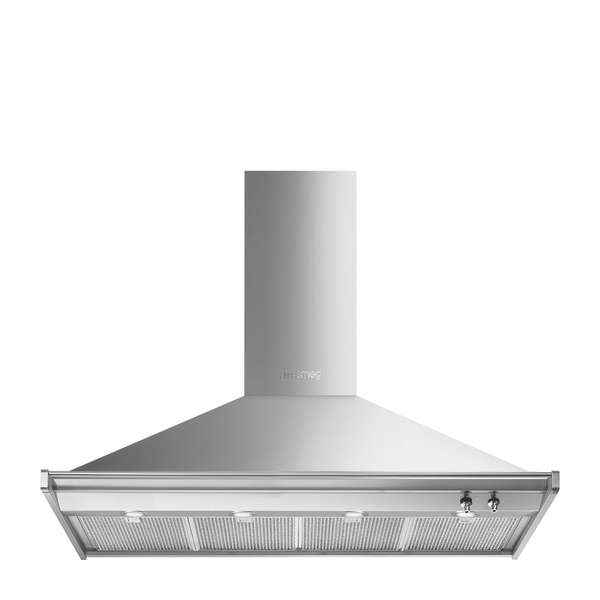

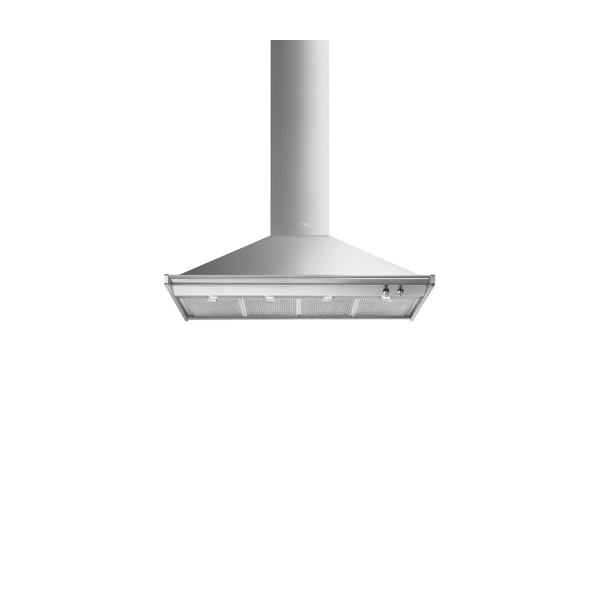

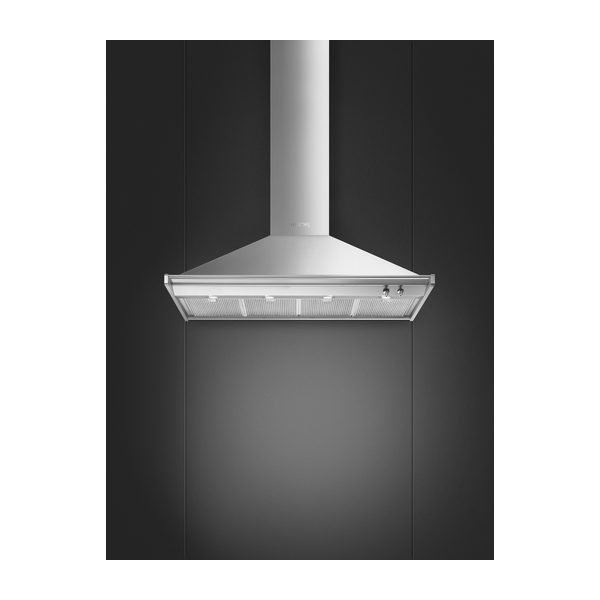

Smeg KD120HXE Opera Chimney Hood

SKU: KD120HXE · EAN: 8017709257651

Stainless Steel

The SMEG KD120HXE is a 120 cm Classic stainless steel chimney cooker hood designed for ducted out or re–circulation extraction. It offers three speeds plus intensive setting, with a maximum extraction rate of 606 m³/h and intensive rate of 777 m³/h. Featuring LED lighting, stainless steel anti–grease filters and an A+ energy efficiency class, it provides effective ventilation and illumination for gas or electric hobs with a minimum installation height of 650 mm.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Model	KD120HXE
Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Extraction	Ducted out or re–circulation possible
Material	Stainless steel, brushed type of steel
Colour / Finishing	Stainless steel, brushed finishing, embossed logo
EAN code	8017709257651
Hood width	120 cm
Aesthetics	Classic
Control setting	Control knobs, 2 controls, Classic control knobs, steel effect controls colour
Number of speeds	3 speeds + intensive speed
Number of lights	4
Light type	LED
Light power	4 W
Light colour temperature	4000 K
Free outlet maximum capacity	820 m³/h
Motor power	275 W
Number of filters	4
Anti–grease filters	Stainless steel
Vent outlet	150 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	650 mm
Non return valve	Yes
Extraction rate IEC 61591 – Speed 1	287 m³/h
Noise level IEC 60704–2–13 – Speed 1	49 dBA
Extraction rate IEC 61591 – Speed 2	389 m³/h
Noise level IEC 60704–2–13 – Speed 2	58 dBA
Extraction rate IEC 61591 – Speed 3	606 m³/h
Noise level IEC 60704–2–13 – Speed 3	67 dBA
Extraction rate IEC 61591 – Intensive speed	777 m³/h
Noise level IEC 60704–2–13 – Intensive speed	73 dBA
Annual efficiency consumption (AEChood)	42 kWh/year
Energy efficiency class (EEC)	A+
Fluid Dynamic Efficiency (FDE)	36,3
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	74,8 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	74,9 %
Grease Filtering Efficiency Class (GFEC)	D
Air flow at minimum speed (Qmin)	287 m³/h
Maximum extraction rate	606 m³/h
Intensive extraction rate	777 m³/h
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	49 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	67 dBA
Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)	73 dBA
Time increase factor (F)	0,7
Measured air flow rate at best efficiency point (Qbep)	400 m³/h
Measured air pressure at best efficiency point (Qbep)	490 Pa
Measured electric power input at best efficiency point (Wbep)	150 W
Normal power of the light system (Wl)	5 W
Average illumination of the light on the cooking surface (Emiddle)	329 lux
Sound power level at highest setting (Lwa)	67 dBA
Nominal power	179 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1000 mm
Optional accessories	Charcoal filter FLT6
Compatible accessories	FLT6 round charcoal filters (kit 2 pieces); KITALLFC universal charcoal filter Stainless Steel AISI 304
