Can this hood be used in recirculation as well as ducted mode?

Yes. Extraction can be ducted out or recirculation is possible. Charcoal filters such as FLT6 or KITALLFC are compatible accessories for recirculation use.

What are the minimum installation heights above the hob?

The minimum distance from a gas hob is 750 mm, and the minimum distance from an electric hob is 650 mm.

How many speeds does the KD90HXE have?

It has 3 speeds plus an intensive speed for extra fast extraction when required.

What is the energy efficiency rating of this cooker hood?

The hood has an Energy Efficiency Class of A+ with an annual efficiency consumption of 40 kWh/year.

Are the filters washable and how should the KITALLFC filter be maintained?

The KITALLFC universal charcoal filter in stainless steel AISI 304 can be washed in a dishwasher at 50 °C with water and suitable detergent and dried in an oven at 180 °C for 25 minutes. Washability of other filters is Not stated in source.

What is the noise level during operation?

At minimum speed the airborne acoustical A–weighted sound power emission is 48 dBA, at maximum speed 67 dBA, and at boost speed 72 dBA.

Product Information Sheet

Smeg Chimney Hood

SKU: KD90HXE

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

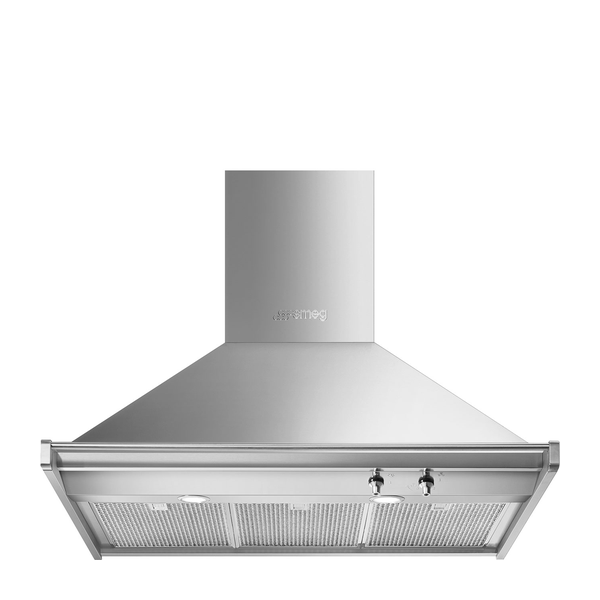

Smeg KD90HXE Chimney Hood

SKU: KD90HXE · EAN: 8017709243593

Stainless Steel

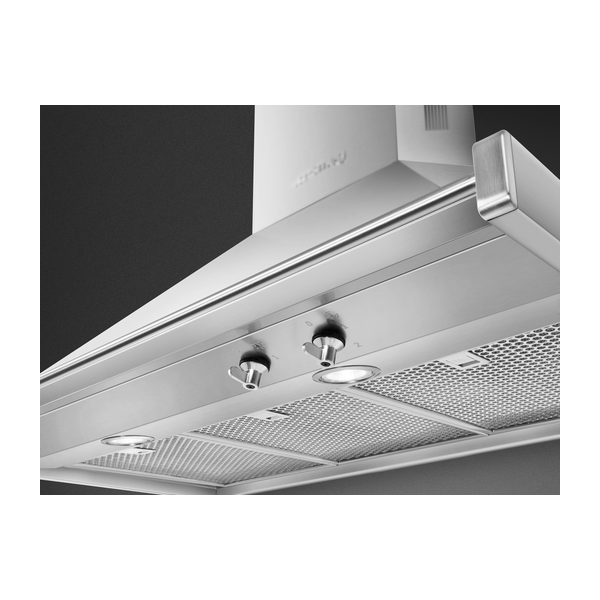

The KD90HXE is a 90 cm Classic chimney cooker hood in brushed stainless steel. It offers ducted out or recirculation extraction with three speeds plus an intensive setting, delivering a maximum extraction rate of 630 m³/h and an intensive rate of 781 m³/h. With A+ energy efficiency, LED lighting at 4000 K and stainless steel anti–grease filters, it is designed to efficiently remove steam and grease while illuminating the cooking area.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Aesthetics	Classic
Colour / finishing	Stainless steel, brushed
Material / type of steel	Stainless steel, brushed
Logo	Applied
EAN code	8017709243593

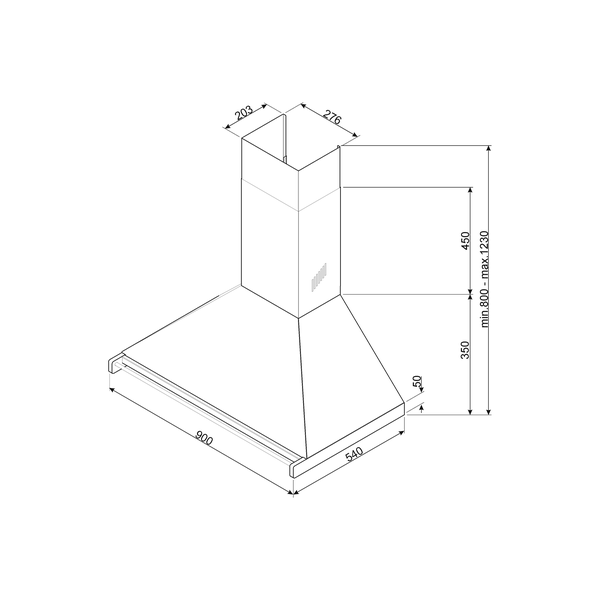

Hood width	90 cm
Extraction	Ducted out or re–circulation possible
Control setting	Control knobs, 2 controls, Classic, steel effect
Number of speeds	3 speeds + intensive speed
Number of lights	2
Light type	LED
Light power	1 W (Normal Power of the light system 2 W)
Light colour temperature	4000 K
Average illumination on cooking surface (Emiddle)	172 lux
Free outlet maximum capacity	815 m³/h
Maximum extraction rate	630 m³/h
Intensive extraction rate	781 m³/h
Air flow at minimum speed (Qmin)	288 m³/h
Extraction rate IEC 61591 – Speed 1	288 m³/h – 48 dBA (IEC 60704–2–13)
Extraction rate IEC 61591 – Speed 2	421 m³/h – 63 dBA (IEC 60704–2–13)
Extraction rate IEC 61591 – Speed 3	630 m³/h – 67 dBA (IEC 60704–2–13)
Extraction rate IEC 61591 – Intensive speed	781 m³/h – 72 dBA (IEC 60704–2–13)
Airborne acoustical sound power at minimum speed (SPEmin)	48 dBA
Airborne acoustical sound power at maximum speed (SPEmax)	67 dBA
Airborne acoustical sound power at boost speed (SPEboost)	72 dBA
Sound power level at highest setting (Lwa)	67 dBA
Motor power	275 W
Nominal power	277 W

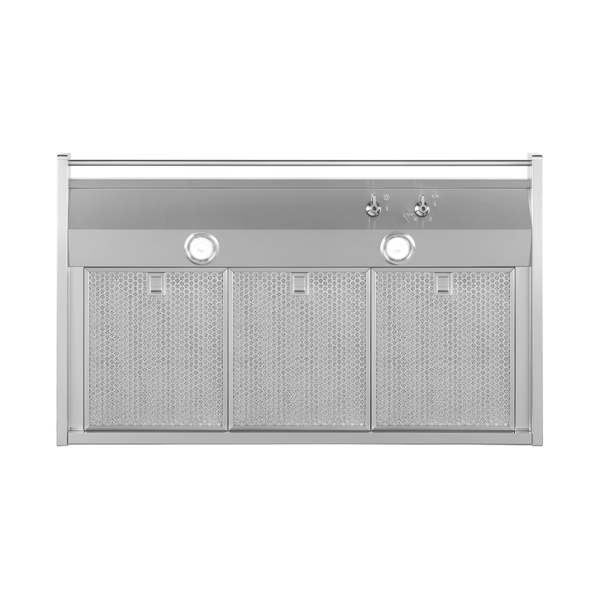

Number of filters	3 stainless steel anti–grease filters
Vent outlet diameter	150 mm
Minimum distance from gas hob	750 mm
Minimum distance from electric hob	650 mm
Non return valve	Yes
Annual Efficiency Consumption (AEChood)	40 kWh/year
Energy efficiency class (EEC)	A+
Fluid Dynamic Efficiency (FDE)	36.2
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	78.2 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	78.5 %
Grease Filtering Efficiency Class (GFEC)	C
Time increase factor (F)	1.00
Measured air flow at best efficiency point (Qbep)	413 m³/h
Measured air pressure at best efficiency point (Pbep)	476 Pa
Measured electric power input at best efficiency point (Wbep)	151 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1000 mm
Alternative colours available	Black, Anthracite – KD90HNE, KD90HAE

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Smeg →

Optional Accessories

— add individually to your enquiry

Optional

FLT6

Smeg 2 x round charcoal filters for KSG6P4X

Optional

KITALLFC

Smeg Charcoal Filter
