Can this hood be used for both ducted and recirculation extraction?

Yes. Extraction is ducted out or re-circulation is possible. A non return valve is included, and compatible charcoal filters such as FLT6 and KITALLFC are available.

What is the minimum installation height above the hob?

The minimum distance from a gas hob is 650 mm and the minimum distance from an electric hob is also 650 mm.

How many speeds does the SMEG KPF12RD have?

The hood has 3 speeds plus an intensive speed, operated via Portofino control knobs with steel effect finish.

What is the energy efficiency rating of this hood?

The energy efficiency class is A+ with an annual efficiency consumption (AEChood) of 42 kWh/year.

What lighting does the hood use?

It is equipped with 4 LED lights of 4 W each, with a light colour temperature of 4000 K and Lighting Efficiency of 74,8 lux/W (Lighting Efficiency Class A).

How should the KITALLFC charcoal filter be cleaned?

The KITALLFC universal charcoal filter Stainless Steel AISI 304 can be washed in a dishwasher at 50 °C with water and suitable detergent. To dry it, it should be put in the oven at 180 °C for 25 minutes.

Product Information Sheet

Smeg Portofino Chimney Hood

SKU: KPF12RD

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

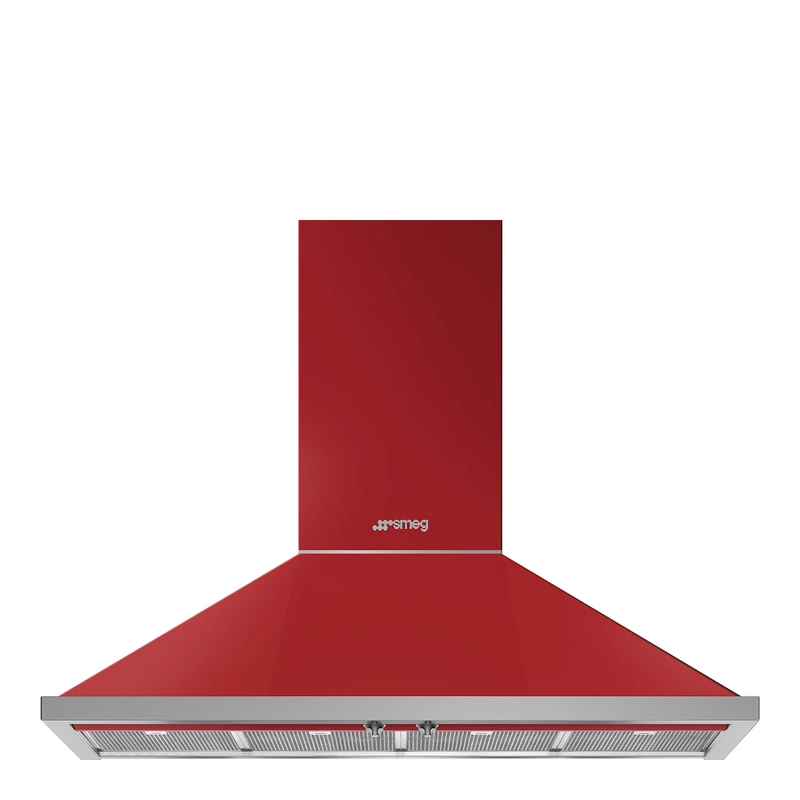

Smeg KPF12RD Portofino Chimney Hood

SKU: KPF12RD · EAN: 8017709261665

Red

The SMEG Portofino KPF12RD is a 120 cm red chimney cooker hood designed for ducted or re-circulation extraction. Finished in brushed stainless steel and painted material, it features LED lighting, stainless steel anti-grease filters and knob controls with 3 speeds plus intensive. With a maximum free outlet capacity of 815 m³/h and an A+ energy efficiency class, it offers effective extraction and stylish Portofino aesthetics for larger cooking areas.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Extraction	Ducted out or re-circulation possible
Material	Stainless Steel + Painted Material
Type of steel	Brushed
EAN code	8017709261665
Hood width	120 cm
Aesthetics	Portofino
Colour	Red
Serigraphy colour	Black
Logo	Applied
Control setting	Control knobs
No. of controls	2
Control knobs	Portofino
Controls colour	Steel effect
No. of speeds	3 + Intensive speed
No. of lights	4
Light type	LED
Light power	4 W
Light colour temperature	4000 K
Free outlet maximum capacity	815 m³/h
Motor power	275 W
No. of filters	4
Anti-grease filters	Stainless steel
Vent outlet	150 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	650 mm
Non return valve	Yes
Extraction rate IEC 61591 – Speed 1	287 m³/h
Noise level IEC 60704-2-13 – Speed 1	49 dBA
Extraction rate IEC 61591 – Speed 2	389 m³/h
Noise level IEC 60704-2-13 – Speed 2	58 dBA
Extraction rate IEC 61591 – Speed 3	606 m³/h
Noise level IEC 60704-2-13 – Speed 3	67 dBA
Extraction rate IEC 61591 – Intensive speed	777 m³/h
Noise level IEC 60704-2-13 – Intensive speed	73 dBA
Annual Efficiency Consumption (AEChood)	42 kWh/year
Energy efficiency class (EEC)	A+
Fluid Dynamic Efficiency (FDE)	36,3
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	74,8 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	74,9 %
Grease Filtering Efficiency Class (GFEC)	D
Air flow at minimum speed (Qmin)	287 m³/h
Maximum extraction rate	606 m³/h
Intensive extraction rate	777 m³/h
Airborne acoustical A-weighted sound power emission at minimum speed (SPEmin)	49 dBA
Airborne acoustical A-weighted sound power emission at maximum speed (SPEmax)	67 dBA
Airborne acoustical A-weighted sound power emission at boost speed (SPEboost)	73 dBA
Sound power level at highest setting (Lwa)	67 dBA
Time increase factor (F)	0,7
Energy Efficiency Index per first cavity	41,4
Measured air flow rate at best efficiency point (Qbep)	400 m³/h
Measured air pressure at best efficiency point (Qbep)	490 Pa
Measured electric power input at best efficiency point (Wbep)	150 W
Normal Power of the light system (Wl)	4 W
Average illumination on cooking surface (Emiddle)	329 lux
Nominal power	280 W
Voltage	220–240 V
Frequency (Hz)	50–60 Hz
Power supply cable length	1000 mm
Alternative colours available	White, Black, Stainless steel, Turquoise
Available colours models	KPF12WH/BL/X/T
Compatible accessory – FLT6	Round Charcoal filters (kit 2 pieces)
Compatible accessory – KITALLFC	Universal Charcoal filter Stainless Steel AISI 304 – filter can be washed in dishwasher 50 °C (water and suitable detergent) and to dry it put in the oven 180 °C 25 minutes
