Can this hood be used in both ducted and recirculation modes?

Yes. Extraction can be ducted out or re–circulation is possible, using the 150 mm vent outlet and non return valve.

How many speeds does the SMEG KPF12X have?

The hood has three speeds plus an intensive speed, which acts as a turbo setting when extra fast extraction is required.

What is the maximum and intensive extraction rate?

The maximum extraction rate is 606 m³/h, while the intensive extraction rate is 777 m³/h.

What lighting does the hood use?

It uses four LED lights with a power of 4 W each and a colour temperature of 4000 K, providing an average illumination of 329 lux on the cooking surface.

What is the energy efficiency class and annual energy consumption?

The hood has an energy efficiency class A+ and an annual efficiency consumption of 42 kWh/year. A+ is stated as helping to save up to 10% energy compared to class A, with maximum performance and minimum consumption guaranteed.

Which accessories are compatible with this hood?

Compatible accessories include FLT6 round charcoal filters (kit 2 pieces) and KITALLFC universal charcoal filter in stainless steel AISI 304, which can be washed in a dishwasher at 50 °C and dried in an oven at 180 °C for 25 minutes.

Product Information Sheet

Smeg Portofino Chimney Hood

SKU: KPF12X

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

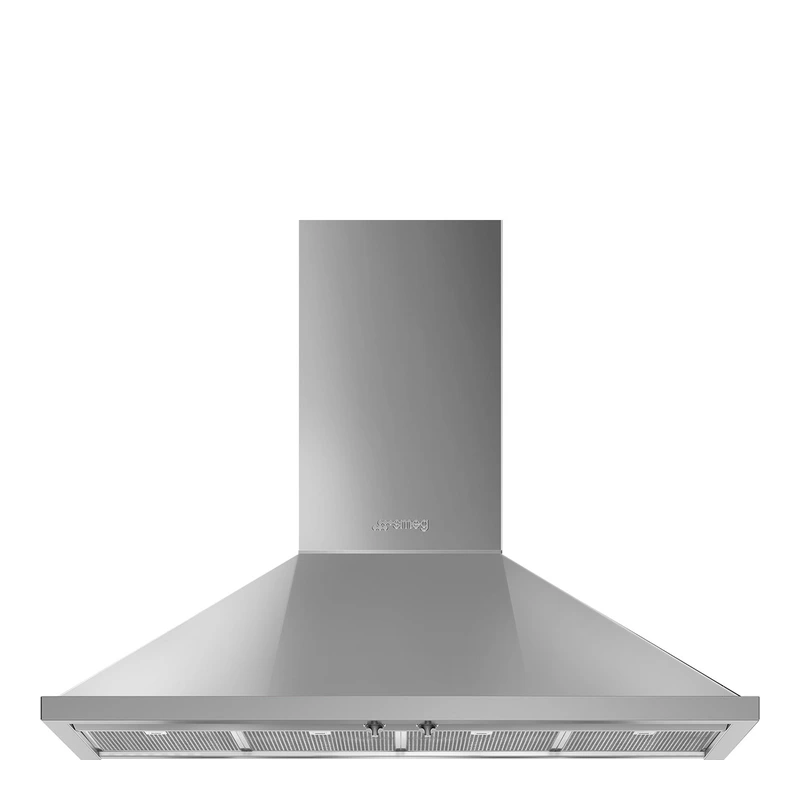

Smeg KPF12X Portofino Chimney Hood

SKU: KPF12X · EAN: 8017709261689

Stainless Steel

The SMEG KPF12X is a 120 cm Portofino chimney cooker hood in brushed stainless steel and painted material, suitable for ducted out or recirculation installation. Designed with control knobs and three speeds plus intensive, it offers a maximum extraction rate of 606 m³/h and an intensive rate of 777 m³/h. LED lighting with four 4 W lamps at 4000 K provides bright illumination, while stainless steel anti-grease filters help remove grease from cooking steam.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Model	KPF12X
Hood type	Chimney cooker hoods
Design	Chimney
Aesthetics	Portofino
Colour	Stainless steel
Material	Stainless steel + painted material
Type of steel	Brushed
Hood width	120 cm
Logo	Applied
Extraction type	Ducted out or re–circulation possible
Vent outlet diameter	150 mm
Non return valve	Yes
Control setting	Control knobs
No. of controls	2
Control knobs type	Portofino
Controls colour	Steel effect
No. of speeds	3 + intensive speed
No. of lights	4
Light type	LED
Light power	4 W
Light colour temperature	4000 K
Average illumination on cooking surface (Emiddle)	329 lux
No. of filters	4
Anti–grease filters	Stainless steel
Free outlet maximum capacity	815 m³/h
Air flow at minimum speed (Qmin)	287 m³/h
Maximum extraction rate	606 m³/h
Intensive extraction rate	777 m³/h
Extraction rate IEC 61591 – speed 1	287 m³/h
Extraction rate IEC 61591 – speed 2	389 m³/h
Extraction rate IEC 61591 – speed 3	606 m³/h
Extraction rate IEC 61591 – intensive speed	777 m³/h
Noise level IEC 60704–2–13 – speed 1	49 dBA
Noise level IEC 60704–2–13 – speed 2	58 dBA
Noise level IEC 60704–2–13 – speed 3	67 dBA
Noise level IEC 60704–2–13 – intensive speed	73 dBA
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	49 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	67 dBA
Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)	73 dBA
Sound power level at highest setting (Lwa)	67 dBA
Motor power	275 W
Measured electric power input at best efficiency point (Wbep)	150 W
Normal power of the light system (Wl)	4 W
Nominal power	280 W
Annual efficiency consumption (AEChood)	42 kWh/year
Energy efficiency class (EEC)	A+
Fluid Dynamic Efficiency (FDE)	36.3
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	74.8 lux/W
Lighting Efficiency class (LEC)	A
Grease Filtering Efficiency (GFE)	74.9 %
Grease Filtering Efficiency Class (GFEC)	D
Time increase factor (F)	0.7
Energy Efficiency Index per first cavity	41.4
Measured air flow rate at best efficiency point (Qbep)	400 m³/h
Measured air pressure at best efficiency point (Qbep)	490 Pa
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	650 mm
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1000 mm
EAN code	8017709261689
Available colours (codes)	KPF12WH/BL/X/RD/T

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Smeg →

Optional Accessories

— add individually to your enquiry

Optional

FLT6

Smeg 2 x round charcoal filters for KSG6P4X

Optional

KITALLFC

Smeg Charcoal Filter
