Can this hood be used in both ducted and recirculation modes?

Yes. The extraction system allows for ducted out or re–circulation operation.

What is the maximum and intensive extraction rate?

The maximum extraction rate is 630 m³/h, while the intensive extraction rate reaches 781 m³/h. The free outlet maximum capacity is 815 m³/h.

How energy efficient is the SMEG KPF9X hood?

The hood has an A+ energy efficiency class with an Annual Efficiency Consumption of 40 kWh/year. It is stated that A+ helps to save up to 10 % energy compared to class A, with maximum performance and minimum consumption guaranteed.

What type of filters does this cooker hood use?

The hood is equipped with 3 stainless steel anti-grease filters. Compatible charcoal filter accessories include FLT6 round charcoal filters (kit 2 pieces) and the KITALLFC universal charcoal filter in Stainless Steel AISI 304.

What are the minimum installation heights above the hob?

The minimum distance from a gas hob is 750 mm, and the minimum distance from an electric hob is 650 mm.

What lighting does the hood provide?

The hood has 2 LED lights of 2 W each, with a colour temperature of 4000 K. Lighting Efficiency is 78,2 lux/W with Lighting Efficiency Class A, and the average illumination on the cooking surface is 172 lux.

Product Information Sheet

Smeg Portofino Chimney Hood

SKU: KPF9X

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

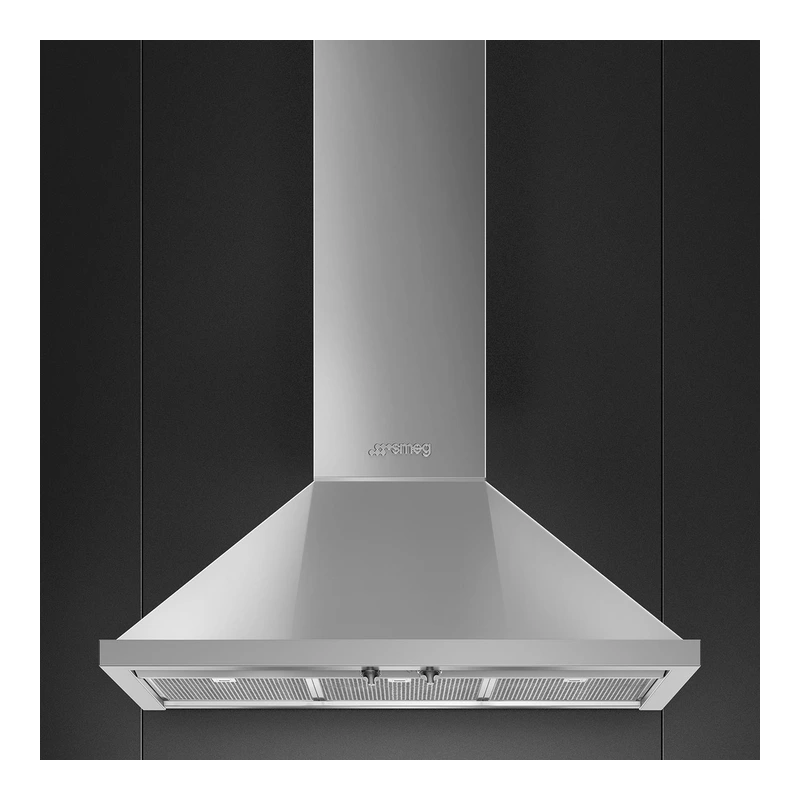

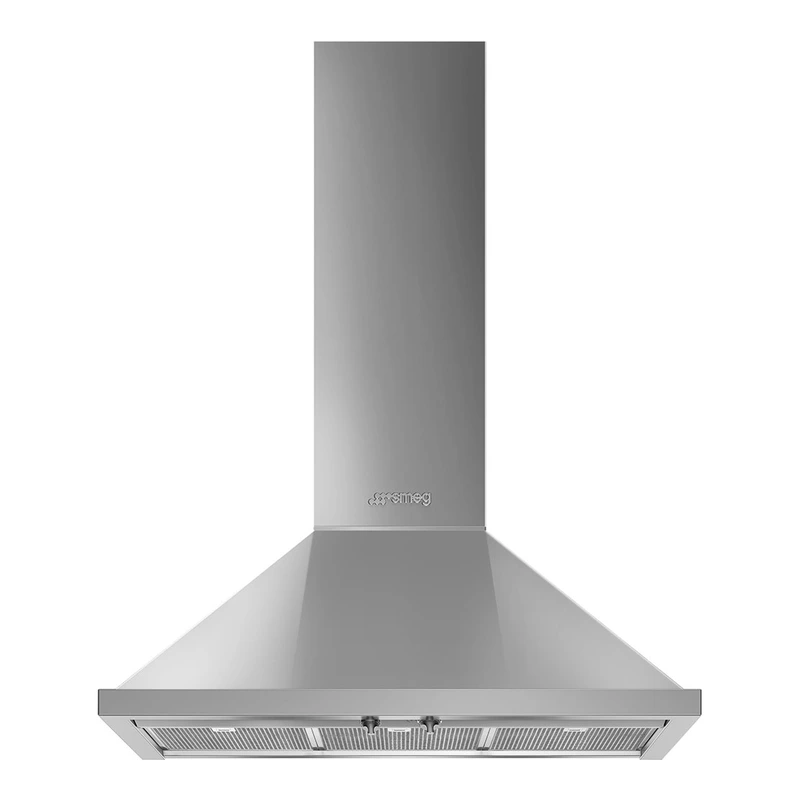

Smeg KPF9X Portofino Chimney Hood

SKU: KPF9X · EAN: 8017709236373

Stainless Steel

The SMEG KPF9X is a 90 cm stainless steel chimney cooker hood from the Portofino range, designed for ducted or recirculation extraction. It offers three speeds plus an intensive setting, with a maximum extraction rate of 630 m³/h and an intensive extraction rate of 781 m³/h. Featuring A+ energy efficiency, stainless steel anti-grease filters and 4000 K LED lighting, it is suitable for use above gas or electric hobs within the stated minimum distances.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Aesthetics	Portofino
Model	KPF9X
EAN code	8017709236373
Hood width	90 cm
Material	Stainless steel, brushed type of steel
Colour / finishing	Stainless steel, brushed; serigraphy colour black; applied logo
Extraction	Ducted out or re–circulation possible
Control setting	Control knobs, Portofino style, steel effect, 2 controls
Number of speeds	3 speeds + intensive speed
Number of lights	2
Light type	LED, 2 W each, 4000 K colour temperature
Free outlet maximum capacity	815 m³/h
Motor power	275 W
Number of filters	3 stainless steel anti-grease filters
Vent outlet	150 mm, with non return valve
Minimum distance from gas hob	750 mm
Minimum distance from electric hob	650 mm
Extraction rate IEC 61591 – Speed 1	288 m³/h – 48 dBA
Extraction rate IEC 61591 – Speed 2	421 m³/h – 63 dBA
Extraction rate IEC 61591 – Speed 3	630 m³/h – 67 dBA
Extraction rate IEC 61591 – Intensive speed	781 m³/h – 72 dBA
Annual Efficiency Consumption (AEChood)	40 kWh/year
Energy efficiency class (EEC)	A+
Fluid Dynamic Efficiency (FDE)	36,2
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	78,2 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	78,5 %
Grease Filtering Efficiency Class (GFEC)	C
Air flow at minimum speed (Qmin)	288 m³/h
Maximum extraction rate	630 m³/h
Intensive extraction rate	781 m³/h
Airbourne acoustical A–weighted sound power emission at minimum speed (SPEmin)	48 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	67 dBA
Airbourne acoustical A–weighted sound power emission at boost speed (SPEboost)	72 dBA
Time increase factor (F)	1,00
Energy Efficiency Index	40,3
Measured air flow rate at best efficiency point (Qbep)	413 m³/h
Measured air pressure at best efficiency point (Qbep)	476 Pa
Measured electric power input at best efficiency point (Wbep)	151 W
Normal power of the light system (Wl)	2 W
Average illumination of the light on the cooking surface (Emiddle)	172 lux
Sound power level at highest setting (Lwa)	67 dBA
Nominal power	277 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1000 mm
Alternative colours available	White, Black, Anthracite, Yellow, Green, Red, Orange
Available colour codes	KPF9WH, KPF9BL, KPF9AN, KP9YW, KPF9OG, KPF9RD, KPF9OR
