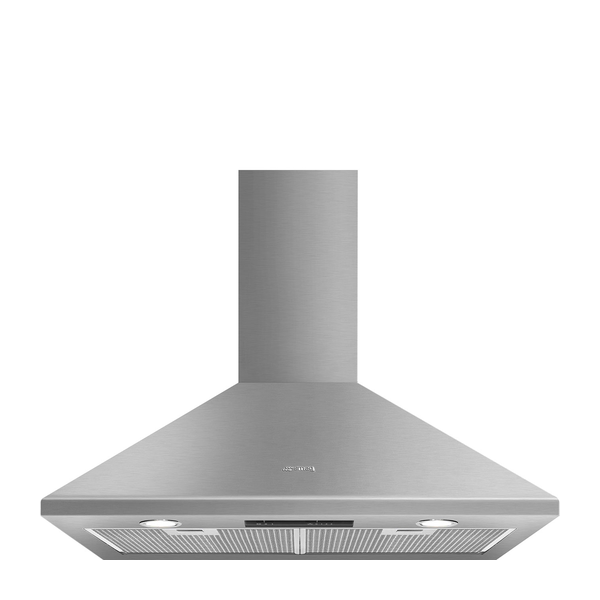

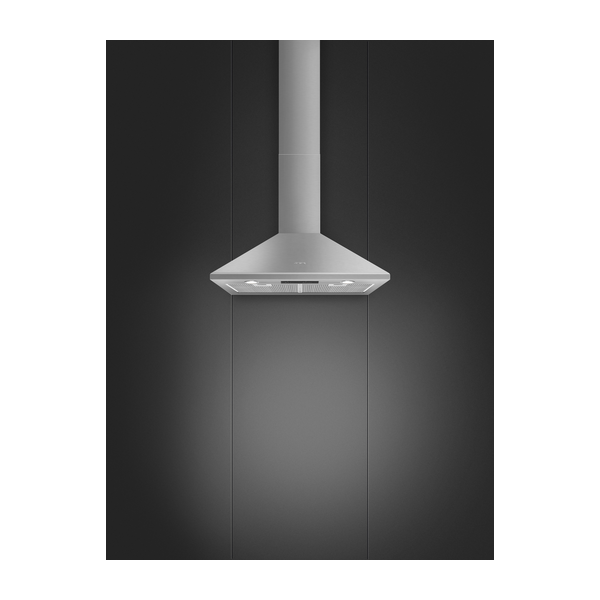

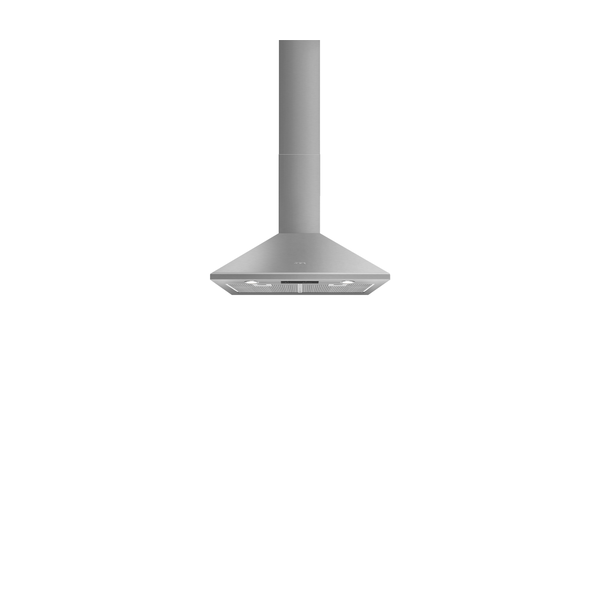

Smeg KSED75XE Chimney Hood

SKU: KSED75XE · EAN: 8017709206086

Stainless Steel

The SMEG KSED75XE is a 70 cm universal chimney cooker hood in brushed stainless steel, designed for ducted or recirculation extraction. With slider controls and three speeds, it offers a maximum extraction rate of 635 m³/h and integrated LED lighting at 4000 K to illuminate the cooking area. Aluminium anti-grease filters help remove grease from steam during cooking, while energy efficiency class B supports effective everyday kitchen ventilation.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Aesthetics	Universal
Colour	Stainless steel
Material	Stainless steel, brushed type of steel
Finishing	Brushed
Logo	Embossed
Model	KSED75XE
EAN code	8017709206086

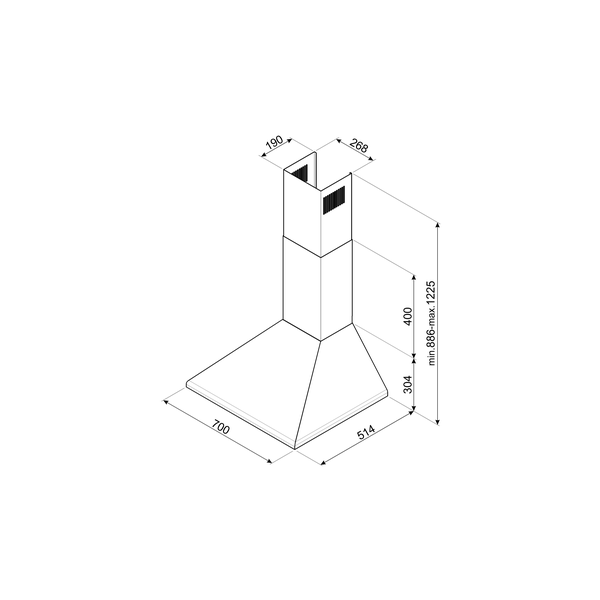

Hood width	70 cm
Extraction	Ducted out or re-circulation possible
Control setting	Slider, 3 speeds
Number of speeds	3
Number of lights	2
Light type	LED
Light power	1 W (each), normal power of light system (Wl) 2 W
Light colour temperature	4000 K
Free outlet maximum capacity	595 m³/h
Maximum extraction rate	635 m³/h
Air flow at minimum speed (Qmin)	351 m³/h
Extraction rate IEC 61591 – speed 1	351 m³/h
Extraction rate IEC 61591 – speed 2	420 m³/h
Extraction rate IEC 61591 – speed 3	635 m³/h
Noise level IEC 60704-2-13 – speed 1 (SPEmin)	53 dBA
Noise level IEC 60704-2-13 – speed 2	57 dBA
Noise level IEC 60704-2-13 – speed 3 (SPEmax)	67 dBA
Sound power level at highest setting (Lwa)	67 dBA
Motor power	200 W (measured electric power input at best efficiency point 146 W)
Number of filters	2
Anti-grease filters	Aluminium
Vent outlet	150 mm
Non return valve	Yes
Minimum distance from gas hob	750 mm
Minimum distance from electric hob	650 mm
Annual efficiency consumption (AEChood)	60 kWh/year
Energy efficiency class (EEC)	B
Fluid Dynamic Efficiency (FDE)	26
Fluid Dynamic Efficiency class (FDEC)	B
Lighting Efficiency (LE)	100,2 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	74,4 %
Grease Filtering Efficiency Class (GFEC)	D
Time increase factor (F)	1,1
Energy Efficiency Index per first cavity	62,2
Measured air flow rate at best efficiency point (Qbep)	355 m³/h
Measured air pressure at best efficiency point (Pbep)	385 Pa
Average illumination on cooking surface (Emiddle)	221 lux
Nominal power	202 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1000 mm
