What type of hood is the SMEG KSEG78PXE?

It is a fully integrated canopy cooker hood from the hood product family, designed to be built into kitchen cabinetry.

Can this hood be used in both ducted and re–circulating installations?

Yes. Extraction can be ducted out or set up for re–circulation.

How many speeds does the hood have?

The hood provides three speeds plus an intensive/turbo setting for extra fast extraction.

What are the minimum installation heights above the hob?

The minimum distance is 650 mm from a GAS hob and 500 mm from an ELECTRIC hob.

Does the hood show when filters need changing?

Yes. It has a filter replacement indicator and warning light to advise when the filters need changing.

Is there a compatible charcoal filter kit?

Yes. The compatible accessory listed is the FLT4 charcoal filter kit, supplied as 1 piece.

Product Information Sheet

Smeg Canopy Hood

SKU: KSEG78PXE

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 19 July 2026

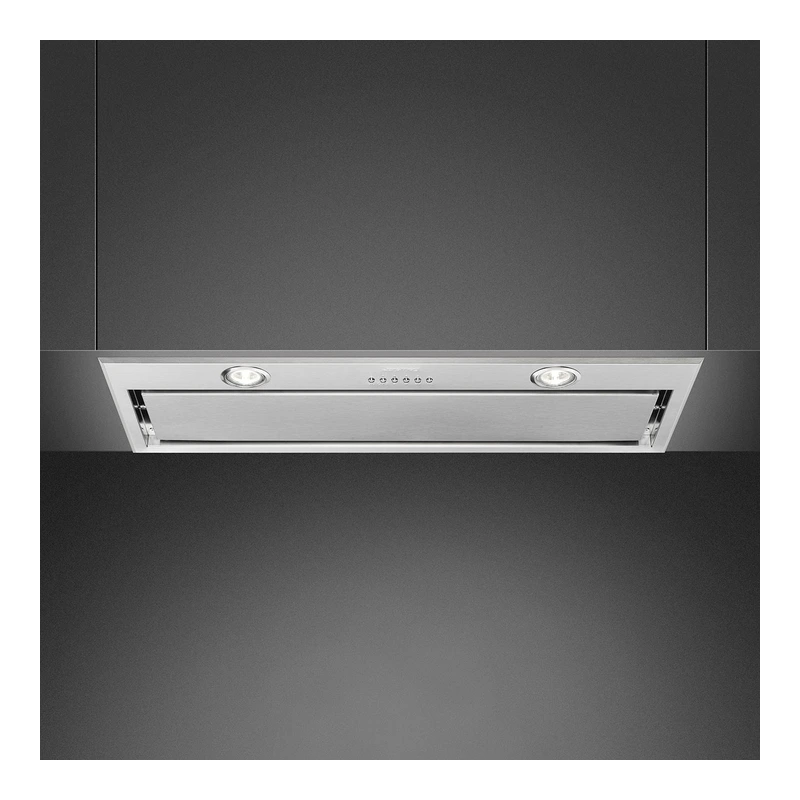

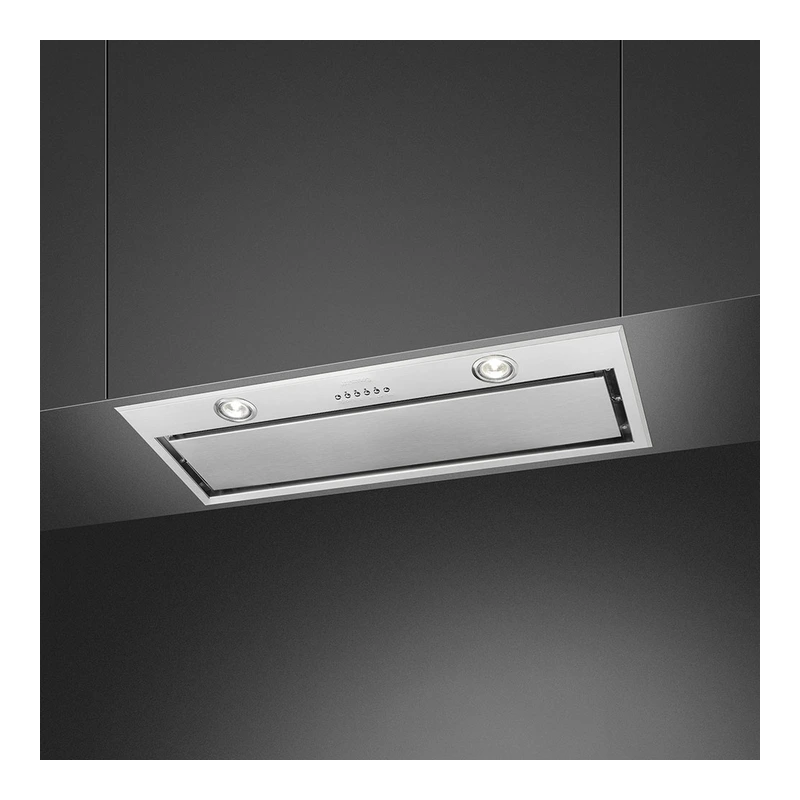

Smeg KSEG78PXE Canopy Hood

SKU: KSEG78PXE · EAN: 8017709224905

Stainless Steel

The SMEG KSEG78PXE is a fully integrated stainless steel canopy cooker hood designed for ducted or re–circulation extraction. With a 77 cm width, universal brushed finish and electronic button controls, it offers three speeds plus intensive setting, perimeter extraction and efficient LED lighting. Energy efficiency class A and a maximum extraction rate of 606 m³/h make it suitable for kitchens requiring effective vapour and grease removal.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Canopy Cooker Hoods
Design	Fully integrated
Extraction	Ducted out or re–circulation possible
Material / colour	Stainless steel, brushed, stainless steel colour
Aesthetics	Universal

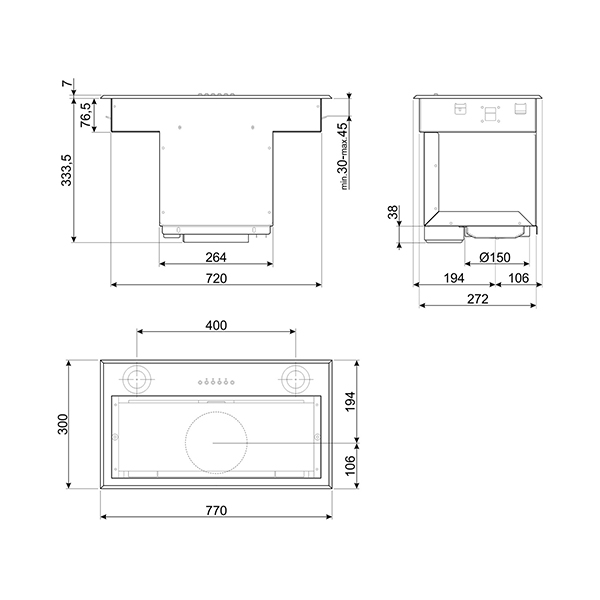

Hood width	77 cm
Control setting	Electronic buttons, LED colour white
No. of speeds	3 plus intensive speed
Time–setting options	Not stated in source
No. of lights	2
Light type	LED
Light power	1 W
Light colour temperature	4000 K
Free outlet maximum capacity	673 m³/h
Motor power	275 W
Number of filters	2
Anti–grease filters	Aluminium
Filter replacement indicator	Yes
Vent outlet	150 mm
Minimum distance from GAS hob	650 mm
Minimum distance from ELECTRIC hob	500 mm
Non return valve	Yes
Annual efficiency consumption (AEChood)	46 kWh/year
Energy efficiency class (EEC)	A
Fluid Dynamic Efficiency (FDE)	31,7
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	111,8 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	56,9 %
Grease Filtering Efficiency Class (GFEC)	E
Air flow at minimum speed (Qmin)	261 m³/h
Maximum extraction rate	606 m³/h
Intensive extraction rate	683 m³/h
Sound emission at minimum speed (SPEmin)	46 dBA
Sound emission at maximum speed (SPEmax)	65 dBA
Sound emission at boost speed (SPEboost)	68 dBA
Time increase factor (F)	0,9
Measured air flow rate at best efficiency point (Qbep)	329 m³/h
Measured air pressure at best efficiency point (Qbep)	466 Pa
Measured electric power input at best efficiency point (Wbep)	134 W
Normal power of the light system (Wl)	2 W
Average illumination of the light on the cooking surface (Emiddle)	246 lux
Sound power level at highest setting (Lwa)	65 dBA
Nominal power	277 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Plug	No
