Smeg KSET86LX3 Telescopic Hood

SKU: KSET86LX3 · EAN: 8017709333645

Stainless Steel

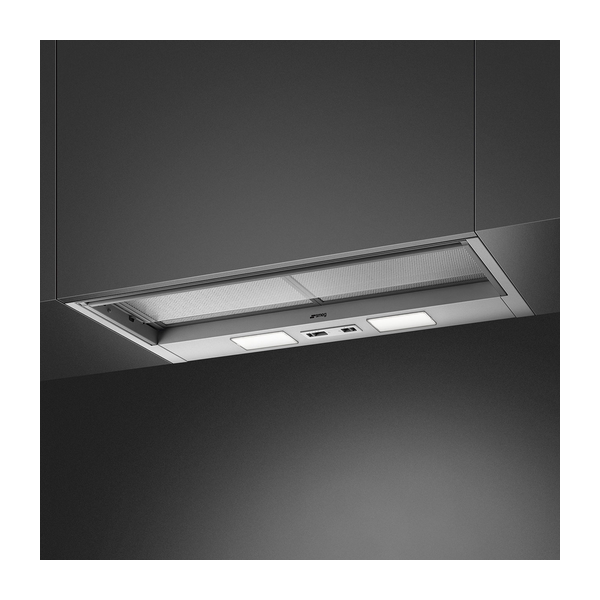

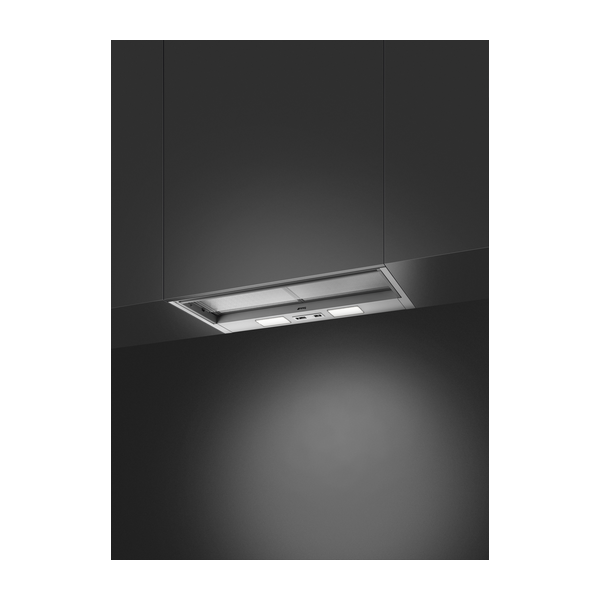

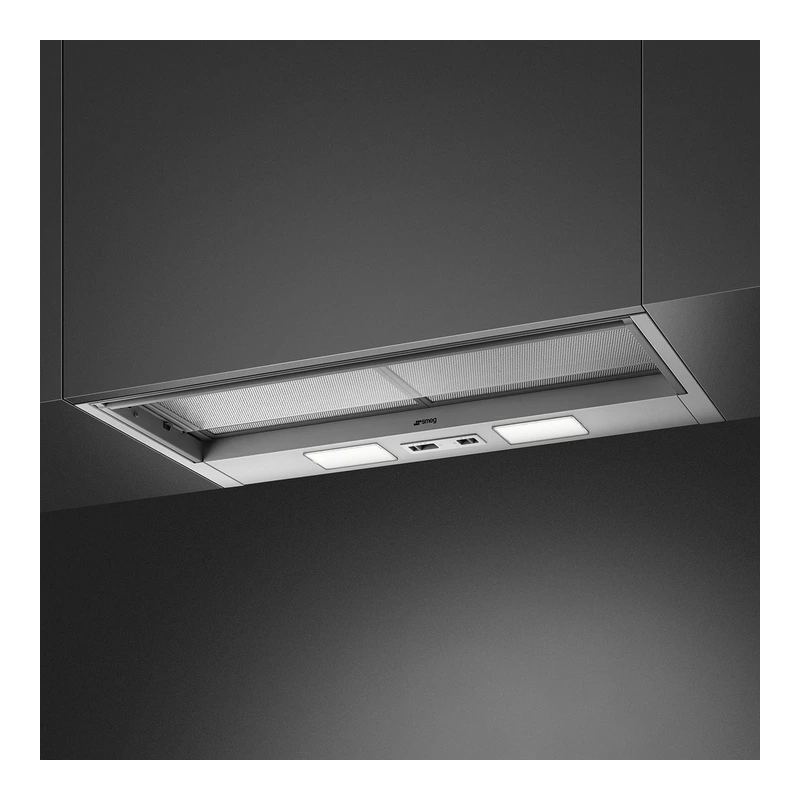

The SMEG KSET86LX3 is an 86 cm telescopic cooker hood with a visible stainless steel front panel and universal aesthetics. It offers ducted out or recirculation extraction with three slider-controlled speeds and aluminium anti-grease filters. Warm 2700 K LED lighting illuminates the cooking area, while energy performance includes a C energy efficiency class and annual consumption of 49 kWh/year. This brushed stainless steel hood is designed for use above gas or electric hobs within the specified clearances.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Telescopic Cooker Hoods
Design	Visible front panel
Extraction	Ducted out or re-circulation possible
Material	Stainless steel, brushed type of steel
Colour / Finishing	Stainless steel, brushed finishing
Aesthetics	Universal
Glass type	Clear
Serigraphy colour	Black
Logo	Silk screen
Model code	KSET86LX3
EAN code	8017709333645
Width	86 cm
Control setting	Slider, 3 speeds
Number of lights	2
Light type	LED
Light power	6 W
Light colour temperature	2700 K
Number of filters	2 aluminium anti-grease filters
Vent outlet	120 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Free outlet maximum capacity	237 m³/h
Maximum extraction rate	225 m³/h
Air flow at minimum speed (Qmin)	130 m³/h
Extraction rate IEC 61591 – Speed 1	132 m³/h, 44 dBA (Noise level IEC 60704-2-13)
Extraction rate IEC 61591 – Speed 2	165 m³/h, 43 dBA (Noise level IEC 60704-2-13)
Extraction rate IEC 61591 – Speed 3	230 m³/h, 53 dBA (Noise level IEC 60704-2-13)
Airborne sound power emission at minimum speed (SPEmin)	47 dBA
Airborne sound power emission at maximum speed (SPEmax)	55 dBA
Sound power level at highest setting (Lwa)	55 dBA
Annual Efficiency Consumption (AEChood)	49 kWh/year
Energy efficiency class (EEC)	C
Energy Efficiency Index	84.1 (per first cavity)
Fluid Dynamic Efficiency (FDE)	8.4
Fluid Dynamic Efficiency class (FDEC)	E
Lighting Efficiency (LE)	20.1 lux/W
Lighting Efficiency class (LEC)	B
Grease Filtering Efficiency (GFE)	65.1 %
Grease Filtering Efficiency class (GFEC)	D
Time increase factor (F)	1.7
Measured air flow rate at best efficiency point (Qbep)	135 m³/h
Measured air pressure at best efficiency point (Qbep)	160 Pa
Measured electric power input at best efficiency point (Wbep)	72 W
Motor power	75 W
Nominal power	81 W
Normal power of the light system (Wl)	6 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Accessories included	Tube reduction
Compatible accessories	KITFC62 – Charcoal filter round (kit 2 pieces)
