Smeg KSG70E Canopy Hood

SKU: KSG70E · EAN: 8017709275136

Silver

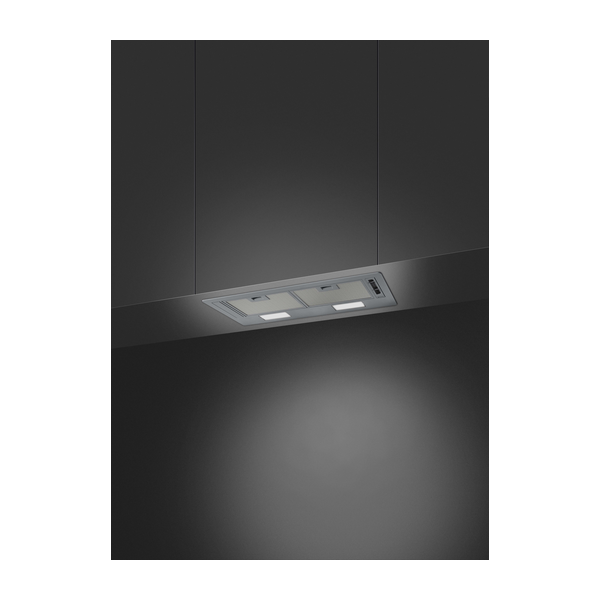

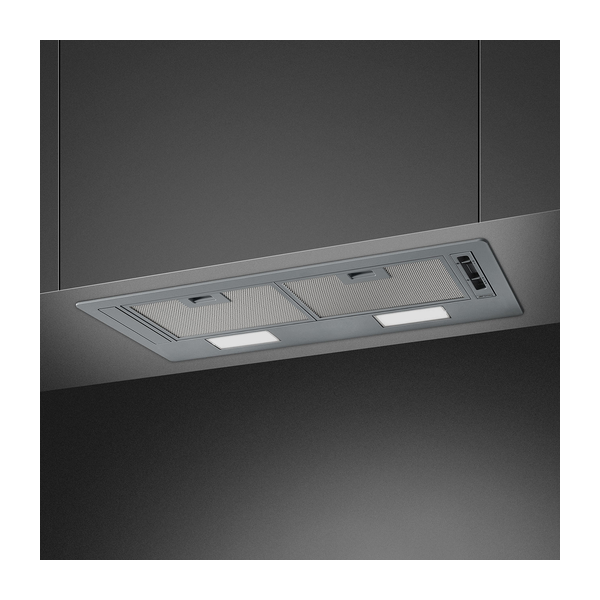

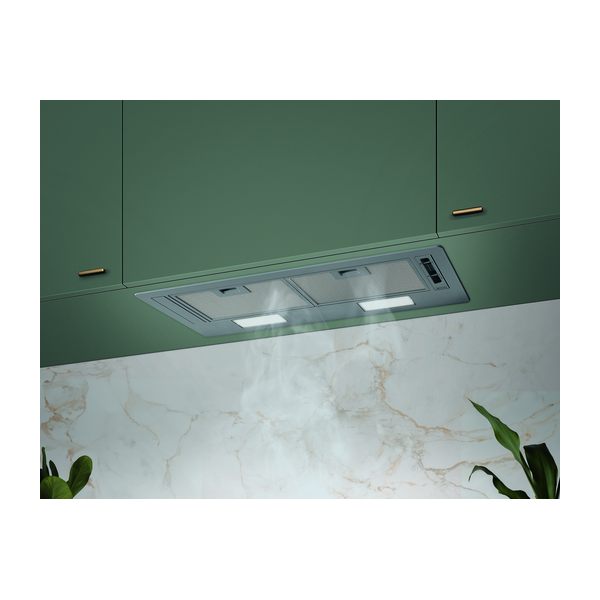

The SMEG KSG70E is a fully integrated universal canopy cooker hood in silver, designed to fit a 73 cm space. It offers ducted out or re–circulation extraction, with three slider–controlled speeds and a maximum extraction rate of 224 m³/h. LED lighting with warm 2700 K colour temperature illuminates the cooking area, while aluminium anti–grease filters help remove grease from steam during cooking. It is suitable for use above gas and electric hobs within the specified minimum distances.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Canopy Cooker Hoods
Design	Fully integrated
Aesthetics	Universal
Colour	Silver
Serigraphy colour	Black
Logo	Silk screen
Material	Painted material

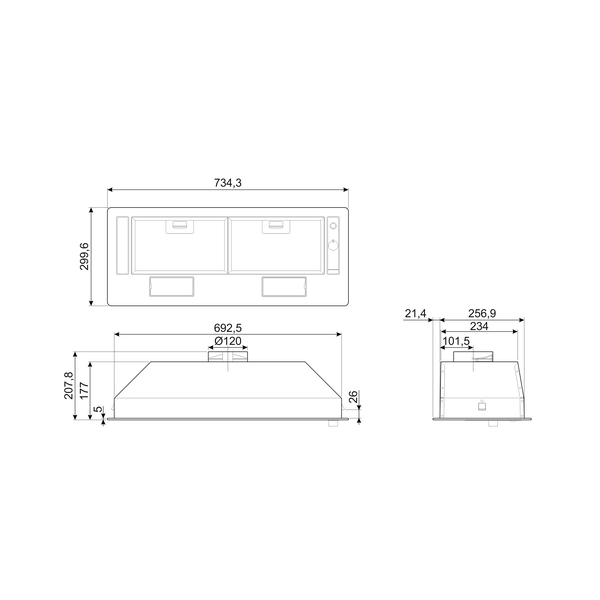

Hood width	73 cm
Extraction	Ducted out or re–circulation possible
Control setting	Slider
Number of speeds	3
Number of lights	2
Light type	LED
Light power	3 W
Light colour temperature	2700 K
Free outlet maximum capacity	232 m³/h
Maximum extraction rate	224 m³/h
Air flow at minimum speed (Qmin)	125 m³/h
Extraction rate IEC 61591 – Speed 1	125 m³/h
Extraction rate IEC 61591 – Speed 2	155 m³/h
Extraction rate IEC 61591 – Speed 3	224 m³/h
Noise level IEC 60704-2-13 – Speed 1	45 dBA
Noise level IEC 60704-2-13 – Speed 2	47 dBA
Noise level IEC 60704-2-13 – Speed 3	54 dBA
Motor power	75 W
Number of filters	2
Anti–grease filters	Aluminium
Vent outlet	120 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Non return valve	Yes
Annual efficiency consumption (AEChood)	50 kWh/year
Energy efficiency class (EEC)	C
Fluid Dynamic Efficiency (FDE)	8.8
Fluid Dynamic Efficiency class (FDEC)	E
Lighting Efficiency (LE)	13 lux/W
Lighting Efficiency Class (LEC)	D
Grease Filtering Efficiency (GFE)	56 %
Grease Filtering Efficiency Class (GFEC)	E
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	45 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	54 dBA
Time increase factor (F)	1.7
Energy Efficiency Index per first cavity	84.7
Measured air flow rate at best efficiency point (Qbep)	160 m³/h
Measured air pressure at best efficiency point (Qbep)	145 Pa
Measured electric power input at best efficiency point (Wbep)	74 W
Normal power of the light system (Wl)	6 W
Average illumination on the cooking surface (Emiddle)	78 lux
Sound power level at highest setting (Lwa)	54 dBA
Nominal power	81 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Compatible accessories	KITFC62 – Charcoal filter round (kit 2 pieces)
EAN code	8017709275136
