What are the extraction options for the KTR90XE?

The hood can be installed for ducted out extraction or used in re–circulation mode.

How many speeds does this cooker hood have?

It offers 3 speeds plus an intensive speed for extra fast extraction when required.

What is the maximum extraction rate?

The maximum extraction rate is 567 m³/h, with an intensive extraction rate of 788 m³/h.

What are the noise levels during operation?

Noise levels range from 49 dBA at minimum speed to 61 dBA at maximum speed and 69 dBA at intensive speed.

What is the energy efficiency class of this hood?

The energy efficiency class is A, with an annual efficiency consumption of 59 kWh/year.

Are there alternative colour options?

Yes, alternative colours available are White, Black and Cream (models KT90BE, KT90BLE and KT90PE).

Product Information Sheet

Smeg Victoria Chimney Hood

SKU: KTR90XE

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

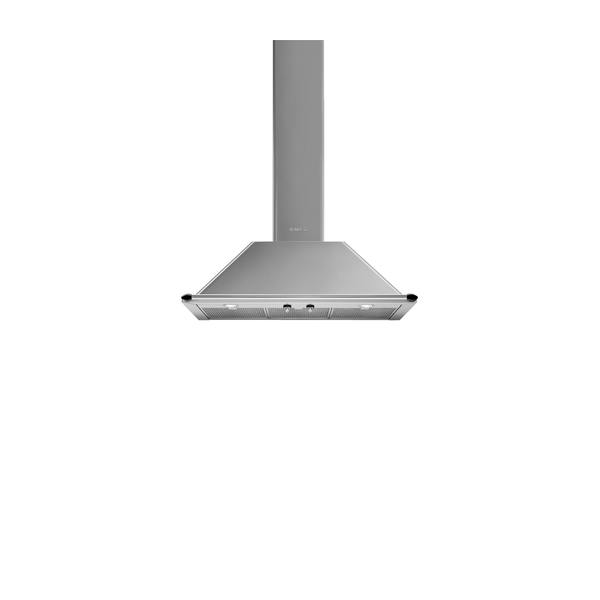

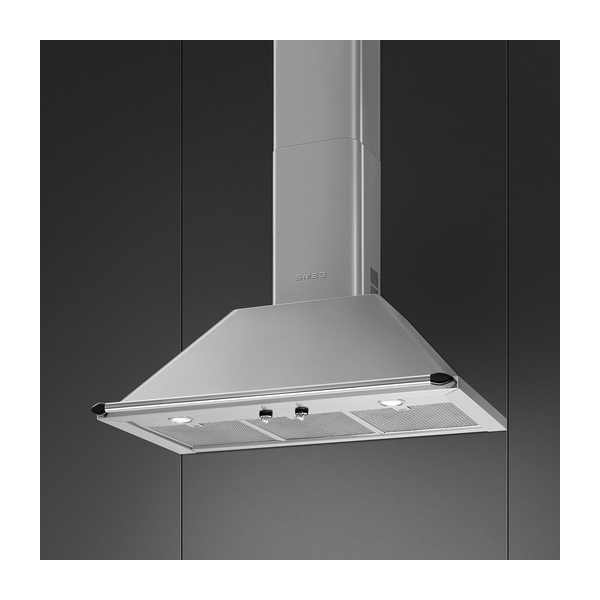

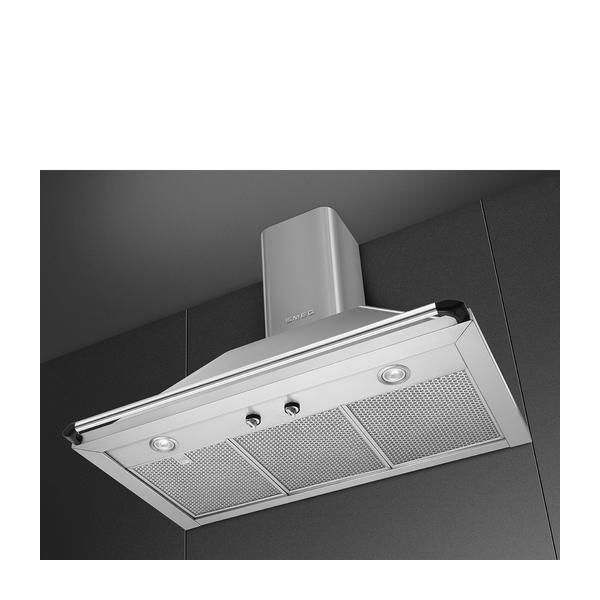

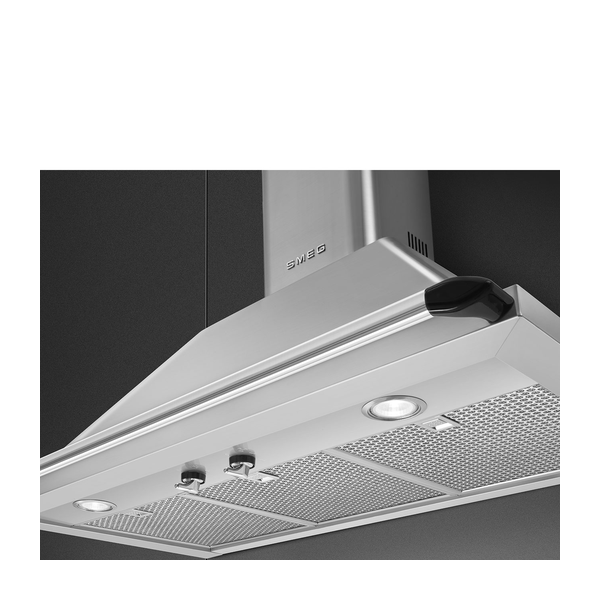

Smeg KTR90XE Victoria Chimney Hood

SKU: KTR90XE · EAN: 8017709211684

Stainless Steel

The SMEG KTR90XE is a 90 cm Victoria stainless steel chimney cooker hood designed for ducted or recirculation extraction. With three speeds plus an intensive setting, it offers a maximum free outlet capacity of 820 m³/h and LED lighting at 3000 K to illuminate the cooking area. Featuring aluminium anti–grease filters, A class energy efficiency and classic Victoria control knobs, it is suited to kitchens requiring effective extraction and traditional styling.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Aesthetics	Victoria
Colour / material	Stainless steel, brushed, applied logo
Type of steel	Brushed
EAN code	8017709211684
Hood width	90 cm
Extraction	Ducted out or re–circulation possible
Control setting	Control knobs, Victoria, steel effect
Number of controls	2
Number of speeds	3 + intensive speed
Number of lights	2
Light type	LED
Light power	1 W
Light colour temperature	3000 K
Free outlet maximum capacity	820 m³/h
Motor power	275 W
Number of filters	3 aluminium anti–grease filters
Vent outlet	150 mm
Minimum distance from gas hob	750 mm
Minimum distance from electric hob	650 mm
Non–return valve	Yes
Extraction rate IEC 61591 – speed 1	334 m³/h, 49 dBA
Extraction rate IEC 61591 – speed 2	439 m³/h, 57 dBA
Extraction rate IEC 61591 – speed 3	567 m³/h, 61 dBA
Extraction rate IEC 61591 – intensive	788 m³/h, 69 dBA
Annual efficiency consumption (AEChood)	59 kWh/year
Energy efficiency class (EEC)	A
Fluid Dynamic Efficiency (FDE)	30
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	102,3 lux/W
Lighting Efficiency class (LEC)	A
Grease Filtering Efficiency (GFE)	76,6 %
Grease Filtering Efficiency class (GFEC)	C
Air flow at minimum speed (Qmin)	334 m³/h
Maximum extraction rate	567 m³/h
Intensive extraction rate	788 m³/h
Sound power emission at minimum speed (SPEmin)	49 dBA
Sound power emission at maximum speed (SPEmax)	61 dBA
Sound power emission at boost speed (SPEboost)	69 dBA
Time increase factor (F)	1,00
Energy Efficiency Index per first cavity	52,4
Measured air flow rate at best efficiency point (Qbep)	438 m³/h
Measured air pressure at best efficiency point (Qbep)	434 Pa
Measured electric power input at best efficiency point (Wbep)	176 W
Normal power of the light system (Wl)	2 W
Average illumination on cooking surface (Emiddle)	225 lux
Sound power level at highest setting (Lwa)	61 dBA
Nominal power	278 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1000 mm
