Can this hood be used in both ducted and recirculation modes?

Yes. Extraction can be ducted out or used in re‑circulation mode. Charcoal filters are included to support operation in recirculation.

What is the minimum installation height above the hob?

The minimum distance from a gas hob is 650 mm and from an electric hob is 450 mm.

How powerful is the extraction on the intensive setting?

The intensive extraction rate is 666 m³/h with an airborne acoustical A‑weighted sound power emission of 67 dBA.

Does the hood warn when filters need changing?

Yes. A warning light advises when filters need changing, and there is a filter replacement indicator.

What is the energy efficiency class of this hood?

The hood has an energy efficiency class A with an annual efficiency consumption of 49 kWh/year.

Are there other colour options available?

Alternative colours available are White and Silver Glass, with available models KV26S and KV26B.

Product Information Sheet

Smeg Angled Chimney Hood

SKU: KV26N

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 13 June 2026

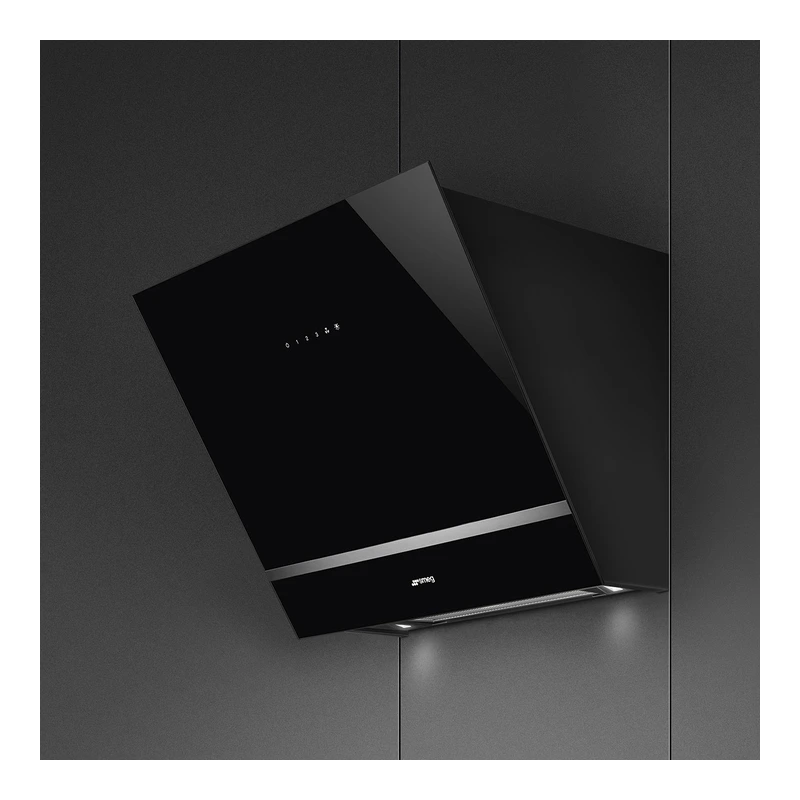

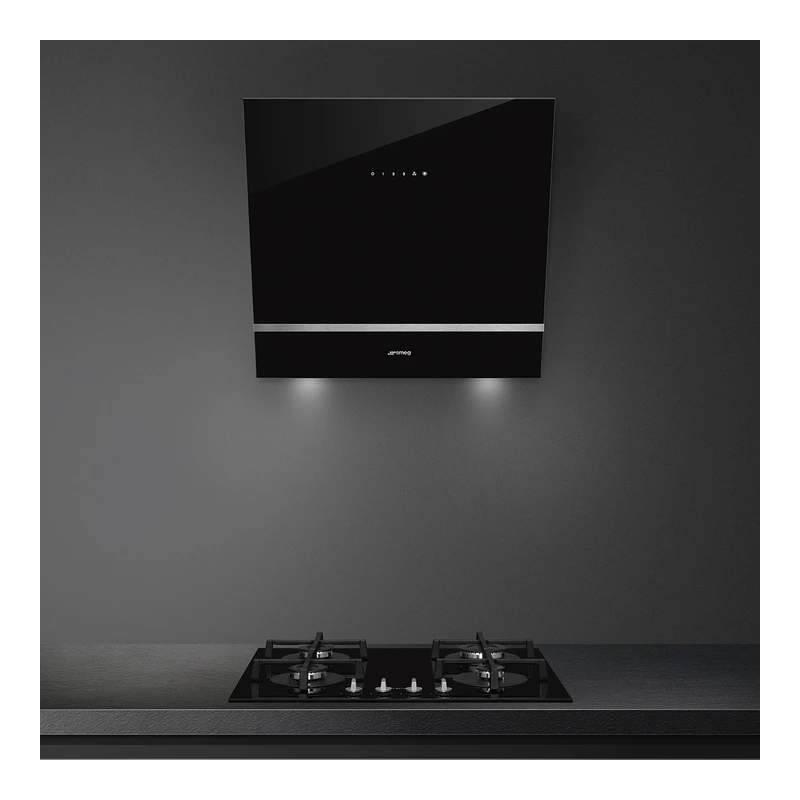

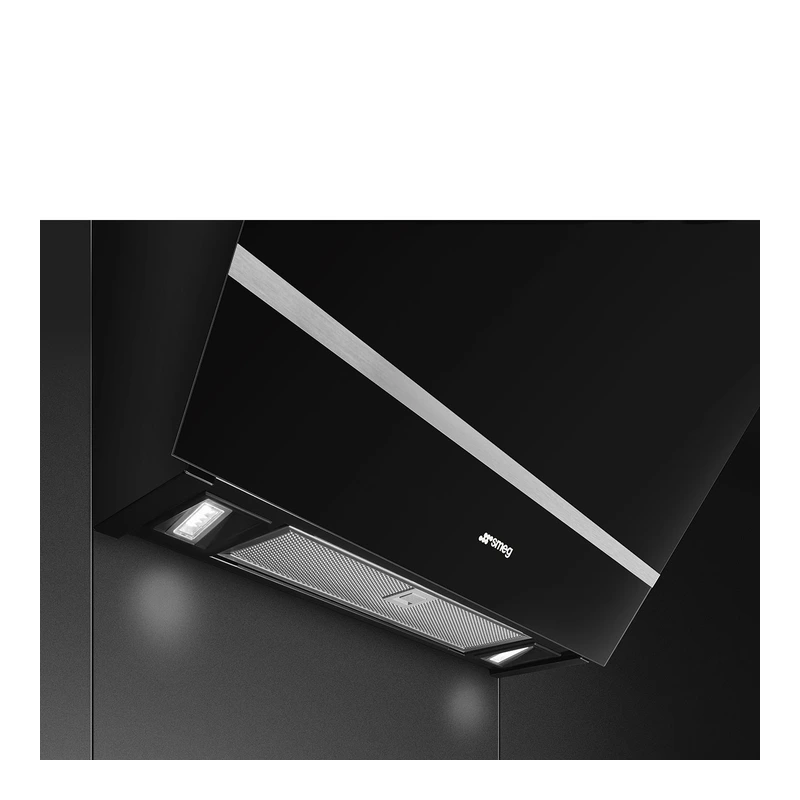

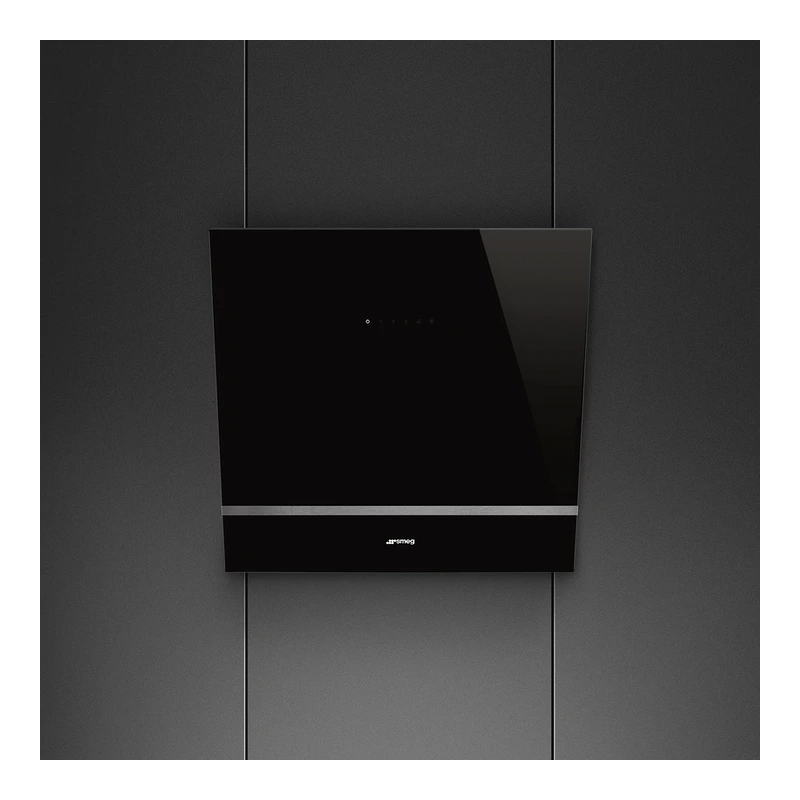

Smeg KV26N Angled Chimney Hood

SKU: KV26N · EAN: 8017709290610

Black Glass

The KV26N is a 60 cm angled chimney cooker hood in black glass with a universal aesthetic. It offers ducted or recirculation extraction, perimeter extraction and touch control with back‑lighting. With three speeds plus intensive setting, LED lighting and included charcoal filters, it is designed to efficiently remove grease and cooking odours. Energy efficiency class A and a maximum intensive extraction rate of 666 m³/h provide powerful performance for everyday cooking.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Angled
Aesthetics	Universal
Colour	Black
Finishing	Glass
Glass type	Black
Serigraphy colour	White
Logo	Silk screen
Material	Glass
EAN code	8017709290610
Model	KV26N
Hood width	60 cm
Extraction type	Ducted out or re‑circulation possible
Electronic control	Yes
Perimeter extraction	Yes
Control setting	Touch control back‑lighted White
LED colour (controls)	White
Number of speeds	3 + Intensive speed
24 h air filter function	Yes
Time‑setting options	Yes
Number of lights	2
Light type	LED
Light power	1.1 W
Dimmer mode	Yes
Light colour temperature	4000 K
Free outlet maximum capacity	670 m³/h
Motor power	230 W
Number of filters	2
Anti‑grease filters	Aluminium
Charcoal filters included	Yes
Filter replacement indicator	Yes (warning light to advise when filters need changing)
Vent outlet	150 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	450 mm
Non return valve	Yes
Annual efficiency consumption (AEChood)	49 kWh/year
Energy efficiency class (EEC)	A
Fluid Dynamic Efficiency (FDE)	31.5
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	118.6 lux/W
Lighting Efficiency class (LEC)	A
Grease Filtering Efficiency (GFE)	77.0 %
Grease Filtering Efficiency class (GFEC)	C
Air flow at minimum speed (Qmin)	242 m³/h
Maximum extraction rate	420 m³/h
Intensive extraction rate	666 m³/h
Sound power emission at minimum speed (SPEmin)	44 dBA (airbourne acoustical A‑weighted)
Sound power emission at maximum speed (SPEmax)	58 dBA (airborne acoustical A‑weighted)
Sound power emission at boost speed (SPEboost)	67 dBA (airbourne acoustical A‑weighted)
Time increase factor (F)	0.9
Energy Efficiency Index	51.1
Measured air flow rate at best efficiency point (Qbep)	363 m³/h
Measured air pressure at best efficiency point (Qbep)	453 Pa
Measured electric power input at best efficiency point (Wbep)	145 W
Normal power of the light system (Wl)	2 W
Average illumination on cooking surface (Emiddle)	261 lux
Sound power level at highest setting (Lwa)	58 dBA
Nominal power	232 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Extraction rate IEC 61591 – Speed 1	242 m³/h – 44 dBA (Noise level IEC 60704‑2‑13)
Extraction rate IEC 61591 – Speed 2	326 m³/h – 51 dBA (Noise level IEC 60704‑2‑13)
Extraction rate IEC 61591 – Speed 3	420 m³/h – 58 dBA (Noise level IEC 60704‑2‑13)
Extraction rate IEC 61591 – Intensive speed	666 m³/h – 67 dBA (Noise level IEC 60704‑2‑13)
Alternative colours available	White, Silver Glass – available colours KV26S – KV26B
