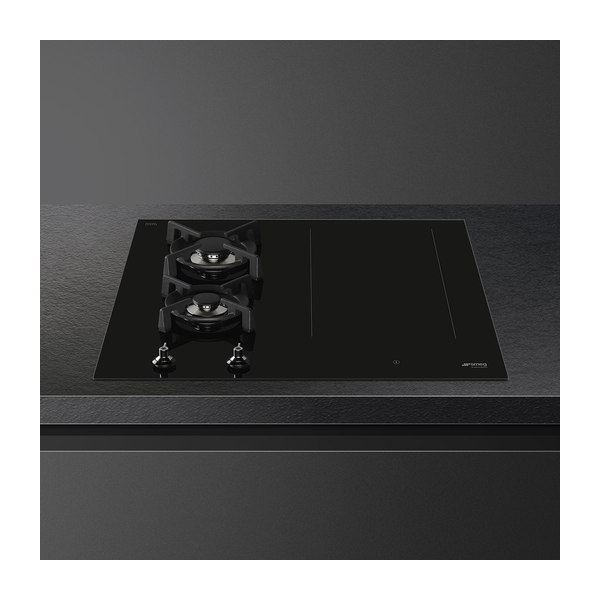

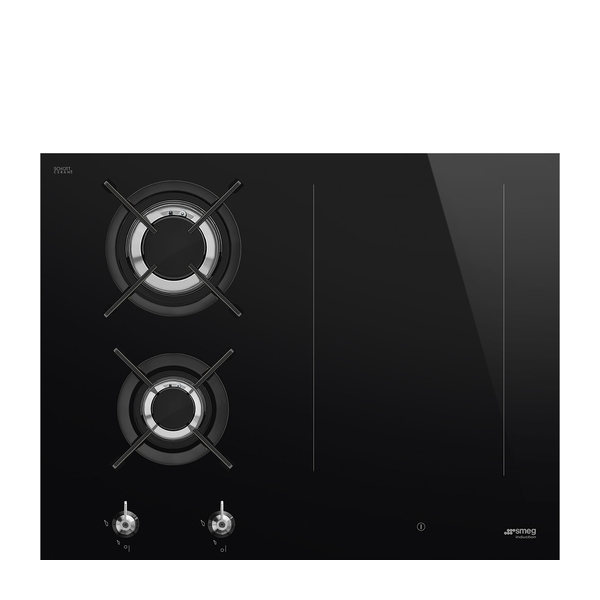

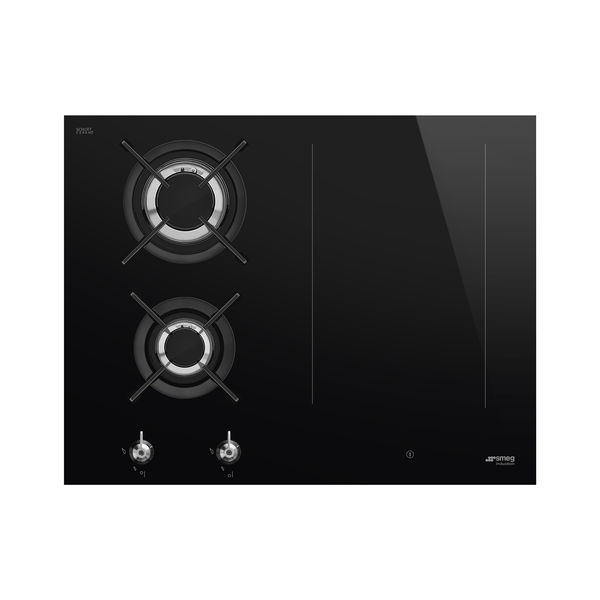

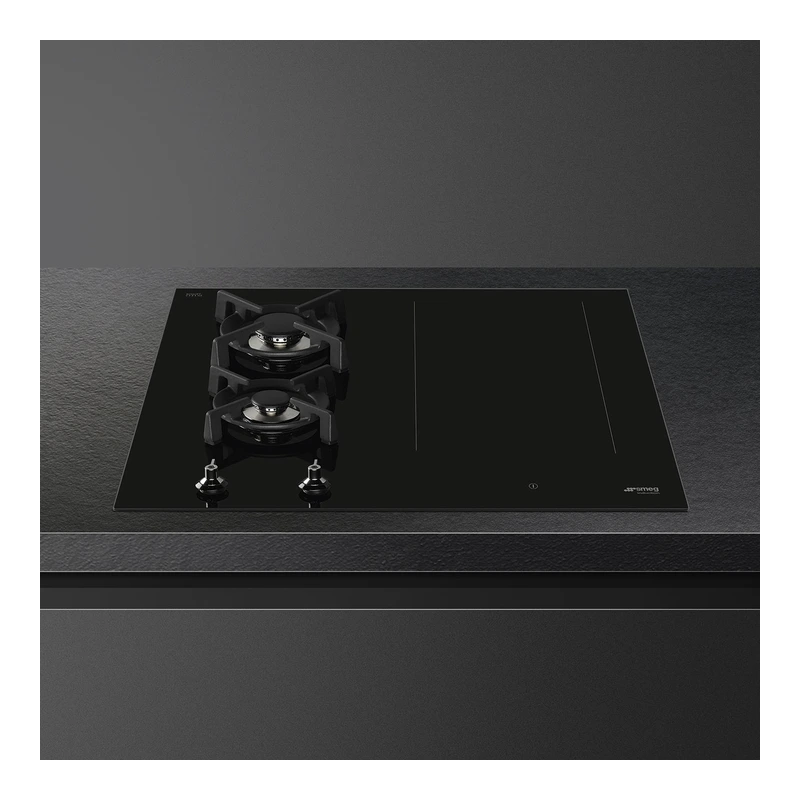

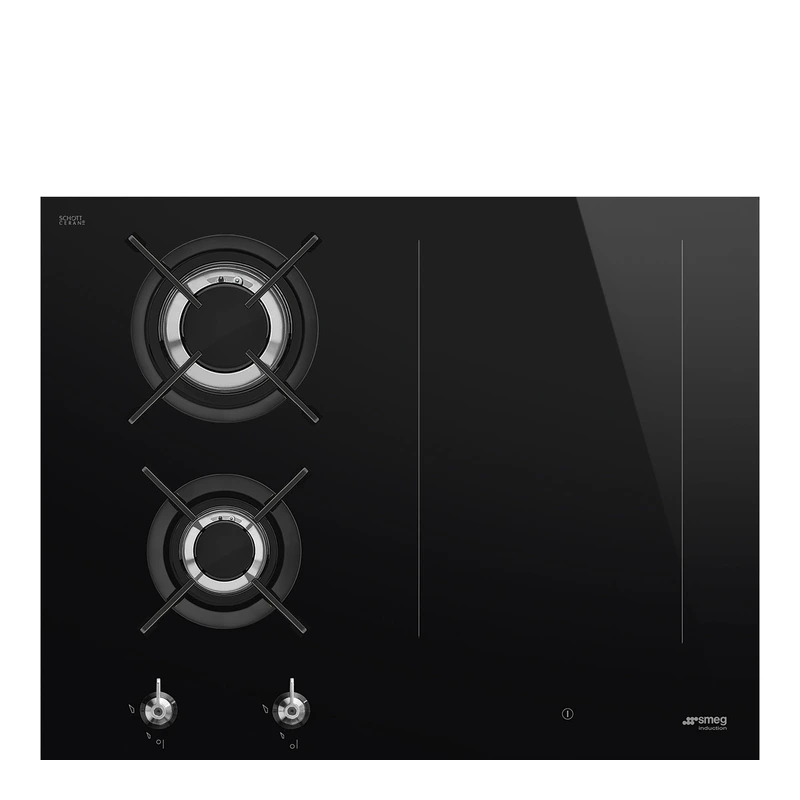

Smeg PM3643D Classic Mixed Fuel Hob

SKU: PM3643D · EAN: 8017709290191

Straight Edge Glass Ultra Low Profile

The Smeg PM3643D is a 65 cm built-in mixed hob combining two gas and two induction cooking zones in a sleek black Eclipse ceramic glass design. Part of the Classic aesthetics range, it features cast iron pan stands, Smeg Contemporary brass burners and front steel-effect control knobs with white slider control. With MultiZone induction, keep warm and grill functions, boosters and advanced safety features, it offers flexible, precise cooking in an ultra-low profile or fully flushed installation.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hob
Installation	Built-in – Ultra-low profile or fully flushed
Dimensions	65 cm

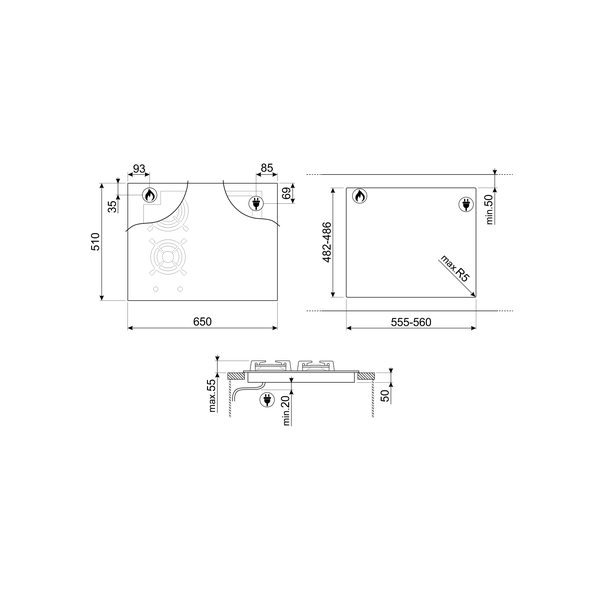

Standard cut-out	482–486 x 555–560 mm
Power supply	Mixed
Type	Mixed
Series	New
Aesthetics	Classic
Colour / Finish	Black, glass finish
Material	Glass
Glass type	Eclipse ceramic
Glass edge	Straight edge
Glass on steel	Yes
Pan stands	Cast iron
Burners	Smeg Contemporary, brass material
Type of control setting	Control knobs and slider
Slider colour	White
Controls position	Front
Number of controls	2
Controls colour	Steel effect
Logo	Silk screen, serigraphy colour Grey
Number of gas cook zones	2
Number of induction cook zones	2
Total number of cook zones	4
Number of cooking zones with booster	2
Number of flexible zones	1
Flexible Zone type	MultiZone
Multizone option	Yes
Power levels	9
Main on/off switch	Yes
Keep warm automatic function	Yes
Grill function	Yes
End cooking timer	2
Pause option	Yes
Minute minder	1
End of cooking acoustic alarm	Yes
Residual time indicator	Yes
Time-setting options	Automatic switch-off
Limited Power Consumption Mode	Yes advance
Limited Power Consumption Mode (W)	2100 a 3700 – step 100 W
Show room demo option	Yes
Control lock / Child safety	Yes
Bridge option	Yes
Quick start	Yes
Rapid level selection	Yes
Automatic setting according to pan dimension	Yes
Automatic pan detection	Yes
Permanent automatic pot detection	Yes, with indication of the relative control
Gas safety valves	Yes
Automatic ignition	Yes
Automatic switch-off when overheat	Yes
Automatic switch-off when overflow	Yes
Residual heat indicator	Yes
Protection against accidental start up	Yes
Nominal power	3700 W
Current	16 A
Voltage	220–240 V
Voltage 2	380–415 V
Type of electric cable	Single phase
Frequency	50/60 Hz
Power supply cable length	120 cm
Front left zone	Gas – AUX – 1.10 kW
Rear left zone	Gas – Rapid – 3.10 kW
Rear right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3.00 kW – 21.0 x 19.0 cm
Front right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3.00 kW – 21.0 x 19.0 cm
Multizone right area	Booster 3.60 kW – 38.5 x 23.0 cm
Gas type	G20/G25 natural gas
Gas connection	Cylindrical; other gas connections provided: Conical
Other gas nozzles included	G30 GPL Liquid gas
Gas connection rating	4100 W
Model code	PM3643D
EAN code	8017709290191
