How many cooking zones does the PM3743D have?

The hob has a total of 4 cook zones: 2 gas cook zones and 2 induction cook zones. One Flexible Zone with Multizone functionality allows greater flexibility when using multiple pans.

What are the power ratings of the gas and induction zones?

The front left gas AUX burner is 1.10 kW and the rear left gas UR burner is 3.30 kW. The front right and rear right induction Multizone areas are 2.10 kW each, with booster 2.50 kW and double booster 3.00 kW. The Multizone right booster reaches 3.60 kW.

Does the hob have child safety features?

Yes. The hob includes Control Lock / Child Safety and protection against accidental start up. There are also gas safety valves, overheat protection, overflow protection and residual heat indicators.

Can I limit the power consumption of the hob?

Yes. The PM3743D offers an advanced Limited Power Consumption Mode, allowing the maximum power absorption of the hob to be set between 2100 W and 3700 W in 100 W increments.

Which gas types are compatible with this hob?

The hob is designed for G20/G25 natural gas and includes other gas nozzles for G30 GPL liquid gas. Cylindrical and conical gas connections are provided.

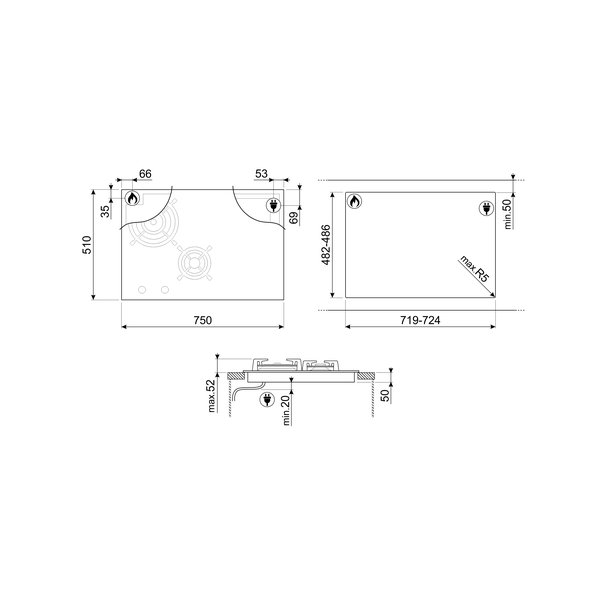

What is the worktop cut-out size required?

The standard cut-out dimensions are 482–486 mm by 719–724 mm.

Product Information Sheet

Smeg Classic Mixed Fuel Hob

SKU: PM3743D

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

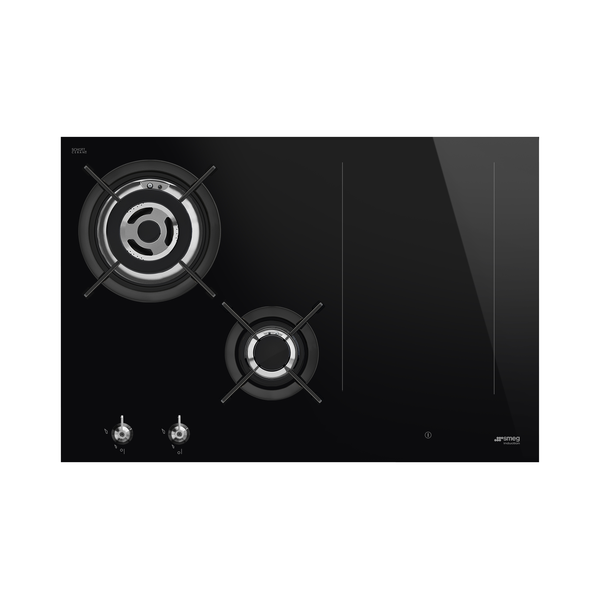

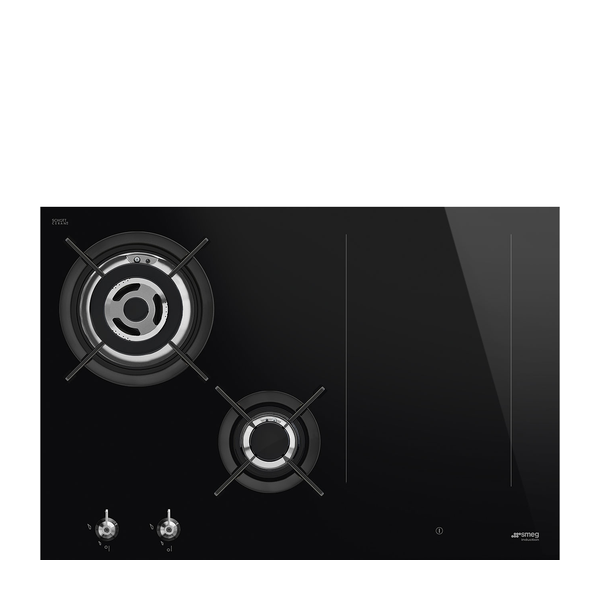

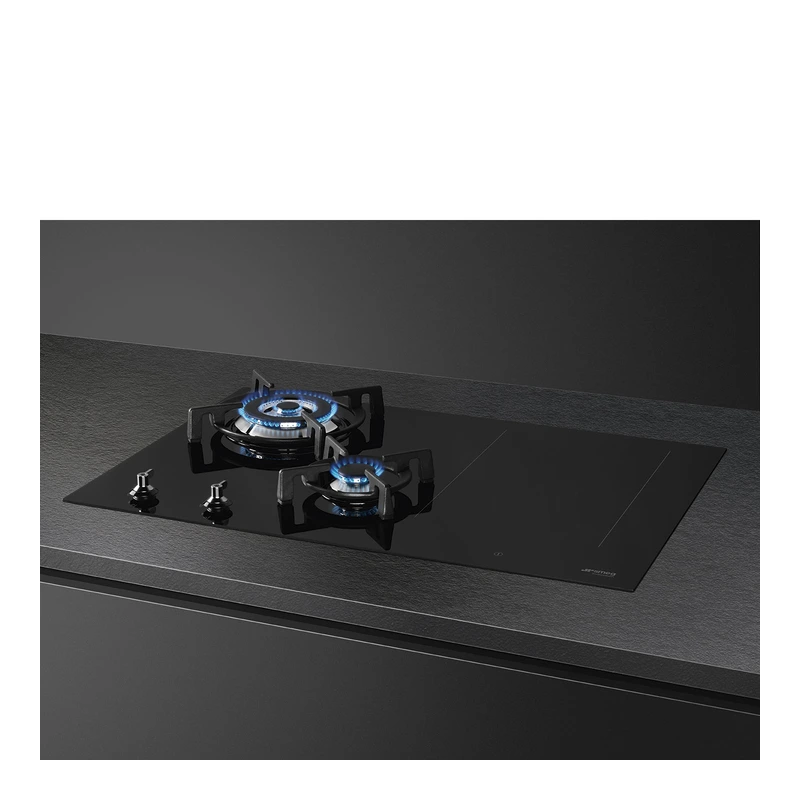

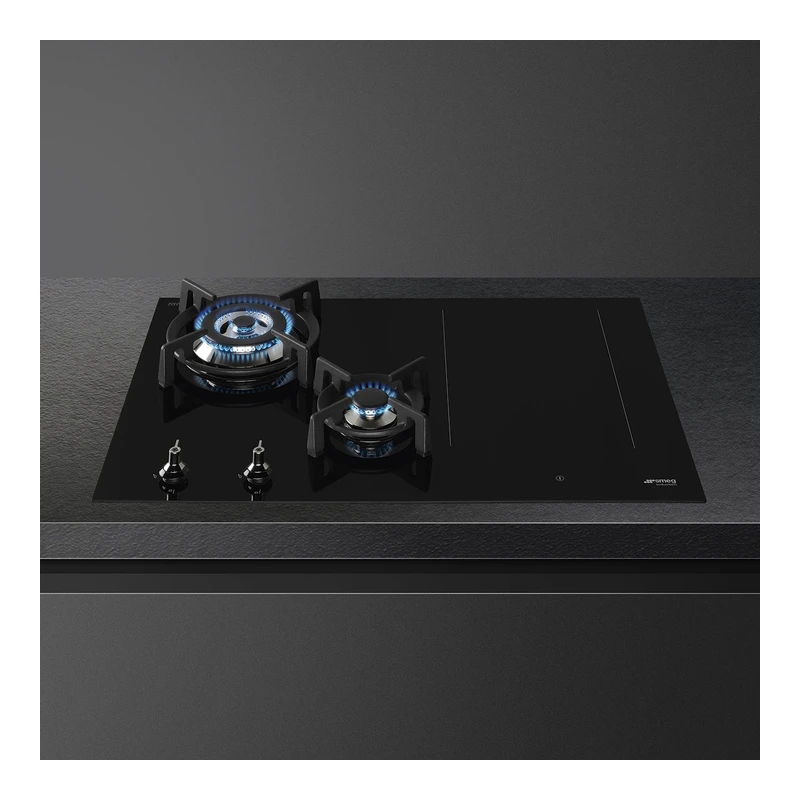

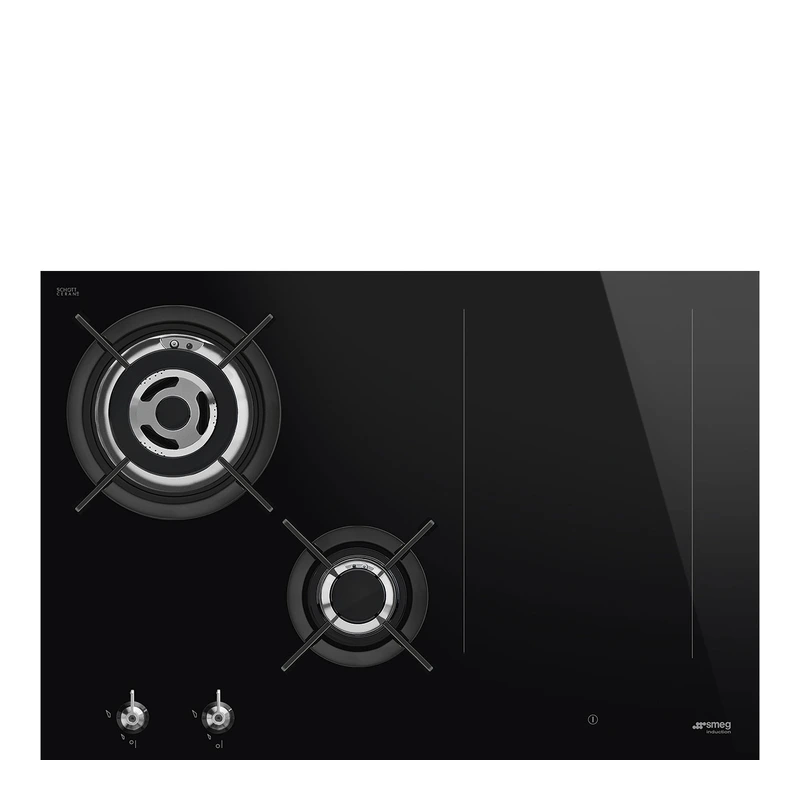

Smeg PM3743D Classic Mixed Fuel Hob

SKU: PM3743D · EAN: 8017709290252

Straight Edge Glass Ultra Low Profile

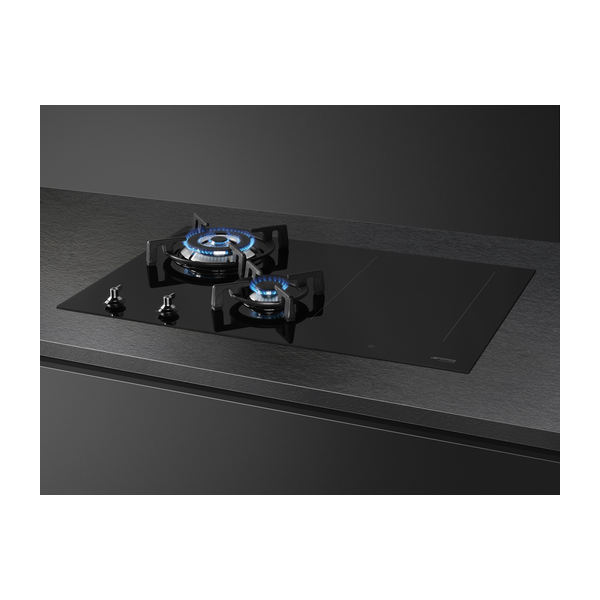

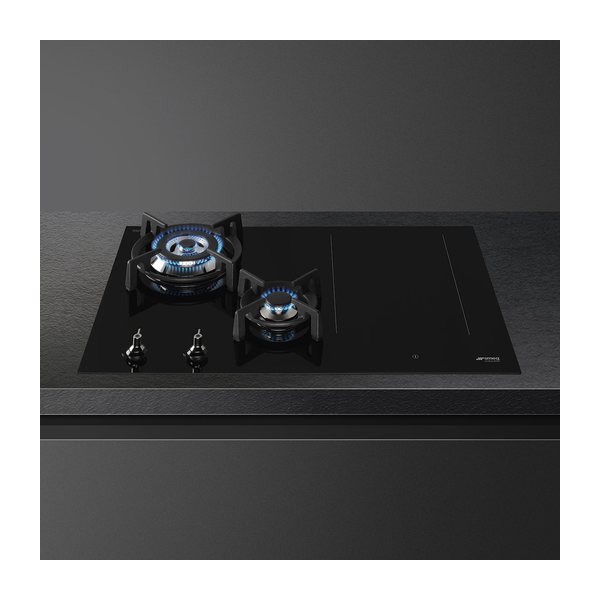

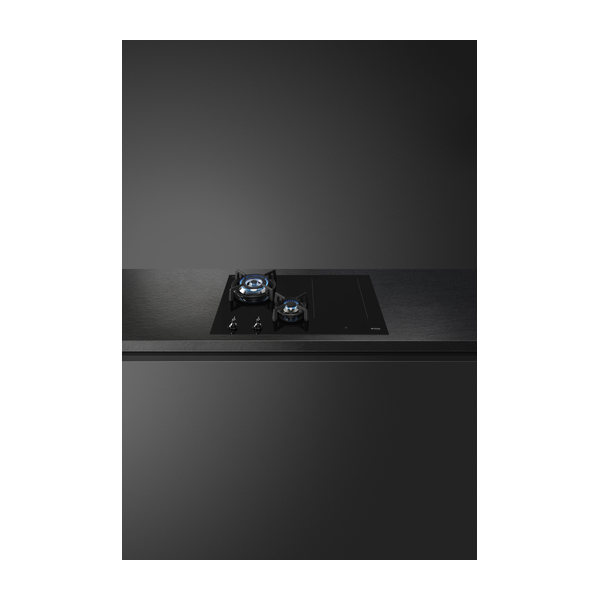

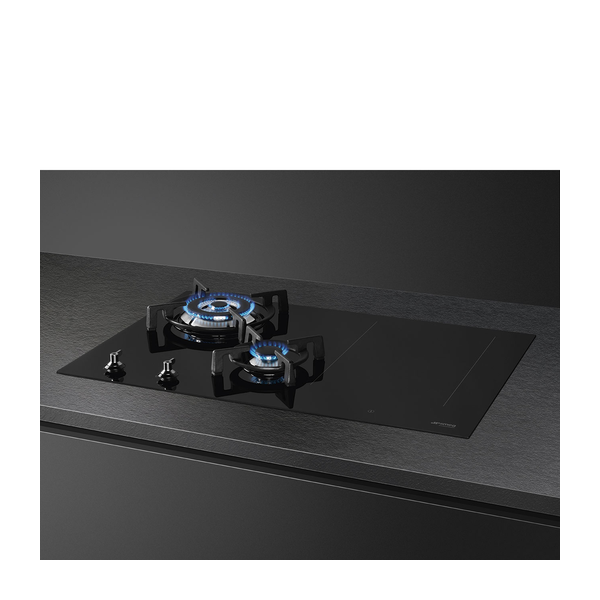

The Smeg PM3743D is a built-in mixed hob combining gas and induction cooking in a 70/75 cm ultra-low profile or fully flushed design. With 2 gas and 2 induction cook zones, Multizone flexibility and a stylish black Eclipse ceramic glass surface, it suits users who want versatile, precise and efficient cooking. Cast iron pan stands, advanced safety features and multiple automatic functions support convenient everyday use.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hob

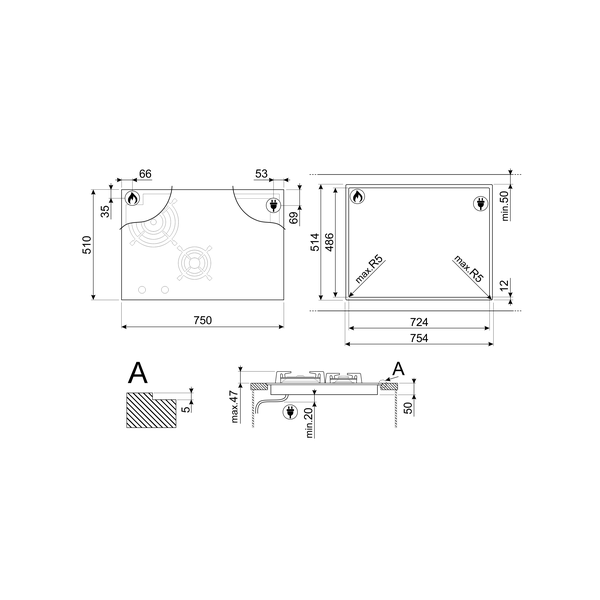

Installation	Built-in Ultra-low profile or Fully Flushed
Dimensions	70/75 cm
Standard cut-out	482–486 x 719–724 mm
Power supply	Mixed
Total number of cook zones	4
Number of gas cook zones	2
Number of induction cook zones	2
Flexible zones	No. of Flexible zones: 1 – Flexible Zone Type: MultiZone – Multizone Option: Yes – Bridge option: Yes
Gas zones output	Front left – Gas – AUX – 1.10 kW Rear left – Gas – UR – 3.30 kW
Induction zones output	Rear right – Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3.00 kW – 24.0 x 18.0 cm Front right – Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3.00 kW – 24.0 x 18.0 cm Multizone right – Booster 3.60 kW – 38.5 x 23.0 cm
Number of cooking zones with booster	2
Power levels	9
Nominal power	3700 W
Gas connection rating	4300 W
Limited Power Consumption Mode	Yes advance – 2100 to 3700 W, step 100 W
Current	16 A
Voltage	220–240 V
Voltage 2	380–415 V
Frequency	50/60 Hz
Type of electric cable	Single phase
Power supply cable length	120 cm
Gas type	G20/G25 natural gas
Other gas nozzles included	G30 GPL Liquid gas
Gas connections provided	Cylindrical and conical gas connection
Aesthetics series	Classic – New series
Colour / material	Black Eclipse ceramic glass, glass on steel, straight edge, cast iron pan stands, brass burners
Controls	Type: control knobs and slider – Position: front – Number of controls: 2 – Controls colour: steel effect
Logo and serigraphy	Logo: silk screen – Serigraphy colour: grey
Main on/off switch	Yes

Accessories

Mandatory items are automatically included with your enquiry. Optional items can be added individually.

View all Smeg →

Optional Accessories

— add individually to your enquiry

Optional

LGCN

Smeg Connecting strip
