How many cooking zones does the SMEG PV695LCNR have?

The hob has 5 gas cook zones, giving a total of 5 cook zones across the 90 cm surface.

What type of gas is the hob designed for?

The primary gas type is G20 natural gas. G30 GPL liquid gas nozzles are also included, and both cylindrical and conical gas connections are provided.

Does the hob include a wok support?

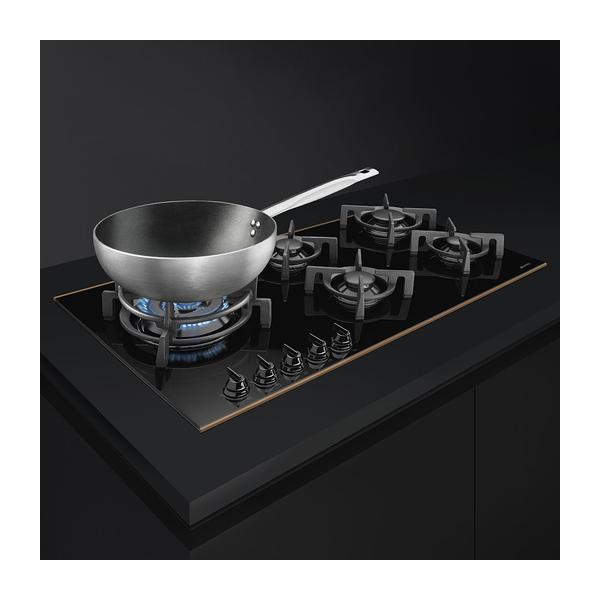

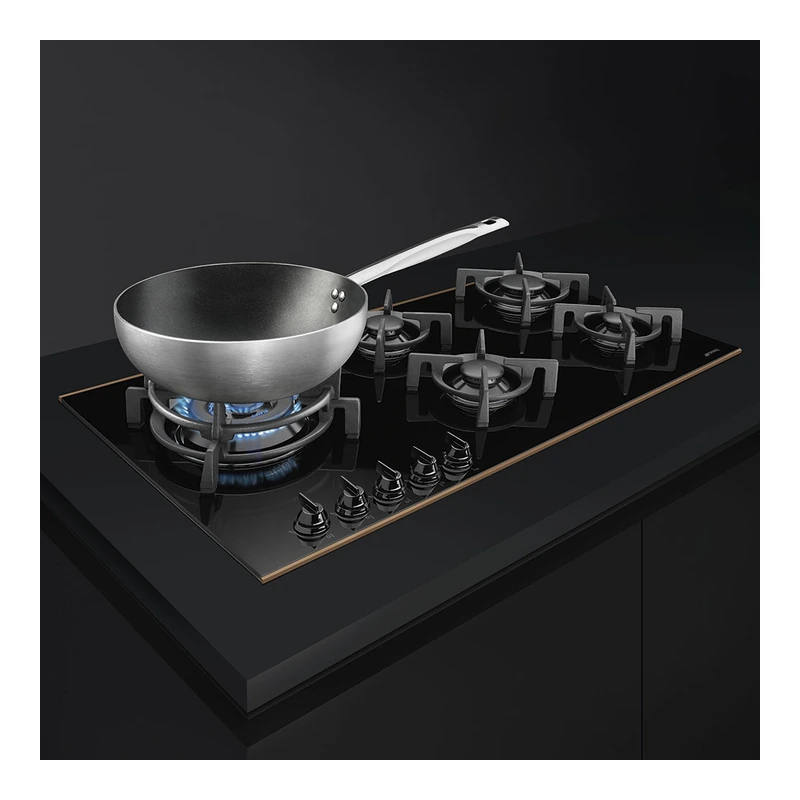

Yes, one cast iron wok support is included. The hob is also compatible with additional wok supports and a gas hobs moka support.

What safety features are provided on this gas hob?

The hob is equipped with gas safety valves and automatic ignition, supporting safe and convenient operation of the burners.

What are the installation cut-out dimensions?

The standard cut out required for installation is 482–486 × 844–848 mm, allowing a small cut-out for easy installation.

What is the total gas connection rating?

The gas connection rating is 13100 W, with individual burners ranging from 1.10 kW to 6.00 kW.

Product Information Sheet

Smeg Dolce Stil Novo Gas Hob

SKU: PV695LCNR

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Smeg PV695LCNR Dolce Stil Novo Gas Hob

SKU: PV695LCNR · EAN: 8017709222161

Black inc Copper Trim

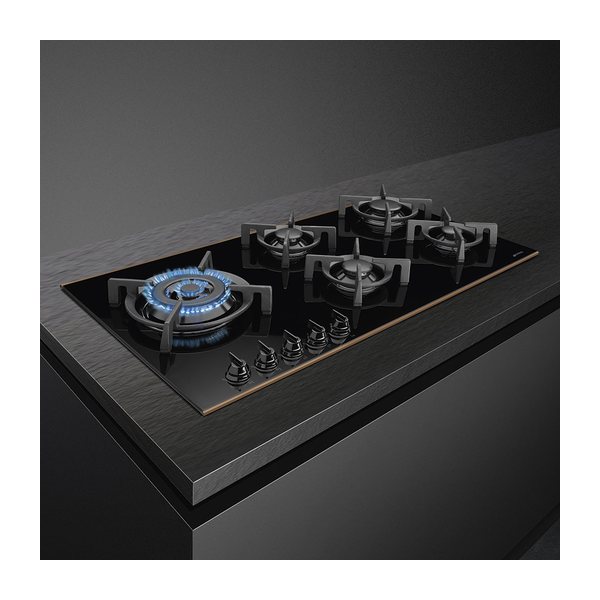

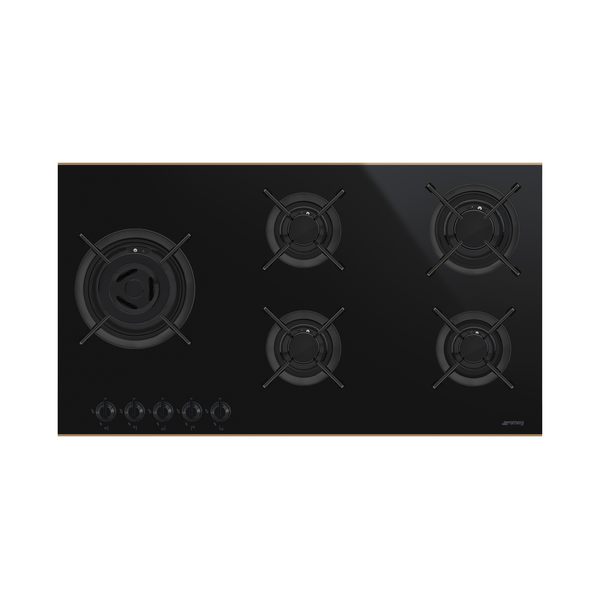

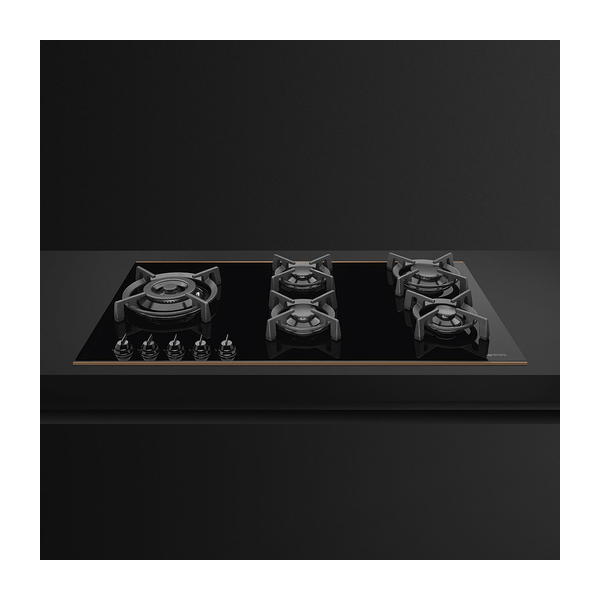

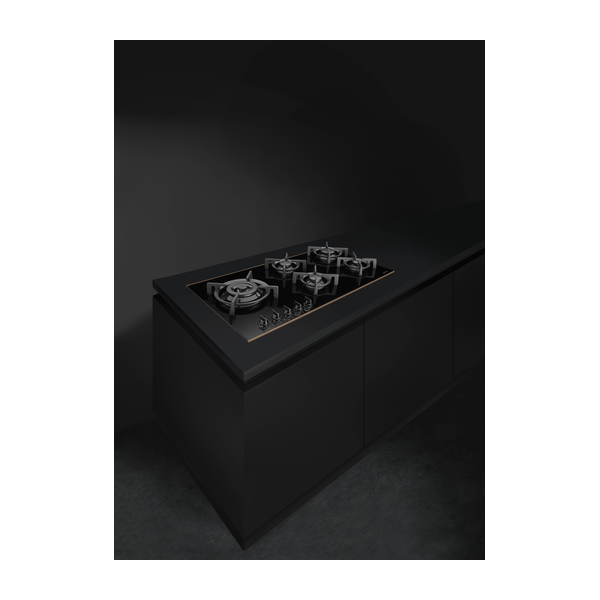

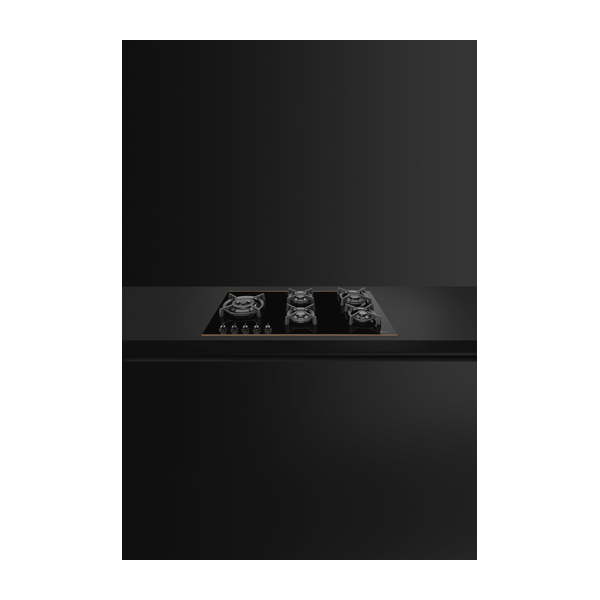

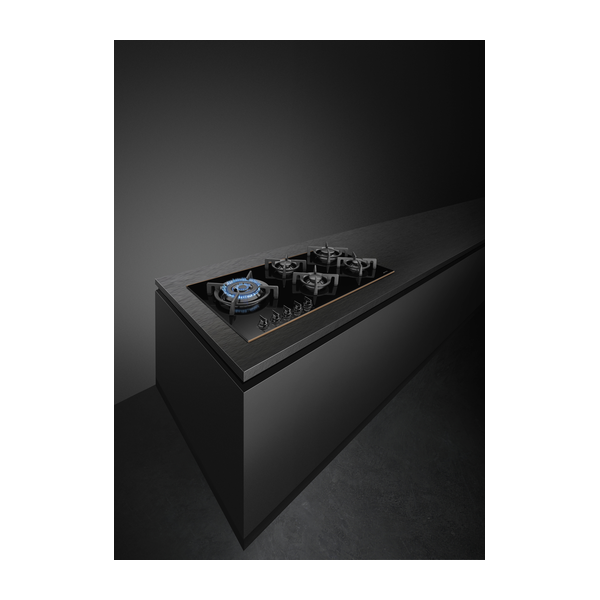

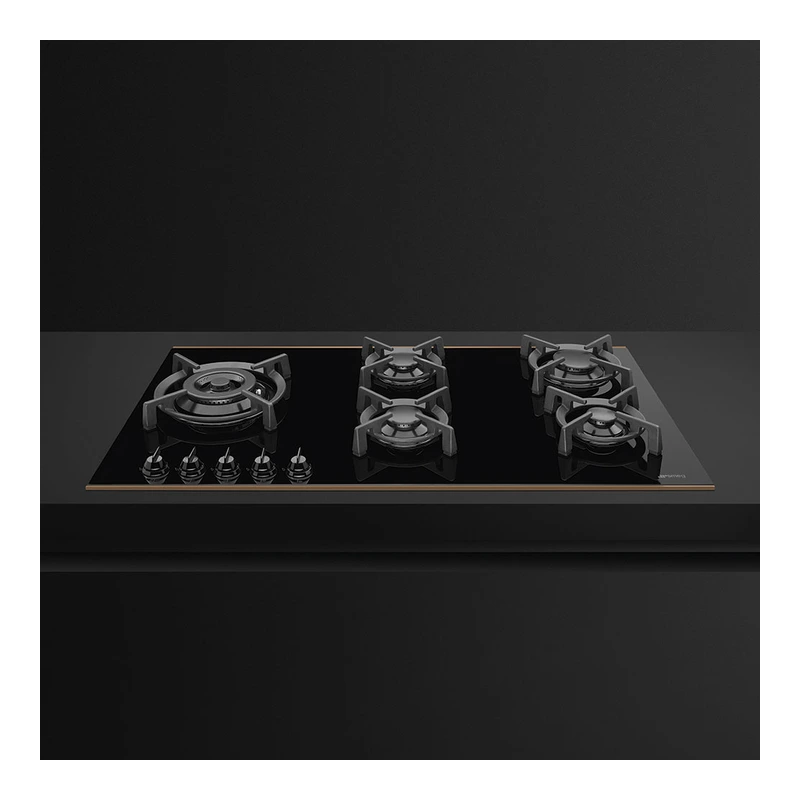

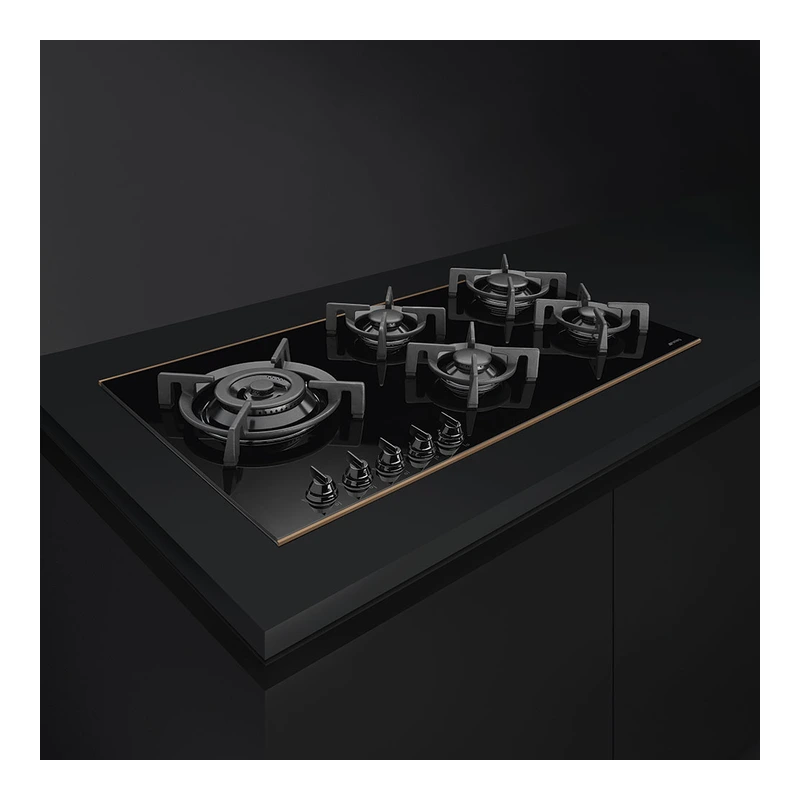

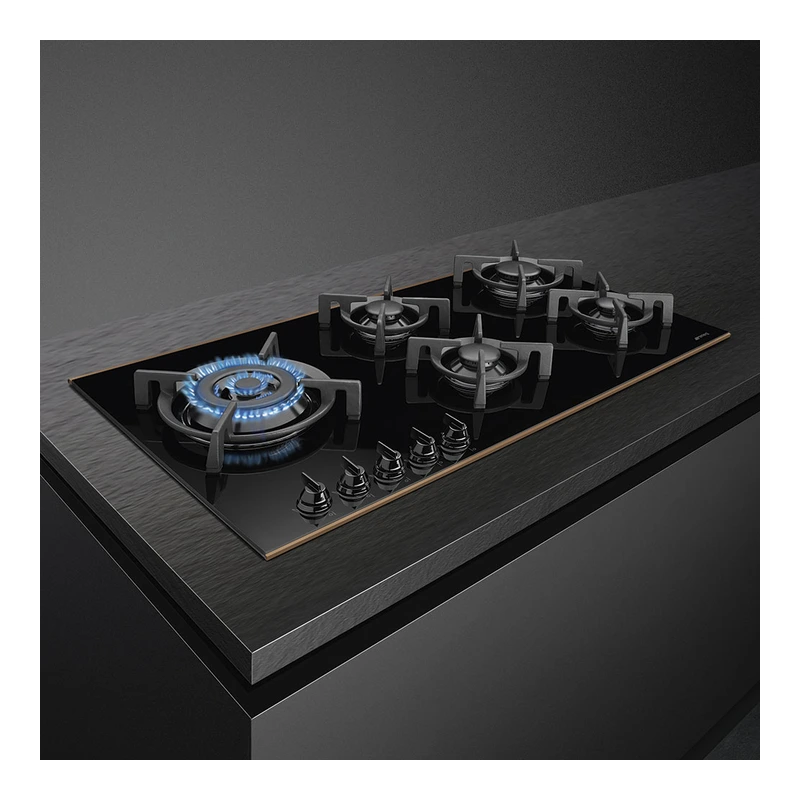

The SMEG PV695LCNR is a 90 cm built-in traditional gas hob in the Dolce Stil Novo aesthetic, featuring black ceramic glass on steel. It offers five gas cook zones with heavy duty cast iron pan stands, including an ultra rapid burner and dedicated cast iron wok support. Front-mounted black control knobs provide direct access, while gas safety valves and automatic ignition support safe, convenient operation on natural gas with LPG nozzles included.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product family	Hob
Built-in type	Traditional
Model	PV695LCNR
Dimensions	90 cm

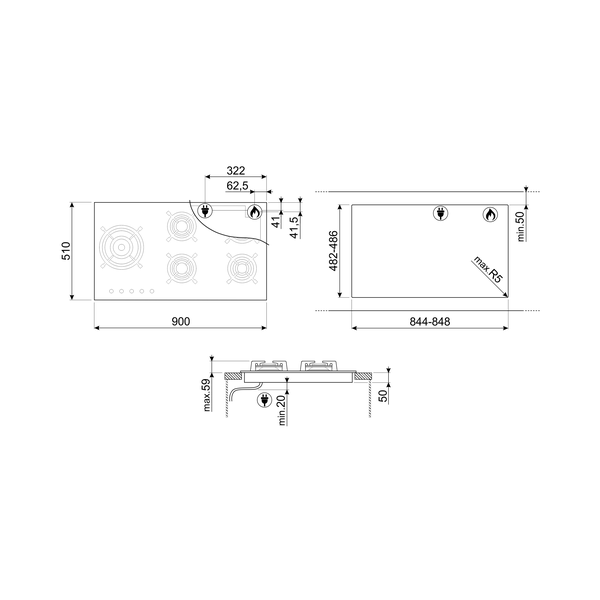

Standard cut out	482–486 × 844–848 mm
Power supply	Gas
Type	Gas
EAN code	8017709222161
Aesthetics line	Dolce Stil Novo
Colour	Black
Finishing	Glass
Material	Glass
Glass type	Ceramic
Glass on steel	Yes
Pan stands	Cast iron
Burner coating	Black Ceram
Type of control setting	Control knobs
Control knobs position	Front
Number of controls	5
Controls colour	Black
Components finishing	Copper
Logo	Silk screen
Serigraphy colour	Grey
Number of gas cook zones	5
Total number of cook zones	5

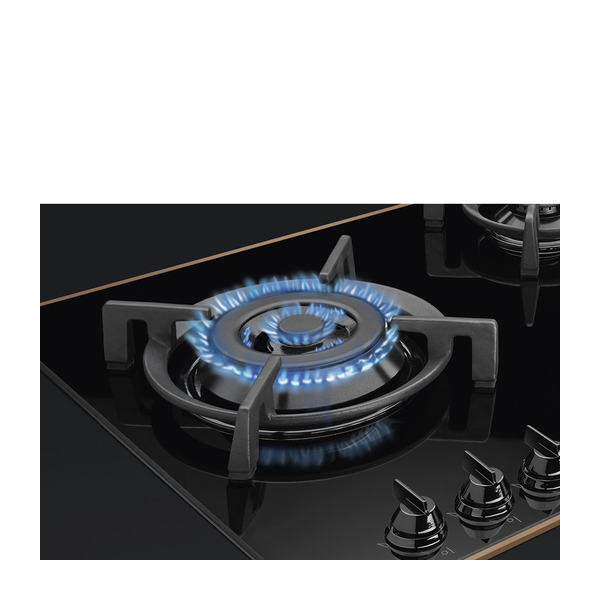

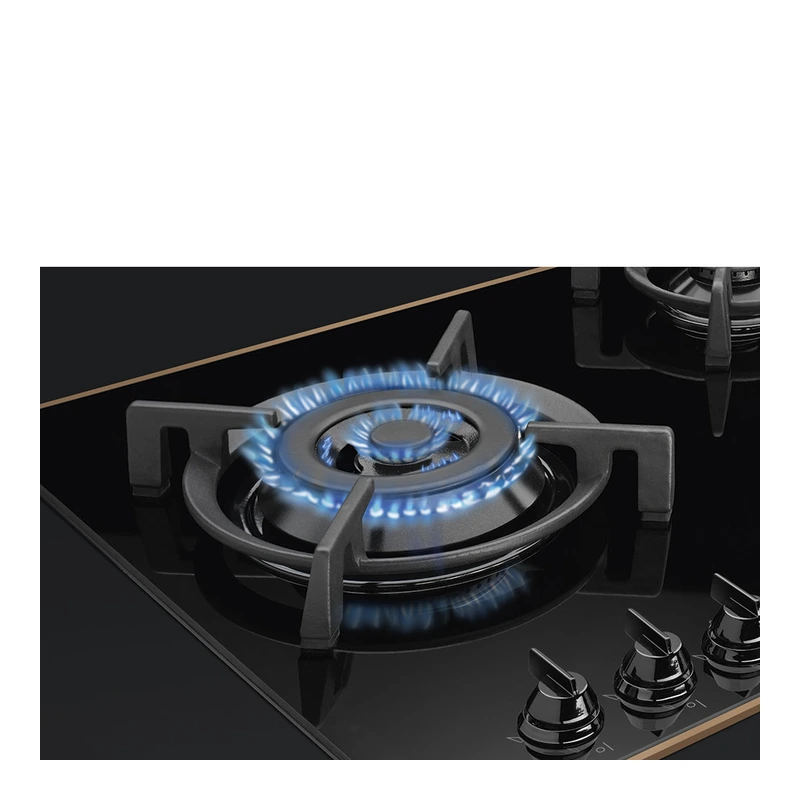

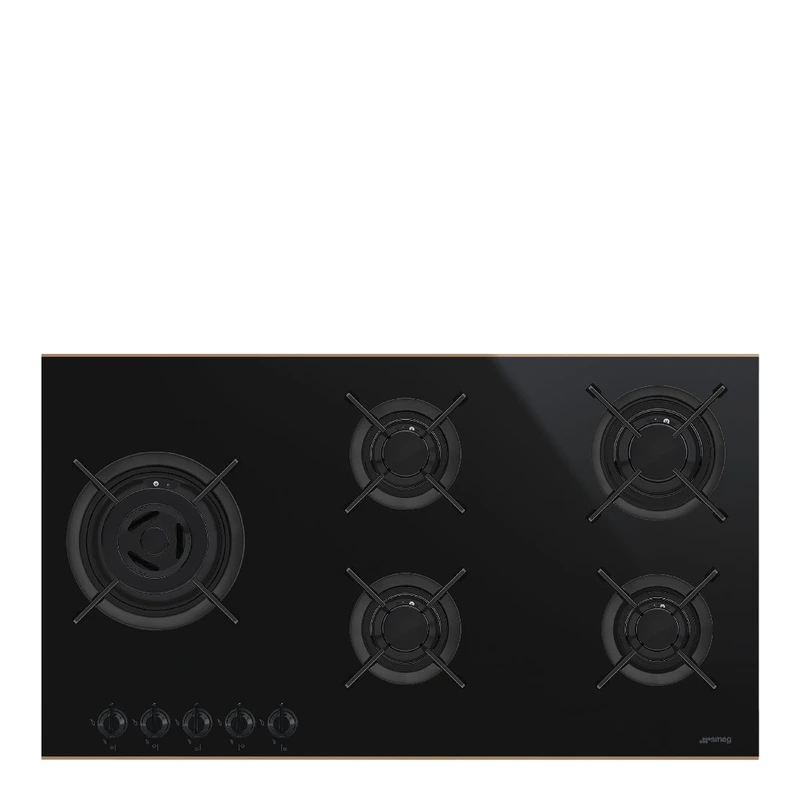

Left zone	Gas – UR – 6.00 kW
Rear centre zone	Gas – Semi Rapid – 1.70 kW
Front centre zone	Gas – Semi Rapid – 1.70 kW
Rear right zone	Gas – Rapid – 2.60 kW
Front right zone	Gas – AUX – 1.10 kW
Gas safety valves	Yes
Automatic ignition	Yes
Accessories included	Cast iron wok support – 1
Nominal power (W)	1 W
Voltage (V)	220–240 V
Frequency (Hz)	50/60 Hz
Power supply cable length	120 cm
Gas type	G20 Natural gas
Gas connection	Cilindrical
Other gas nozzles included	G30 GPL Liquid gas
Other gas connections provided	Conical
Gas connection rating (W)	13100 W
Compatible accessory – GRM	Gas hobs moka support
Compatible accessory – GRW	Wok support
Compatible accessory – LGCN	Connecting Strip Built-in hobs, stainless steel, 475/495 mm
Compatible accessory – WOKGHU	Cast-Iron WOK Support
