| Model | TR4110AZ |
|---|

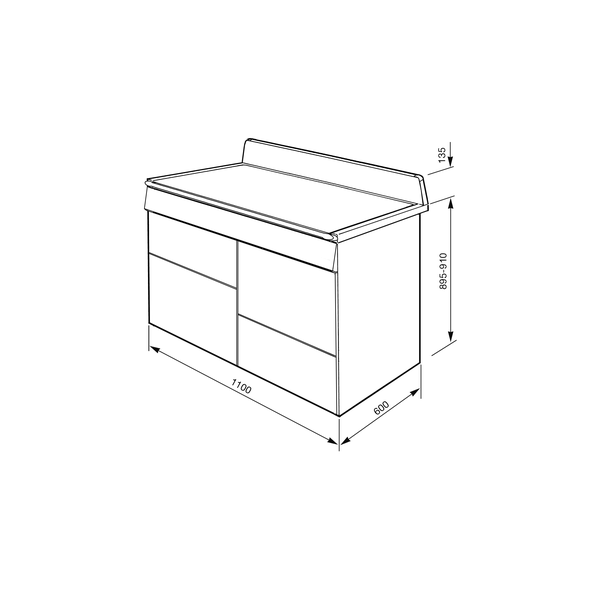

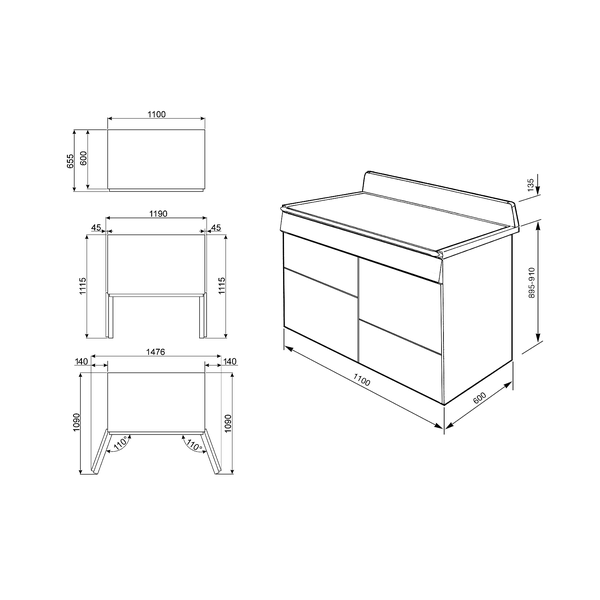

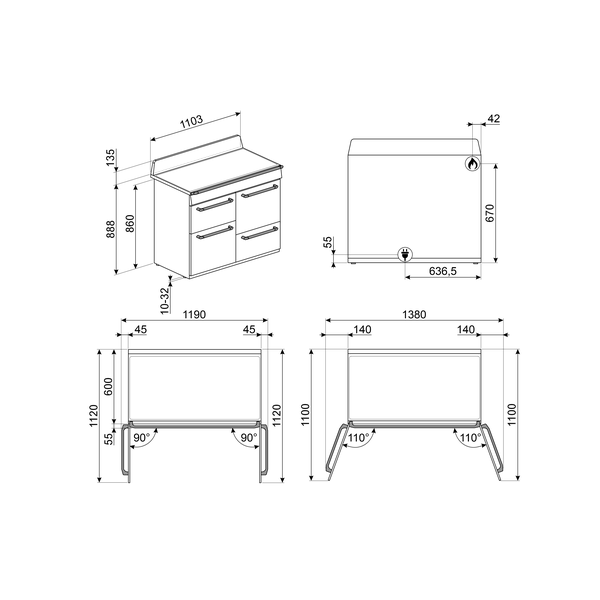

| Cooker size | 110x60 cm |
|---|
| Number of cavities with energy label | 2 |
|---|
| Main cavity heat source | Electric |
|---|
| Hob type | Gas |
|---|
| Type of main oven | Thermo–ventilated |
|---|
| Type of second oven | Fan assisted |
|---|
| Cleaning system main oven | Vapor Clean |
|---|
| EAN code | 8017709184278 |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | A |
|---|
| Design / Aesthetics | Victoria |
|---|
| Colour / Finish | Pastel Blue, gloss finish |
|---|
| Command panel finish | Enamelled metal |
|---|
| Logo | Logo assembled 50's, positioned on upstand |
|---|
| Upstand | Yes |
|---|
| Hob colour | Black enamel |
|---|
| Pan stands | Cast Iron |
|---|
| Type of controls | Control knobs – Smeg Victoria, stainless steel colour |
|---|
| Number of controls | 12 |
|---|
| Serigraphy colour | Black |
|---|
| Display | Electronic, 5 buttons |
|---|
| Door type | Door with frame, black glass, full glass inner door |
|---|
| Handle | Smeg Victoria handle, brushed stainless steel |
|---|
| Storage compartment | Drawer |
|---|
| Plinth | Anthracite |
|---|
| Number of cooking functions (main oven) | 5 |
|---|
| Main traditional functions | Static; Fan assisted; Circulaire; ECO; Fan assisted base |
|---|
| Main oven other functions | Defrost; Vapor Clean (cleaning function) |
|---|
| Cooking functions cavity 2 | 5 – Static; Fan assisted; Circulaire; ECO Fan–assisted bottom; Vapor Clean; Defrost |
|---|
| Number of functions third oven | 1 – Oven light; Full grill (programme / functions third oven) |
|---|

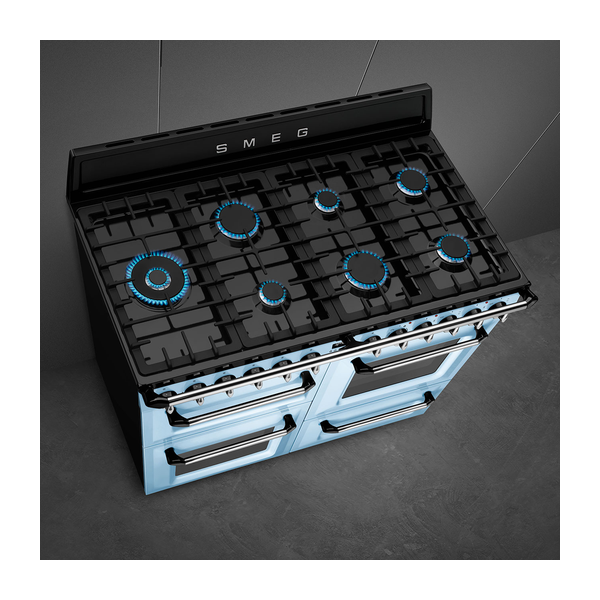

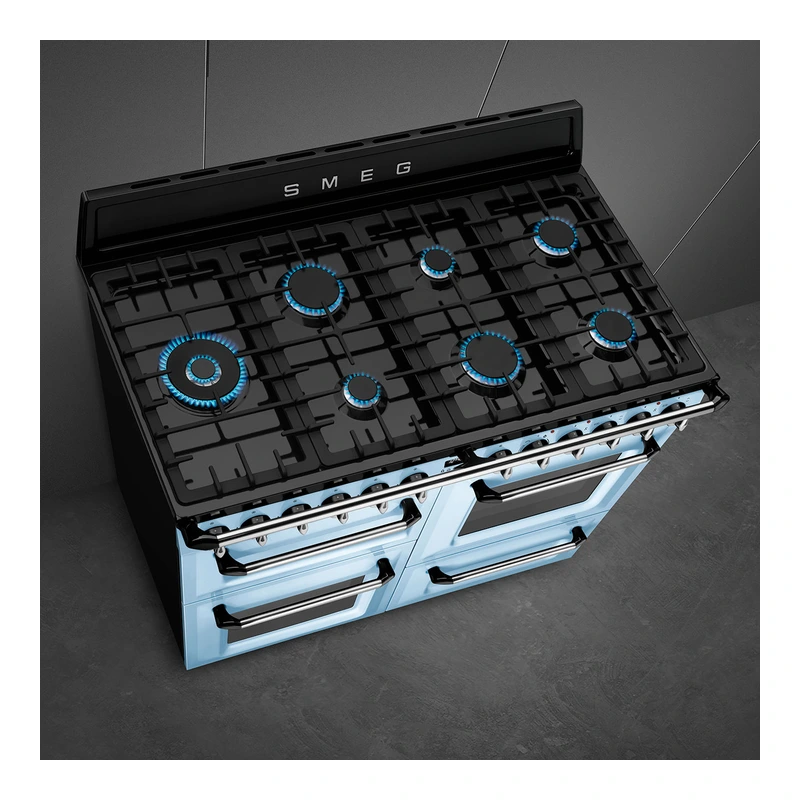

| Total number of cook zones | 7 |
|---|
| Left burner | Gas – 2UR (dual) – 4.20 kW |
|---|
| Front left burner | Gas – AUX – 1.00 kW |
|---|
| Rear left burner | Gas – Rapid – 2.90 kW |
|---|
| Front centre burner | Gas – Rapid – 2.90 kW |
|---|
| Rear centre burner | Gas – AUX – 1.00 kW |
|---|
| Front right burner | Gas – Semi Rapid – 1.80 kW |
|---|
| Rear right burner | Gas – Semi Rapid – 1.80 kW |
|---|
| Type of gas burners | Standard, with automatic electronic ignition and gas safety valves |
|---|
| Burner caps | Matte black enamelled |
|---|
| Main oven net volume | 61 litres |
|---|
| Main oven gross volume | 70 l |
|---|
| Main cavity material | Easy clean enamel |
|---|
| Main shelf positions | 4, metal racks |
|---|
| Main oven light | Halogen, 40 W, 1 light |
|---|
| Main door opening | Side opening, removable door and inner door |
|---|
| Main door glasses | Total no. of door glasses 3; no. of thermo–reflective door glasses 1 |
|---|
| Main safety thermostat | Yes |
|---|
| Main cooling system | Tangential |
|---|
| Main usable cavity dimensions (H x W x D) | 316x460x412 mm |
|---|
| Main temperature control | Electro–mechanical |
|---|
| Main lower heating element power | 1200 W |
|---|
| Main upper heating element power | 1000 W |
|---|
| Main grill element power | 1700 W |
|---|
| Main large grill power | 2700 W |
|---|
| Main circular heating element power | 2700 W |
|---|
| Main grill type | Electric |
|---|
| Main options | Timer; cooking time setting Start and Stop; end of cooking acoustic alarm; minimum temperature 50 °C; maximum temperature 260 °C |
|---|
| Second oven net volume | 61 litres |
|---|
| Second oven gross volume | 70 l |
|---|
| Second cavity material | Easy clean enamel |
|---|
| Second shelf positions | 4, metal racks |
|---|
| Second oven light | 1 halogen light, 40 W |
|---|
| Second door opening | Side opening, removable door and inner door |
|---|
| Second door glasses | No. total door glasses 3; no. of thermo–reflective door glasses 1 |
|---|
| Second safety thermostat | Yes |
|---|
| Second cooling system | Tangential |
|---|
| Second usable cavity dimensions (H x W x D) | 316x444x425 mm |
|---|
| Second temperature control | Electro–mechanical |
|---|
| Second lower heating element power | 1200 W |
|---|
| Second upper heating element power | 1000 W |
|---|
| Second grill element power | 1700 W |
|---|
| Second large grill power | 2700 W |
|---|
| Second grill type | Electric, tilting grill |
|---|
| Second oven temperature range | Minimum 50 °C – Maximum 260 °C |
|---|
| Third oven net volume | 36 l |
|---|
| Third oven gross volume | 41 l |
|---|
| Third cavity material | Easy clean enamel |
|---|
| Third shelf positions | 2, metal racks |
|---|
| Third oven light | 1 incandescent light, 25 W |
|---|
| Third door opening | Flap down, removable door and inner door |
|---|
| Third door glasses | No. total door glasses 3; no. of thermo–reflective door glasses 1 |
|---|
| Third safety thermostat | Yes |
|---|
| Third cooling system | Tangential |
|---|
| Third usable cavity dimensions (H x W x D) | 169x440x443 mm |
|---|
| Third temperature control | Electro–mechanical |
|---|
| Third large grill power | 2700 W, electric, tilting grill |
|---|
| Third oven temperature range | Minimum 50 °C – Maximum 260 °C |
|---|
| Accessories included (main oven & hob) | Cast iron wok support 1; chrome shelf with back and side stop 2; 40mm deep tray 1; grill mesh 1; telescopic guide rails, partial extraction 1 |
|---|
| Accessories included (second oven) | Chrome shelf with back and side stop 2; 40mm deep tray 1; grill mesh 1; telescopic guide rails, partial extraction 1 |
|---|
| Accessories included (third oven) | Chrome shelf with back and side stop 1; 40mm deep tray 1 |
|---|
| Max power draw | 8400 W |
|---|
| Current | 37 A |
|---|
| Voltage | 220–240 V; Voltage 2: 380–415 V |
|---|
| Type of electric cable | Yes, Single phase – cable testing Yes |
|---|
| Additional connection modalities | Yes, Double and Three Phase |
|---|
| Frequency | 50/60 Hz |
|---|
| Terminal block | 5 poles |
|---|
