| Model | TR93IBL2 |
|---|
| Cooker size | 90×60 cm |
|---|
| Number of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|
| Hob type | Induction |
|---|
| Type of main oven | Thermo-ventilated |
|---|
| Type of second oven | Thermo-ventilated |
|---|
| Third oven description | Oven light and full grill |
|---|
| Cleaning system main oven | Vapor Clean |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | B |
|---|
| Design / Aesthetics | Victoria, black gloss finish, Smeg Victoria logo and handles |
|---|
| Command panel finish | Enamelled metal |
|---|
| Colour | Black |
|---|
| Upstand | Yes |
|---|
| Hob colour | Black enamel |
|---|
| Control type | Control knobs, Smeg Victoria, stainless steel, 9 controls |
|---|
| Display | Electronic, 5 buttons |
|---|
| Door type | Door with frame, black glass |
|---|
| Plinth | Anthracite |
|---|
| Number of cooking functions (main) | 5 |
|---|
| Traditional cooking functions (main) | Static; Fan assisted; Circulaire; ECO; Fan assisted base |
|---|
| Other functions (main) | Defrost by time |
|---|
| Cooking functions cavity 2 | 1 |
|---|
| Traditional functions cavity 2 | Circulaire |
|---|
| Number of functions third oven | 1 (Oven light and full grill) |
|---|

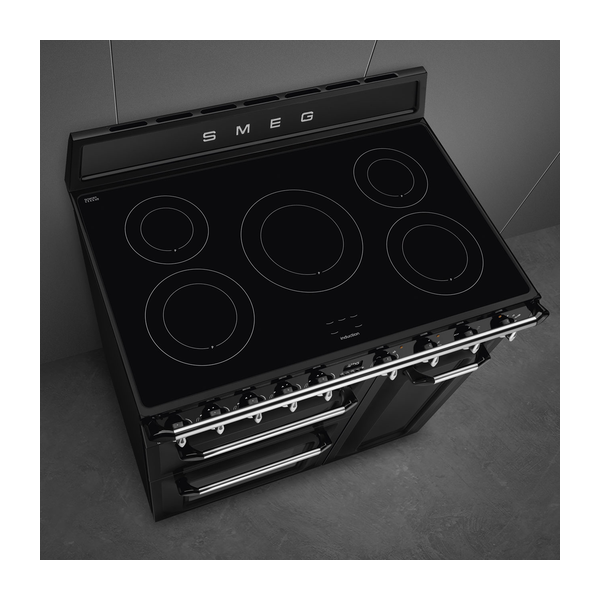

| Total number of cook zones | 5 |
|---|
| Front left zone | Induction, single, 2.30 kW, Booster 3.00 kW, Ø 21.0 cm |
|---|
| Rear left zone | Induction, single, 1.40 kW, Ø 18.0 cm |
|---|
| Central zone | Induction, single, 2.30 kW, Booster 3.00 kW, Ø 27.0 cm |
|---|
| Rear right zone | Induction, single, 1.40 kW, Ø 18.0 cm |
|---|
| Front right zone | Induction, single, 2.30 kW, Booster 3.00 kW, Ø 21.0 cm |
|---|
| Automatic switch off when overheat | Yes |
|---|
| Automatic pan detection | Yes |
|---|
| Minimum pan diameter indication | Yes |
|---|
| Selected zone indicator | Yes |
|---|
| Main oven net volume | 61 litres |
|---|
| Main oven gross volume | 70 l |
|---|
| Main cavity material | Easy clean enamel |
|---|
| Shelf positions (main) | 4 (metal racks) |
|---|
| Main oven light | Halogen, 1 light, 40 W |
|---|
| Cooking time setting (main) | Start and Stop |
|---|
| Main oven door opening | Side opening |
|---|
| Main oven door glasses | Total 3 glasses, 1 thermo-reflective |
|---|
| Main oven usable cavity dimensions (HxWxD) | 316×460×412 mm |
|---|
| Main oven lower heating element power | 1200 W |
|---|
| Main oven upper heating element power | 1000 W |
|---|
| Grill element power (main) | 1700 W |
|---|
| Large grill power (main) | 2700 W |
|---|
| Circular heating element power (main) | 2000 W |
|---|
| Main oven temperature range | 50 °C to 245 °C |
|---|
| Second oven net volume | 62 litres |
|---|
| Second oven gross volume | 69 l |
|---|
| Second cavity material | Easy clean enamel |
|---|
| Shelf positions (second) | 9 (metal racks) |
|---|
| Second oven light | Halogen, 1 light, 40 W |
|---|
| Second oven door opening | Side opening |
|---|
| Second oven door glasses | Total 1 glass, 1 thermo-reflective |
|---|
| Second oven cooling system | Tangential |
|---|
| Usable cavity dimensions (second, HxWxD) | 605×275×370 mm |
|---|
| Circular heating element power (second) | 2500 W |
|---|
| Second oven temperature range | 50 °C to 245 °C |
|---|
| Third oven net volume | 36 litres |
|---|
| Third oven gross volume | 41 l |
|---|
| Third cavity material | Easy clean enamel |
|---|
| Shelf positions (third) | 2 (metal racks) |
|---|
| Third oven light | Halogen, 1 light, 40 W |
|---|
| Third oven door opening | Flap down |
|---|
| Third oven door glasses | Total 3 glasses, 1 thermo-reflective |
|---|
| Third oven cooling system | Tangential |
|---|
| Usable cavity dimensions (third, HxWxD) | 169×440×443 mm |
|---|
| Large grill power (third) | 2700 W |
|---|
| Third oven temperature range | 50 °C to 260 °C |
|---|
| Removable door / inner door | Removable doors and removable inner doors on all cavities; full glass inner doors |
|---|
| Grill type | Electric, tilting grill (main and third) |
|---|
| Safety thermostat | Yes (all cavities) |
|---|
| Fan configuration | 1 fan per cavity; single turbine system |
|---|
| Temperature control | Electro-mechanical |
|---|
| Timer and alarms | Timer and end of cooking acoustic alarm (main) |
|---|
| Accessories included – main oven & hob | Chrome shelf with back and side stop (2); 40 mm deep tray (1); Grill mesh (1); Telescopic guide rails, partial extraction (1) |
|---|
| Accessories included – second oven | Chrome shelf with back stop (3); Plate rack/warmer (1); 40 mm deep tray (1) |
|---|
| Accessories included – third oven | Not stated in source |
|---|
| Compatible accessories | AIRFRY air fryer rack; AIRFRY2 air fryer tray; BBQ double-sided plate; BN620-1 enamelled tray 20 mm; BN640 enamelled tray 40 mm; BNP608T teflon-coated tray 8 mm; GRILLPLATE universal griddle (410×240 mm); GTP partially extractable telescopic guides; GTT totally extractable telescopic guides; KIT1TR9N splashback 90×75 cm for TR9 Victoria; KIT600TR93 cover strip for hob back; KITH93 height extension kit 950 mm for TR93; KITP65TR93 depth extension kit 650 mm for TR93; PALPZ pizza shovel; SCRP scraper for induction and ceramic hobs and teppanyaki; SFLK1 child lock; SMOLD set of 7 silicone moulds (usable from –60 °C to +230 °C); STONE rectangular refractory stone (L42×H1.8×P37.5 cm); TPKPLATE universal plate (410×240 mm). |
|---|
| Max power draw | 15,000 W |
|---|
| Current | 42 A |
|---|
| Voltage | 220–240 V; 380–415 V (Voltage 2) |
|---|
| Electric cable type | Yes, Single phase |
|---|
| Power supply cable length | 150 cm |
|---|
| Additional connection modalities | Yes, Double and Three Phase |
|---|
| Frequency | 50 Hz |
|---|
| Terminal block | 5 poles |
|---|
