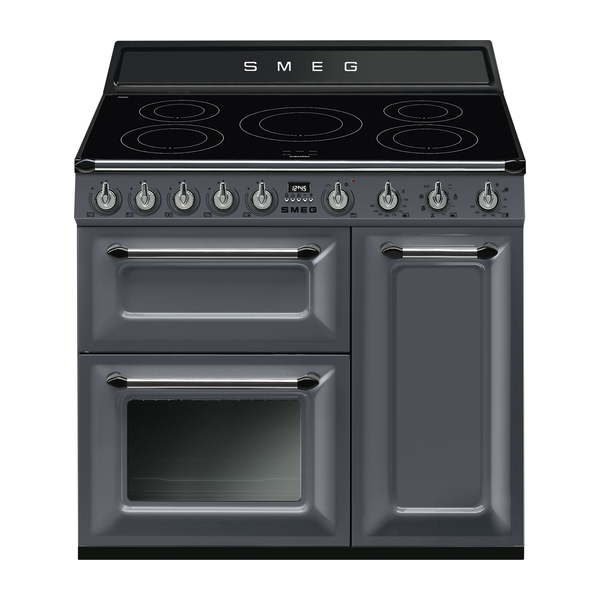

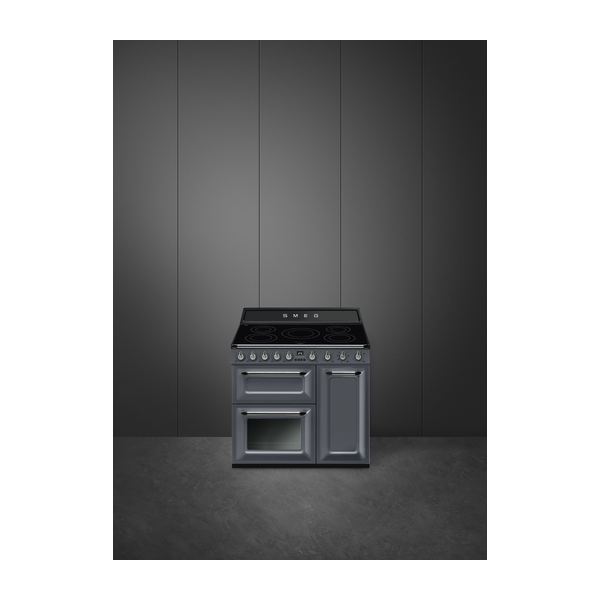

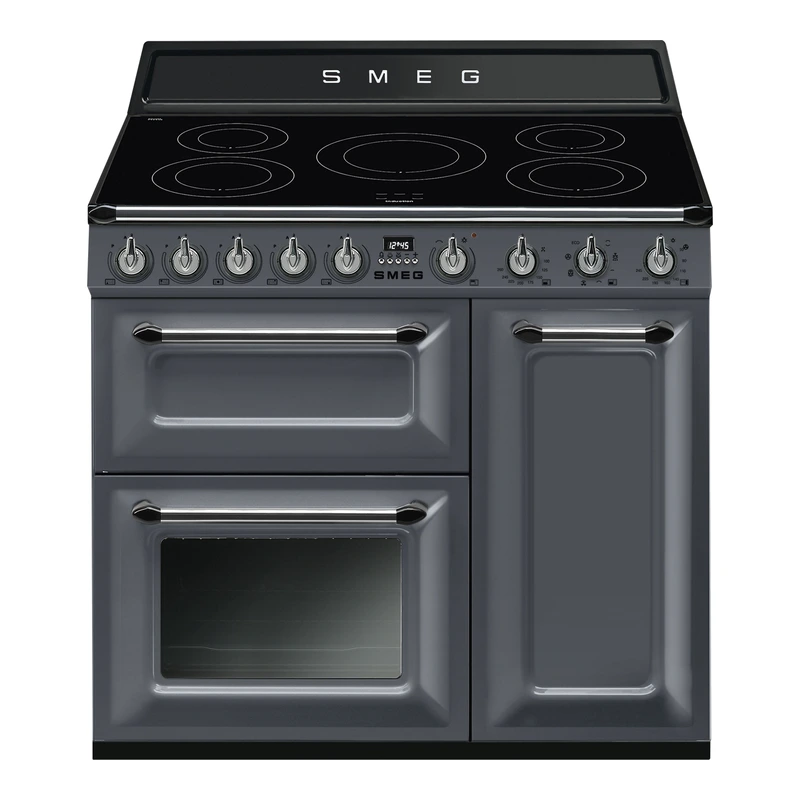

| Model | TR93IGR2 |
|---|
| Cooker size | 90x60 cm |
|---|
| Number of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|
| Hob type | Induction |
|---|
| Type of main oven | Thermo-ventilated |
|---|
| Type of second oven | Thermo-ventilated |
|---|
| Cleaning system main oven | Vapor Clean |
|---|
| EAN code | 8017709312398 |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | B |
|---|
| Design | Victoria |
|---|
| Aesthetics | Victoria |
|---|
| Colour | Slate Grey |
|---|
| Finishing | Gloss |
|---|
| Upstand | Yes |
|---|
| Hob colour | Black enamel |
|---|
| Type of control setting | Control knobs |
|---|
| Control knobs | Smeg Victoria |
|---|
| Controls colour | Stainless steel |
|---|
| Number of controls | 9 |
|---|
| Display | Electronic 5 buttons |
|---|
| Door | With frame, black glass, full glass inner door (all cavities) |
|---|
| Handle | Smeg Victoria, brushed stainless steel |
|---|
| Plinth | Anthracite |
|---|
| Number of cooking functions (main cavity) | 5 |
|---|
| Traditional cooking functions (main cavity) | Static, Fan assisted, Circulaire, ECO, Fan assisted base |
|---|
| Other functions (main cavity) | Defrost by time |
|---|
| Cleaning functions | Vapor Clean |
|---|
| Total number of cook zones | 5 |
|---|
| Front left zone | Induction, single, 2.30 kW, Booster 3.00 kW, Ø 21.0 cm |
|---|
| Rear left zone | Induction, single, 1.40 kW, Ø 18.0 cm |
|---|
| Central zone | Induction, single, 2.30 kW, Booster 3.00 kW, Ø 27.0 cm |
|---|
| Rear right zone | Induction, single, 1.40 kW, Ø 18.0 cm |
|---|
| Front right zone | Induction, single, 2.30 kW, Booster 3.00 kW, Ø 21.0 cm |
|---|
| Automatic pan detection | Yes |
|---|
| Minimum pan diameter indication | Yes |
|---|
| Selected zone indicator | Yes |
|---|
| Automatic switch off when overheat | Yes |
|---|
| Main oven net volume | 61 litres |
|---|
| Main oven gross volume | 70 l |
|---|
| Main cavity material | Easy clean enamel |
|---|
| Main oven shelf positions | 4 (metal racks) |
|---|
| Main oven light | Halogen, 40 W, 1 light |
|---|
| Main oven door opening | Side opening |
|---|
| Main oven inner door | Removable inner door, full glass inner door |
|---|
| Main oven total door glasses | 3 (1 thermo-reflective) |
|---|
| Main oven safety thermostat | Yes |
|---|
| Main oven usable cavity dimensions (HxWxD) | 316x460x412 mm |
|---|
| Main oven temperature control | Electro-mechanical |
|---|
| Lower heating element power (main) | 1200 W |
|---|
| Upper heating element power (main) | 1000 W |
|---|
| Grill element (main) | 1700 W |
|---|
| Large grill power (main) | 2700 W |
|---|
| Circular heating element power (main) | 2000 W |
|---|
| Grill type (main) | Electric, tilting grill |
|---|
| Main oven timer | Yes, with end of cooking acoustic alarm |
|---|
| Main oven minimum temperature | 50°C |
|---|
| Main oven maximum temperature | 245°C |
|---|
| Cooking functions cavity 2 | 1 |
|---|
| Traditional cooking functions cavity 2 | Circulaire |
|---|
| Second oven fan number | 1 |
|---|
| Second oven net volume | 62 litres |
|---|
| Second oven gross volume | 69 l |
|---|
| Second cavity material | Easy clean enamel |
|---|
| Second oven shelf positions | 9 (metal racks) |
|---|
| Second oven lights | 1 halogen, 40 W |
|---|
| Second oven door opening | Side opening |
|---|
| Second oven door | Removable door, removable inner door, full glass inner door |
|---|
| Second oven total door glasses | 1 total door glass, 1 thermo-reflective door glass |
|---|
| Second oven safety thermostat | Yes |
|---|
| Second oven cooling system | Tangential |
|---|
| Second oven usable cavity dimensions (HxWxD) | 605x275x370 mm |
|---|
| Second oven temperature control | Electro-mechanical |
|---|
| Second oven circular heating element power | 2500 W |
|---|
| Second oven minimum temperature | 50°C |
|---|
| Second oven maximum temperature | 245°C |
|---|
| Number of functions third oven | 1 (oven light) |
|---|
| Third oven net volume | 36 l |
|---|
| Third oven gross volume | 41 l |
|---|
| Third cavity material | Easy clean enamel |
|---|
| Third oven shelf positions | 2 (metal racks) |
|---|
| Third oven lights | 1 halogen, 40 W |
|---|
| Third oven door opening | Flap down |
|---|
| Third oven door | Removable door, removable inner door, full glass inner door, tilting grill |
|---|
| Third oven total door glasses | 3 (1 thermo-reflective) |
|---|
| Third oven safety thermostat | Yes |
|---|
| Third oven cooling system | Tangential |
|---|
| Third oven usable cavity dimensions (HxWxD) | 169x440x443 mm |
|---|
| Third oven temperature control | Electro-mechanical |
|---|
| Third oven large grill power | 2700 W |
|---|
| Third oven grill type | Electric |
|---|
| Third oven minimum temperature | 50°C |
|---|
| Third oven maximum temperature | 260°C |
|---|
| Accessories included for main oven & hob | Chrome shelf with back and side stop (2), Grill mesh (1), 40 mm deep tray (1), Telescopic guide rails, partial extraction (1) |
|---|
| Accessories included for secondary oven | Chrome shelf with back stop (3), Plate rack/warmer (1) |
|---|
| Accessories included for third oven | Chrome shelf with back and side stop (1), 40 mm deep tray (1) |
|---|
| Max power draw | 15000 W |
|---|
| Current | 42 A |
|---|
| Voltage | 220-240 V; 380-415 V (Voltage 2) |
|---|
| Type of electric cable | Yes, Single phase |
|---|
| Power supply cable length | 150 cm |
|---|
| Additional connection modalities | Yes, Double and Three Phase |
|---|
| Frequency | 50 Hz |
|---|
| Terminal block | 5 poles |
|---|
