What sizes are available for the Designer Pro wall hood?

Two sizes are available: model ICBPW482418I, a 1219 mm wall ventilation hood, and model ICBPW602418I, a 1524 mm wall ventilation hood.

What is the extraction capacity of the dual internal motor?

The hood includes a 1600 CMH dual motor, made up of two 800 CMH motors, with four speed settings.

How can this hood be ducted?

It uses two 150 mm (6') round ducts and can discharge vertically or horizontally. The maximum straight duct run is 7 m, or 5 m with up to three bends.

What type of lighting does the hood use?

The hood features dynamic temperature controlled lighting that is dimmable and adjustable.

What is the warranty period?

A 5 year warranty is specified for this Designer Pro wall hood.

What is the electrical requirement?

The electrical supply is 220–240 VAC at 50/60 Hz, with electrical service of ≤ 6 A.

Product Information Sheet

Wolf Designer Pro Chimney Hood

SKU: ICBPW602418I

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

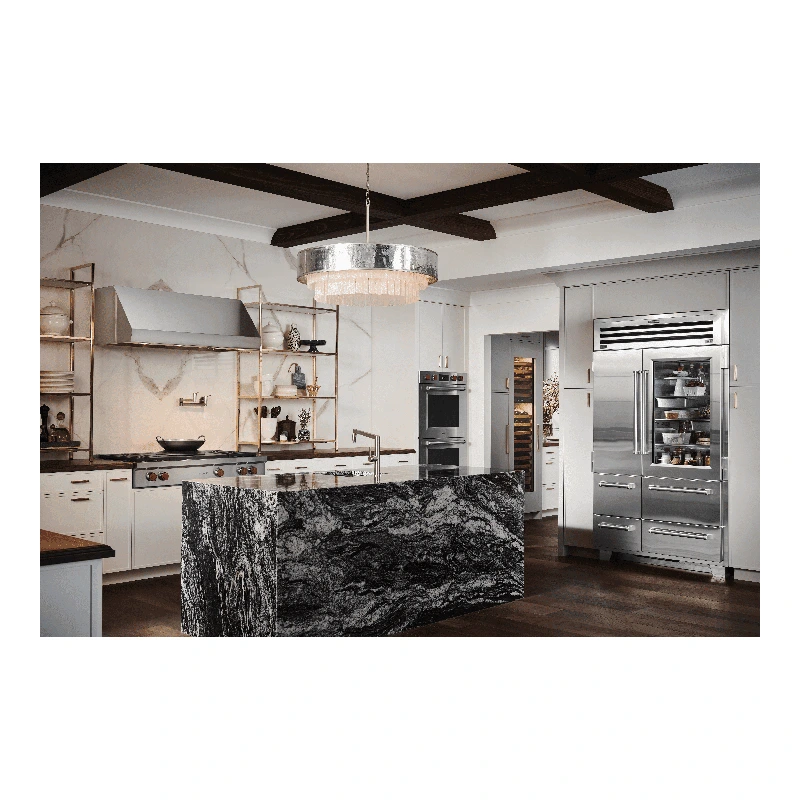

Wolf ICBPW602418I Designer Pro Chimney Hood

SKU: ICBPW602418I

Stainless Steel

The Designer Pro wall hood is a 61 cm deep stainless steel wall ventilation hood with a dual internal motor, available in 1219 mm and 1524 mm widths. It offers heavy-duty construction, handfinished detailing and recessed LCD controls for a sleeker look. Dynamic temperature controlled lighting, remote control operation and four extraction speeds with up to 1600 CMH capacity make it suitable for demanding kitchen ventilation needs.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product type	Designer Pro wall hood – 61 cm deep / dual internal motor
Models	ICBPW482418I – 1219 mm Wall Ventilation Hood; ICBPW602418I – 1524 mm Wall Ventilation Hood
Width options	1219 mm / 1524 mm
Depth	61 cm (stated as 61 cm deep)
Motor configuration	Dual internal motor (1600 CMH – 2 × 800 CMH)
Extraction speeds	4 speed settings
Maximum duct run	Max 7 m straight duct run (5 m with up to 3 bends)
Duct connections	2 × 150 mm (6') duct
Electrical supply	220–240 VAC; 50/60 Hz
Electrical service	≤ 6 A
Discharge location	Vertical or horizontal
Discharge dimensions	2 × 150 mm round
Construction	Heavy-duty stainless steel; handfinished with hemmed edges and welded seams
Controls	Recessed LCD; remote control
Lighting	Dynamic temperature controlled lighting (dimmable and adjustable)
Warranty	5 year warranty
Specification note	Specifications are subject to change without notice; information generated on June 7th, 2021
