Cooking and extractor functions

Functions include BORA Assist function Fry, power setting, automatic extractor function, automatic after-run, filter status and filter service display, pan size recognition, automatic heat-up function, heat retention function, bridging function (right), cooking zone timer, pause function and short-time timer.

Safety features

• Child lock
• Control lock
• Cleaning lock
• Residual heat indicator
• Safety shut-down
• Overheating protection

Scope of delivery

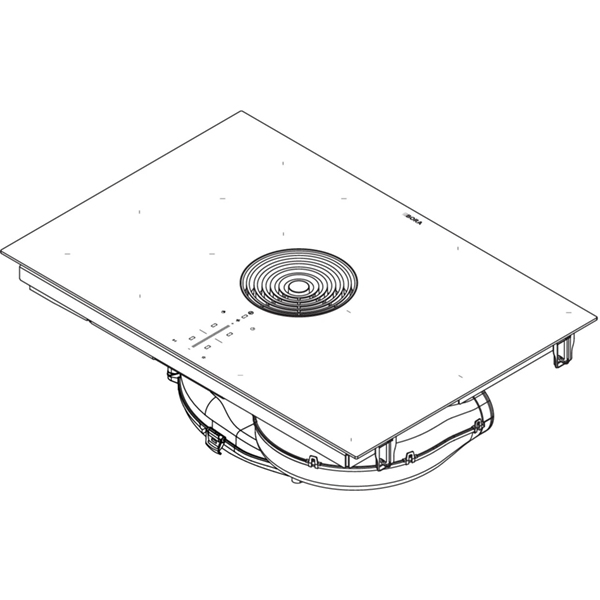

Surface induction/induction cooktop with integrated cooktop extractor – recirculation PURMU2/PURMU2R, air inlet nozzle PUED2, stainless steel grease filter, odour filter GFESP, operating and installation instructions, installation template and installation accessories.

Compatible accessories

Accessories include odour filter GFES/GFESP, stainless steel grease filter PUEF, air inlet nozzles PUED2 and PUXED2, sealing tape UDB25, cooktop frame KFR760AB, side frame USL515/USL515AB and grill pan for surface induction KWGPFI.

Product and planning information

• The mains supply cable is to be provided on site.
• Front power socket.
• Flush installation or surface mounting possible.
• Sufficient ventilation below the cooktop must be ensured.
• Air purification box with telescopic extension (extendible up to 80 mm) for connection to the back of the kitchen unit.
• Telescopic extension can be extended by 105 mm with additional telescopic extension PULBTA (available as an accessory).
• Drawers or shelves in the base unit must be removable for maintenance and cleaning.
• Suitable for use with all BORA sockets.
• When installation is complete, the appliance is to be sealed in using heat-resistant silicone sealant.
