Can this cooker hood be used in recirculating mode?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction a recirculating kit, available as an optional accessory, is needed.

What is the maximum extraction rate?

The maximum air extraction in exhaust mode is 351 m³/h. In recirculation mode with the standard recirculation kit the maximum extraction rate is 220 m³/h.

Are the grease filters dishwasher-safe?

Yes. The removable metal grease filters are dishwasher-safe and made from washable aluminium.

What type of lighting does the hood use?

The hood uses 2 × 1.5 W LED lights with a colour temperature of 3500 K and a light intensity of 131 lux, giving bright, clear lighting for the hob area.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 430 mm, and the minimum distance above a gas hob is 650 mm.

Product Information Sheet

Bosch Series 2 Telescopic Hood

SKU: DFM063W57B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

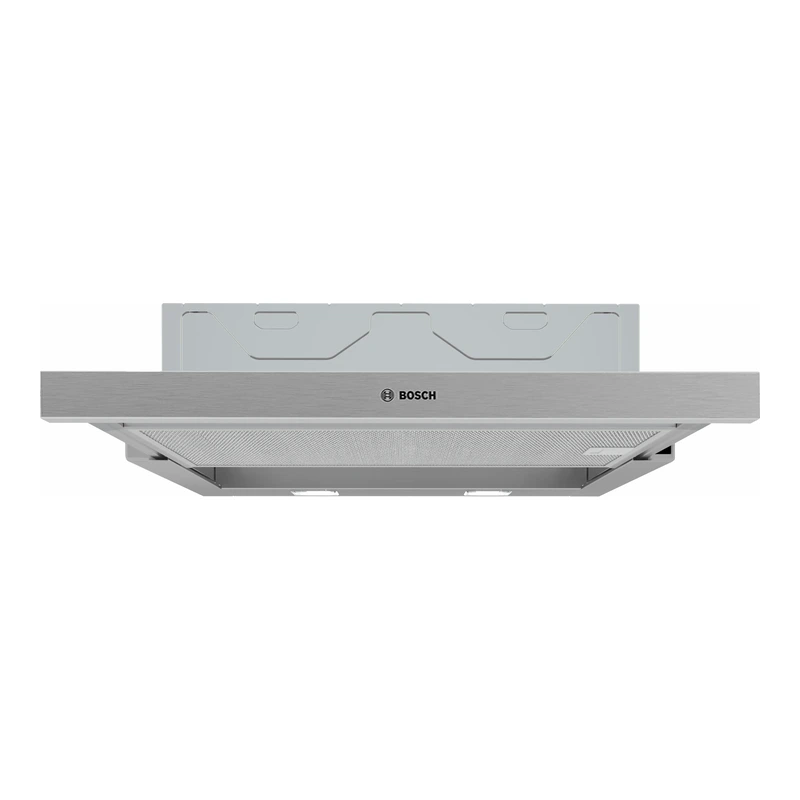

Bosch DFM063W57B Series 2 Telescopic Hood

SKU: DFM063W57B · EAN: 4242005538072

Metallic silver

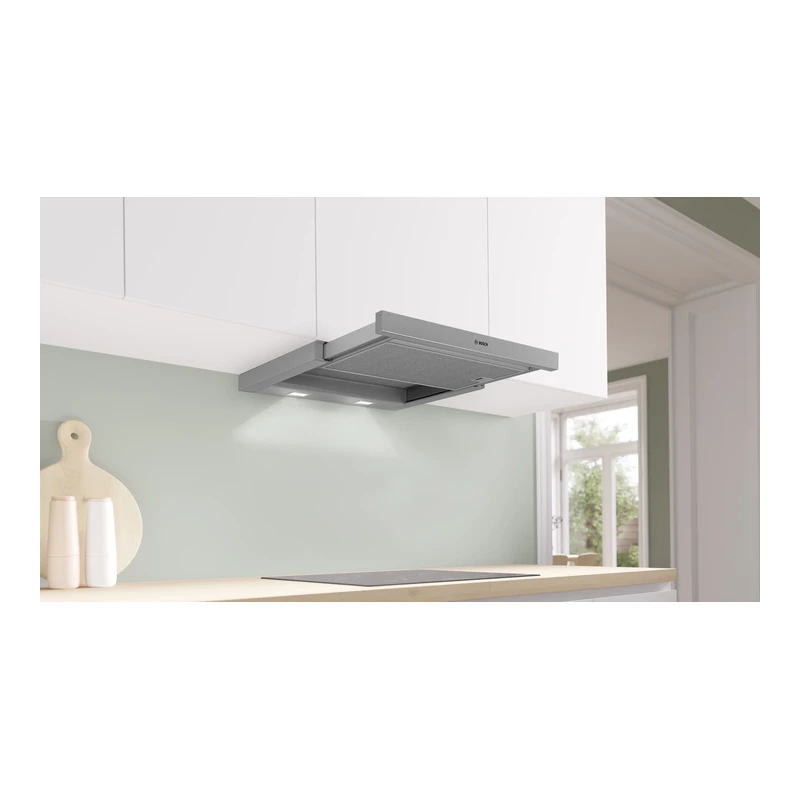

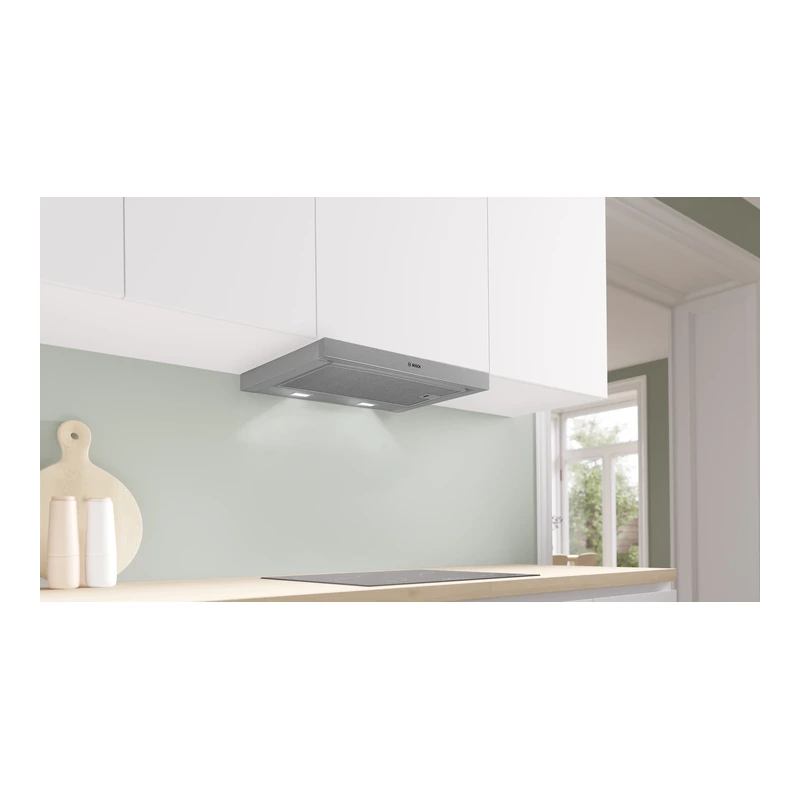

The DFM063W57B is a Series 2 telescopic cooker hood designed for installation in a 60 cm cupboard. It offers ducted or recirculating operation with a high extraction rate for continuously clean air in the kitchen. LED illumination provides bright, clear lighting for the hob, while removable, dishwasher-safe metal grease filters support easy cleaning. Mechanical rocker switch controls with two power levels make operation straightforward for everyday cooking.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product series	Series 2
Model code	DFM063W57B
Typology	Pull-out telescopic hood

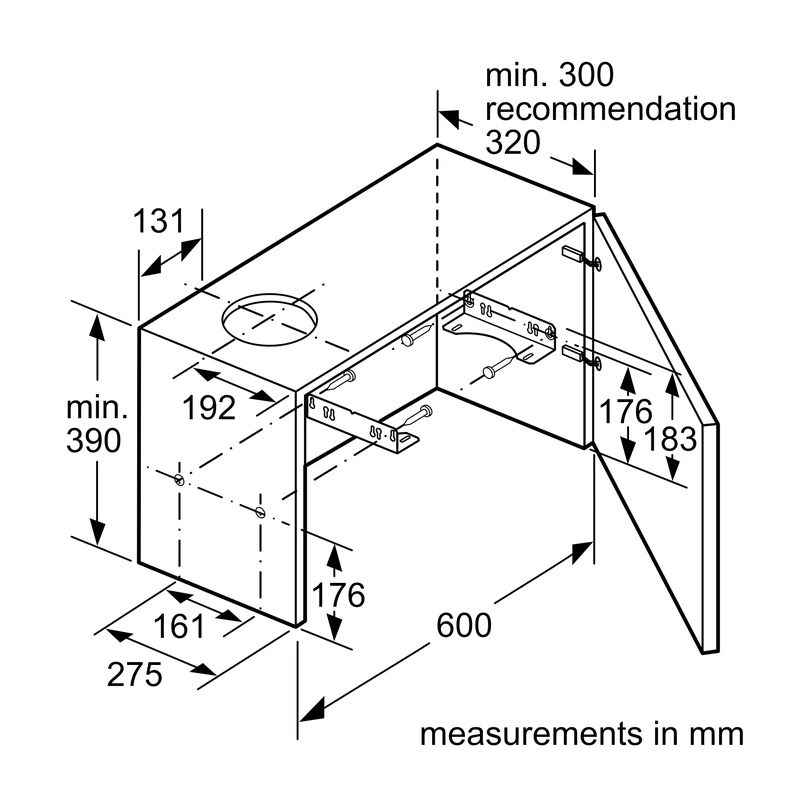

Installation	Cupboard 60 cm, built-in
Colour	Silver metallic

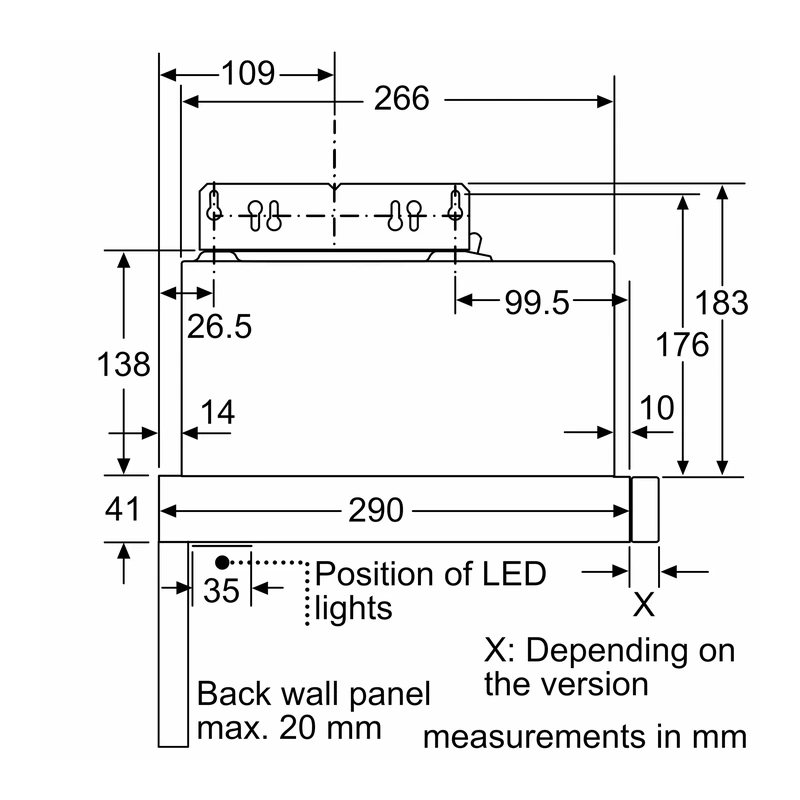

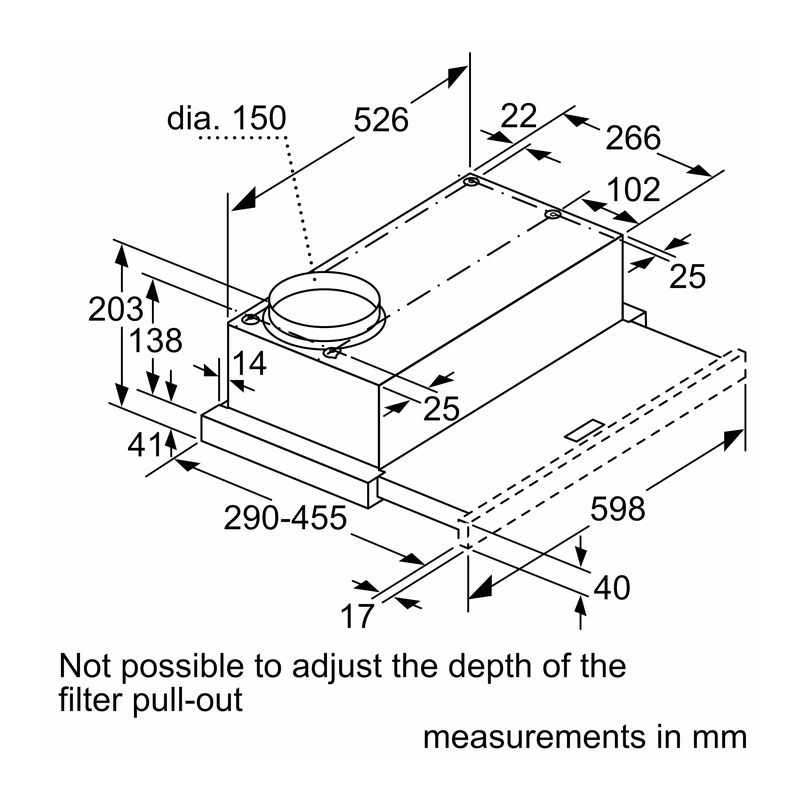

Dimensions (H × W × D)	203 × 598 × 290 mm

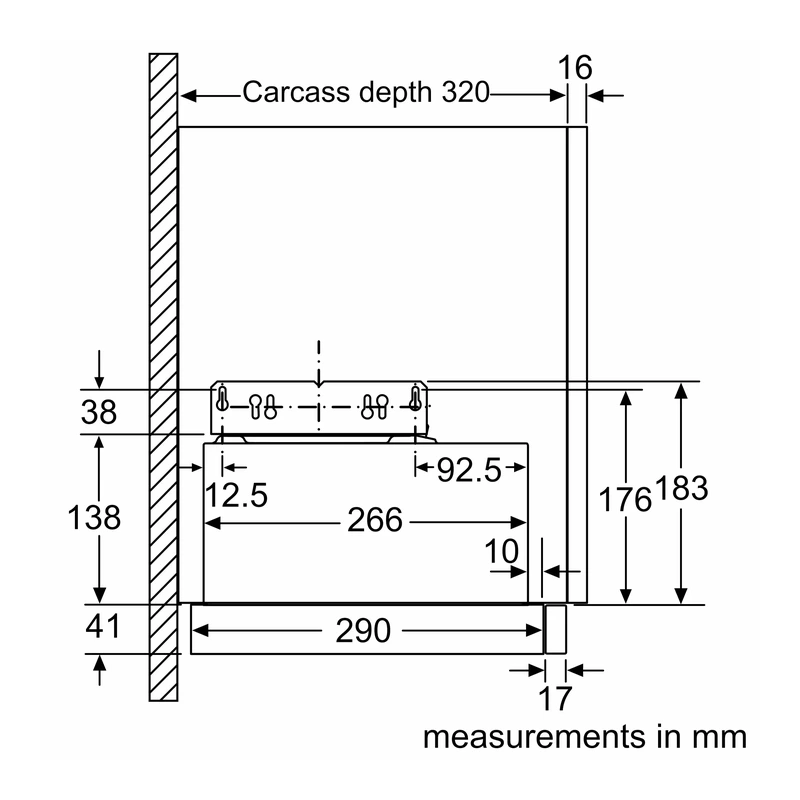

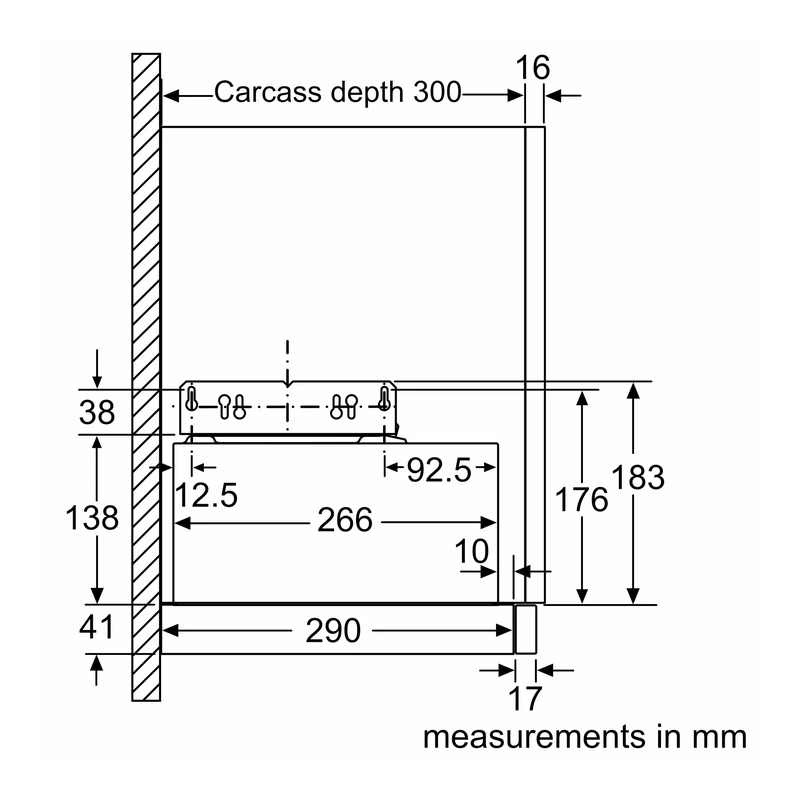

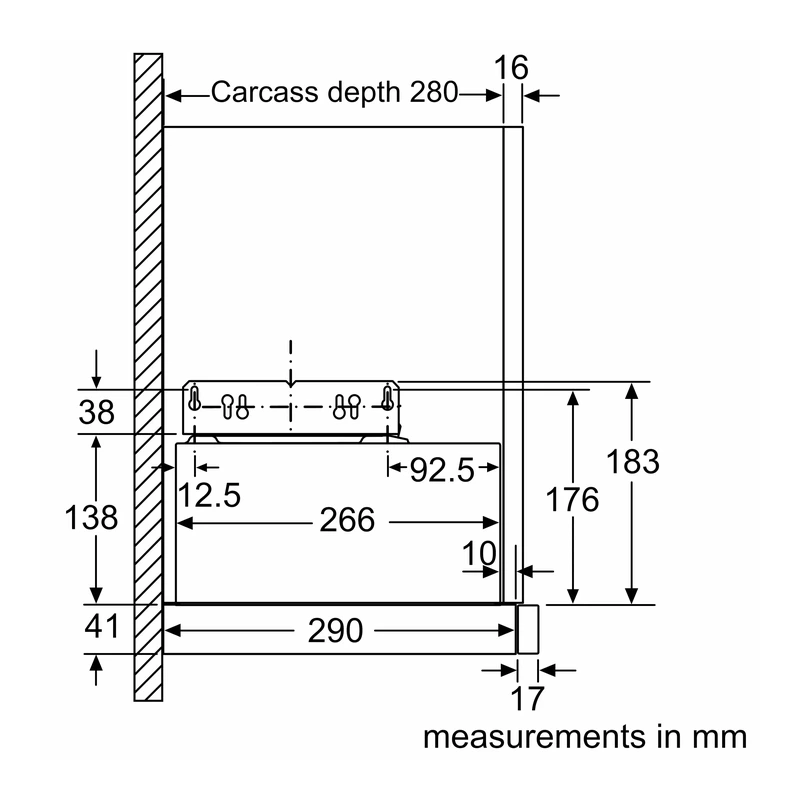

Built-in dimensions (H × W × D)	162 × 526 × 290 mm
Required niche size (H × W × D)	162 mm × 526.0 mm × 290 mm
Net weight	8.5 kg

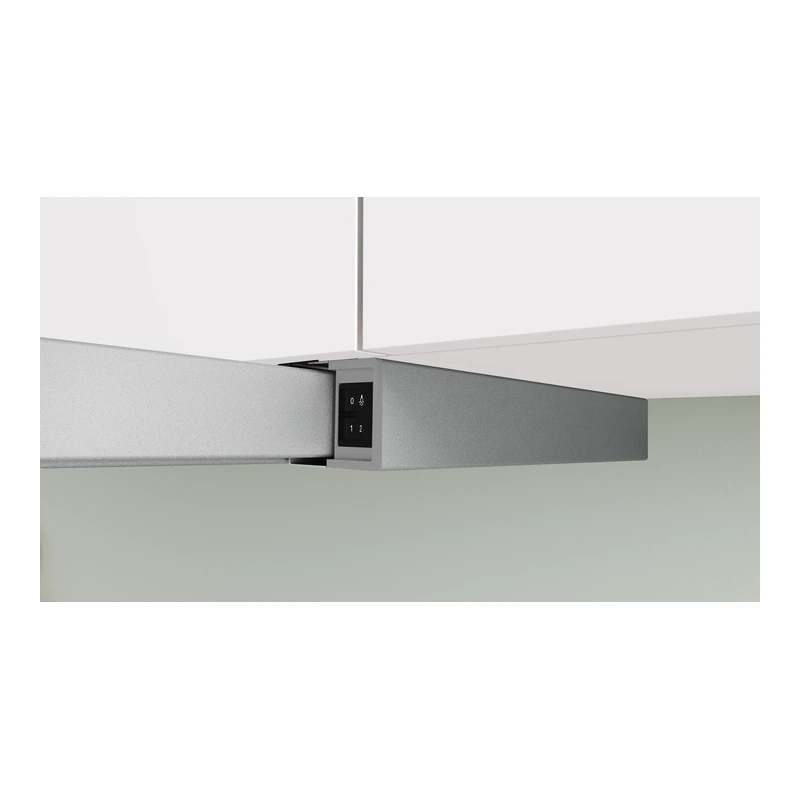

Control type	Mechanical rocker switch
Number of speed settings	2 power levels
Max. air extraction (exhaust)	351 m³/h
Max. air recirculation	220 m³/h
Maximum air flow	351 m³/h
Noise level (max.)	65 dB(A) re 1pW
Noise level – exhaust mode Speed 1	61 dB(A) re1pW at 276 m³/h
Noise level – exhaust mode Speed 2	65 dB(A) re1pW at 351 m³/h
Noise level – recirculation Speed 1	66 dB(A) re1pW at 190 m³/h
Noise level – recirculation Speed 2	69 dB(A) re1pW at 220 m³/h
Minimum distance above electric hob	430 mm
Minimum distance above gas hob	650 mm
Number of lights	2
Colour temperature	3500 K
Light intensity	131 lux

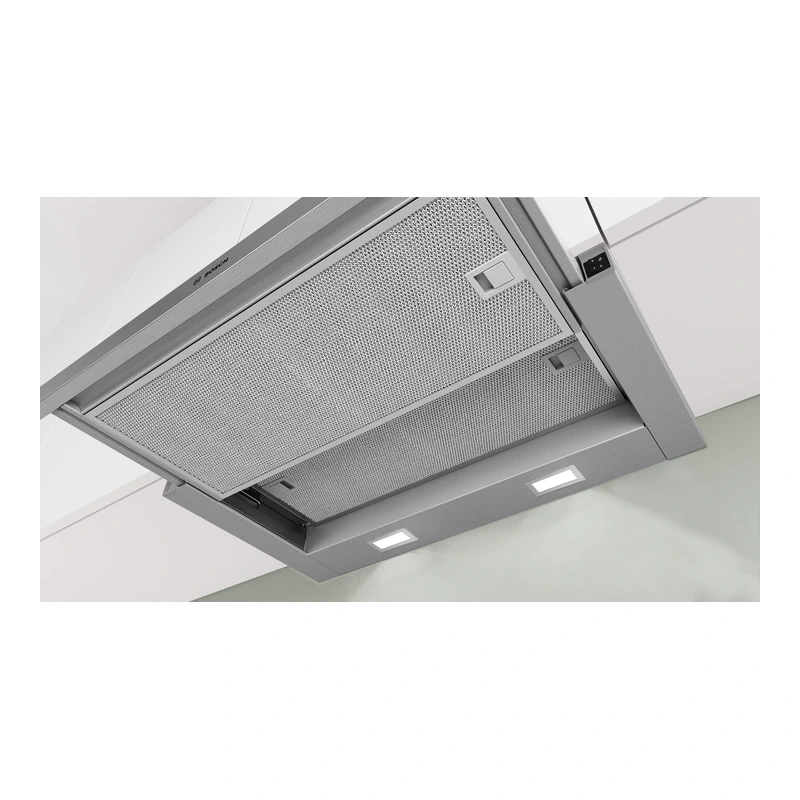

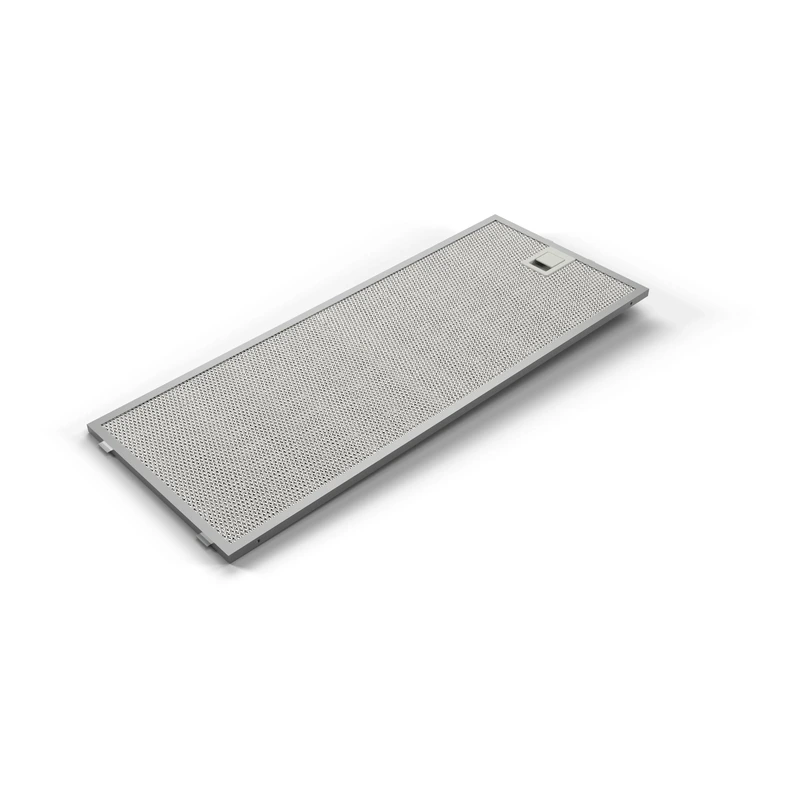

Grease filter material	Washable aluminium; 2 metal grease filters
Diameter of air outlet / pipe	150 mm (dia. 150)
Length of electrical supply cord	175 cm (electrical cable length 1.75 m)
Connection rating / Power rating	93 W
Voltage	220–240 V (nominal voltage)
Frequency	50 Hz
Fuse protection	10 A
Plug type	GB plug
Motor type	Capacitor motor
Energy Efficiency Class	C (range A+++ to D)
Average energy consumption	43.5 kWh/year*
Blower Efficiency Class	D*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	C*
EAN code	4242005538072
Production location	Made in Germany at a CO₂ neutral production site

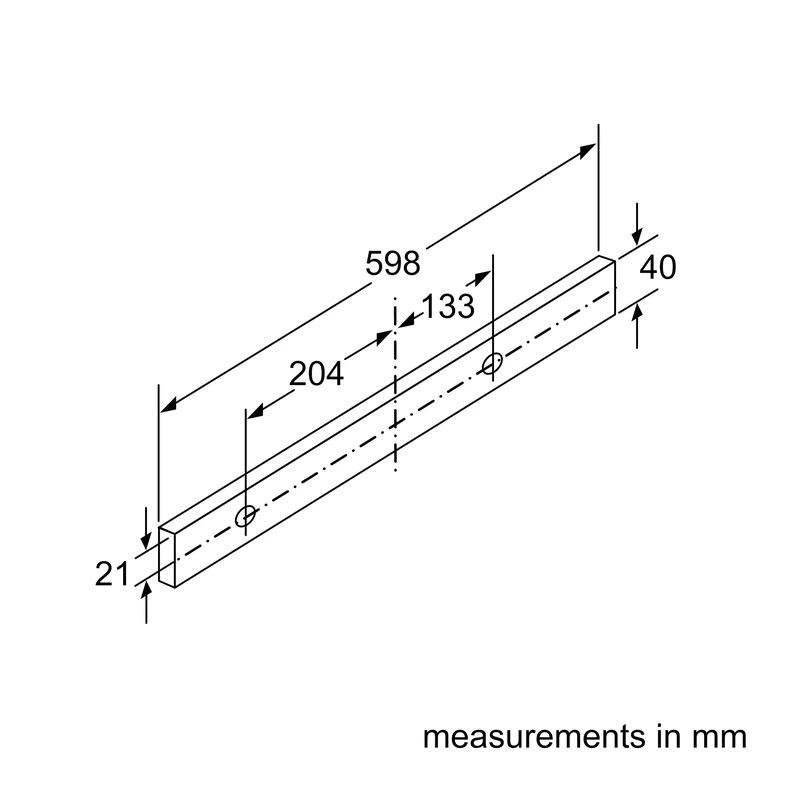

Optional accessories	DSZ4682 handle strip white; DSZ4686 handle strip black; DWZ1IT1I4 Clean Air Standard recirculation kit

*According to EN 61591 and EN/IEC 60704-2-13 where stated.
