What is the total capacity of the KIN86NFE0G fridge-freezer?

The total volume is 260 l, with 184 l for the chill compartments and 76 l net freezer volume.

Does this appliance require manual defrosting?

The fridge section has automatic defrost, and the freezer uses a No Frost system described as “never have to defrost ever again”, so manual defrosting of the freezer is not required.

Is the door hinge reversible?

Yes. The appliance is supplied with a right hinged door and has a reversible door hinge, allowing the door opening direction to be changed.

What are the installation niche dimensions required?

The required niche size for installation is 1775 × 560 × 550 mm (177.5 cm H × 56 cm W × 55 cm D).

How loud is the KIN86NFE0G during operation?

The airborne acoustical noise emissions are 35 dB(A) re 1pW, with a noise emission class of B.

Are there any optional accessories available?

Optional accessories listed are the KSZB6R00 Bottle Rack and the KSZGGM00 Butter box.

Product Information Sheet

Bosch Series 2 Fridge Freezer

SKU: KIN86NFE0G

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch KIN86NFE0G Series 2 Fridge Freezer

SKU: KIN86NFE0G · EAN: 4242005431335

Built In Integrated

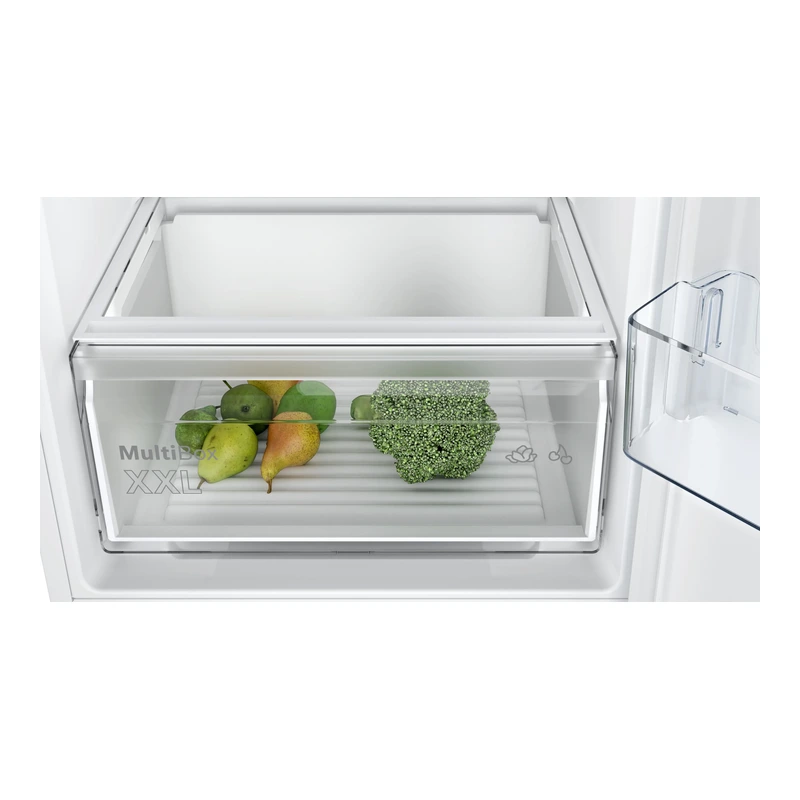

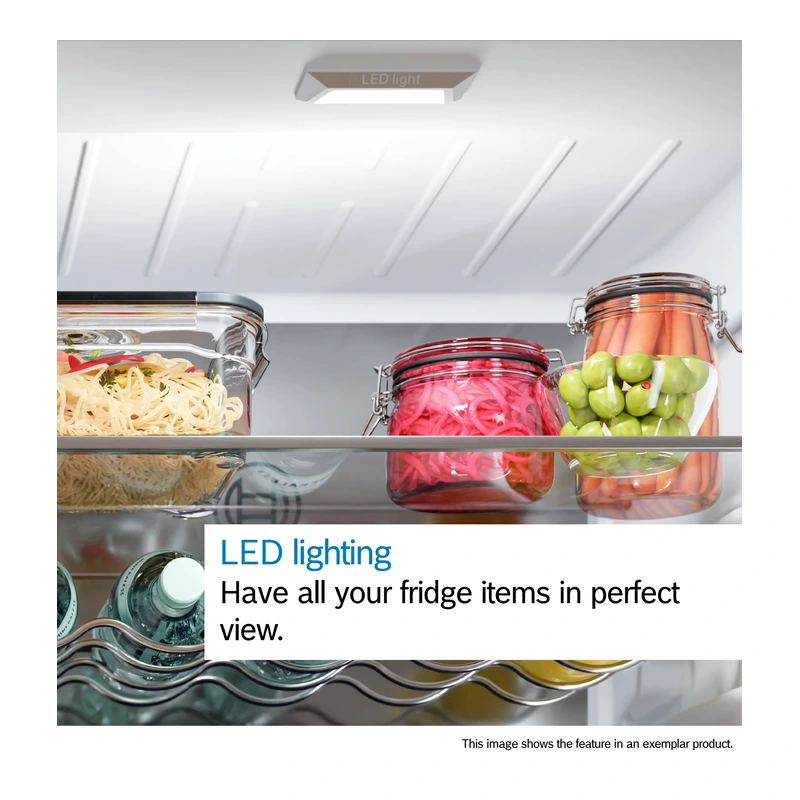

The Series 2 KIN86NFE0G is a spacious built-in fridge-freezer combination with the freezer at the bottom and a flat hinge design, offering a total volume of 260 l. It provides optimal food storage with No Frost technology, Eco Airflow and a MultiBox XXL drawer for fruit and vegetables. Bright LED lighting, Super Cool and SuperFreeze functions support convenient cooling performance for integrated kitchen installations.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name / Model	Series 2 built-in fridge-freezer KIN86NFE0G
Installation type	Built-in, integrated
Freezer position	Freezer at bottom
Door panel options	Not possible
Energy efficiency class	E (EU19_EEK_D: E)
Annual energy consumption	234 kWh/annum (234 kWh/a)
Total volume	260 l
Volume of chill compartments	184 l
Sum of volume of frozen compartments	76 l (Net Freezer Volume: 76 l)
Noise level	35 dB(A) re 1pW; EU19_Noise emission class_D: B
Airborne acoustical noise emission class	B

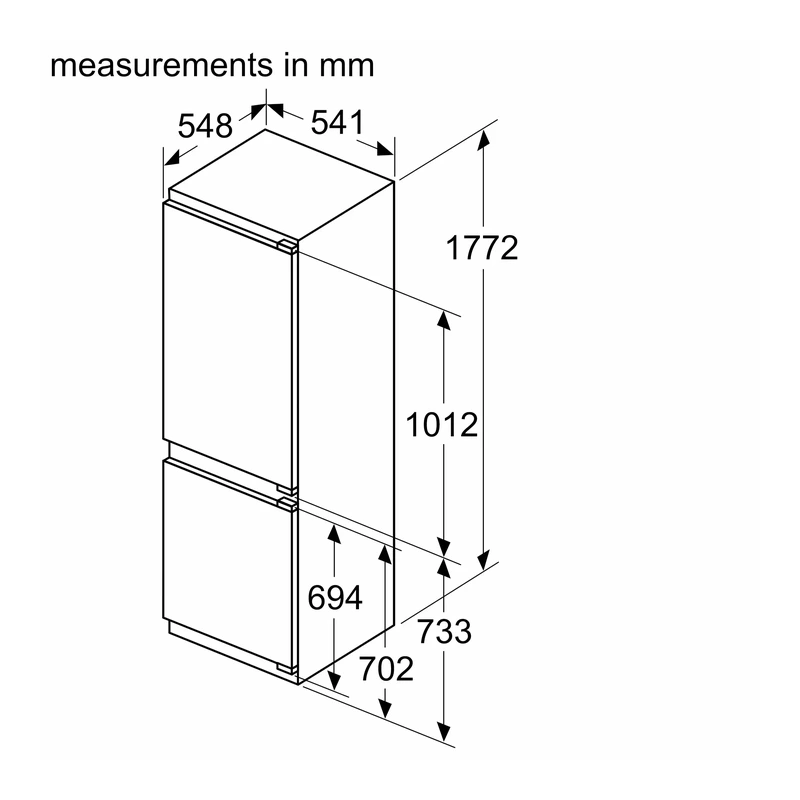

Height of appliance	1772 mm (177.2 cm)
Width of appliance	541 mm (54.1 cm)
Depth of appliance	548 mm (54.8 cm)

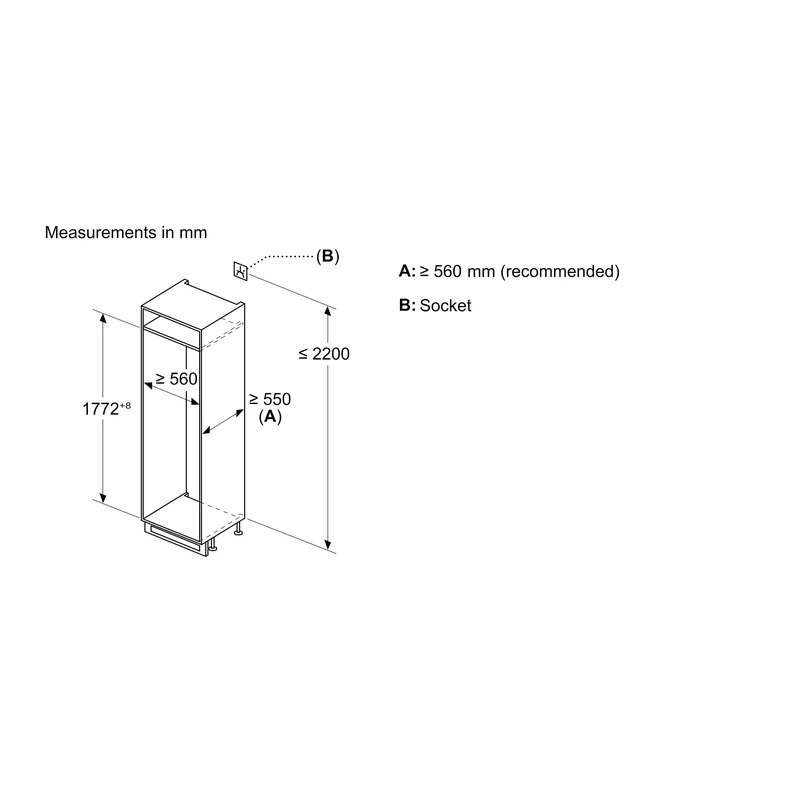

Required niche size (H × W × D)	1775 × 560 × 550 mm (177.5 cm H × 56 cm W × 55 cm D)
Net weight	53.1 kg
EAN code	4242005431335
Fuse protection	10 A
Voltage	220–240 V (220 – 240 V)
Frequency	50 Hz
Length of electrical supply cord	230 cm (Length of power cord: 230 cm)
Number of compressors	1
Number of independent cooling systems	1
Interior ventilator	No
Door hinge	Right hinged, right reversible; Reversible Door Hinge: Yes

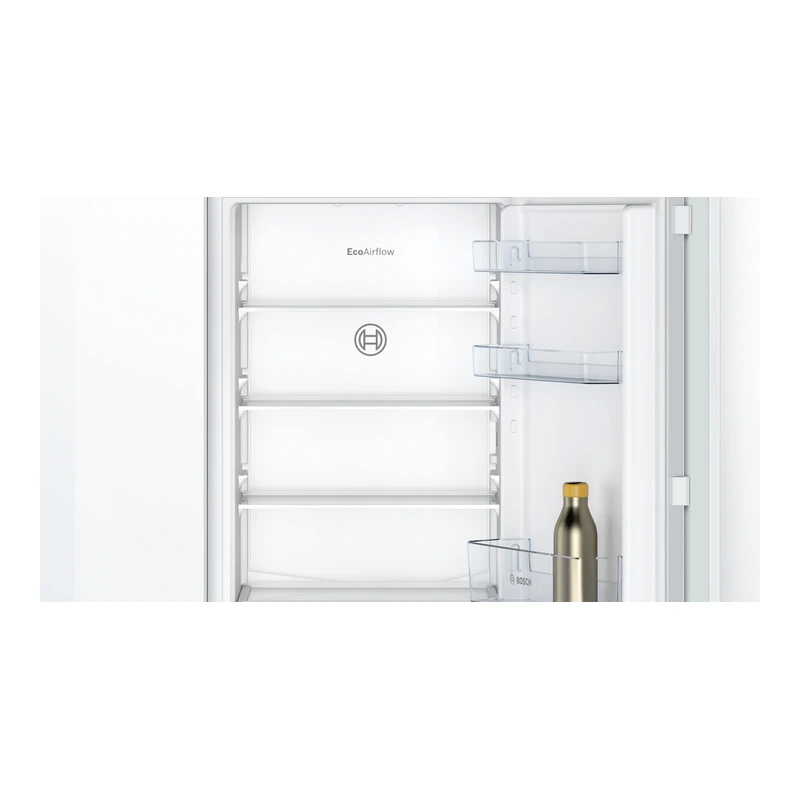

Number of adjustable shelves in fridge	3 height adjustable shelves (4 safety glass shelves in total)
Shelves for bottles	No
Frost free system	Freezer; NO_FROST_NEU_BL, never have to defrost ever again
Freezing capacity (24 h)	4 kg per 24 h
Temperature rise time	EU19_Temperature rise time_D: 10 H

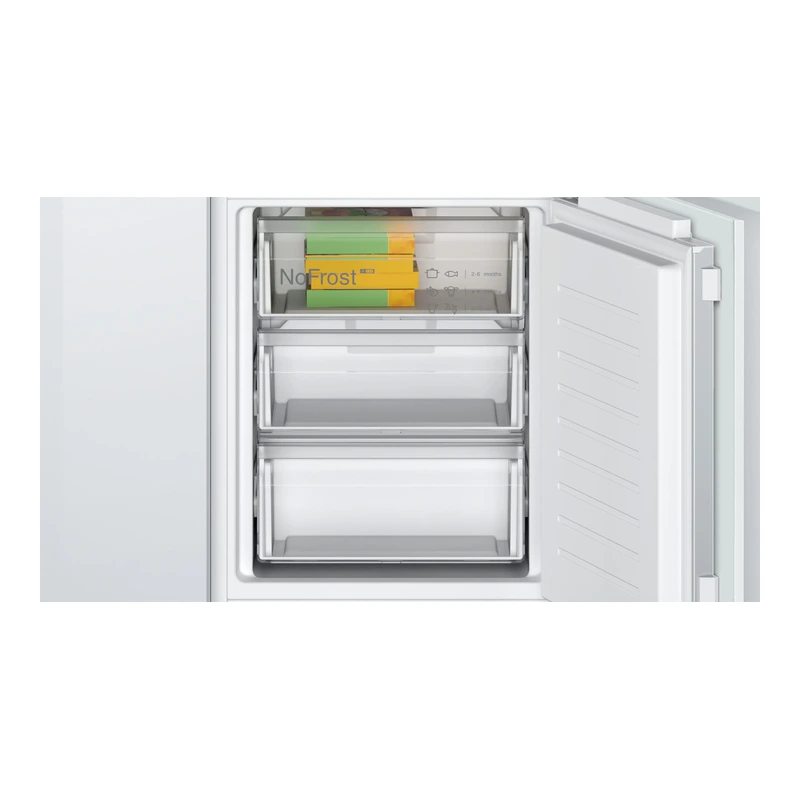

Number of freezer drawers	3 freezer drawers
Ice accessories	1 × ice cube tray
Climate class	SN-ST
Scale of energy efficiency classes	Scale from A to G

Based on the results of the standard 24-hour test. Actual consumption depends on usage and position of the appliance.
