What are the dimensions of the Bosch KIN86VFE0G and required niche?

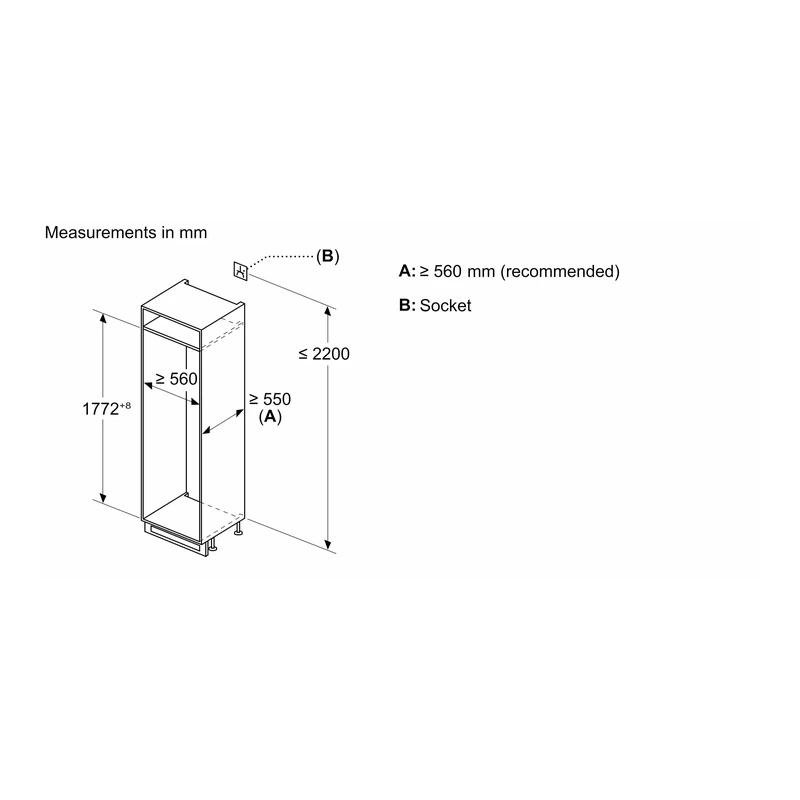

The appliance dimensions are 177.2 cm height, 54.1 cm width and 54.8 cm depth (1772 × 541 × 548 mm). The required niche size for installation is 177.5 cm height, 56 cm width and 55 cm depth (1775 × 560 × 550 mm).

How much storage space does the fridge-freezer provide?

The total volume is 260 litres, with a net fridge volume of 184 litres and a net freezer volume of 76 litres. The 4* compartment volume is 76 litres.

Does the freezer section need defrosting?

The freezer has a NoFrost system. It offers perfect protection from ice formation, so you never have to defrost ever again, saving time and effort.

How does VitaFresh help keep food fresh for longer?

VitaFresh XXL <0°C> provides extra-large climate-controlled fridge drawers that keep food fresh for longer. A VitaFresh drawer with humidity control helps fruits and vegetables retain vitamins and stay fresh for longer, reducing wastage.

Is the door reversible on this built-in fridge-freezer?

Yes. The appliance is supplied with a right hinged door, and the door hinge is reversible, allowing it to be adapted to the preferred opening direction.

What is the noise level and energy efficiency of the appliance?

The fridge-freezer has an Energy Efficiency Class of E with an annual energy consumption of 234 kWh. The airborne acoustical noise level is 35 dB(A) re 1pW, with a noise emission class of B.

Product Information Sheet

Bosch Serie 4 Fridge Freezer

SKU: KIN86VFE0G

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch KIN86VFE0G Serie 4 Fridge Freezer

SKU: KIN86VFE0G · EAN: 4242005281374

Built In Integrated

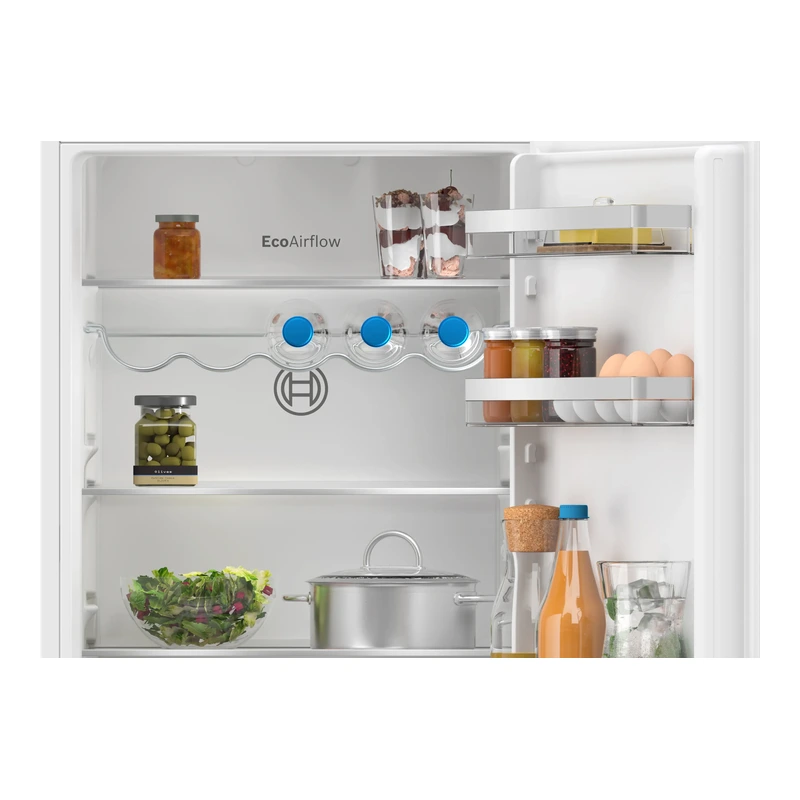

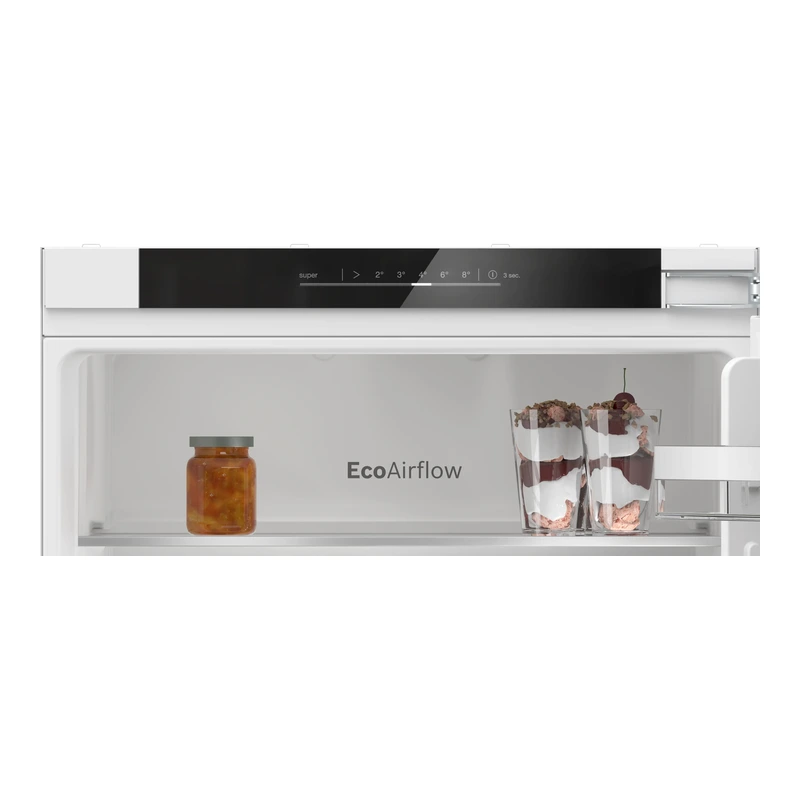

The Bosch Series 4 KIN86VFE0G is a spacious built-in fridge-freezer with the freezer at the bottom and a flat hinge design. With a total volume of 260 litres, VitaFresh XXL climate-controlled drawers and NoFrost technology, it keeps food fresh for longer while preventing ice formation. Eco Airflow ensures optimal air circulation and a constant temperature, and the quiet 35 dB operation supports a calm and relaxing home.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

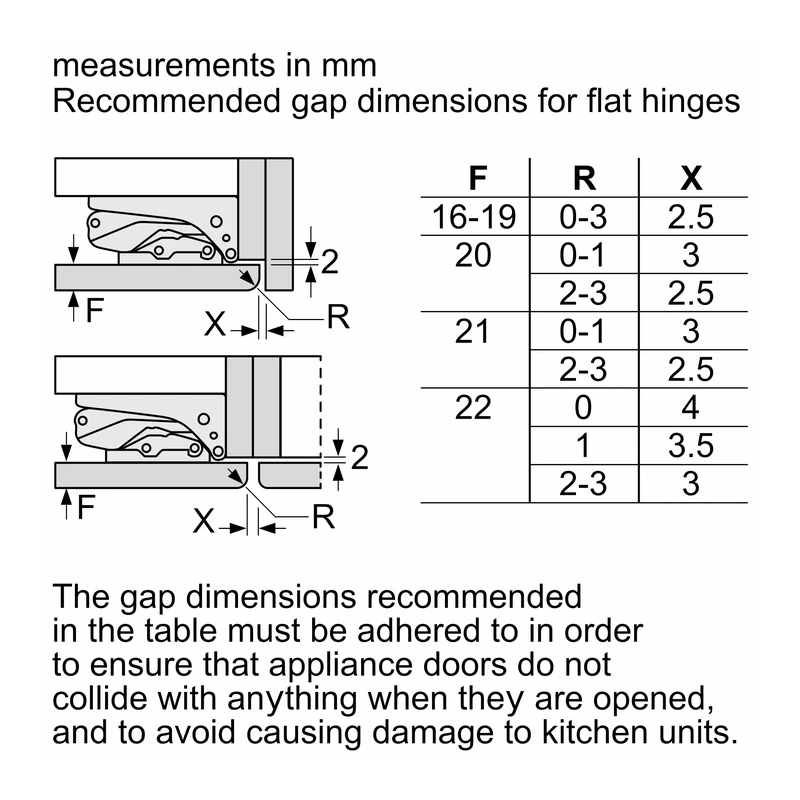

Product name	Series 4, Built-in fridge-freezer with freezer at bottom, flat hinge
Model code	KIN86VFE0G
Installation type	Built-in / Integrated
Door panel options	Not possible
Energy Efficiency Class	E (Scale of Energy Efficiency Classes from A to G)
Annual energy consumption	234 kWh/annum
Total volume	260 l
Net fridge volume	184 l
Net freezer volume	76 l
Net 4* compartment volume	76 l
Sum of volume of chill compartments	184 l
Sum of volume of frozen compartments	76 l
Freezing capacity (24 h)	4 kg
Climate class	SN-ST
Airborne acoustical noise emissions	35 dB(A) re 1pW
Noise emission class	B
Temperature rise time	10 H (EU19_Temperature rise time_D)
Frost free system	Freezer (NoFrost)
Food freshness system	NO_FROST_NEU_BL, never have to defrost ever again

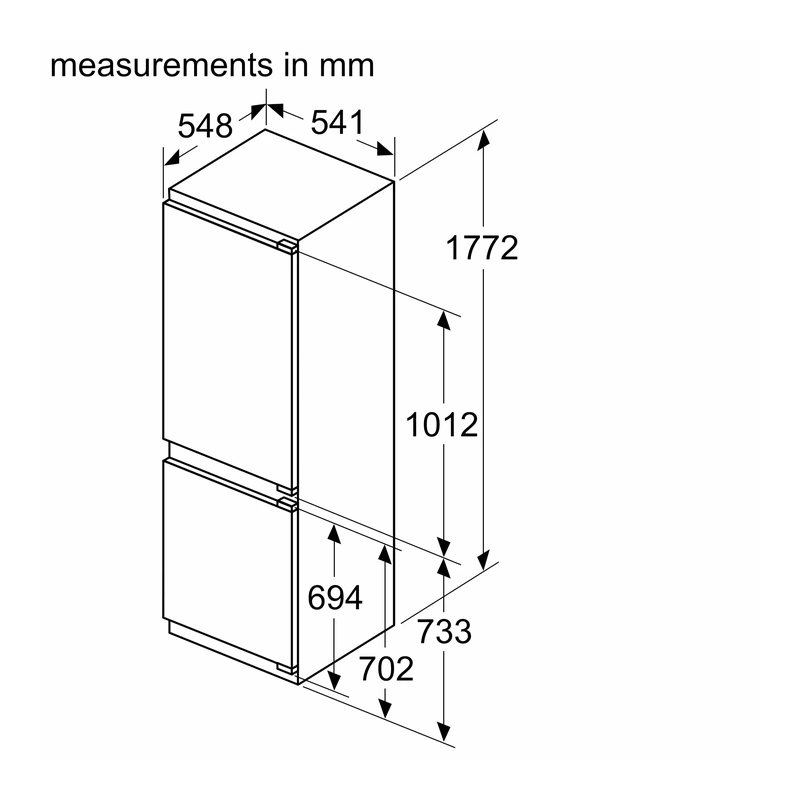

Height of appliance	1772 mm (177.2 cm)
Width of appliance	541 mm (54.1 cm)
Depth of appliance	548 mm (54.8 cm)
Required niche size (H × W × D)	1775 × 560 × 550 mm (177.5 cm H × 56 cm W × 55 cm D)
Net weight	54.8 kg
EAN code	4242005281374
Voltage	220–240 V
Frequency	50 Hz
Fuse protection	10 A
Length of electrical supply cord	230 cm
Number of compressors	1
Number of independent cooling systems	1
Interior ventilator	No
Door hinge	Right reversible
Reversible door hinge	Yes
Number of adjustable shelves in fridge	2 (of 4 safety glass shelves)
Total fridge shelves	4 safety glass shelves
Removable door storage compartments	1 removable door storage compartment
Door bins	3 door bins
Shelves for bottles	Yes

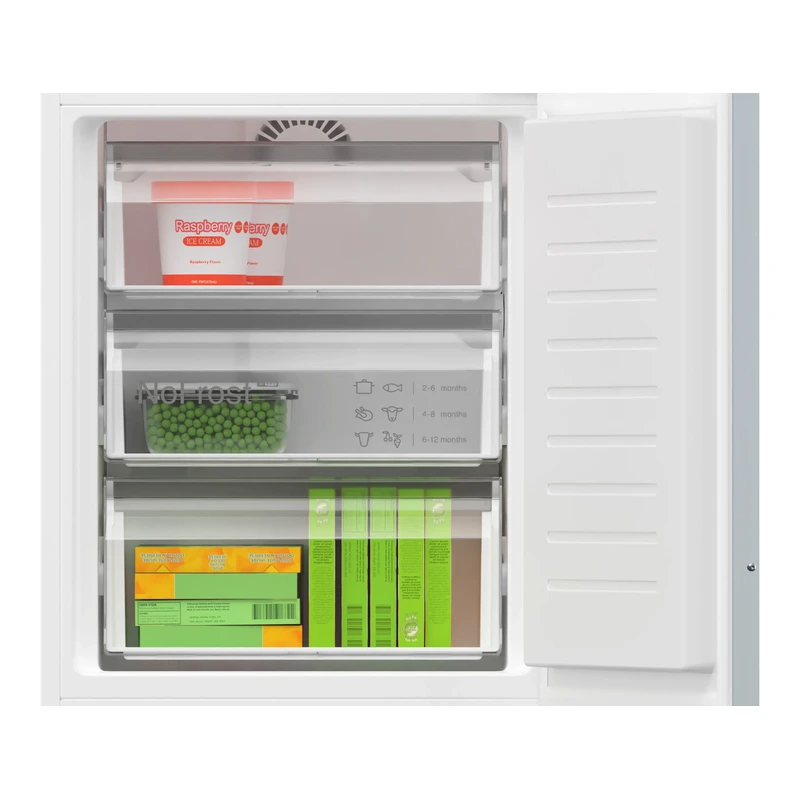

Freezer drawers	3 freezer drawers
Ice cube tray	1 × ice cube tray
Interior lighting	Bright interior LED fridge light in fridge section
Controls	LED electronic control
SuperCooling	Super Cooling: automatic deactivation
SuperFreeze	SuperFreeze function with automatic deactiviation
VitaFresh drawer	1 VitaFresh drawer with humidity control
Appliance notes	Based on the results of the standard 24-hour test. Actual consumption depends on usage/position of the appliance.
