How many burners does the PGP6B5K90 gas hob have?

This hob has four gas burners: two standard burners up to 1.75 KW each, one high-speed burner up to 3 KW, and one economy burner up to 1 KW, depending on gas type.

Are the pan supports suitable for the dishwasher?

Yes. The cast iron pan supports are described as dishwasher suitable, allowing easy, scrub-free cleaning.

What safety features are included on this gas hob?

The hob includes a flame failure safety device that prevents unwanted gas flow when the flame goes out and a safety gas cut-off that instantly cuts off gas supply if the flame goes out.

Is the hob pre-set for natural gas or LPG?

It is pre-set for natural gas. A nozzle set for LPG jets is included for connection to 28–30/37 mbar bottled gas. Nozzles for other gas types can be ordered via customer service.

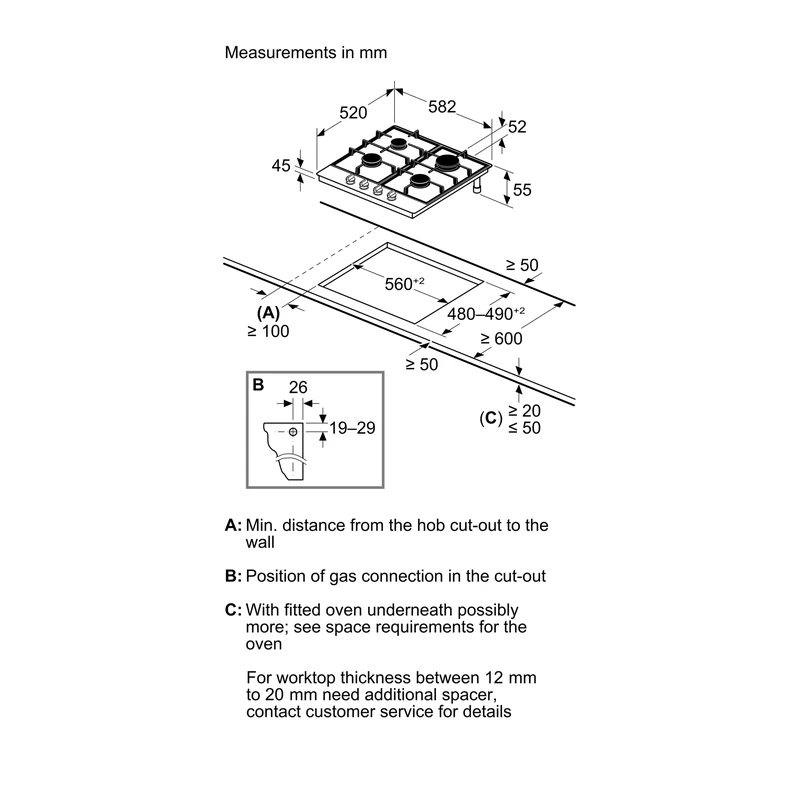

What are the required cut-out dimensions for installation?

The required niche size for installation is 45 x 560–560 x 480–490 mm, with a minimum worktop thickness of 20 mm.

Which optional accessories are available?

Optional accessories listed include the HEZ298105 simmer plate, HEZ298114 small pot support, HEZ32WA00 wireless food thermometer, HEZ9SE040 4 pieces set and HEZ9SE060 6 pieces set.

Product Information Sheet

Bosch Series 4 Gas Hob

SKU: PGP6B5K90

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch PGP6B5K90 Series 4 Gas Hob

SKU: PGP6B5K90 · EAN: 4242005484669

Brushed steel

The Series 4 PGP6B5K90 is a 60 cm stainless steel gas hob with integrated front controls and four burners for flexible cooking. Designed for built-in installation, it combines continuous cast-iron pan supports with ergonomic sword dials for precise flame adjustment and easy ignition. Dishwasher-suitable pan supports simplify cleaning, while a safety gas cut-off and flame failure safety device help protect against unwanted gas flow if the flame goes out.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Series	Series 4
Product type	Gas hob w integrated controls
Model	PGP6B5K90
Installation	Built-in
Heating type	Gas
Number of cooking zones	4
Control type	Sword knobs, front control panel
Surface material	Stainless steel
Surface colour	Stainless steel
Pan supports	Continuous cast iron, dishwasher suitable
Burner configuration	Left front: standard burner up to 1.75 KW (depending on gas type) Left rear: standard burner up to 1.75 KW (depending on gas type) Right rear: high-speed burner up to 3 KW (depending on gas type) Right front: economy burner up to 1 KW (depending on gas type)
Gas connection rating	7500 W / 7.5 KW (Connected load)
Dimensions (H x W x D)	45 x 582 x 520 mm
Alternative product dimensions	51.1 x 582 x 520 mm
Required niche size (H x W x D)	45 x 560–560 x 480–490 mm / 45 x 560 x (480–490) mm
Min. worktop thickness	20 mm
Packed product dimensions (H x W x D)	141 x 651 x 578 mm
Net weight	9.9 kg
Gross weight	10.7 kg
Residual heat indicator	Without
Electrical supply cord length	100 cm / 1 m
Voltage	220–240 V
Frequency	50; 60 Hz
Fuse protection	3 A
EAN code	4242005484669
Usable gas types	NG H/E 20 mbar, E+ 20/25 mbar; Liquid gas G30,31 28–30/37 mbar
Pre-set gas type	Natural gas

Delivery & Returns

Delivery

Free delivery to London addresses to ground floor only (service lift access accepted). Some appliances carry standard manufacturer delivery charges — confirmed at time of quotation. UK mainland delivery available for an additional charge. Lead times vary by make, model, and manufacturer availability.

Installation

We do not install appliances. We can recommend vetted fitters operating within London — payments are made directly with the fitter. Woodalls accepts no responsibility for installation work carried out by any third party.

Returns

14-day return window from the day after delivery. Items must be unused, uninstalled, and in original packaging. View our full returns policy →

Authorised Dealer

All products are supplied as an authorised Bosch dealer, with full manufacturer warranty. Established 1967.
