How many burners does the hob have and what are their power levels?

The hob has four gas burners: a left front standard burner up to 1.75 kW, a left rear standard burner up to 1.75 kW, a right rear high-speed burner up to 3 kW and a right front economy burner up to 1 kW, depending on gas type.

Is this gas hob suitable for installation with different gas types?

Yes, it is usable with various natural gas types (including Nat gas L/LL G25/20 mbar, NG H/E 20 mbar, E+ 20/25 mbar, Natural gas H 25 mbar, Natural gas L 25 mbar) and liquid gas types (G30,31 28-30/37 mbar, G30 37 mbar, liquid gas 50 mbar). It is pre-set for natural gas and includes a nozzle set for LPG jets.

Can the pan supports be cleaned in the dishwasher?

Yes, the cast iron pan supports are described as dishwasher suitable, allowing easy, scrub-free cleaning.

What safety features does the hob provide?

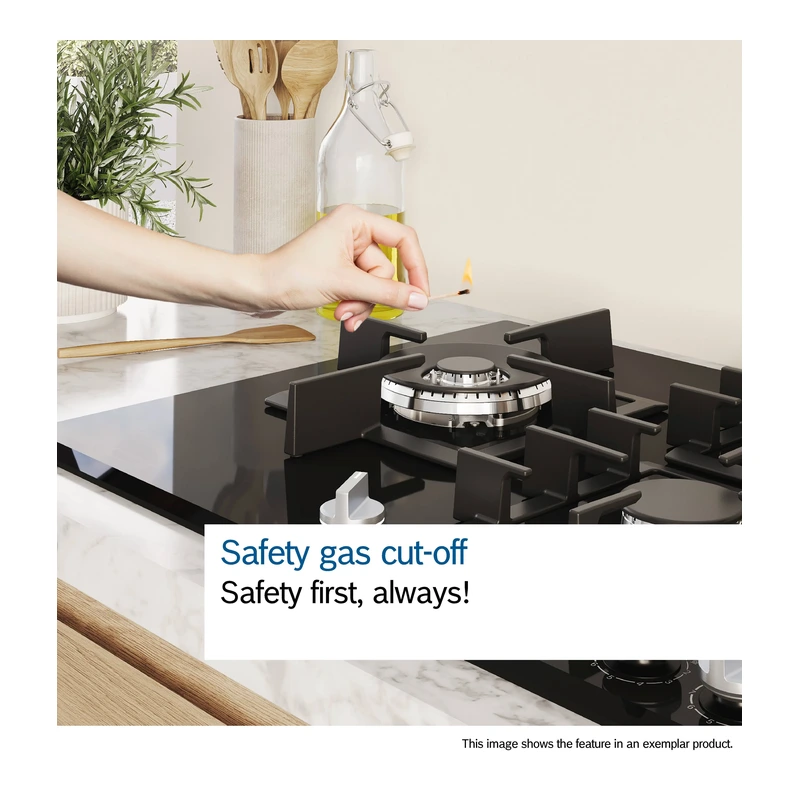

The hob has a flame failure safety device that prevents unwanted gas flow when the flame goes out, and a safety gas cut-off which instantly cuts off the gas supply if the flame goes out.

What are the required niche dimensions for installation?

The required niche size for installation is 45 x 560 x (480 – 490) mm. The minimum worktop thickness is 20 mm, or 30 mm if the hob is installed flush with the worktop.

Does the hob have a residual heat indicator?

No, the hob is specified as being without a residual heat indicator.

Product Information Sheet

Bosch Series 4 Gas Hob

SKU: PNP6B6K40

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Bosch PNP6B6K40 Series 4 Gas Hob

SKU: PNP6B6K40 · EAN: 4242005437856

Tempered Black Glass

The Series 4 PNP6B6K40 is a 60 cm built-in gas hob with a black tempered glass surface and front-mounted integrated controls. It offers four gas burners, ergonomic sword dials with ignition via the control dials, and cast iron pan supports with rubber feet. Dishwasher-suitable pan supports and semi-continuous supports help make cleaning easier, while the flame failure safety device provides additional safety by preventing unwanted gas flow if the flame goes out.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Series 4, Gas hob, 60 cm, Tempered glass, Black – PNP6B6K40
Appliance type	Gas hob w integrated controls
Installation type	Built-in
Heating type	Gas
Number of cooking zones	4
Burner configuration	Left front: standard burner up to 1.75 kW (depending on gas type); Left rear: standard burner up to 1.75 kW (depending on gas type); Right rear: high-speed burner up to 3 kW (depending on gas type); Right front: economy burner up to 1 kW (depending on gas type)
Control setting devices	Sword knobs / ergonomic sword dials
Ignition	Ignition via control dials (push and turn)
Basic surface material	Tempered glass
Colour of surface	Black
Colour of frame	Black

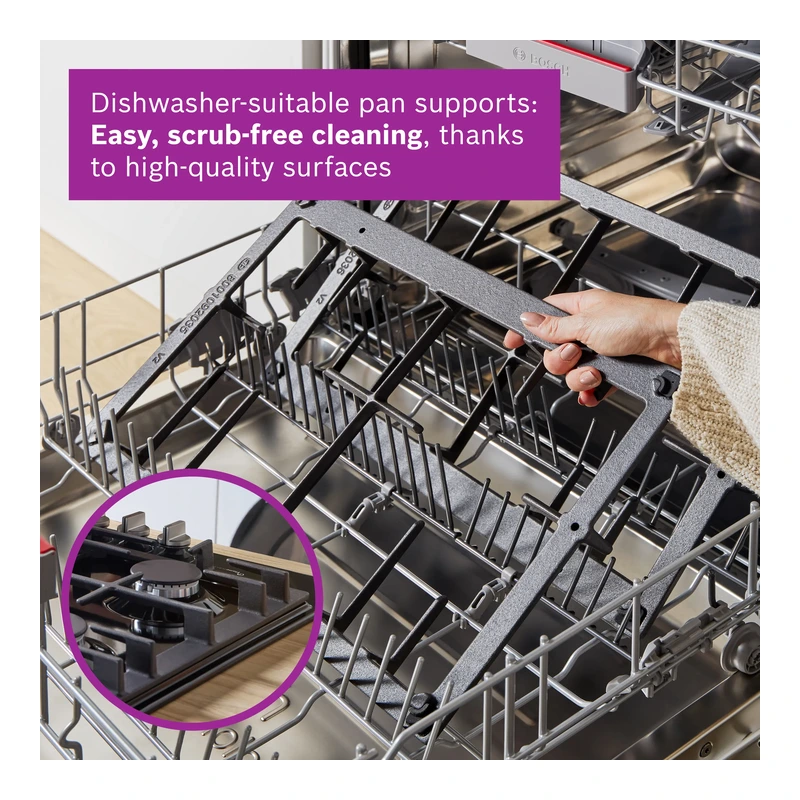

Pan supports	Cast iron pan supports with rubber feet; semi-continuous; dishwasher suitable
Dimensions (HxWxD)	45 x 590 x 520 mm / Dimensions of the product: 57.4 x 590 x 520 mm
Width of the appliance	590 mm
Packed product dimensions (HxWxD)	150 x 660 x 580 mm

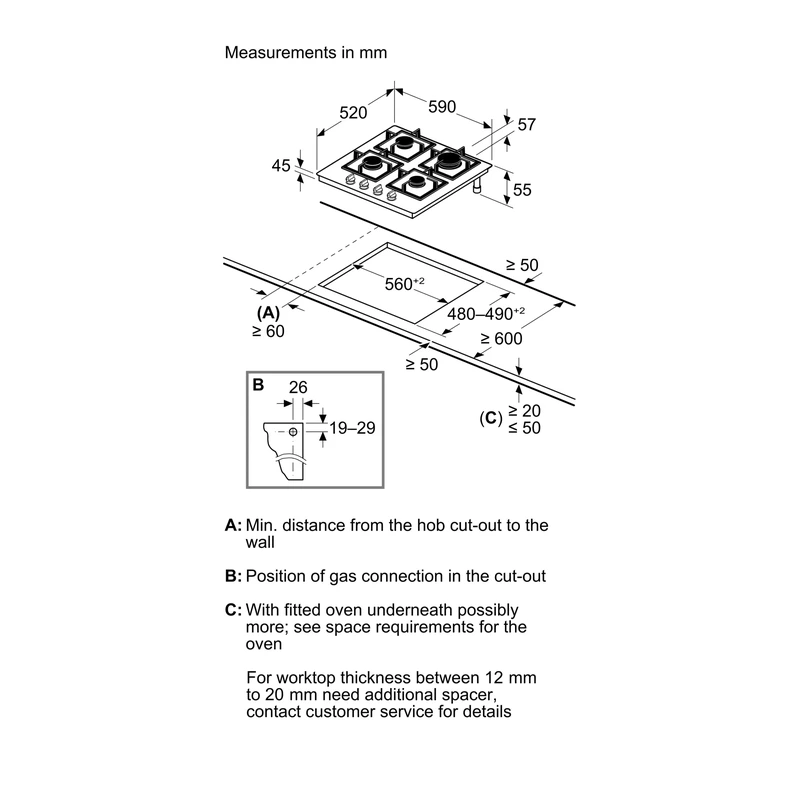

Required niche size (HxWxD)	45 x 560-560 x 480-490 mm / Required niche size for installation: 45 x 560 x (480 - 490) mm
Minimum worktop thickness	20 mm (30 mm minimum if installed flush)
Location of control panel	Front
Residual heat indicator	Without
Net weight	15.9 kg
Gross weight	17.1 kg
Length electrical supply cord	100 cm / Power cord: 1 m
Gas connection rating	7500 W / Connected load: 7.5 kW
Voltage	220-240 V
Frequency	50; 60 Hz
Fuse protection	3 A
EAN code	4242005437856
Design details	Frameless design; install the hob either flush or slightly raised on the worktop
