| Product name |
Series 4, Induction hob with integrated ventilation system, 80 cm, surface mount without frame, PIE811B15E |
| Appliance type |
Cooking zone ceramic |
| Built-in / Free-standing |
Built-in |
| Heating type |
Electric hob, induction cooktop with integrated downdraft extractor |
| Number of cooking zones |
4 |
| Cooking zone front left |
210 mm, 2.2 kW (max. power 3.7 kW) |
| Cooking zone rear left |
180 mm, 1.8 kW (max. power 3.1 kW) |
| Cooking zone rear right |
180 mm, 1.8 kW (max. power 3.1 kW) |
| Cooking zone front right |
210 mm, 2.2 kW (max. power 3.7 kW) |
| Heating with booster |
All |
| Power of heating element |
2.2 kW |
| Power of 3rd heating element |
1.8 kW (3.1 kW in boost) |
| Power of 5th heating element |
1.8 kW |
| Control type |
TouchSelect with imprinted +/− touch buttons; front control panel |
| Power levels |
Variable 17-stage power settings for each zone (9 main levels and 8 intermediate levels) |
| Timer functions |
Timer for all zones with switch-off; usage time display; acoustic alarm |
| Width of appliance |
802 mm |
| Product dimensions (H x W x D) |
223 x 802 x 522 mm |

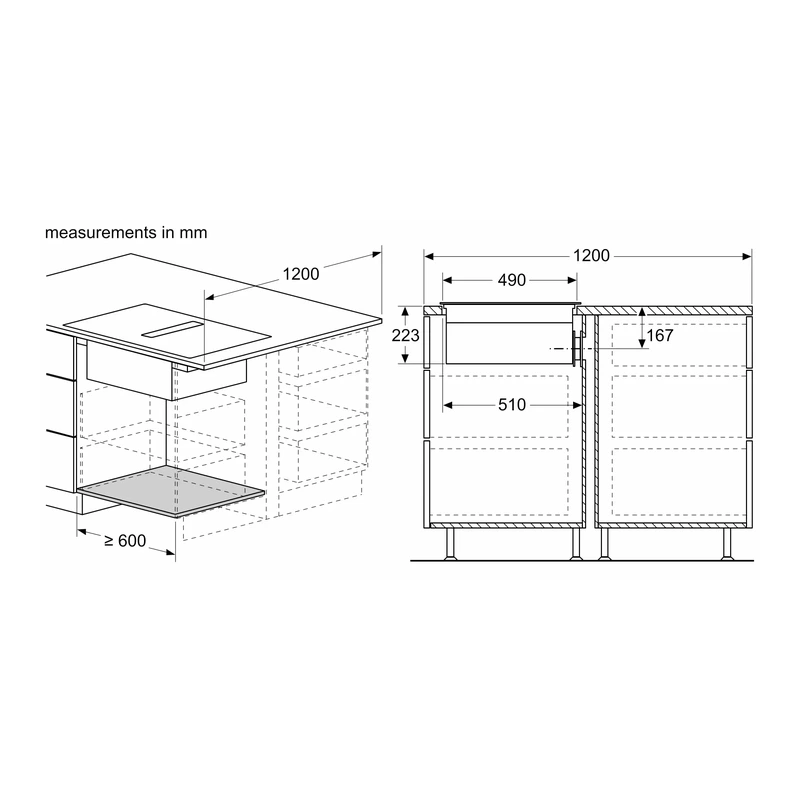

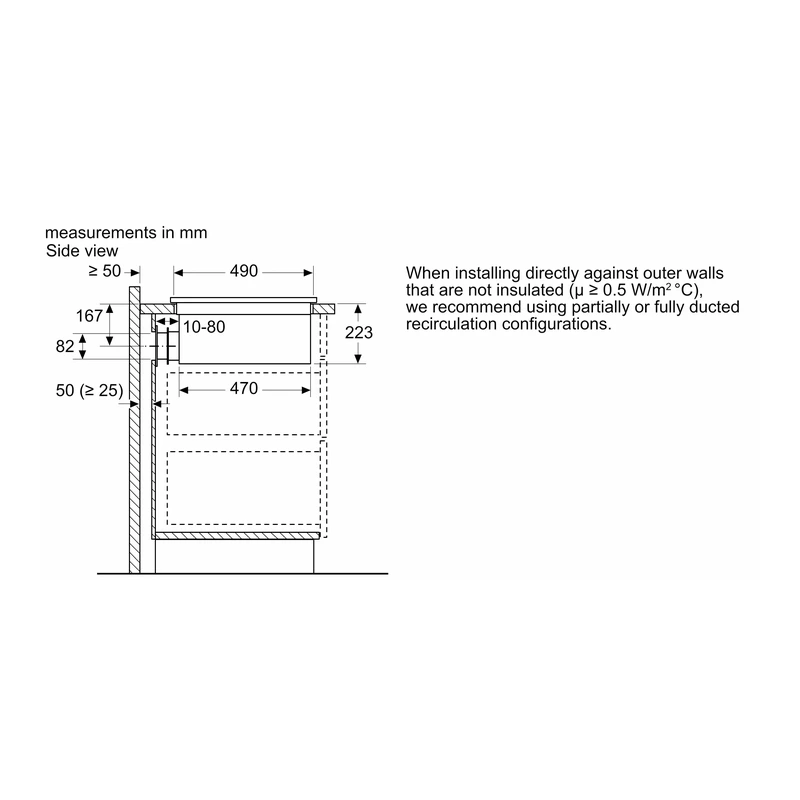

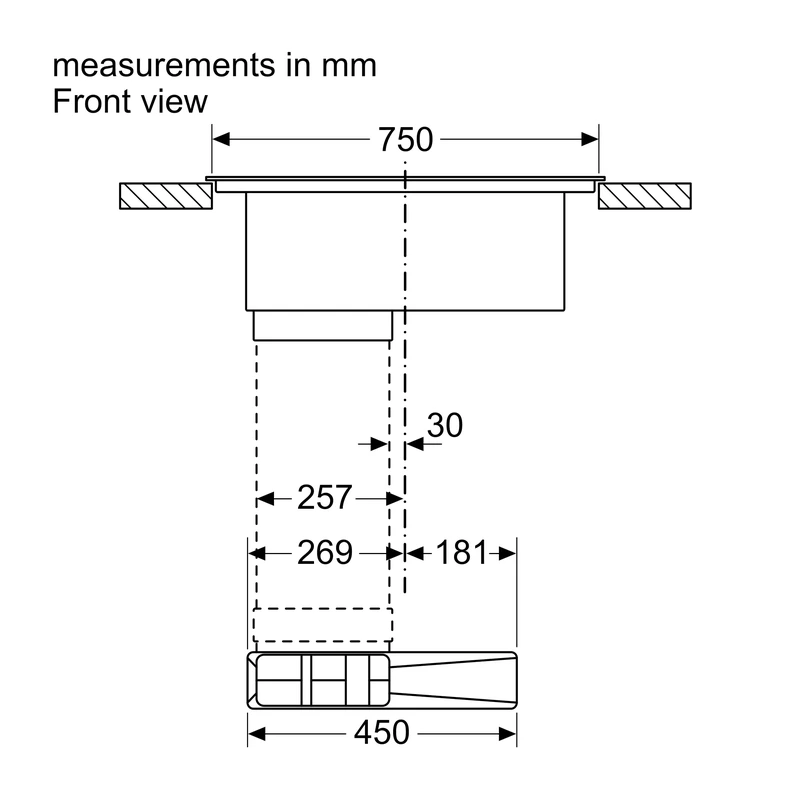

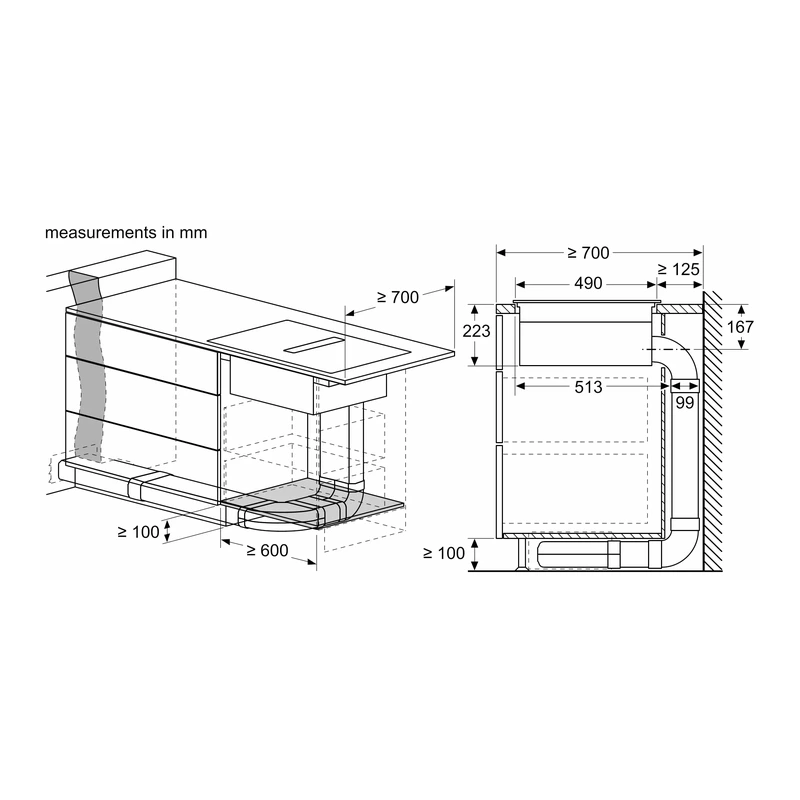

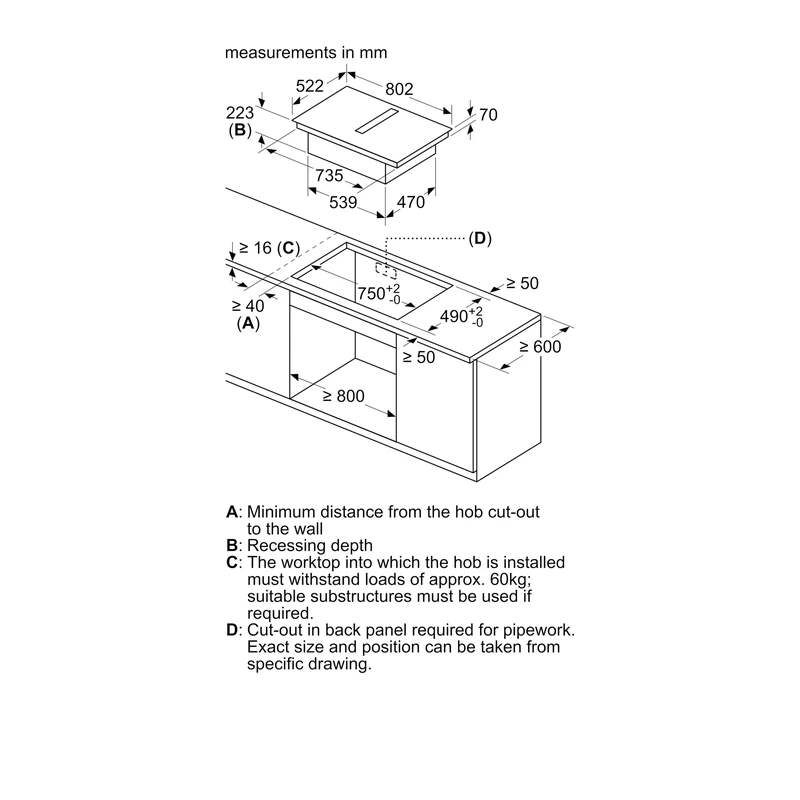

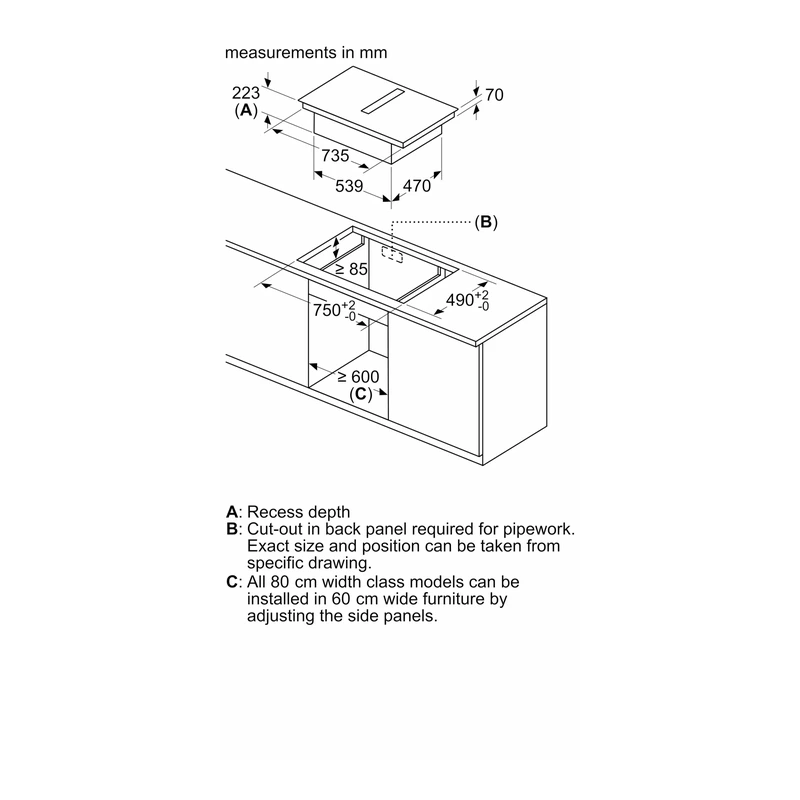

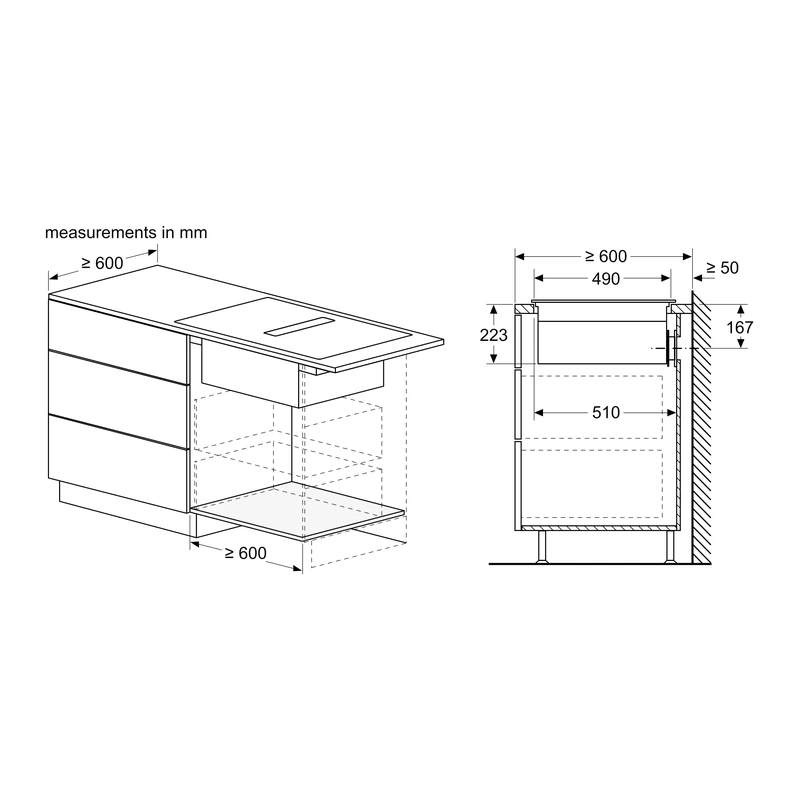

| Required niche size (H x W x D) |
223 x 750 x 490–500 mm |
| Min. worktop thickness |
16 mm |
| Packed product dimensions (H x W x D) |
430 x 940 x 660 mm |
| Net weight |
24.7 kg |
| Overall appliance weight |
26 kg |
| Gross weight |
31.0 kg |
| Residual heat indicator |
Separate; 2 stage residual heat indicator for each zone |
| Basic surface material |
Ceramic glass |
| Colour of surface |
Black |
| Design |

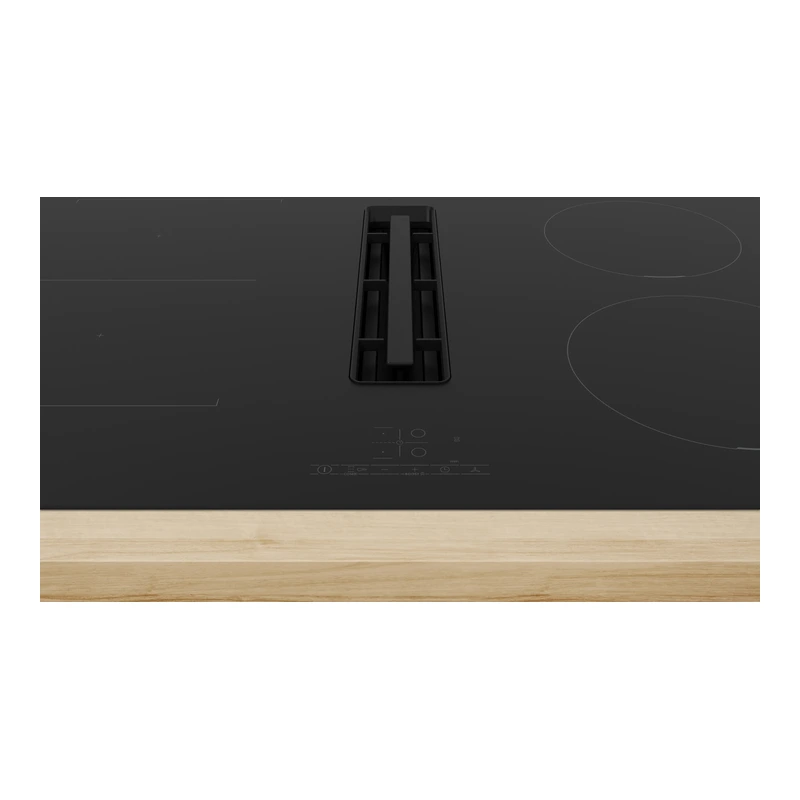

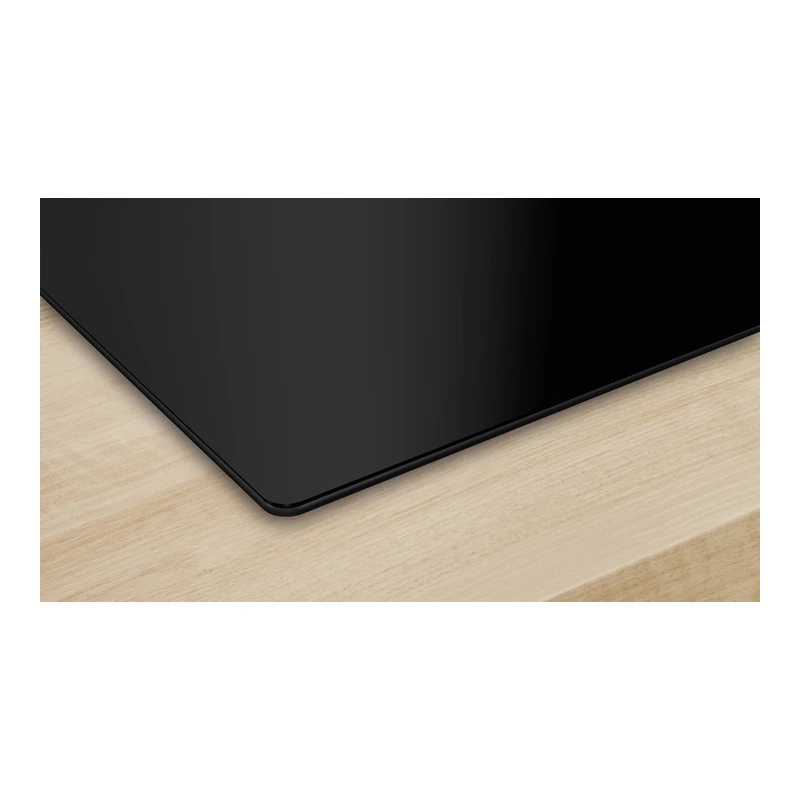

Frameless design; aesthetically integrated fully flush air intake with floating, heat resistant glass ceramics element |
| Length of electrical supply cord |
110.0 cm (power cord 1.1 m, cable included) |
| Voltage |
220–240/380–415 V |
| Frequency |
50; 60 Hz |
| Connected load |
7.4 kW |
| Power management options |
Power management options for 16 A, 13 A or 10 A connection |
| Number of speed settings (ventilation) |
3-stages + intensive setting (Boost-/Intensive level) |
| Max. air extraction (ducted) |
500 m³/h (max. normal setting) |
| Boost air extraction (ducted) |
622 m³/h (max. Boost-/Intensive setting) |
| Min. air extraction (ducted) |
330 m³/h (min. normal setting) |
| Max. air recirculation |
441 m³/h (max. normal setting) |
| Boost air recirculation |
595 m³/h (max. Boost-/Intensive setting) |
| Min. air recirculation |
252 m³/h (min. normal setting) |
| Noise level (ducted) |
61–69 dB(A) re 1 pW normal settings; 74 dB(A) re 1 pW Boost-/Intensive setting |
| Noise level (recirculated) |
55–66 dB(A) re 1 pW normal settings; 72 dB(A) re 1 pW Boost-/Intensive setting |
| Grease filter efficiency |
94 % (according to EN 61591); grease filtration efficiency class B |
| Energy Efficiency Class (ventilation) |
B (range A+++ to D) |
| Fluid Dynamic Efficiency |
A |
| Average energy consumption |
57 (unit not stated in source) |
| Odour filter |
No (general spec); for recirculation configuration: integrated cleanAir odour filters |
| Air circulation type |
Convertible; suitable for ducted or recirculated extraction |
| Clean filter reminders |
Yes |
| Max. immersion depth below worktop |
223 mm |
| Included accessories (cooking) |
1 x Slider for unducted recirculation, 1 x Clean Air Plus odour filter |

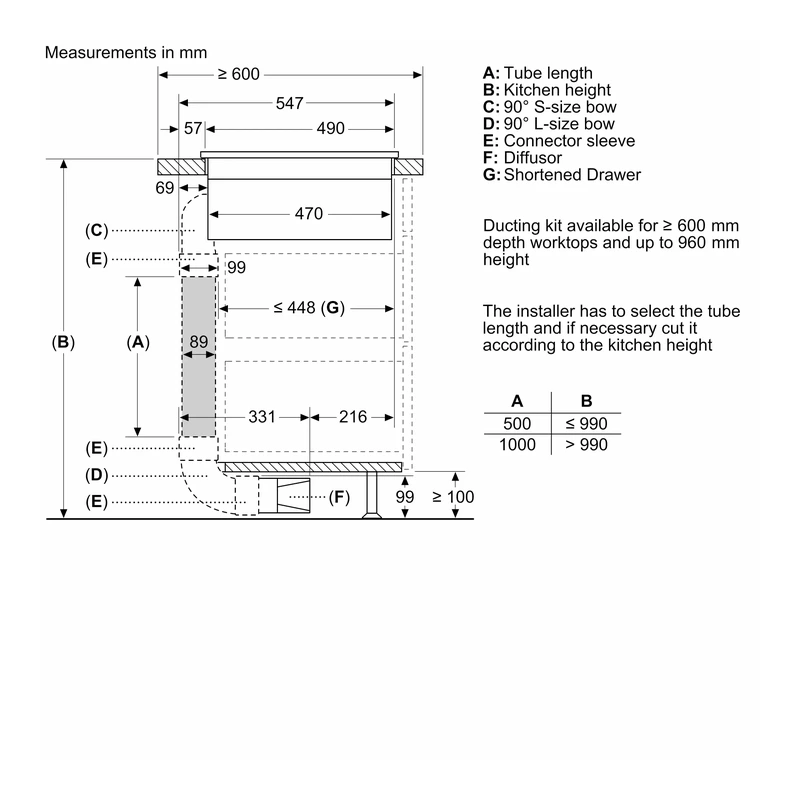

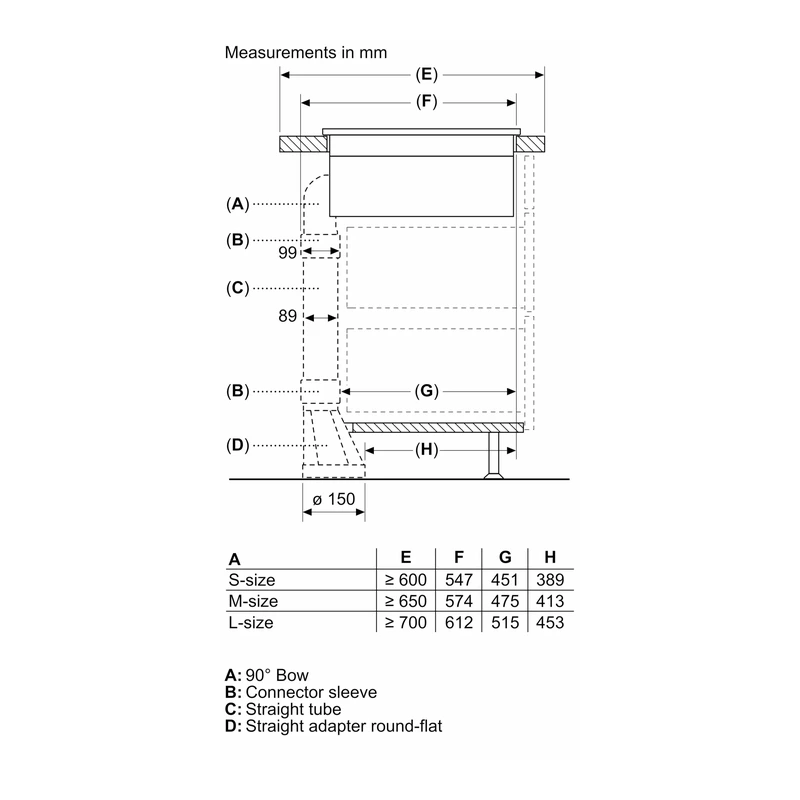

| Optional accessories (examples) |

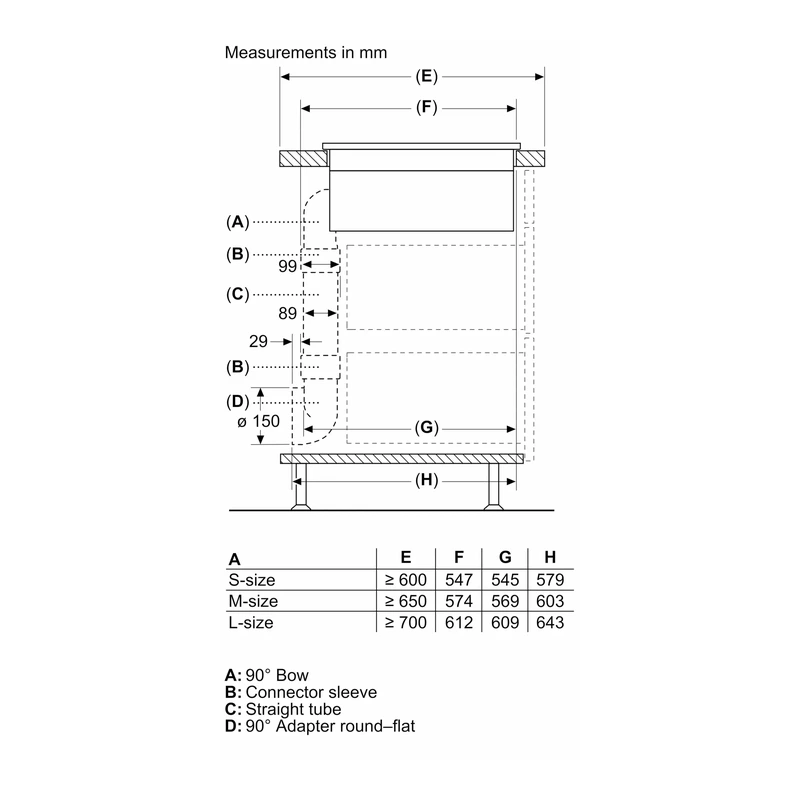

HEZ390230 System pan (21 cm), HEZ9ES100 Espresso maker 4 cups, HEZ9FE280 Iron pan Ø 18/28 cm, HEZ9SE030, HEZ9SE040, HEZ9SE060 cookware sets; HEZ9VDKE1, HEZ9VDKR0, HEZ9VDKR1, HEZ9VDKR2 ducting kits; HEZ9VDSB1, HEZ9VDSB2, HEZ9VDSB3, HEZ9VDSB4 duct bends; HEZ9VDSM1, HEZ9VDSM2 straight tubes; HEZ9VDSS1 connector sleeve, HEZ9VDSS2 flex sleeve; HEZ9VEDU0 acoustics filter; HEZ9VRCR0 and HEZ9VRCR1 cleanAir filter sets; HEZ9VRPD1 plinth diffusor |
| Sealed burners |
No |
| Compliance (flammability) |
Complies with Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94) |
