What kitchen hoods is the AA210492 lowering frame compatible with?

It can be combined with flat kitchen hood series 200.

Where can the lowering frame be installed?

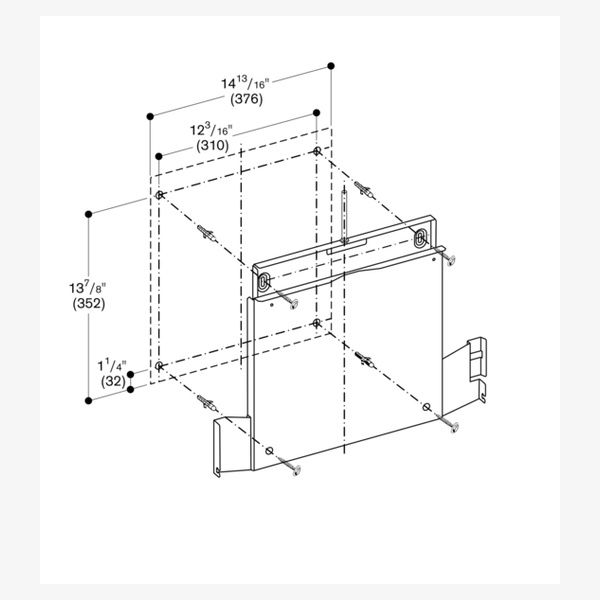

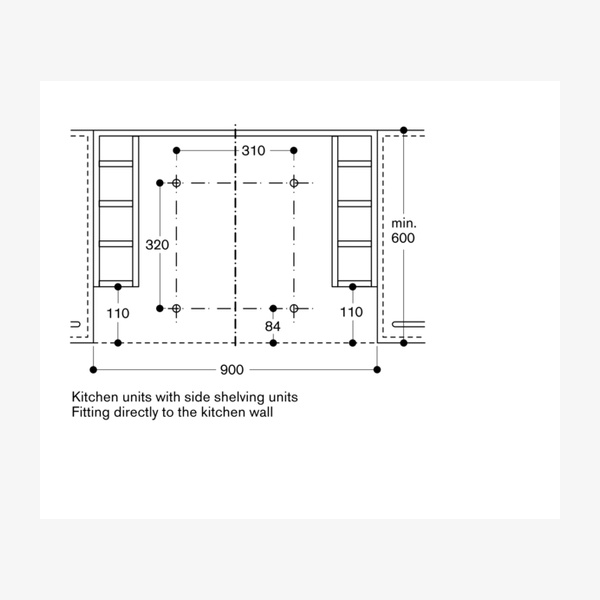

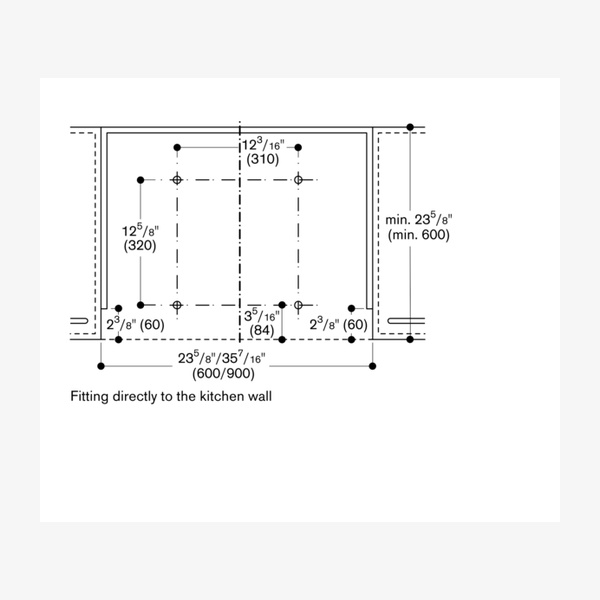

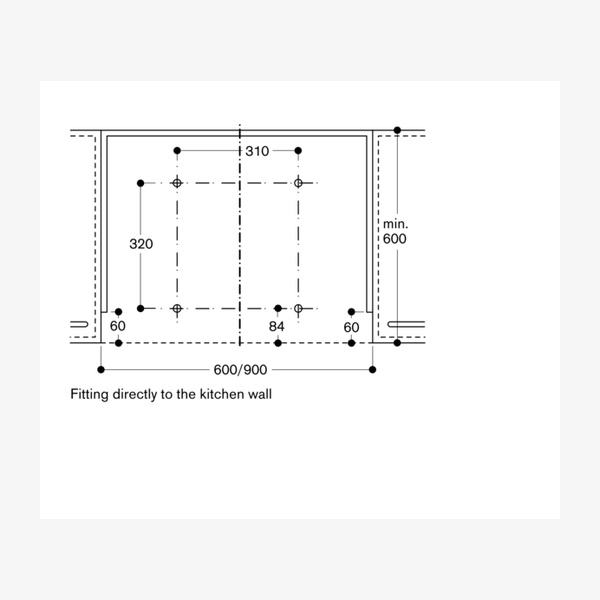

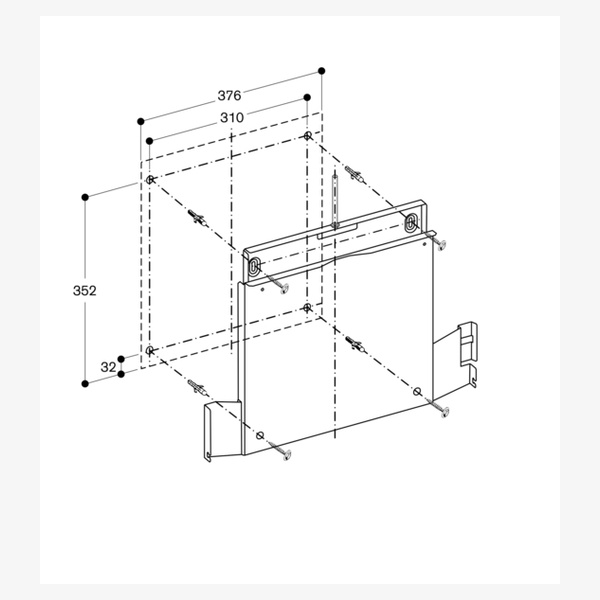

It is suitable for assembly directly on the kitchen wall, on a reinforced upper cabinet or in the upper cabinet.

What is the required cavity depth of the upper cabinet?

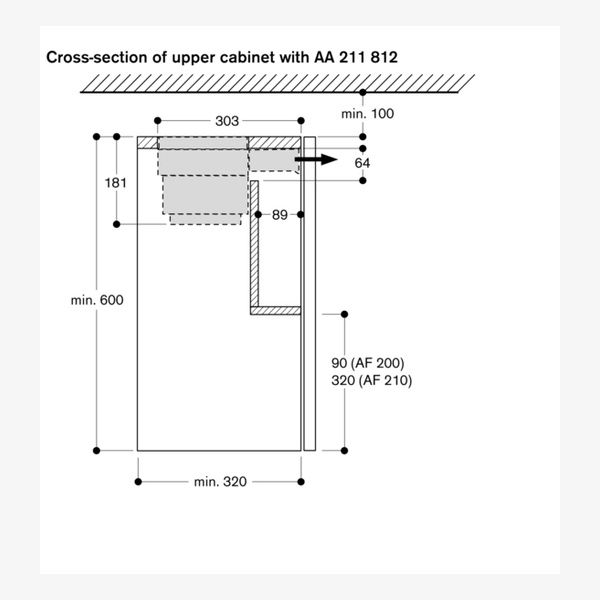

The required cavity depth of the upper cabinet together with the lowering frame is 335 mm.

What happens if I use a back wall panel thicker than 5 mm?

In combination with a back wall panel thicker than 5 mm, the lowering frame must be lined and the cavity depths must be adapted accordingly.

Is any additional component required for installation?

Yes, a flexible hose is needed for the installation of the lowering frame.

Product Information Sheet

Gaggenau Lowering Frame

SKU: AA210492

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 20 July 2026

Gaggenau AA210492 Lowering Frame

SKU: AA210492

For AF210192

The AA210492 lowering frame is a patented solution designed for use with flat kitchen hood series 200. It allows the flat hood to disappear completely into the upper cabinet, enabling a clean, integrated kitchen design. Suitable for assembly directly on the kitchen wall, in a reinforced upper cabinet or in the upper cabinet itself, it requires a cavity depth of 335 mm and can be adapted when used with a back wall panel thicker than 5 mm.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product code	AA210492
Product type	Lowering frame
Nominal width	900 mm
Compatibility	Flat kitchen hood series 200
Required cavity depth of upper cabinet (with lowering frame)	335 mm
Installation locations	Directly on kitchen wall; reinforced upper cabinet; upper cabinet
Back wall panel requirement	In combination with back wall panel >5 mm, frame must be lined and cavity depths adapted
Additional installation requirement	Flexible hose needed for installation
Brand	Gaggenau
Document date	2025–11–26
