What type of appliances can the AR403122 be used with?

The AR403122 is a powerful remote fan unit designed to be combined with motorless appliances.

What is the maximum air output of this remote fan unit?

The air output is specified according to EN 61591 with a maximum of 965 m³/h.

How many power levels does the AR403122 offer?

It offers three electronically controlled power levels and one intensive mode.

Where can the AR403122 be installed?

It is suitable for compact and space-saving installation in a 10 cm high plinth, with the option to mount it on the ceiling or side of a cupboard using the enclosed retaining bracket.

What safety consideration is mentioned for use with a fireplace?

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood's power supply line needs a suitable safety switch.

Product Information Sheet

Gaggenau BLDC Plinth Installation Extraction Motor

SKU: AR403122

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 19 July 2026

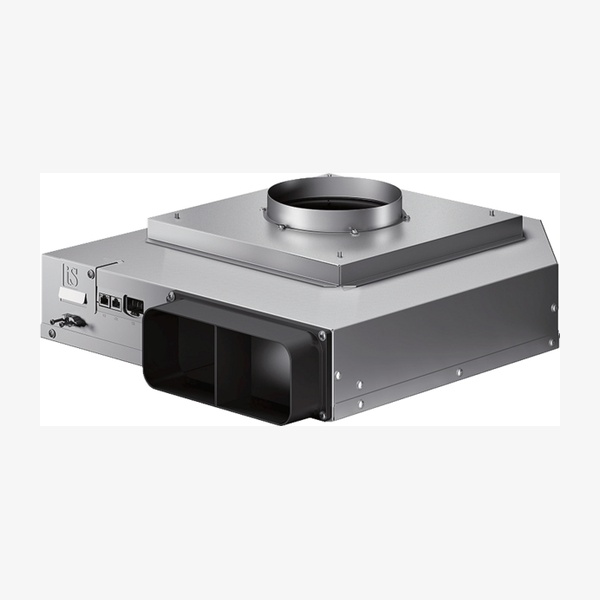

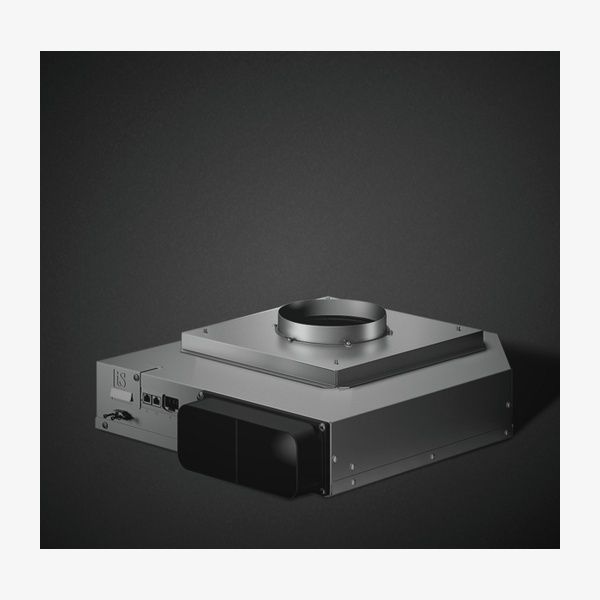

Gaggenau AR403122 BLDC Plinth Installation Extraction Motor

SKU: AR403122

The Gaggenau AR403122 is a powerful remote fan unit from the 400 series designed for combination with motorless appliances. It uses efficient brushless DC motor technology and offers three electronically controlled power levels plus an intensive mode. With air output up to 965 m³/h according to EN 61591 and compact installation in a 10 cm high plinth, it provides space-saving integration. Metal housing and flexible pipe connections support versatile planning and installation.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Remote fan unit 400 series AR403122
Series	400 series
Compatible appliances	Motorless appliances (remote fan unit in combination with motorless appliances)
Motor technology	Fan technology with highly efficient, brushless DC motor (BLDC)
Air output	Air output according to EN 61591 – max. 965 m³/h.
Power levels	3 electronically controlled power levels and one intensive mode.
Sound power level	Sound power level depends on the built-in situation.
Power levels dependence	Power levels depend on the motorless appliances.
Housing	Metal housing, zinc-plated.
Installation height	Compact and space-saving installation in a 10 cm high plinth.
Intake connection	Pipe connection pieces on intake side: 1 × NW 150 round.
Output connection	Pipe connection pieces on output side: 1 × NW 150 flat duct.
Mounting bracket	Retaining bracket for installation on the ceiling or side of a cupboard enclosed.
Total connected load	Total connected load 180 W.
Connecting cable	Connecting cable 1.8 m, pluggable.
Network cable	Network cable 2 m.
Optional accessory	AA400510: Window contact switch with cable.
