What type of appliances can the AR413122 be used with?

The AR413122 is a powerful remote fan unit designed to be combined with motorless appliances.

What is the maximum air output of the AR413122?

The air output is specified according to EN 61591, with a maximum of 900 m³/h.

How many power levels does this fan unit offer?

It provides 3 electronically controlled power levels and one intensive mode.

How often should the activated charcoal filters be replaced?

The filter replacement interval is 1–1.5 years, depending on cooking frequency.

Are any accessories supplied or available for the AR413122?

Two activated charcoal filters are enclosed ex factory. Optional accessories include the AA413111 active charcoal filter for AR413122 and the AA010410 ventilation grid 90 cm.

What are the key installation clearances and requirements?

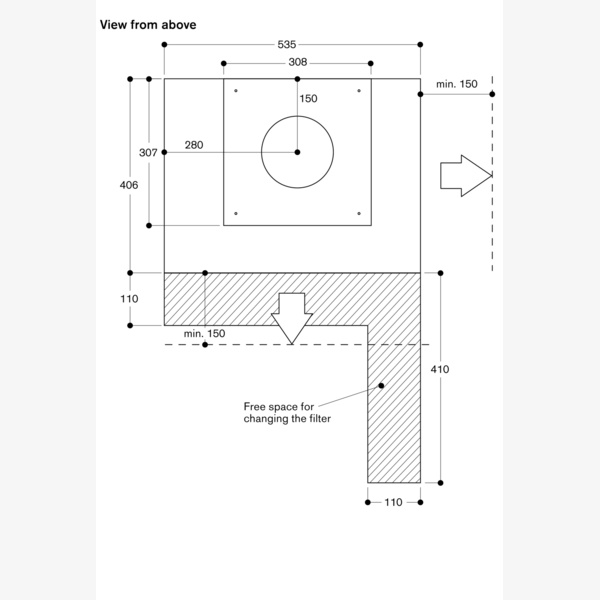

The unit installs in a 10 cm high plinth with a cut-out for air ducting. A minimum gap of 15 cm is recommended between filter openings and cupboard wall if there is no ventilation grille directly in front, and an outflow surface area of at least 400 cm² is recommended for optimum air recirculation performance.

Product Information Sheet

Gaggenau BLDC Plinth Installation Recirculation Motor

SKU: AR413122

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 19 July 2026

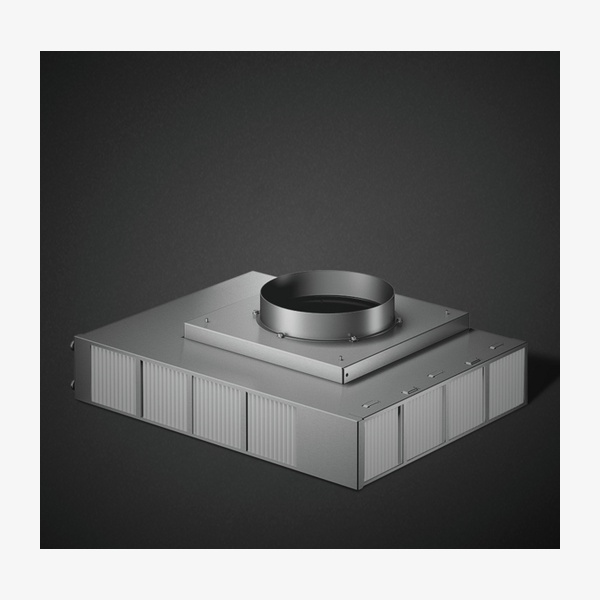

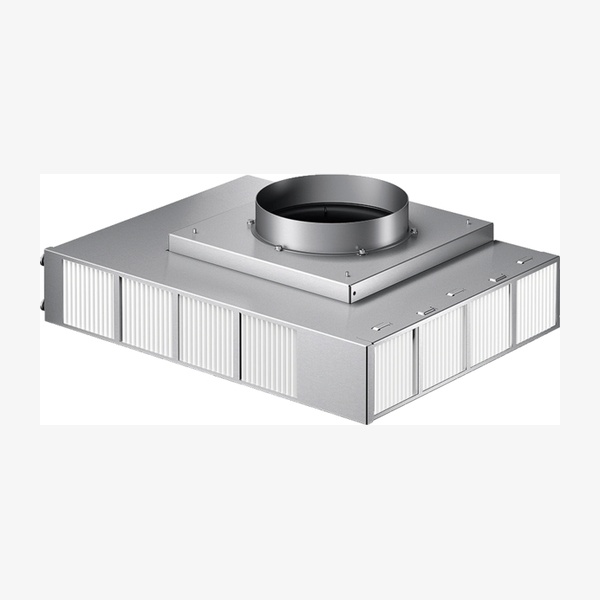

Gaggenau AR413122 BLDC Plinth Installation Recirculation Motor

SKU: AR413122

The AR413122 is a powerful remote fan unit from the 400 series designed for combination with motorless appliances. It offers efficient BLDC technology and a compact, space-saving installation in a 10 cm high plinth. With a maximum air output of 900 m³/h according to EN 61591, it provides three electronically controlled power levels plus intensive mode, making it suitable for demanding cooking applications where effective odour reduction and flexible installation are required.

5 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product type	Remote fan unit 400 series
Model code	AR413122
Application	Remote fan unit in combination with motorless appliances

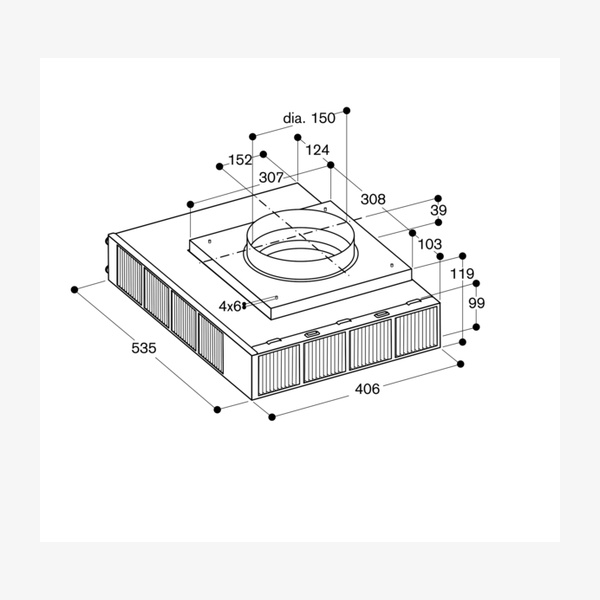

Installation height	Compact and space-saving installation in a 10 cm high plinth
Air output	Air output according to EN 61591 – max. 900 m³/h.
Sound power level	Sound power level depends on the built-in situation.
Power levels	3 electronically controlled power levels and one intensive mode.
Motor technology	Fan technology with highly efficient, brushless DC motor (BLDC).
Housing	Metal housing, zinc-plated.
Pipe connection (intake side)	Pipe connection pieces on intake side: 1 x NW 150 round.
Filters included	2 activated charcoal filters enclosed ex factory.
Odour and allergen handling	Highly efficient odour reduction for complex odour molecules; filter retains an extremely high amount of airborne pollen and deactivates allergens retained by the filter.
Filter replacement interval	1–1.5 years depending on cooking frequency.
Total connected load	180 W.
Connecting cable	Connecting cable 1.8 m, pluggable.
Network cable	Network cable 2 m.
Optional accessory – active charcoal filter	AA413111: Active charcoal filter for AR413122.
Optional accessory – ventilation grid	AA010410: Ventilation grid 90 cm.
