Miele KMDA 7676-1 FL BlackPerfection Venting Induction Hob

SKU: KMDA76761FL · EAN: 4002516974574

Frameless

The KMDA 7676-1 FL BlackPerfection is an induction hob with integrated vapour extraction featuring an elegant all-black, frameless glass ceramic surface. Designed with four large cooking zones including two PowerFlex XL areas, it offers ample space for flexible cooking. The Silence motor and ECO motor support quiet, efficient extraction, while Con@ctivity provides automatic fan power regulation. Flexible installation options include Plug&Play, ducted recirculation and vented exhaust air operation.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

User convenience
Model identifier	KMDA 7676-1 FL BlackPerfection
Product type	Induction hob with integrated vapour extraction
Manufacturer material number	12968770
EAN number	4002516974574
Construction type	Induction hob with integrated vapour extraction
Operating modes – exhaust air	Exhaust air guided with optional accessories DFK-xxxx, DMK 150-1
Operating modes – recirculation air	Recirculation air guided with optional accessories DFK-xxxx, DUU 1500, DUU 600; can be retrofitted
Unguided recirculation air	Plug&Play installation
Glass ceramic surface	Elegant, frameless, flush-fit option, colour black
Extractor and filters colour	Flush fit extractor, black cover grille, black grease filter
Number of cooking zones	4
Number of cooking areas	2
Maximum number of pans	4
PowerFlex cooking zones	4 – PowerFlex XL cooking areas
PowerFlex area size (diameter)	Ø 150 – 230 mm
PowerFlex max. rating	2,100 W
PowerFlex max. Booster rating	3,000 W
PowerFlex max. TwinBooster rating	3,650 W
1st cooking area position	Left, PowerFlex XL cooking area, 230x460 mm
1st area ratings	Max. rating 3,400 W; Booster 4,800 W; TwinBooster 7,300 W
2nd cooking area position	Right, PowerFlex XL cooking area, 230x460 mm
2nd area ratings	Max. rating 3,400 W; Booster 4,800 W; TwinBooster 7,300 W
Networking	Miele@home
Automatic fan control	Con@ctivity
Controls	Sensor controls ComfortSelect White, digital power level display, display colour white
Permanent pan recognition	Yes
Run-on time	5/15 min.
Convenience functions	Stop & Go; wipe protection; recall function; minute minder; auto heat-up; keeping warm; individual setting options (e.g. buzzers)
Efficiency and sustainability

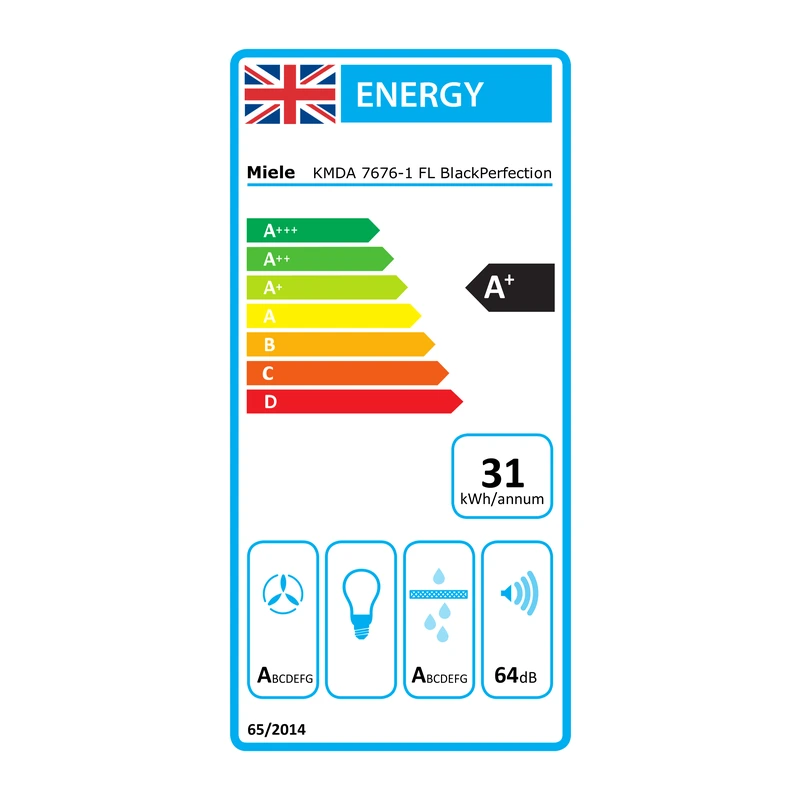

Energy efficiency class	A+ (A+++ – D)
Annual energy consumption	31.3 kWh/year
ECO motor	Yes
Power rating in off mode	0.5 W
Power rating in standby mode	0.8 W
Power rating in networked standby	2.0 W
Time to standby mode	10 min
Time to networked standby	10 min
Time to off mode	10 min
Fluid dynamic efficiency class	A
Grease filtering efficiency class	A
Cleaning and care
Ceramic glass	Easy to clean ceramic glass
Canopy interior	Easy-to-clean canopy interior – CleanCover
Exhaust air performance (EN 61591 / EN 60704)
Air throughput min. level (exhaust)	205 m³/h
Air throughput max. level (exhaust)	533 m³/h
Air throughput Intensive level (exhaust)	606 m³/h
Sound power min. level (exhaust)	41.0 dB(A) re 1 pW
Sound power max. level (exhaust)	64.0 dB(A) re 1 pW
Sound power Booster level (exhaust)	68.0 dB(A) re 1 pW
Sound pressure min. level (exhaust)	28.0 dB(A) re 20 µPa
Sound pressure max. level (exhaust)	51.0 dB(A) re 20 µPa
Noise pressure Intensive level (exhaust)	54.0 dB(A) re 20 µPa
Sound power Booster level 1 (exhaust)	68.0 dB(A) re 1 pW
Sound pressure Booster level 1 (exhaust)	54.0 dB(A) re 20 µPa
Recirculation performance (EN 61591 / EN 60704)
Air throughput min. level (recirculation)	160 m³/h
Air throughput max. level (recirculation)	475 m³/h
Air throughput Booster level 1 (recirculation)	510 m³/h
Sound power min. level (recirculation)	46.0 dB(A) re 1 pW
Sound power max. level (recirculation)	68.0 dB(A) re 1 pW
Sound power Booster level 1 (recirculation)	70.0 dB(A) re 1 pW
Sound pressure min. level (recirculation)	33.0 dB(A) re 20 µPa
Sound pressure max. level (recirculation)	55.0 dB(A) re 20 µPa
Sound pressure Booster level 1 (recirculation)	57.0 dB(A) re 20 µPa
Safety
Safety switch-off	Yes
Lock function and system lock	Yes
Integrated cooling fan	Yes
Overheating protection	Yes
Residual heat indicator	Yes
Connection for window contact switch	Yes
Dimensions and electrical data
Width	800 mm
Height	238 mm
Depth	520 mm
Casing height incl. connection box	238 mm
Number of phases	3
Cut-out dimensions (surface-mounted)	Width 780 mm; depth 500 mm
Internal cut-out (flush installation)	Width 780 mm; depth 500 mm
External cut-out (flush installation)	Width 804 mm; depth 524 mm
Weight	20 kg
Total rated load	7.50 kW
Voltage	230 V
Frequency	50–60 Hz
Length of supply lead	1.4 m
Neutral conductor	Yes
Accessories included
Mains cable	Yes
Active charcoal filter	DKF 35-P
Plug&Play adapter	Included
