Can this cooker hood be used in recirculation mode?

Yes. The hood is suitable for both ducted extraction and recirculation. For recirculated extraction, a recirculating kit (accessory Z51ITI1X4 Clean Air Standard recirculation kit) is needed.

What is the maximum extraction rate of this hood?

The extraction rate according to EN 61591 with a 15 cm duct is up to 268 m³/h in normal use and 400 m³/h on the intensive setting.

How noisy is the hood during operation?

According to EN 60704-3 and EN 60704-2-13, the noise level at maximum normal exhaust operation is 62 dB(A) re 1 pW, and 69 dB(A) re 1 pW on intensive.

Are the grease filters washable?

Yes. The hood uses two metal grease filter cassettes made of washable aluminium. The stainless steel filter cover is perforated and dishwasher safe.

What is the energy rating and annual energy consumption?

The hood has an Energy Efficiency Class A (on a scale from A+++ to D) with an average energy consumption of 21 kWh/year, in accordance with EU Regulation No 65/2014.

What optional accessories are available?

Optional accessories include the Z51ITB1X4 Clean Air Standard odour filter (replacement), Z51ITI1X4 Clean Air Standard recirculation kit, and Z54TH60D1 Design handle strip.

Product Information Sheet

Neff N50 Telescopic Hood

SKU: D46ED22N1B

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 12 June 2026

Neff D46ED22N1B N50 Telescopic Hood

SKU: D46ED22N1B · EAN: 4242004250807

Stainless Steel

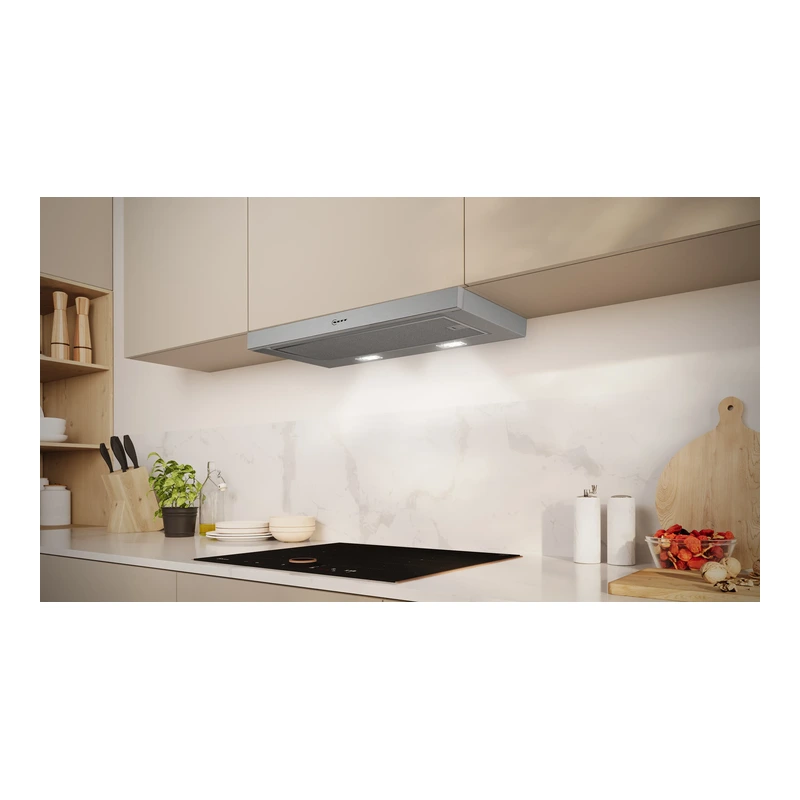

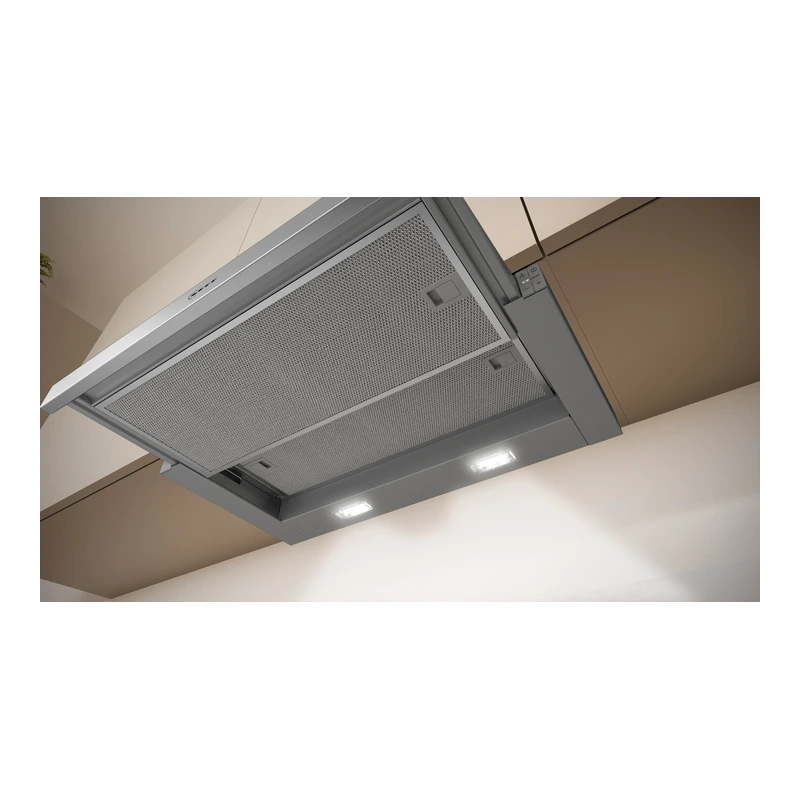

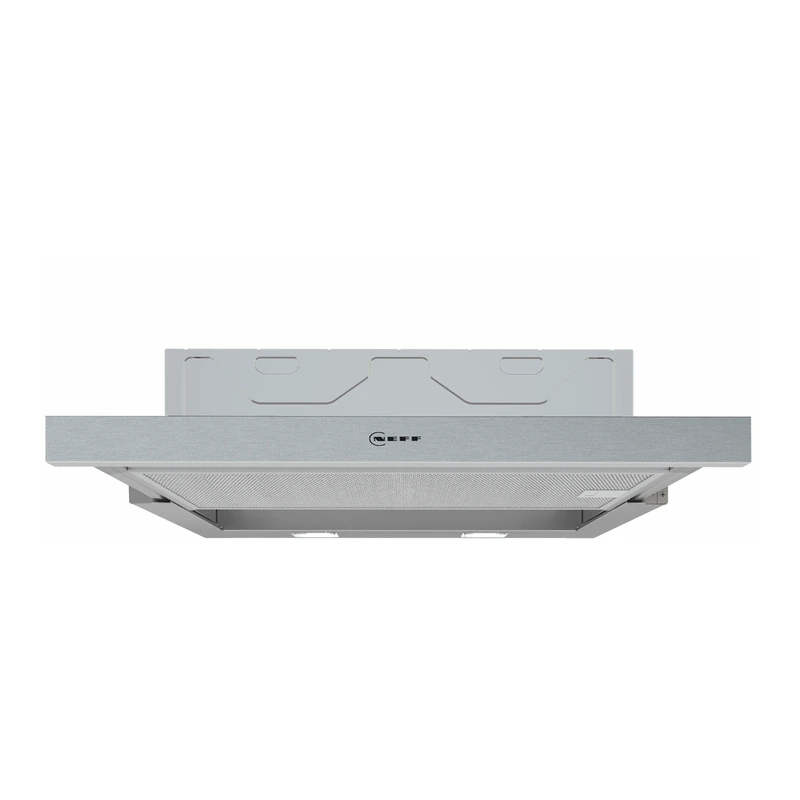

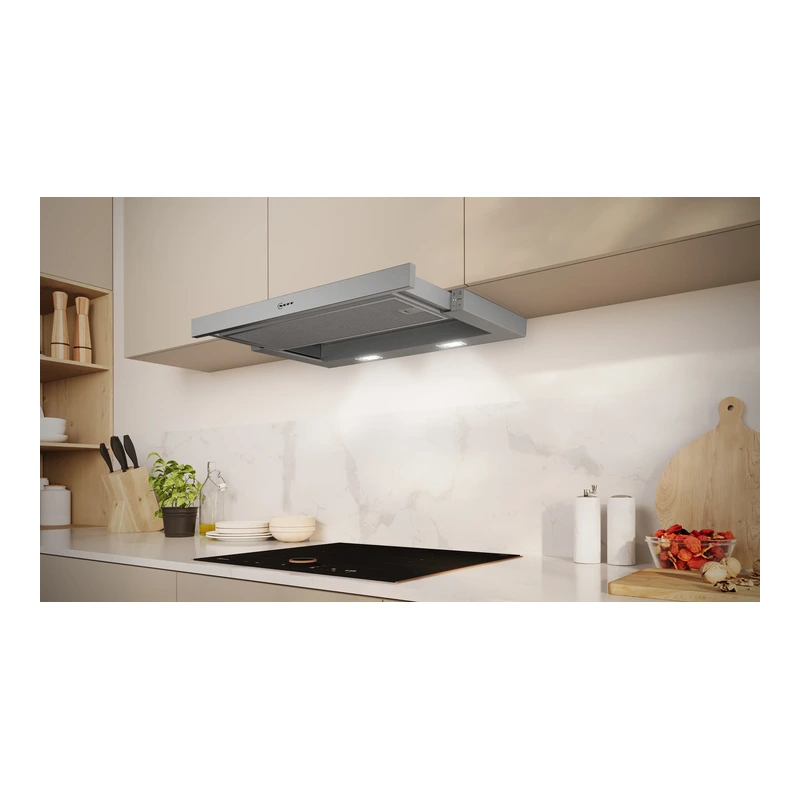

The N 50 D46ED22N1B is a 60 cm silver metallic telescopic cooker hood designed to pull out from beneath a cabinet, giving powerful extraction without impacting kitchen design. It offers an Efficient Drive Motor, three speeds plus an intensive setting, and clear LED lighting. Suitable for both ducted extraction and recirculation, it features electronic soft touch controls, automatic after–running and washable aluminium grease filters for convenient everyday use.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	N 50 Telescopic cooker hood, 60 cm, silver metallic
Model designation	D46ED22N1B
Typology	Pull–out, built–in telescopic hood

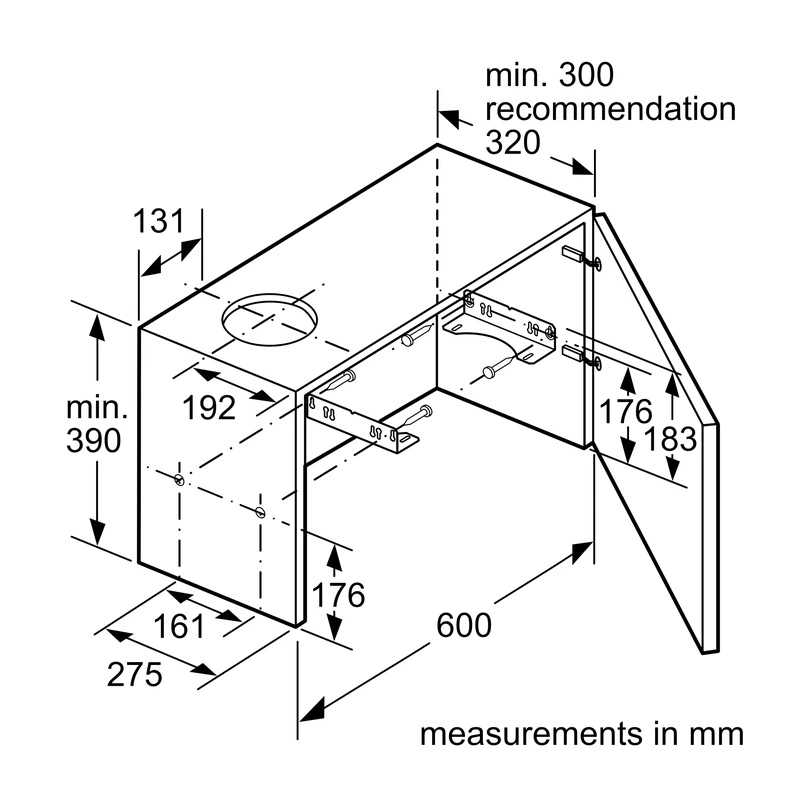

Installation	Cupboard 60 cm; built–in
Colour / finish	Silver metallic grey; stainless steel handle strip with logo; stainless steel filter cover, perforated and dishwasher safe
Width	60 cm (appliance width 598 mm)

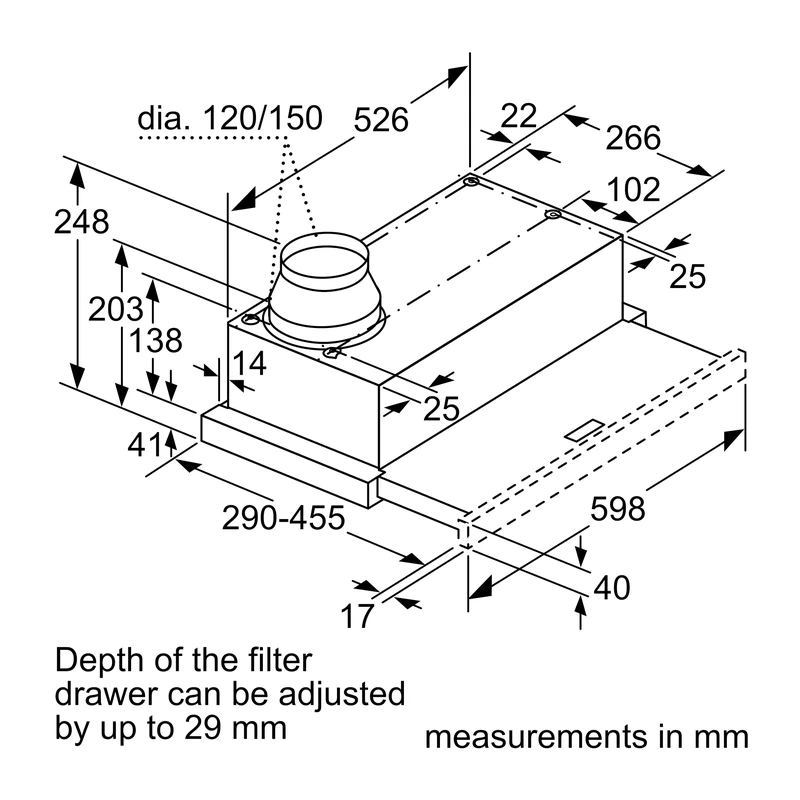

Appliance dimensions (H×W×D)	203 × 598 × 290 mm

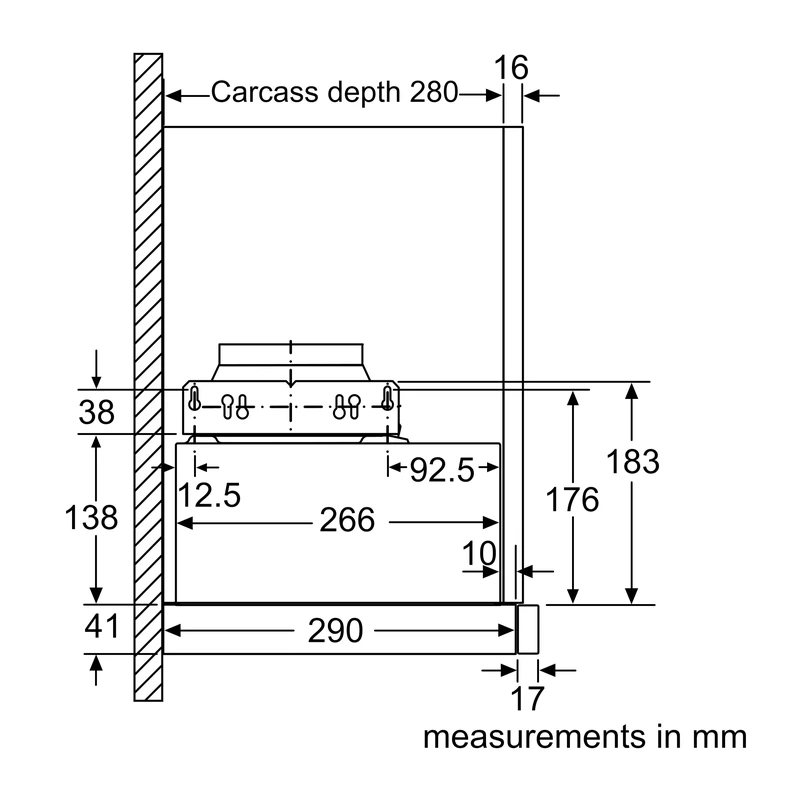

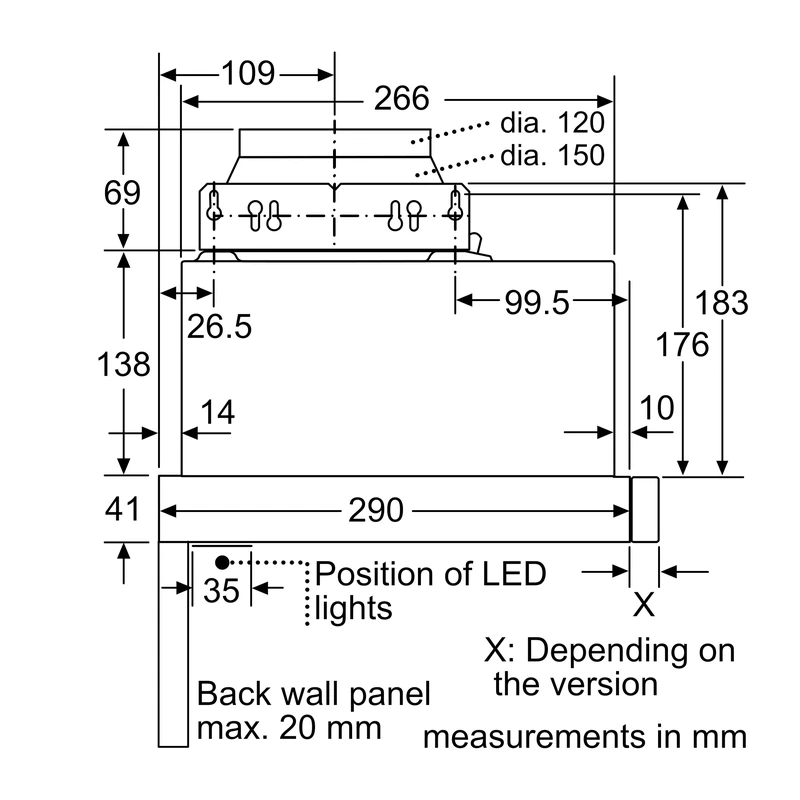

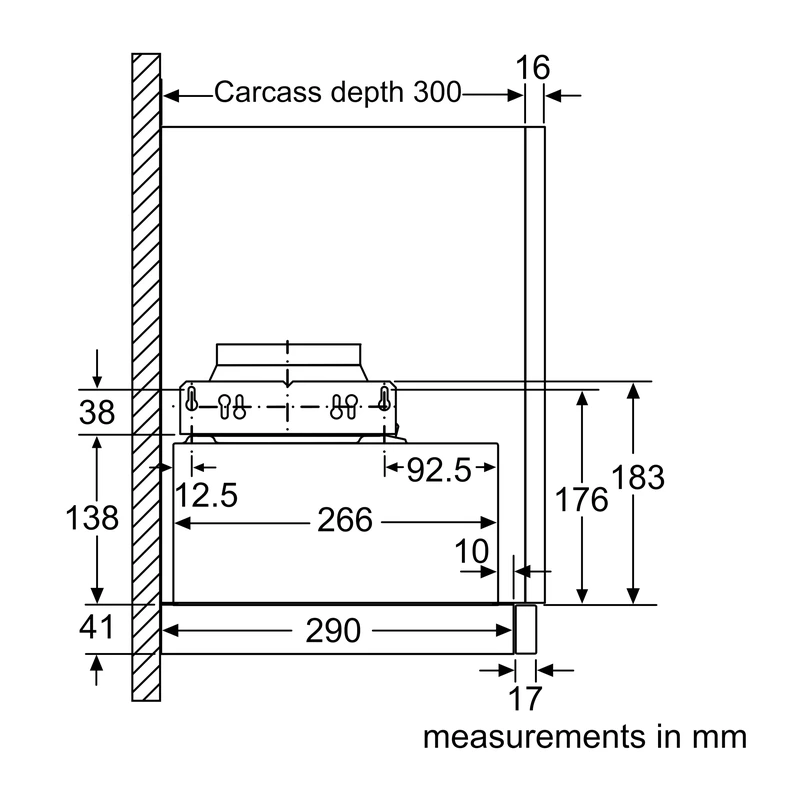

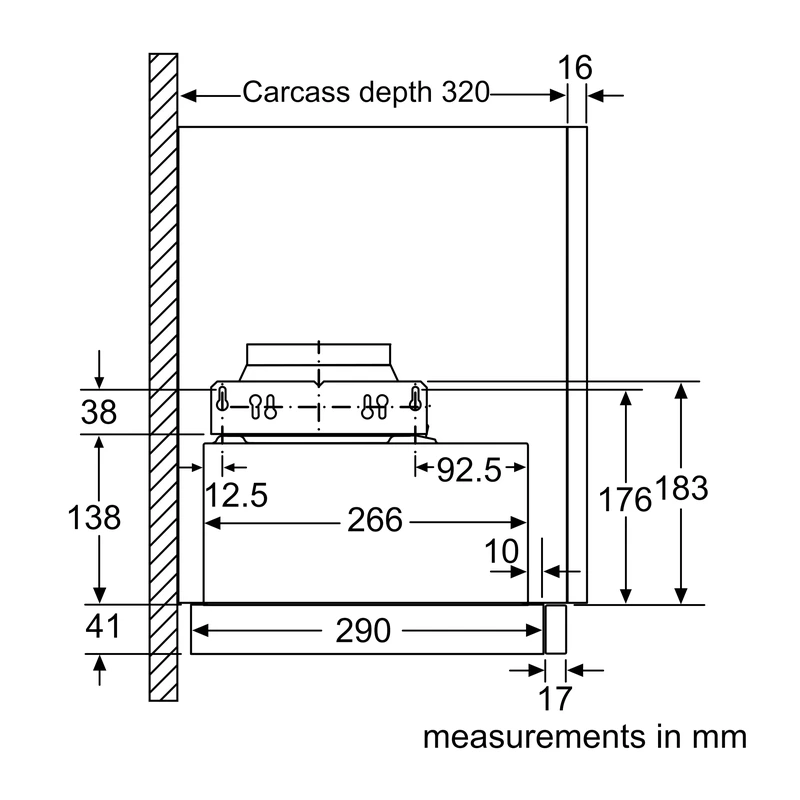

Built–in dimensions (H×W×D)	162 × 526 × 290 mm
Required niche size (H×W×D)	162 mm × 526.0 mm × 290 mm
Minimum distance above electric hob	430 mm
Minimum distance above gas hob	650 mm
Net weight	7.9 kg
Type of control	Electronic soft touch control
Speed settings	3 stages + intensive setting
Maximum output air extraction	268 m³/h
Boost position air extraction	400 m³/h
Maximum output recirculating air	263 m³/h
Boost position output recirculating	353 m³/h
Maximum air flow	268 m³/h
Noise level – max. normal use (exhaust)	62 dB(A) re 1 pW
Noise level – intensive (exhaust)	69 dB(A) re 1 pW
Number of lights	2 × 1.5 W LED
Colour temperature	3500 K
Light intensity	294 lux

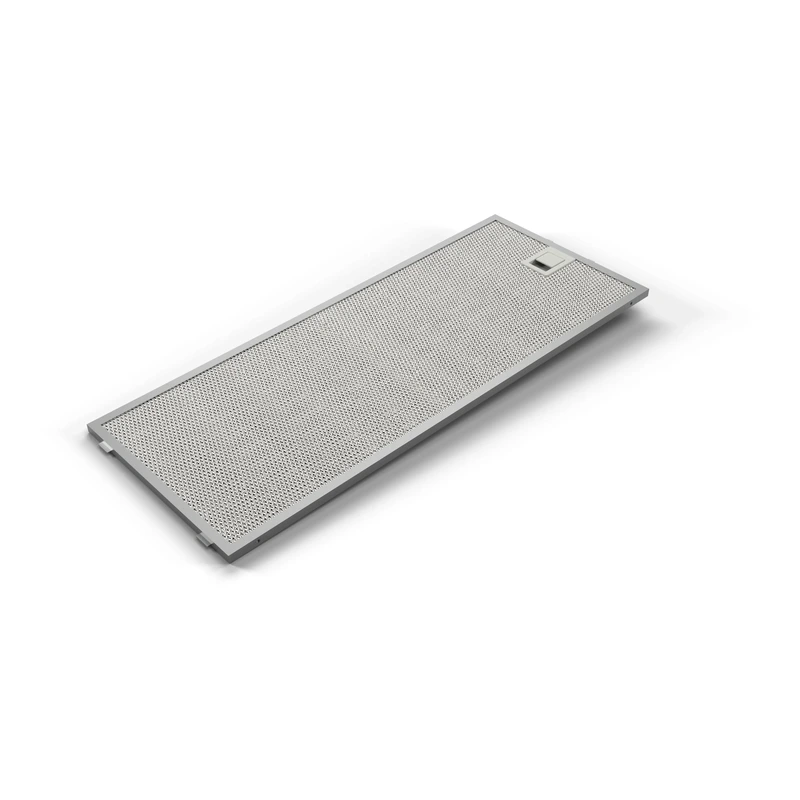

Grease filter material	Washable aluminium; 2 metal grease filter cassettes
Energy Efficiency Class	A (range A+++ to D)
Average energy consumption	21 kWh/year (in accordance with EU Regulation No 65/2014)
Blower Efficiency Class	B*
Lighting Efficiency Class	A*
Grease Filtering Efficiency Class	C*
Connection rating	74 W (power rating 74 W)
Fuse protection	10 A
Voltage	220–240 V
Frequency	50; 60 Hz
Plug type	GB plug
Length of electrical supply cord	1.75 m (175 cm)
Diameter of air outlet	150 mm (120 mm enclosed)
Suitable operation modes	Ducted extraction and recirculation (recirculating kit accessory needed)
Motor technology	Efficient BLDC technology

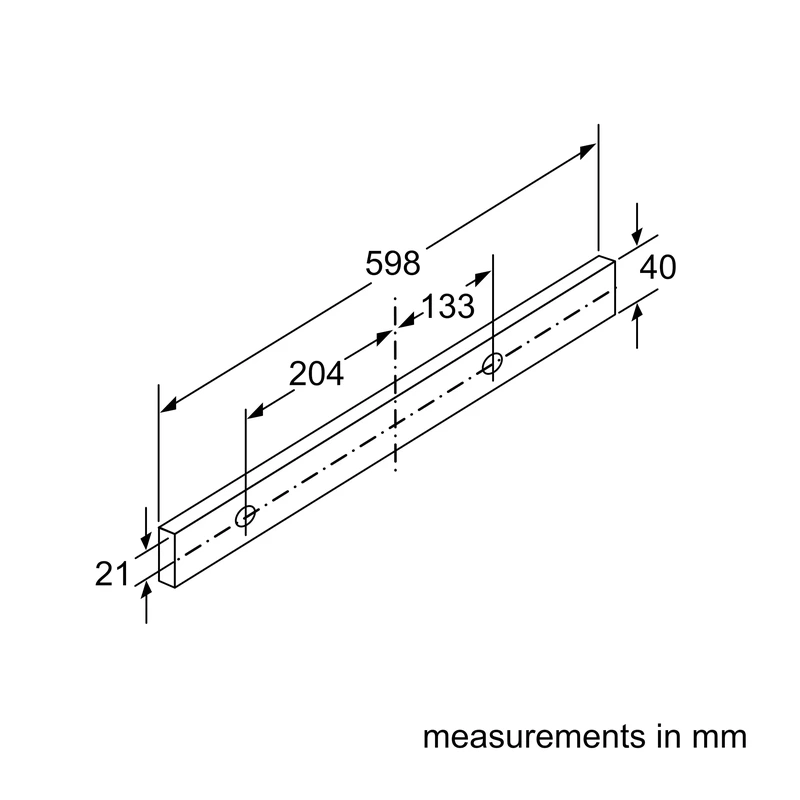

Optional accessories	Z51ITB1X4 Clean Air Standard odour filter (replacement) Z51ITI1X4 Clean Air Standard recirculation kit Z54TH60D1 Design handle strip
EAN code	4242004250807
Standards / measurement methods	Extraction rate according to EN 61591; noise levels according to EN 60704-3 and EN 60704-2-13; energy data in accordance with EU Regulation No 65/2014
