Cooking and control functions

• Multitouch+ touch ring for direct power control.
• Favourite Button for quick access to favourite functions (with connected Home Connect account).
• Variable 17-stage power settings per zone.
• Keep warm function via Home Connect app/MyButton.
• Switch-off timer to turn off a cooking zone after a set time.
• Count-down timer with acoustic signal as an alternative to the switch-off timer.
• Sound volume adaptable to personal preference and needs.
• Power Boost and Pan Boost functions for faster heating.
• QuickStart function automatically selects a zone with cookware when switching on.
• ReStart function restores previous settings after unintentional switch-off if reactivated within 4 seconds.
• 11 frying levels with automatic temperature regulation and integrated sensor.
• Dish assistant via Home Connect app to help find the right temperature setting for certain dishes.
• Pause function to temporarily stop the heating process.

Integrated ventilation downdraft system

• Induction cooktop with fully integrated high-performance downdraft extractor.
• Suitable for ducted or recirculated extraction, including differentiated software modes.
• Aesthetically integrated, fully flush air intake with floating, heat-resistant glass-ceramics element.
• Automatic switch-on of ventilation when a cooking zone is used.
• Automatic delayed shut-off after cooking in ultra low-noise fan level (12 min ducted, 30 min recirculated), with manual shut-off option.
• High-performance, low-noise blower with energy-efficient BLDC technology and enclosed, non-visible blower.
• Pressure-drop resistant design for longer and more complex ducting.
• Grease filtration efficiency of 94 % with large-scale stainless-steel grease filters (12 filtration layers and black top layer).

Cleaning and maintenance

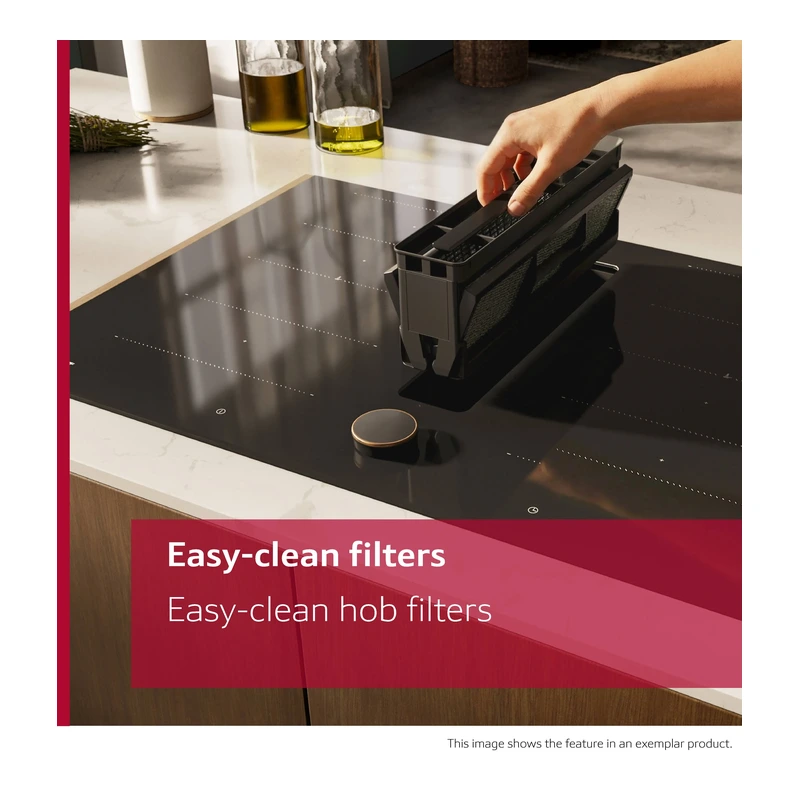

• Convenient one-hand removal of the grease filter and liquid collector unit via floating glass-ceramics handle.
• All parts of the unit are easy to clean, fully dishwasher-safe and heat resistant.
• Upper liquid collector unit with 200 ml capacity for standard spillages or condensate.
• Powerful drainage system for spillages exceeding 200 ml.
• Liquid safety collector with additional 700 ml capacity, dishwasher-safe and accessible from below.
• Overall capturing capacity of 900 ml (200 ml + 700 ml).
• Watertight blower system for added protection.
• Clean filter reminders to prompt maintenance.

Clean Air and acoustic filters

• For recirculation: 2×2 battery of directly integrated, high-performance cleanAir odour filters.
• Optimised odour reduction performance for cooking with complex odour molecules.
• Large filter surface with high odour reduction capability.
• Anti-pollen functionality: filter retains airborne pollen and deactivates allergens retained by the filter.
• Lifetime of 360 hours of cooking (non-regenerative).
• Low-noise filters with optimised psycho-acoustics, easy to access and remove from above.
• Replenishment cleanAir filter set: Z821VR0.
• For ducted extraction: 2×2 sets of directly integrated, high-performance low-noise acoustic filters.

Safety features

• 2-stage residual heat indicators show which zones are still hot or warm.
• Control panel lock to prevent unintended activation.
• Main switch to turn off all cooking zones at the touch of a button.
• Safety cut-out facility stops heating after a preset time if not used.
• Product and accessories comply with Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94).

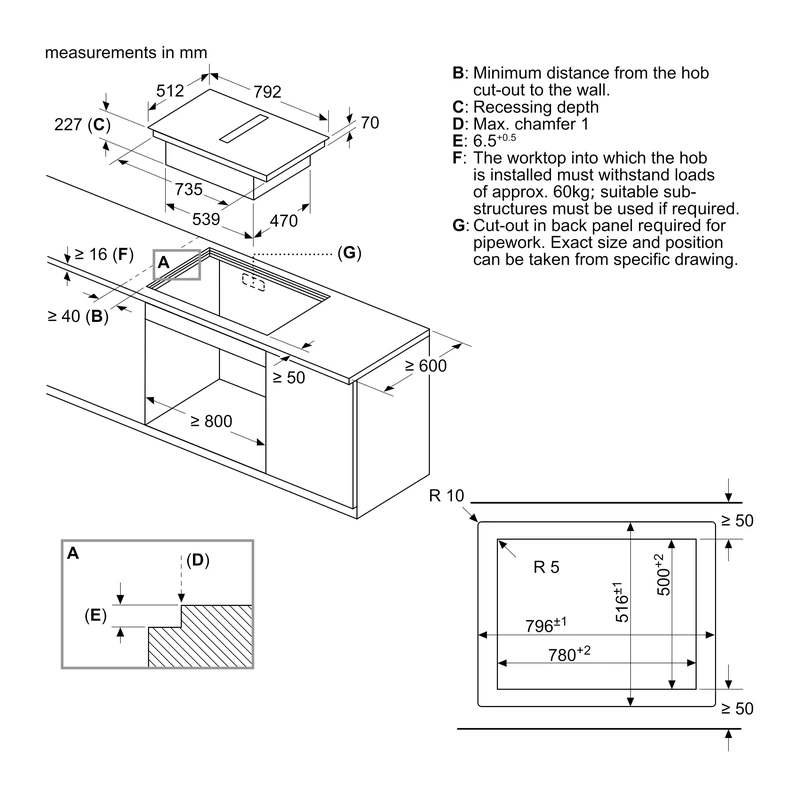

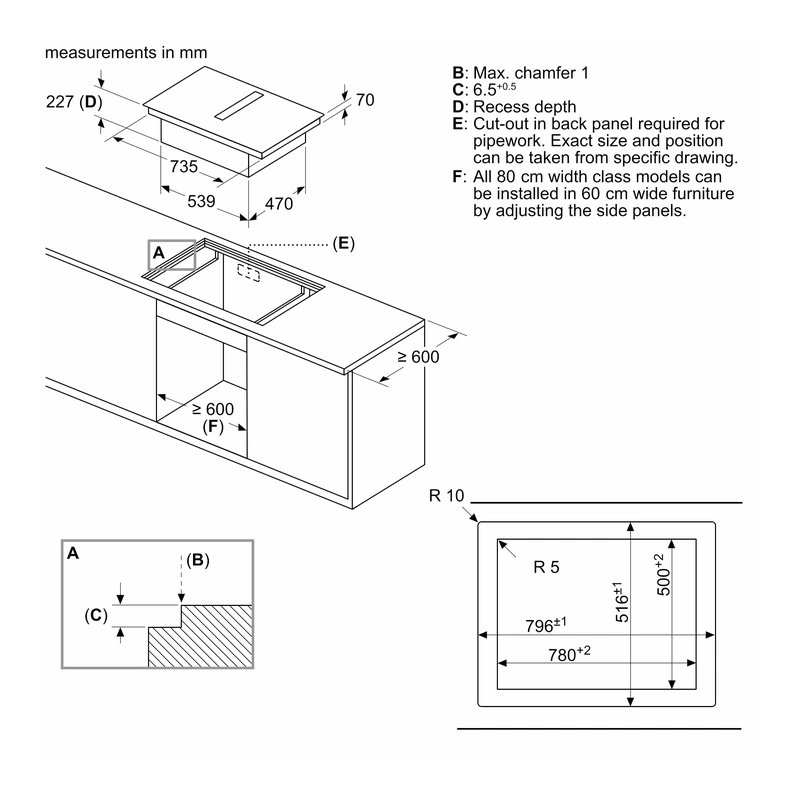

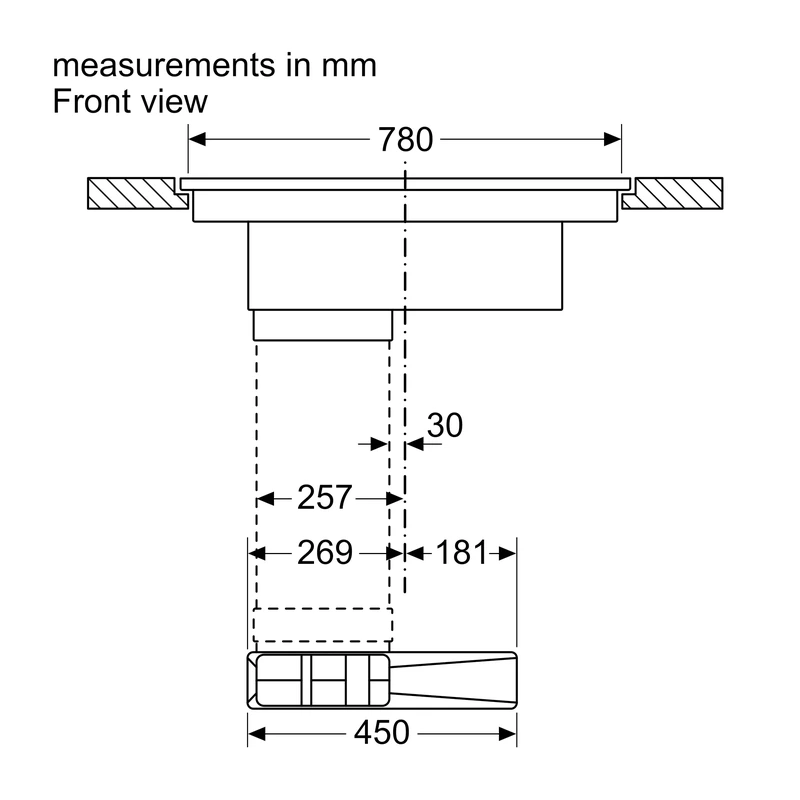

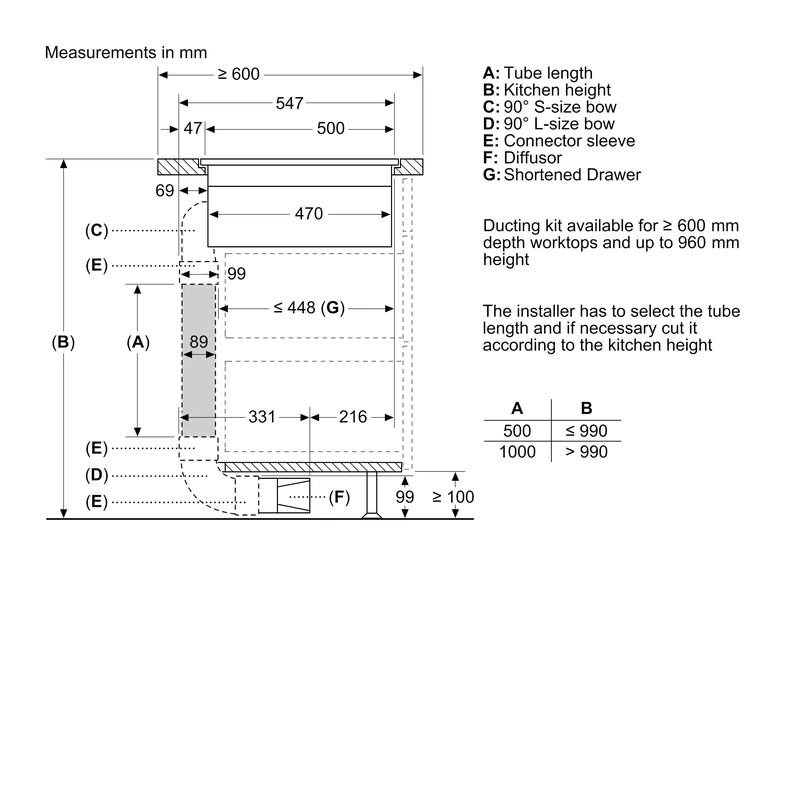

Installation guidance

• Suitable for installation into stone, granitic or synthetic worktops; other materials require suitability check with worktop manufacturer.

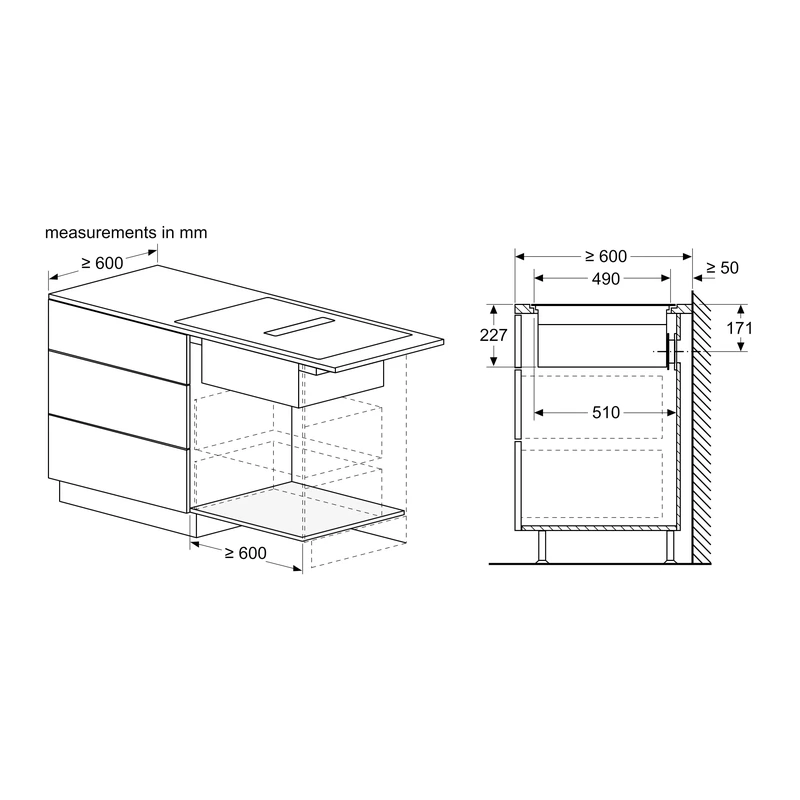

• Suitable for installation into a 60 cm base cabinet.

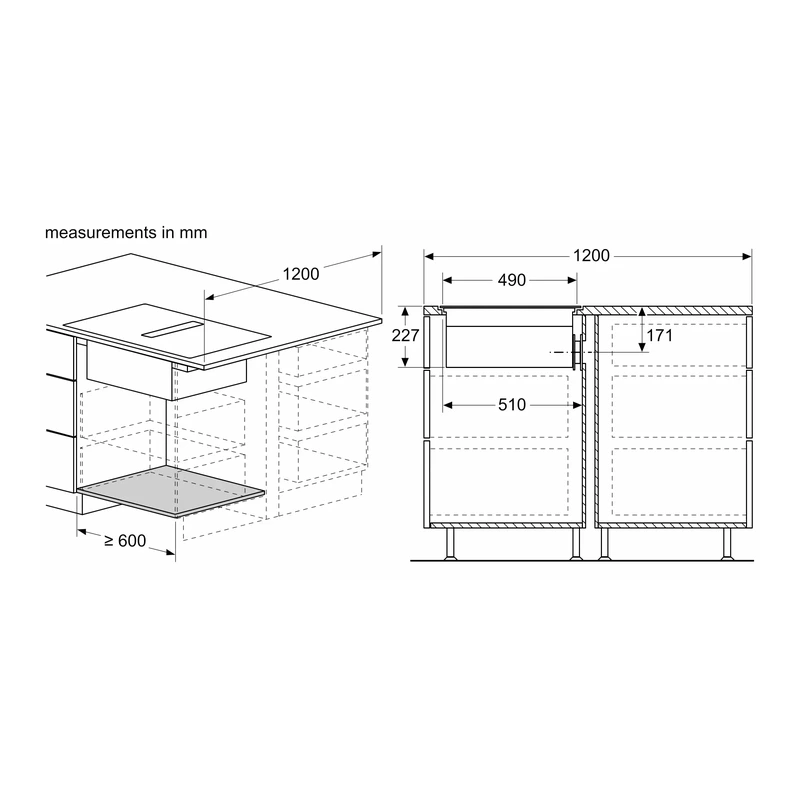

• Can be installed in island or wall-oriented configurations.
• Maximum immersion depth is 227 mm below worktop surface.
• Appliance must be freely accessible from below for access to the lower liquid safety collector.
• No false floor is necessary; drawers or shelves in the floor unit must be removable.
• Back panel of the floor unit can be kept, with cut-out for air outlet as per installation instructions.

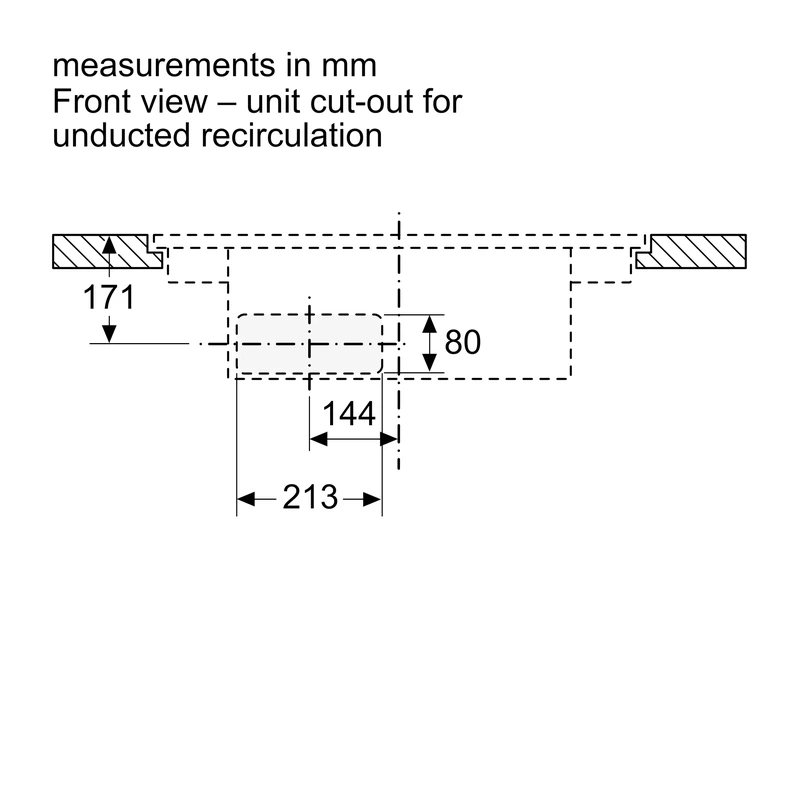

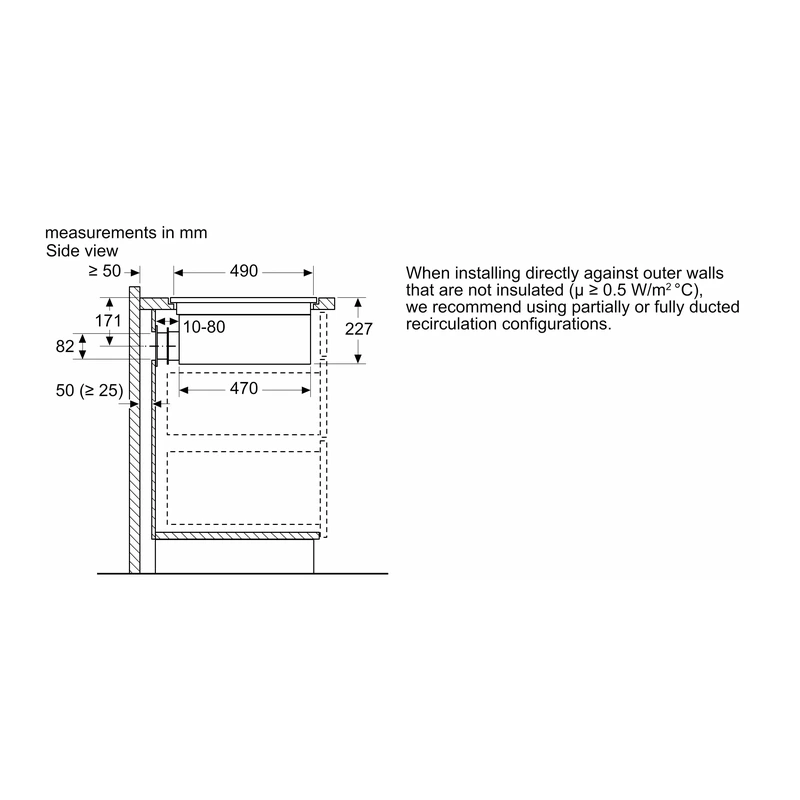

• Unducted recirculation installation requires a vertical aperture of at least 25 mm behind the furniture back panel (50 mm suggested).
• Minimum worktop thickness is 16 mm for top-mounted and flush installations with standard system.
• Overall appliance weight is 26 kg; bearing capacity and stability must be supported, especially with thin worktops.
• For partly ducted and unducted recirculation, a return-flow aperture of at least 400 cm² is required in the plinth area.

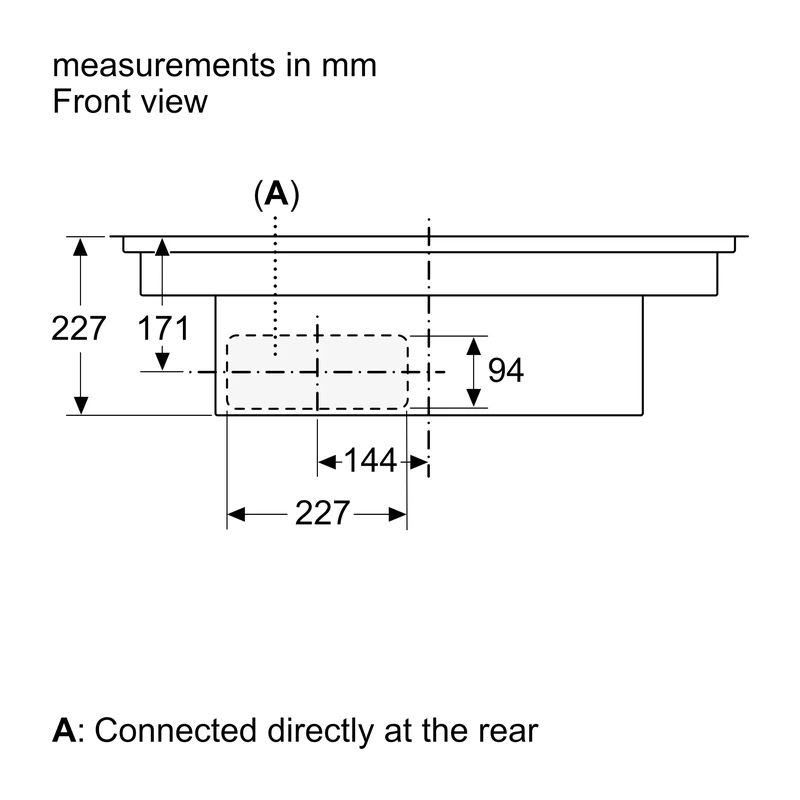

• Air outlet at the back can be accessed directly with a male flat duct element (DN 150).

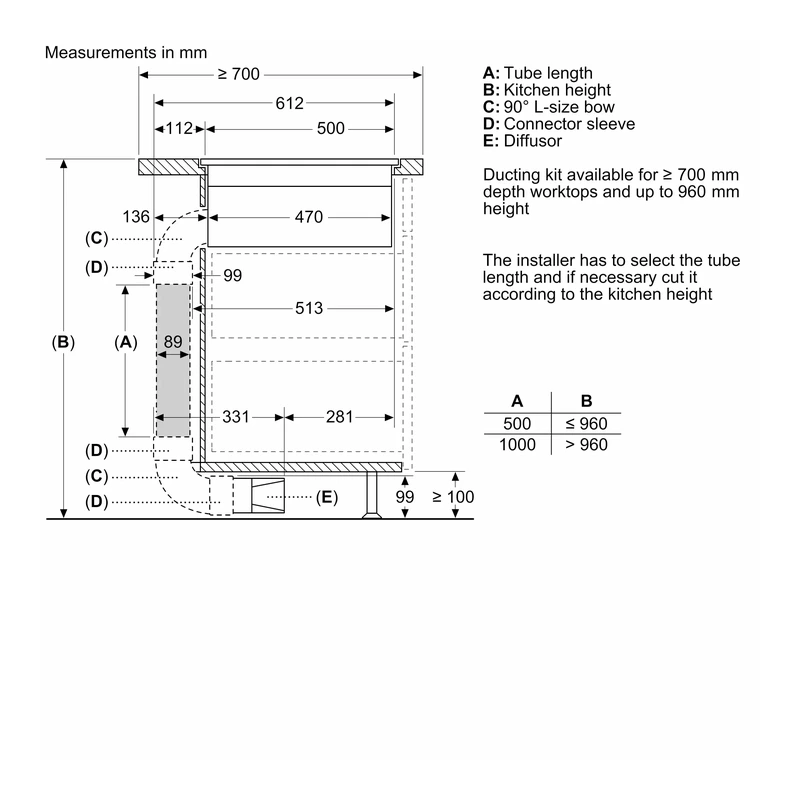

• Blower supports ducting up to 8 m with three 90° bends while maintaining performance.
• For ducted extraction with a chimney-vented fireplace, the power supply line needs a suitable safety switch (not required for recirculation).
• In ducted extraction configuration, a one-way flap or backflow trap with maximum opening pressure of 65 Pa should be installed.

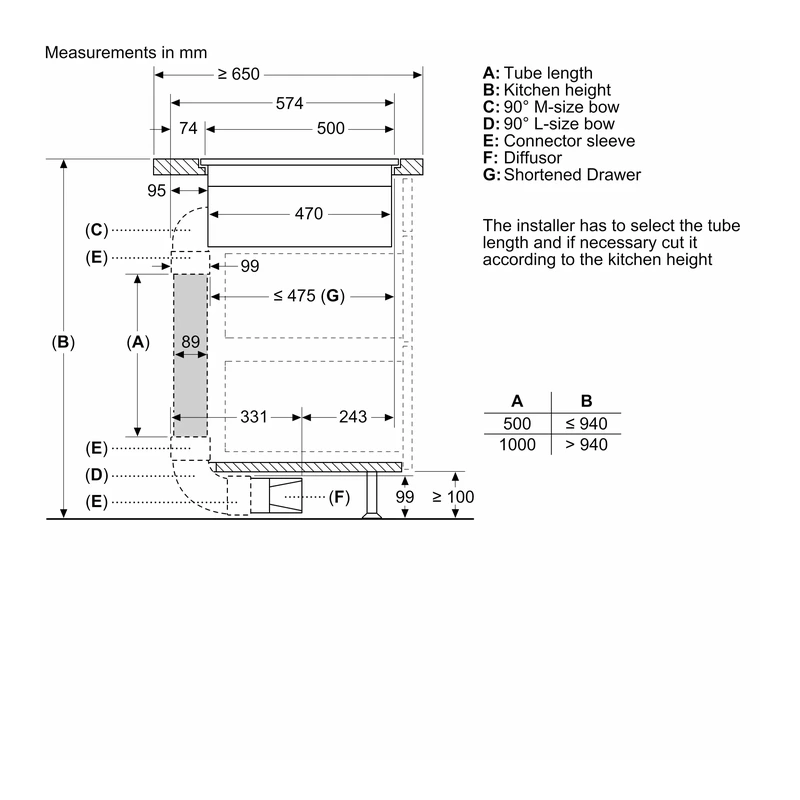

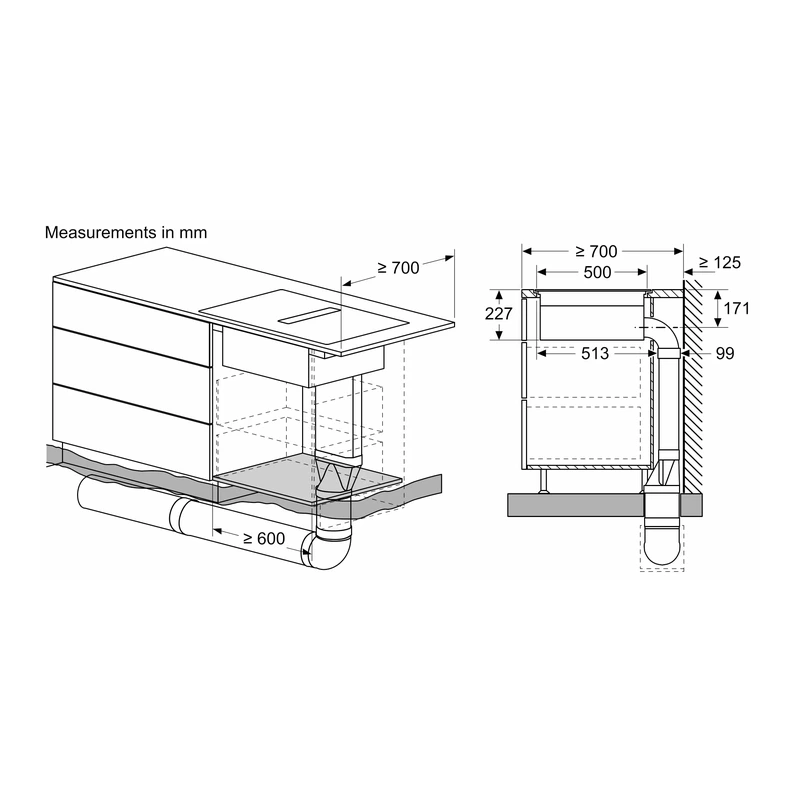

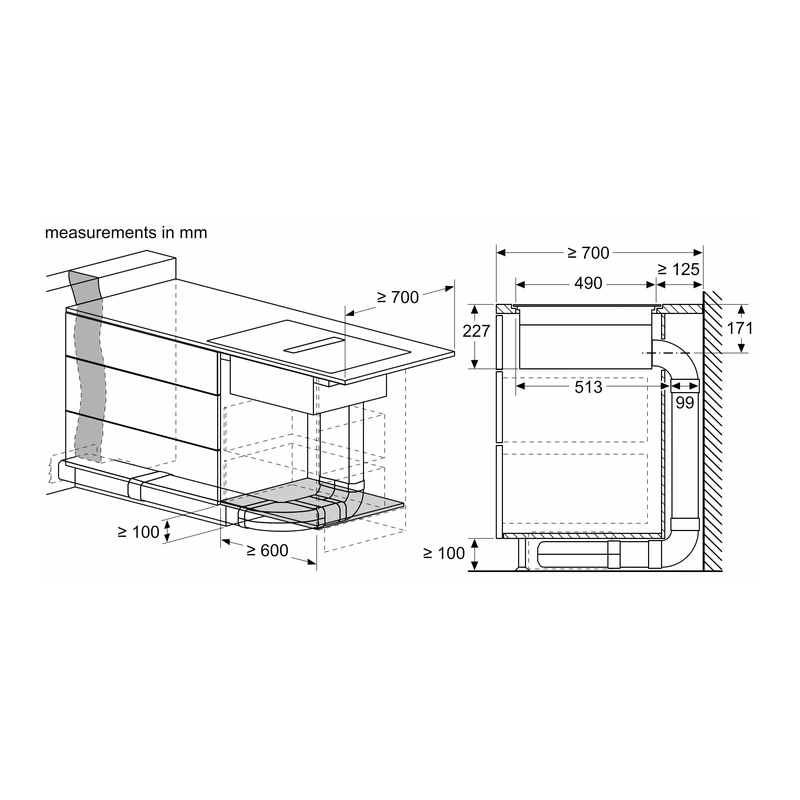

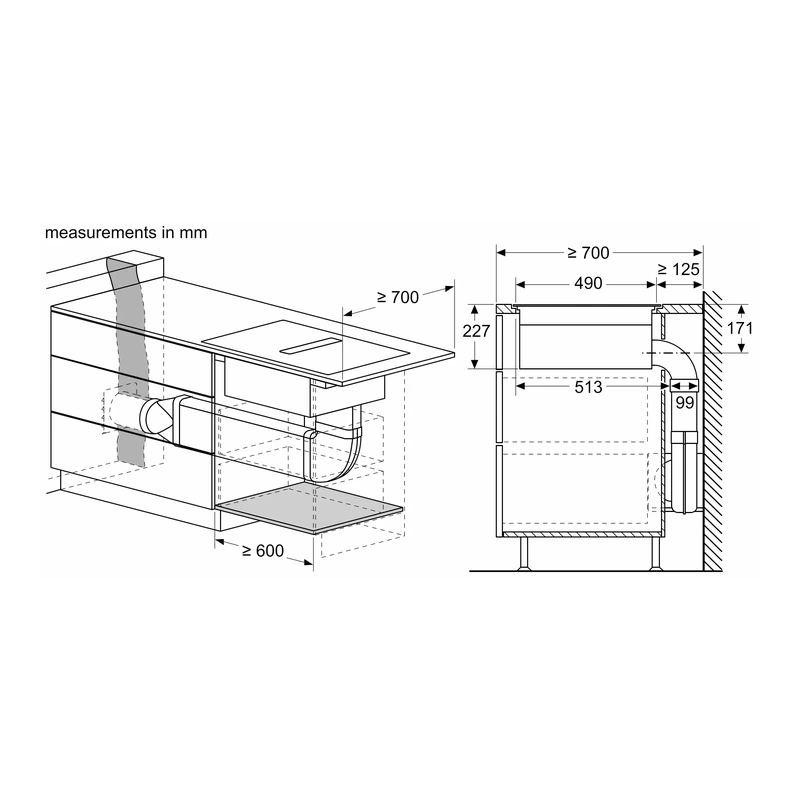

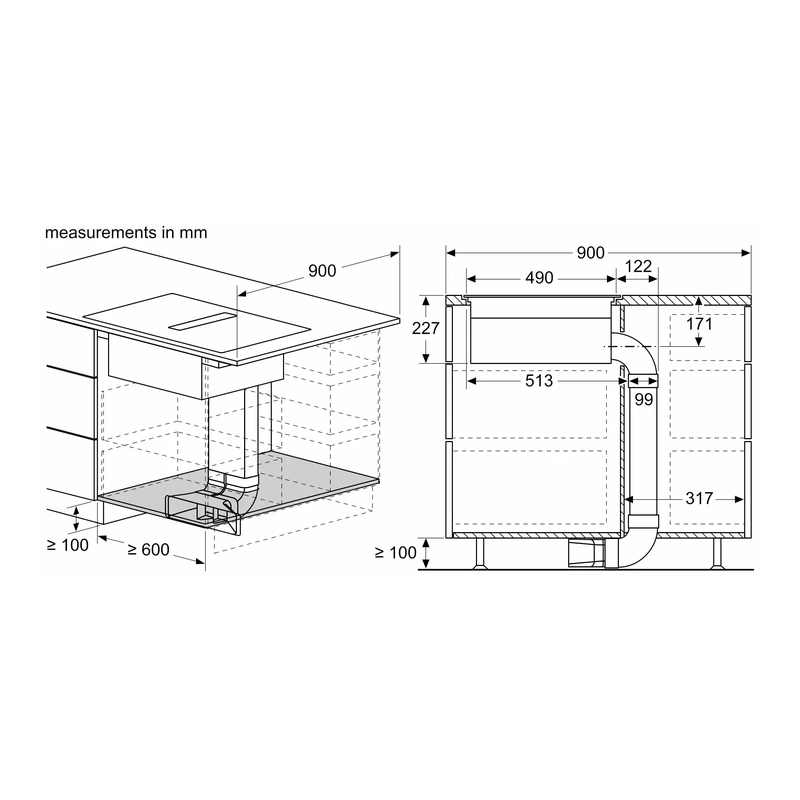

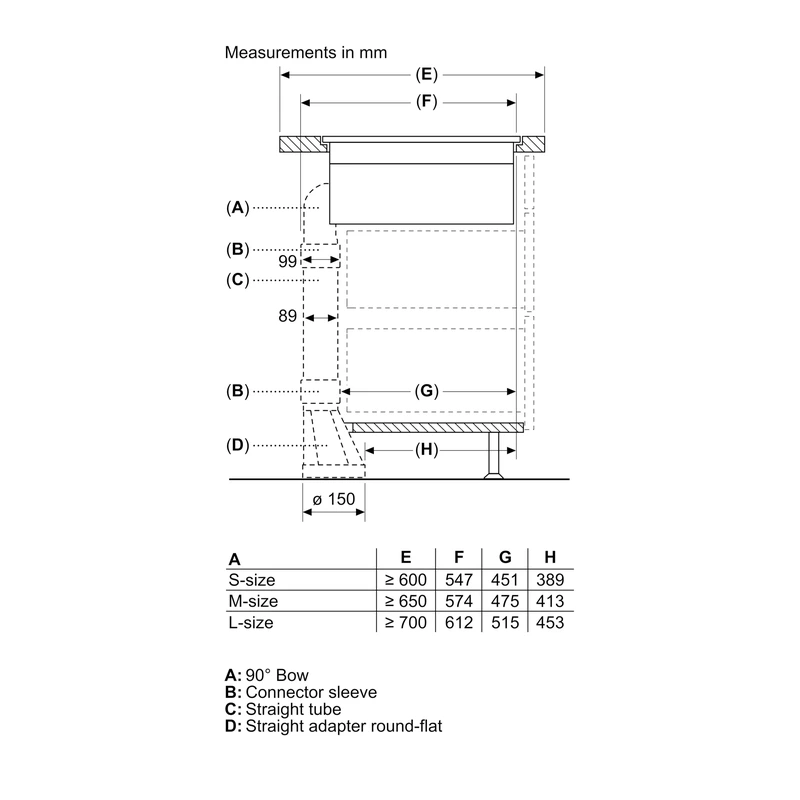

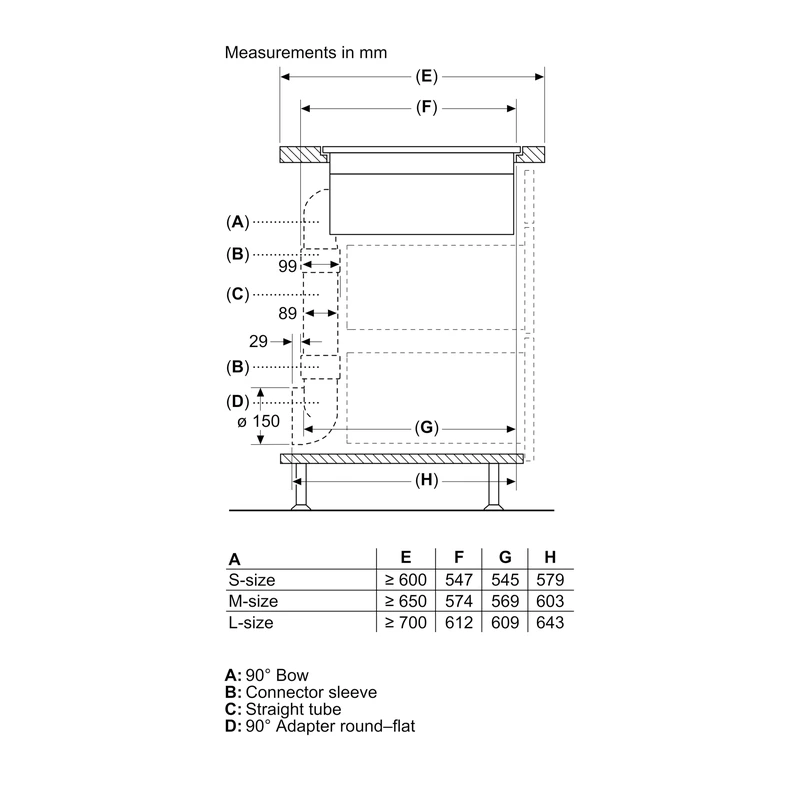

• Planning allows four extraction options: unducted, partly ducted recirculation, fully ducted recirculation or ducted extraction.
• Included accessories support unducted recirculation installations in worktop depths ≥60 cm.

Optional accessories

The following optional accessories are listed for this model:

• Z1365WX0 Wireless food thermometer

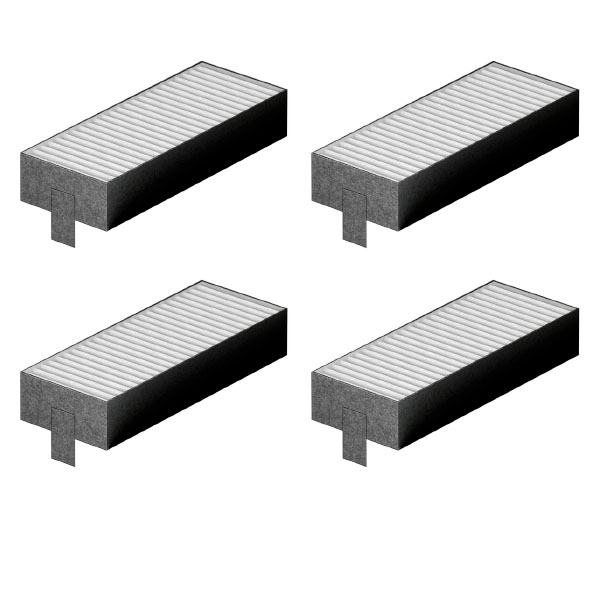

• Z811DU0 Acoustics Filter
• Z821PD1 Plinth Diffusor
• Z821VR1 Clean Air Plus odor filter (replacement)

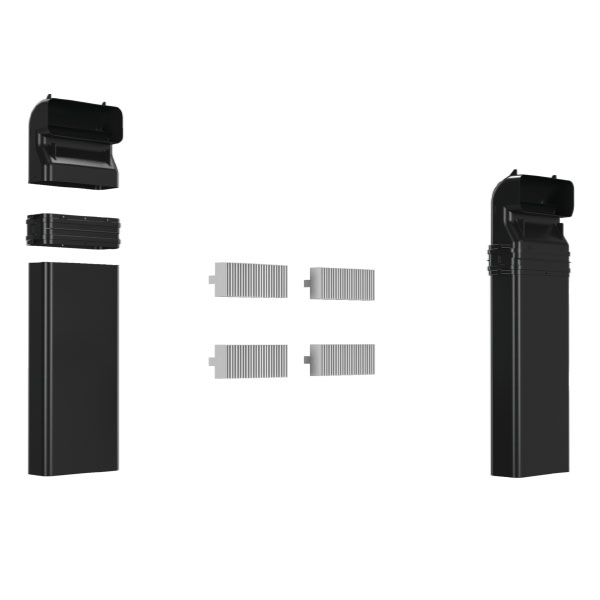

• Z861KE1 Exhaust kit

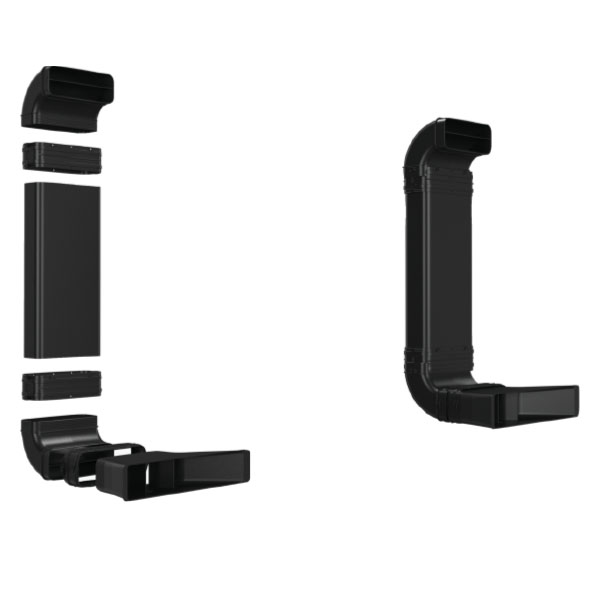

• Z861KR0 Recirculation kit 2 L-bow (70 cm)

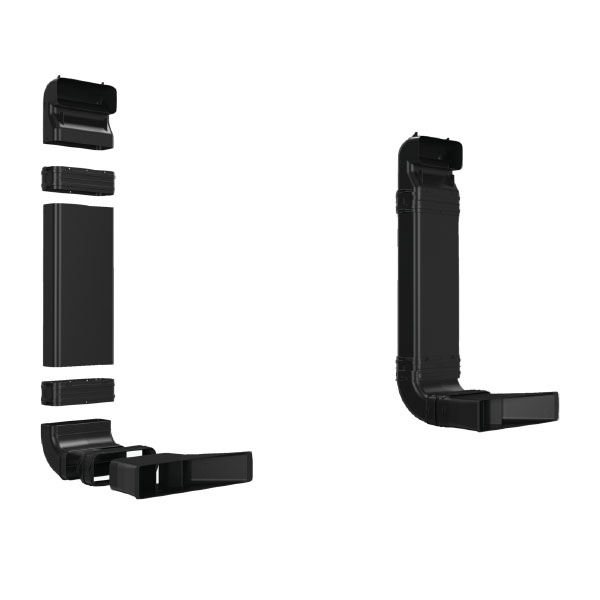

• Z861KR1 Recirculation kit S and L-bow (60 cm)
• Z861KR2 Recirculation kit 1× L-bow

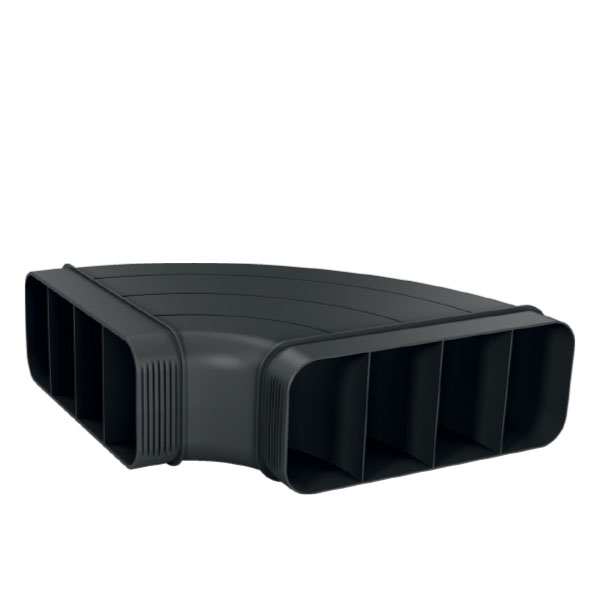

• Z861SB1 90° flat duct bend horizontal

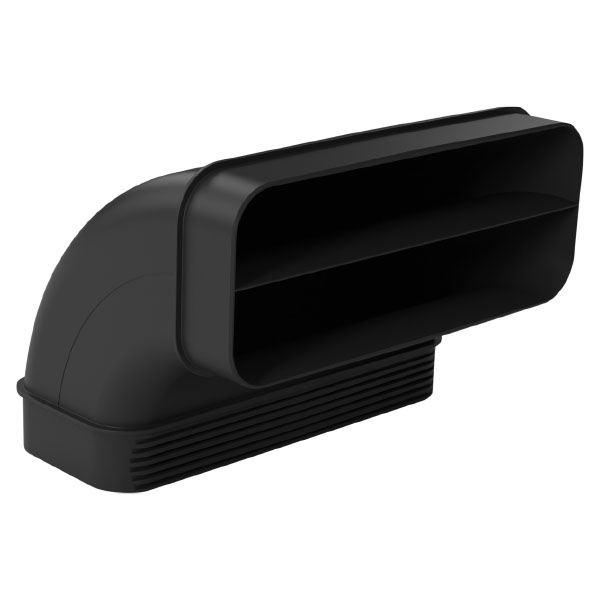

• Z861SB2 90° flat duct L vertical

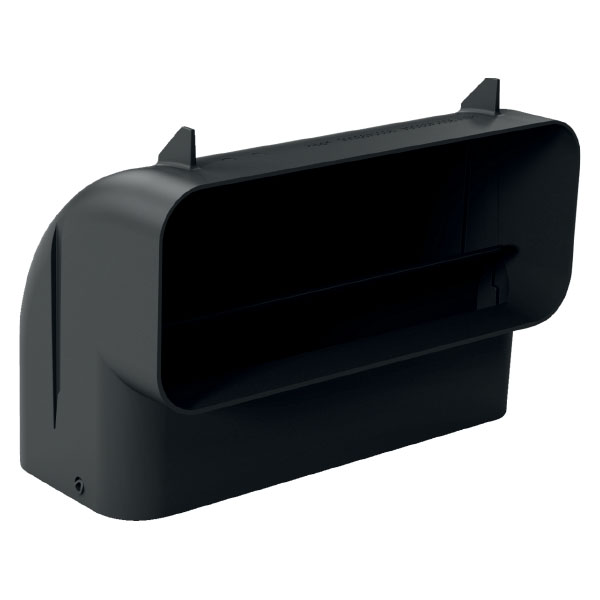

• Z861SB3 90° flat duct M vertical

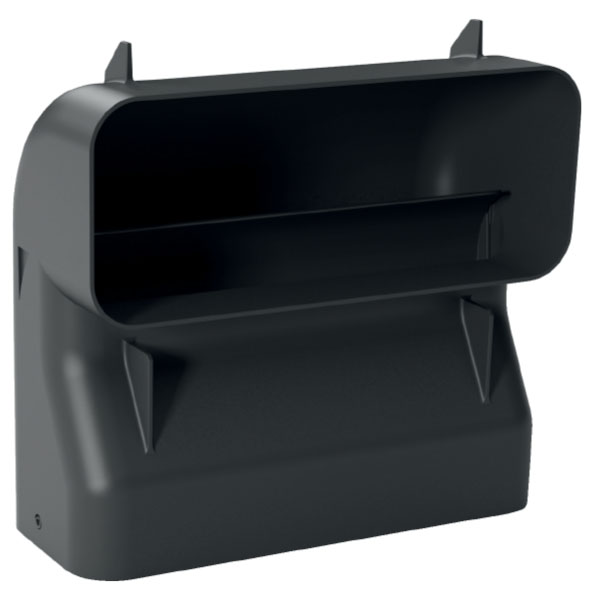

• Z861SB4 90° flat duct S vertical

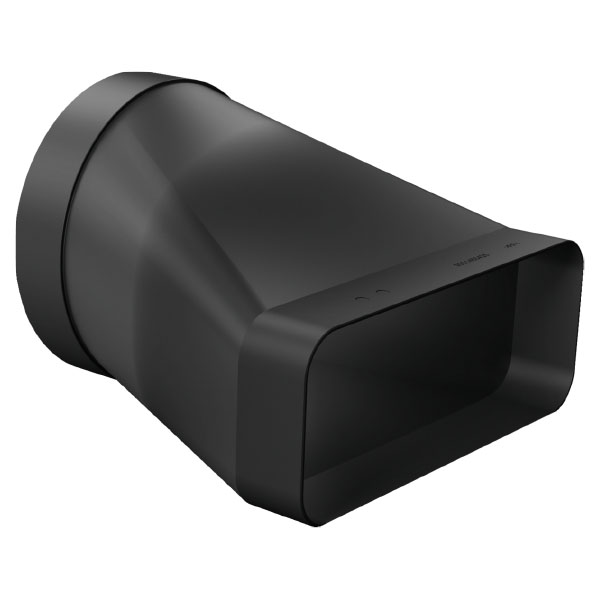

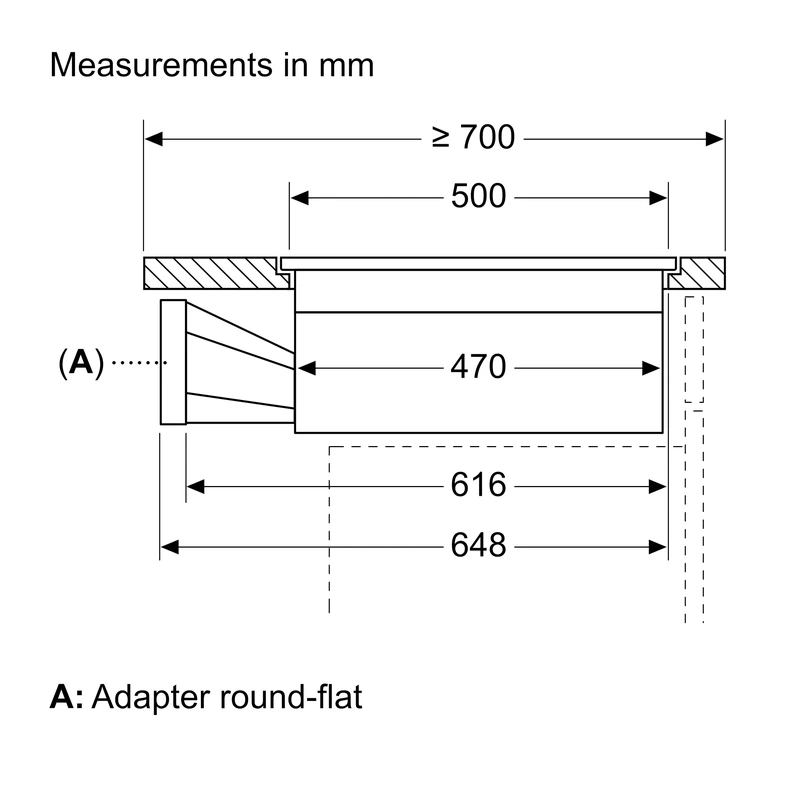

• Z861SI0 Adapter round-flat
• Z861SI1 90° Adapter round-flat
• Z861SM1 Straight tube 500 mm
• Z861SM2 Straight tube 1000 mm

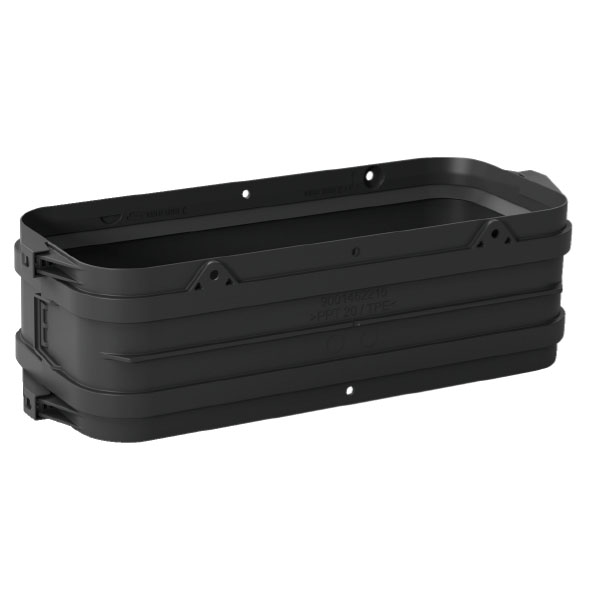

• Z861SS1 Connector sleeve (female)

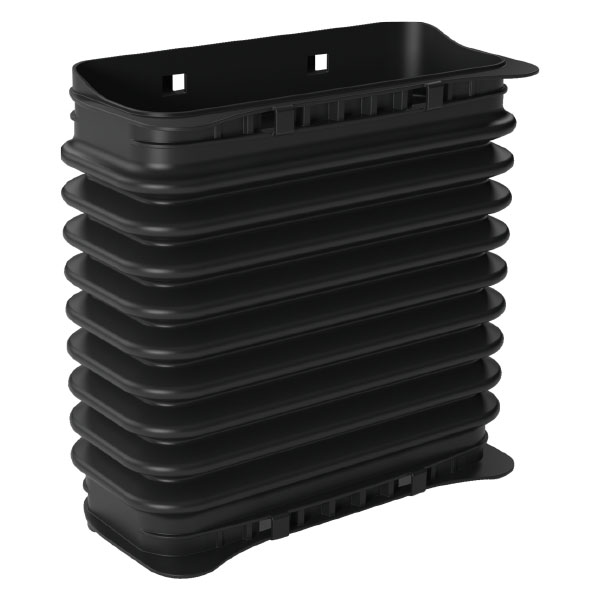

• Z861SS2 Flex sleeve (female)
• Z9404SE0 4 pieces Set
• Z9406SE0 6 pieces Set
• Z9410ES0 Espresso maker 4 cups
• Z9424CF0 Fry pan, coated 24 cm Ø
• Z9428CF0 Fry pan, coated 28 cm Ø
• Z9428FE0 Iron pan Ø 18 / 28 cm
• Z943SE0 Set of 2 pots and 1 pan
