What is the Siemens HZ394301 connecting strip used for?

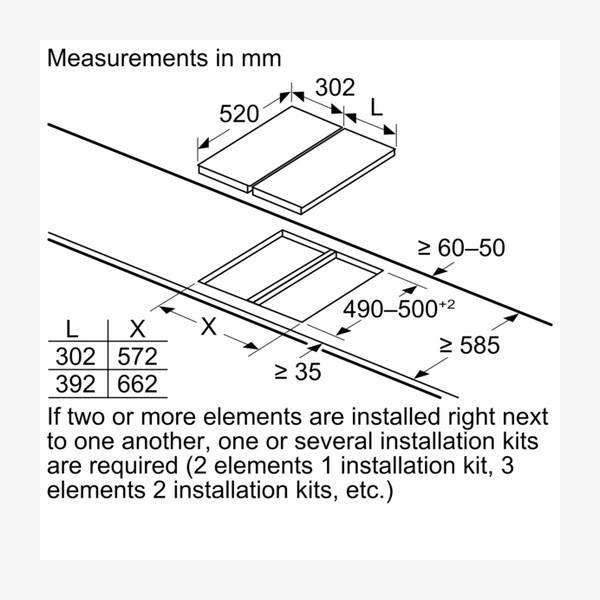

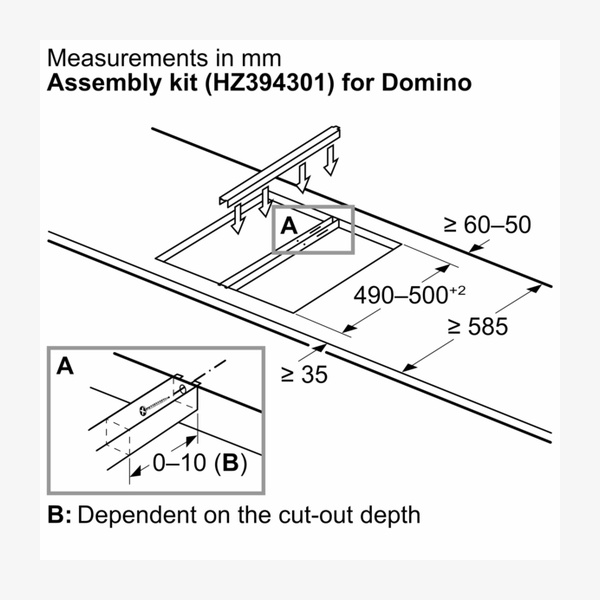

It is a connecting link used when linking two or more top trim models, particularly when one or more elements are installed right next to one another.

Will the connecting strip be visible after installation?

No. The connection strip is described as invisible after installation of the system.

Which cut–out depths are compatible with HZ394301?

It is usable for 49 cm and 50 cm cut–out depth.

What are the packed dimensions and weight?

The dimensions of the packed product are 50 x 130 x 570 mm, with a weight of 0.4 kg and a gross weight of 0.6 kg.

How many HZ394301 units fit on a standard pallet?

The standard number of units per pallet is 150, with pallet dimensions of 90.0 x 80.0 x 120.0.

Product Information Sheet

Siemens Connecting strip

SKU: HZ394301

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 19 July 2026

Siemens HZ394301 Connecting strip

SKU: HZ394301 · EAN: 4242003421093

The Siemens HZ394301 connecting strip is a connecting link designed for use when linking two or more top trim models. It is suitable for installations with 49 cm and 50 cm cut–out depths and is invisible once the system is installed. Supplied in a compact, lightweight pack, it provides a neat and discrete way to join adjacent elements in compatible installations.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Connecting strip HZ394301
Function	Connecting link for use when linking two or more top trim models
Cut–out compatibility	Usable for 49 cm and 50 cm cut–out depth
Dimensions of the packed product (H x W x D)	50 x 130 x 570 mm
Pallet dimensions	90.0 x 80.0 x 120.0
Standard number of units per pallet	150
Weight	0.4 kg
Gross weight	0.6 kg
EAN code	4242003421093
