What is the Siemens HZ9VRPD1 used for?

It is an air duct part with a diffusor element that spreads the outflowing air in the plinth area when connected to flat duct elements in partly ducted recirculation configurations. It can also be used in fully ducted recirculation configurations when connected to an air outlet element with adhesive tape.

Can the HZ9VRPD1 be connected directly to flat duct elements?

Yes. The diffusor element can be directly connected to flat duct elements and is designed to spread the outflowing air in the plinth area for partly ducted recirculation configurations.

What are the packed dimensions and weight of the HZ9VRPD1?

The dimensions of the packed product are 180x103x443 mm. The weight is 0.3 kg and the gross weight is 0.5 kg.

How many HZ9VRPD1 units are supplied per pallet?

There are 8 units per packing unit, and the standard number of units per pallet is 160. The pallet dimensions are 213.0 x 80.0 x 120.0.

Product Information Sheet

Siemens HZ9VRPD1Diffusor for ducted recirculation

SKU: HZ9VRPD1

Woodalls 1053–1055 Finchley Road, London, NW11 7ES
+44 (0)208 455 3925 · [email protected] · www.woodalls.co.uk

Mon–Fri: 9:00am – 5:00pm | Sat–Sun: Closed

Printed 19 July 2026

Siemens HZ9VRPD1Diffusor for ducted recirculation

SKU: HZ9VRPD1 · EAN: 4242003912928

The Siemens HZ9VRPD1 air duct part is a diffusor element designed for use with flat duct elements in recirculation configurations. It spreads the outflowing air in the plinth area for partly ducted recirculation and can also be directly connected to an air outlet element with adhesive tape for fully ducted recirculation systems. Supplied in compact packaging, it is suitable for installations where controlled air distribution in the plinth area is required.

2 Year Warranty

Enquire About This Product

All products are sold by enquiry. Add to your list and we'll be in touch.

Share This Product

This Product Page

Product name	Air duct part HZ9VRPD1
Type	Diffusor element for flat duct systems
Dimensions of the packed product (H x W x D)	180x103x443 mm
Pallet dimensions	213.0 x 80.0 x 120.0
Quantity per packing unit	8
Standard number of units per pallet	160
Weight	0.3 kg
Gross weight	0.5 kg
EAN code	4242003912928

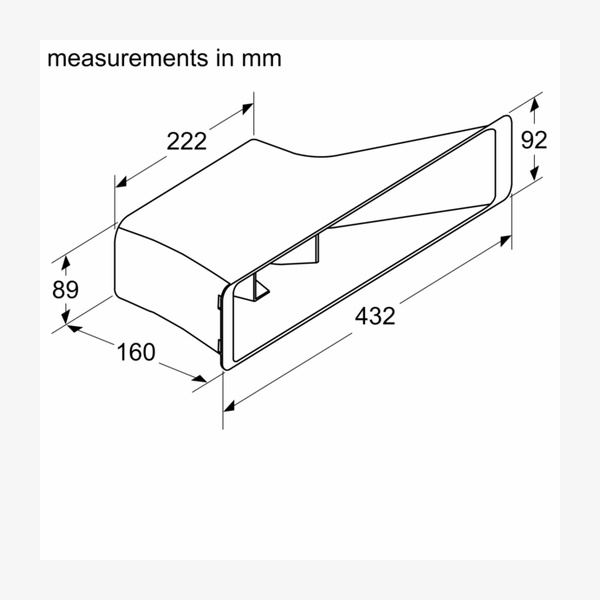

Measurements in mm (dimensioned drawing)	Not stated in source
