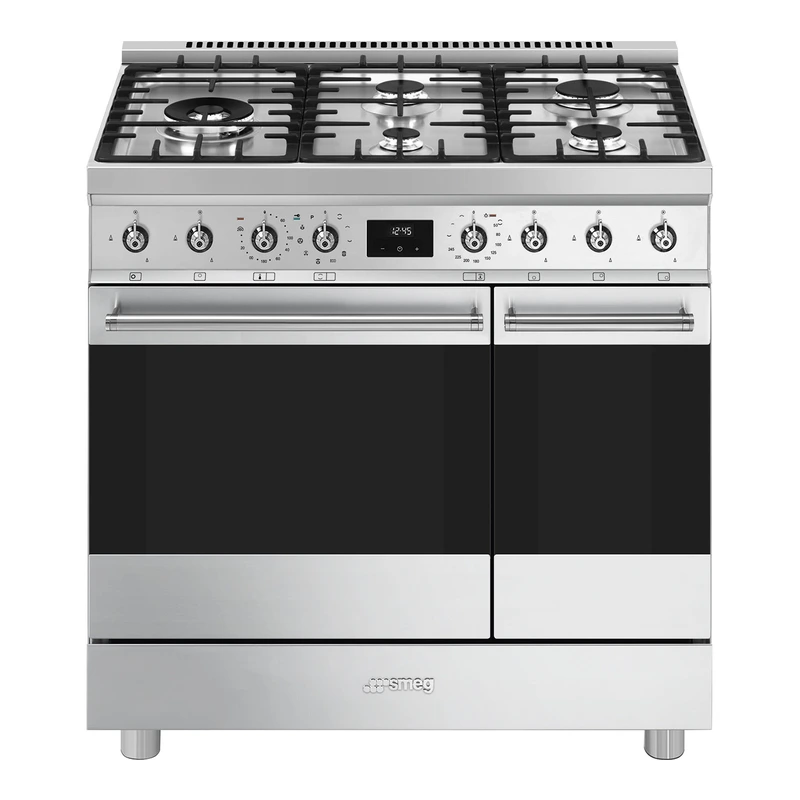

| Model | C92GPX2 |
|---|
| Series | Symphony |
|---|

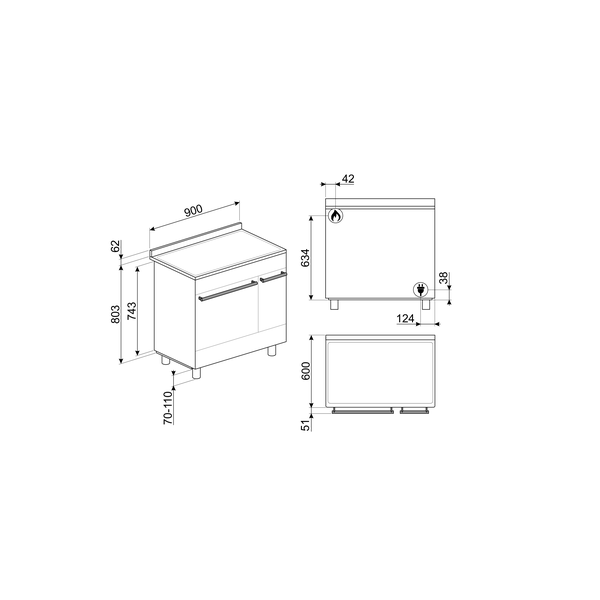

| Cooker size | 90x60 cm |
|---|
| Number of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|
| Hob type | Gas |
|---|
| Type of main oven | Thermo-ventilated |
|---|
| Type of second oven | Static |
|---|
| Cleaning system main oven | Pyrolytic |
|---|
| EAN code | 8017709329723 |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | A |
|---|
| Design | Square design |
|---|
| Aesthetics | Classic |
|---|
| Colour / hob colour | Stainless steel |
|---|
| Command panel finish | Finger friendly stainless steel |
|---|
| Finishing | Brushed |
|---|
| Upstand | Yes |
|---|
| Logo | Assembled stainless steel, positioned on facia below the oven |
|---|
| Type of pan stands | Cast Iron – heavy duty cast iron pan stands benefit |
|---|
| Feet | Silver – adjustable height benefit |
|---|

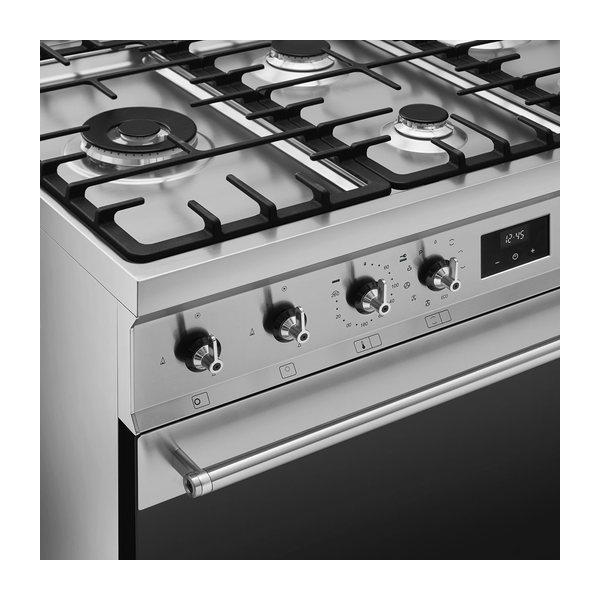

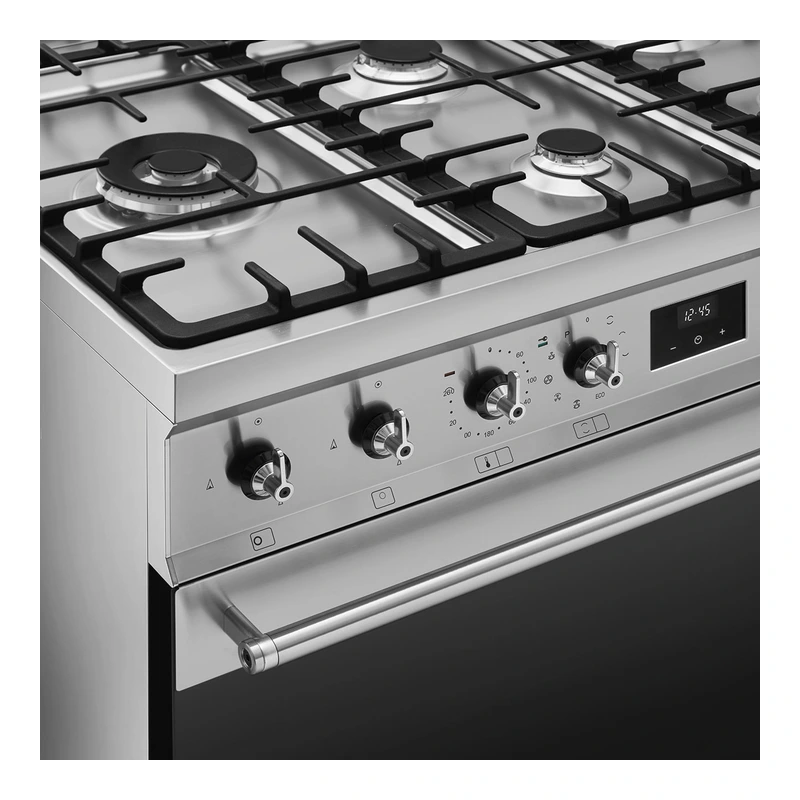

| Type of control setting | Control knobs |
|---|
| Control knobs | Smeg Classic, stainless steel, 8 controls, serigraphy colour black |
|---|
| Display | Touch – touch timer display |
|---|
| Door design | Door with 2 horizontal strips, glass type dark grey |
|---|
| Handle | Smeg Classic, brushed stainless steel |
|---|
| Storage compartment | Door |
|---|
| Number of cooking functions (main oven) | 9 traditional cooking functions plus pyrolytic cleaning |
|---|
| Main oven traditional functions | Static, Fan assisted, Circulaire, Turbo (circulaire + bottom + upper + fan), ECO, Large grill, Fan grill (large), Base, Fan assisted base |
|---|
| Main oven cleaning functions | Pyrolytic |
|---|
| Second cavity – number of cooking functions | 4 |
|---|
| Second cavity traditional functions | Static, Small grill, Large grill, Bottom element + Upper element |
|---|

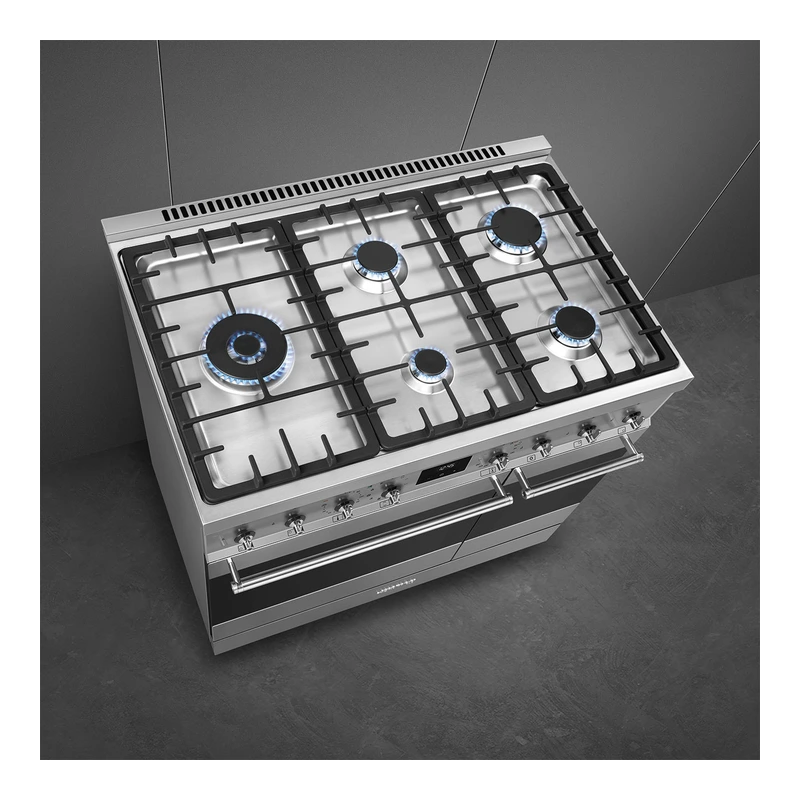

| Total number of cook zones | 5 gas zones |
|---|
| Left centre burner | Gas – 2UR (dual) – 4.20 kW |
|---|
| Rear centre burner | Gas – Semi Rapid – 1.80 kW |
|---|
| Front centre burner | Gas – AUX – 1.00 kW |
|---|
| Rear right burner | Gas – Rapid – 2.90 kW and Rapid – 3.00 kW (values stated in source) |
|---|
| Front right burner | Gas – Semi Rapid – 1.80 kW |
|---|
| Type of gas burners | Standard, with automatic electronic ignition and gas safety valves |
|---|
| Burner caps | Matte black enamelled |
|---|

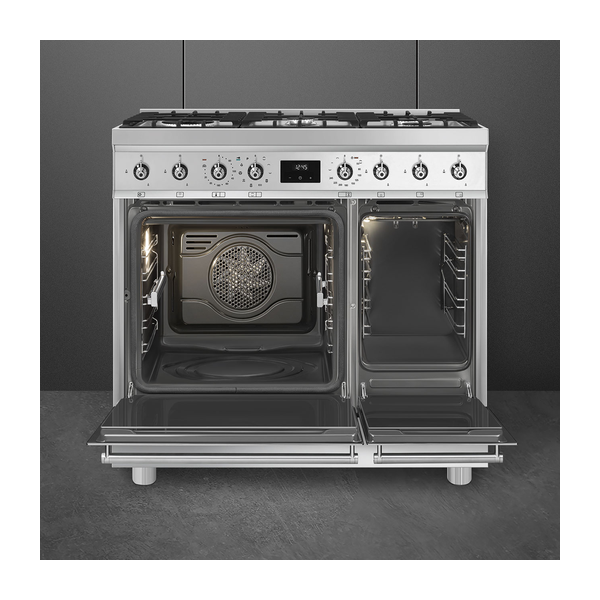

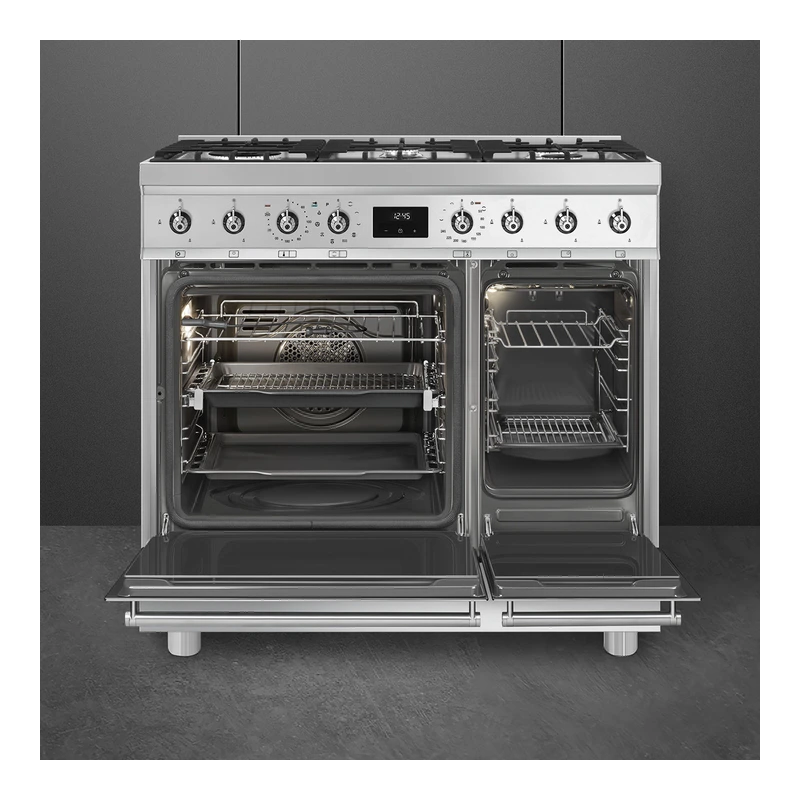

| Main oven – net volume | 70 litres |
|---|
| Main oven – gross volume | 79 l |
|---|
| Main oven cavity material | Easy clean enamel (antacid enamel interior) |
|---|
| Main oven shelf positions | 5 levels |
|---|
| Main oven shelves | Metal racks |
|---|
| Main oven lighting | 1 halogen light, 40 W, light on when oven door is open, multilevel halogen light benefit |
|---|

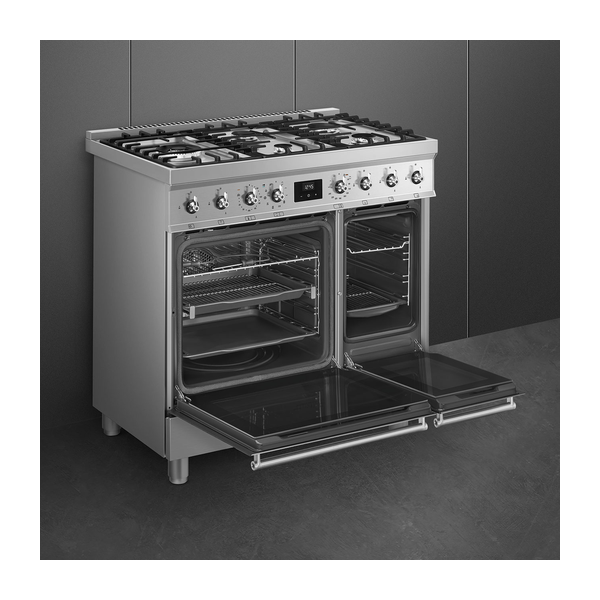

| Main oven door | Flap down, removable door, full glass inner door, removable inner door |
|---|
| Main oven door glasses | 4 total door glasses, 3 thermo-reflective door glasses (quadruple glazed doors) |
|---|
| Main oven safety | Safety thermostat, heating suspended when door is opened, door lock during pyrolisis, cold door benefit, tangential cooling |
|---|
| Main oven usable cavity dimensions (HxWxD) | 360x460x425 mm |
|---|
| Main oven temperature control | Electro-mechanical |
|---|
| Main oven heating elements | Lower 1200 W; Upper 1000 W; Grill element 1700 W; Large grill 2700 W; Circular heating element 2000 W – grill type electric |
|---|
| Main oven timer and controls | Timer, cooking time setting Start and Stop, end of cooking acoustic alarm |
|---|
| Main oven temperature range | Minimum 50 °C – Maximum 260 °C |
|---|
| Second oven – net volume | 35 litres |
|---|
| Second oven – gross volume | 36 l |
|---|
| Second oven cavity material | Easy clean enamel |
|---|
| Second oven shelf positions | 4 levels |
|---|
| Second oven shelves | Metal racks |
|---|
| Second oven lighting | 1 incandescent light, 25 W |
|---|
| Second oven door | Flap down, removable door, full glass inner door, removable inner door |
|---|
| Second oven door glasses | 3 total door glasses, 1 thermo-reflective door glass |
|---|
| Second oven safety | Safety thermostat, tangential cooling system |
|---|
| Second oven usable cavity dimensions (HxWxD) | 311x206x418 mm |
|---|
| Second oven temperature control | Electro-mechanical |
|---|
| Second oven heating elements | Lower 700 W; Upper 600 W; Grill element 1300 W; Large grill 1900 W – grill type electric |
|---|
| Second oven temperature range | Minimum 50 °C – Maximum 245 °C |
|---|
| Max power draw | 5100 W |
|---|
| Current | 23 A |
|---|
| Voltage | 220–240 V; Voltage 2: 380–415 V |
|---|

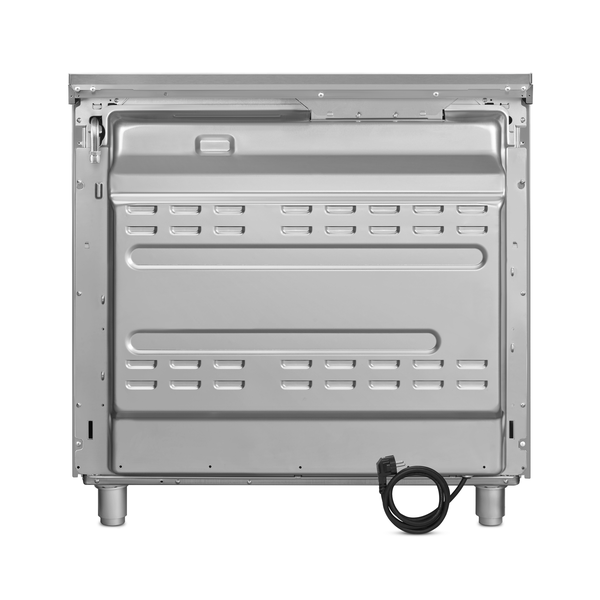

| Type of electric cable | Yes, Single phase |
|---|
| Additional connection modalities | Yes, Double and Three Phase |
|---|
| Frequency | 50/60 Hz |
|---|
| Terminal block | 5 poles |
|---|
| Accessories included for main oven & hob | Moka stand (1); Chrome shelf with back and side stop (2); 40 mm deep tray (1); Grill mesh (1); Telescopic guide rails, partial extraction (1); Meat probe (1) |
|---|
| Accessories included for secondary oven | Chrome shelf with back and side stop (1); Wide baking tray (1); Grill mesh (1) |
|---|
| Compatible accessories (examples) | AIRFRY air fryer rack; AIRFRY2 air fryer tray; BBQ double sided plate; BGTR9 cast iron grill plate; BN620-1 and BN640 enamelled trays; BNP608T teflon-coated tray; GTP and GTT telescopic guides; KIT600C92PX cover strip; KITH900CPF9 and KITH95CPF9 height extension kits; KITPBX height reduction feet; KITPC9X9 splashback; PALPZ pizza shovel; SFLK1 child lock; SMOLD silicone moulds; STONE refractory pizza stone |
|---|
