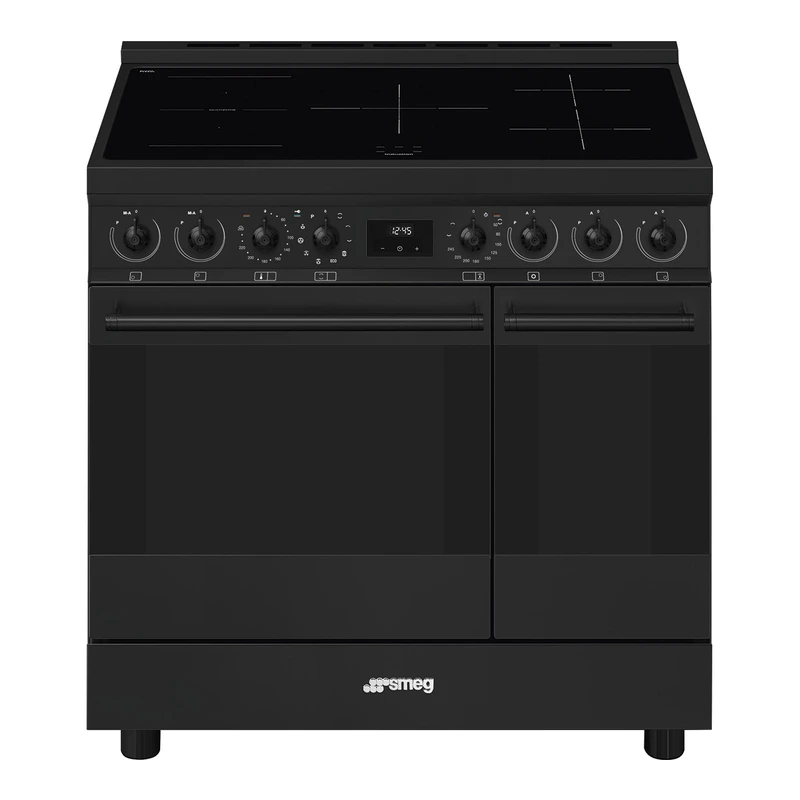

| Model | C92IPN2 |
|---|

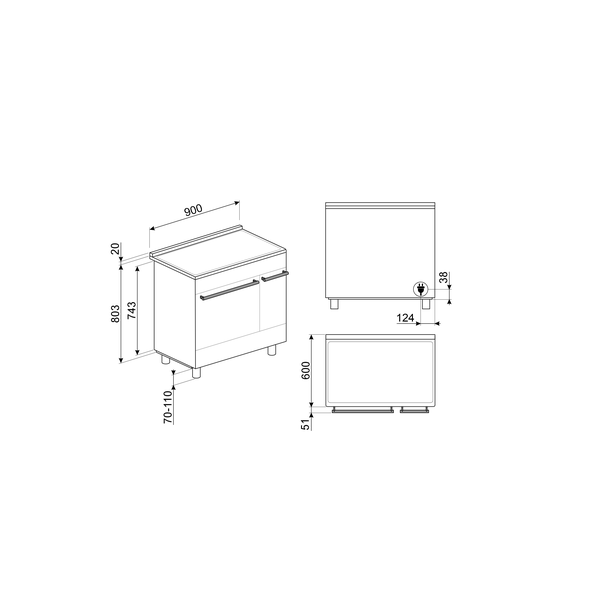

| Cooker size | 90x60 cm |
|---|
| Series | Symphony |
|---|
| Aesthetics | Classic, Square design |
|---|
| Colour / Finishing | Matte Black, matte finishing; hob colour anthracite |
|---|
| Hob type | Induction |
|---|
| Cavity heat source | Electric |
|---|
| Number of cavities with energy label | 2 |
|---|
| Type of main oven | Thermo–ventilated |
|---|
| Type of second oven | Static |
|---|
| Cleaning system – main oven | Pyrolytic |
|---|
| Energy efficiency class – main cavity | A |
|---|
| Energy efficiency class – second cavity | A |
|---|
| EAN code | 8017709336240 |
|---|
| Command panel finish | Enamelled metal |
|---|
| Logo | Assembled st/steel, position: facia below the oven |
|---|
| Upstand | Yes |
|---|
| Type of control setting | Control knobs; Smeg Classic knobs, matt black controls, red slider |
|---|
| Number of controls | 8 |
|---|
| Serigraphy colour | Silver |
|---|
| Display | Touch display / touch timer display |
|---|
| Door design | Door with 2 horizontal strips, dark grey glass, flap down opening |
|---|
| Handle | Smeg Classic handle, matt black |
|---|
| Feet | Black, adjustable height (benefit: cooker top flushed with working area thanks to adjustable feet) |
|---|
| Storage compartment | Door; benefit: more space for accessories or cooking utensils |
|---|

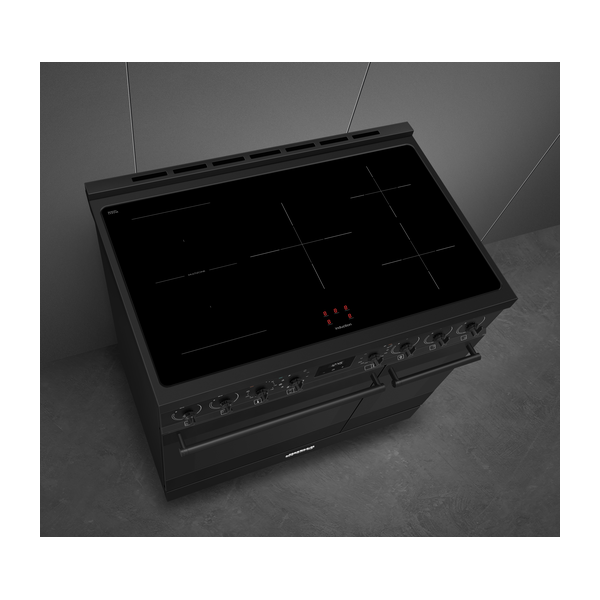

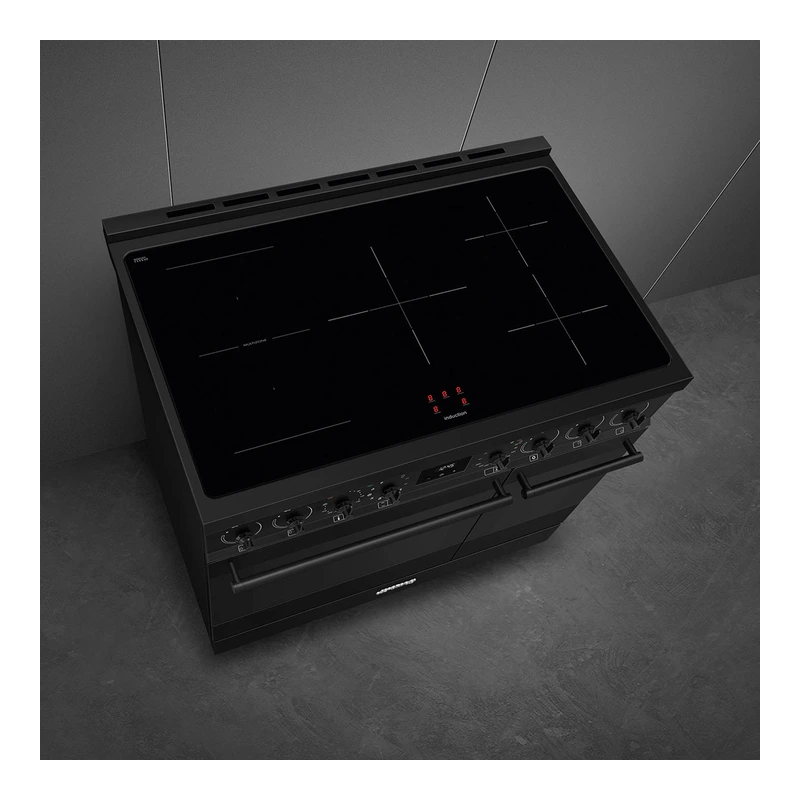

| Total number of cooking zones | 5 (all with Booster; 1 flexible zone) |
|---|
| Front left zone | Induction – multizone – 2.10 kW – Booster 2.30 kW – 21.0x19.0 cm |
|---|
| Rear left zone | Induction – multizone – 1.60 kW – Booster 1.85 kW – 21.0x19.0 cm |
|---|
| Central zone | Induction – single – 2.30 kW – Booster 3.00 kW – Ø 27.0 cm |
|---|
| Rear right zone | Induction – single – 1.20 kW – Booster 1.40 kW – Ø 18.0 cm |
|---|
| Front right zone | Induction – single – 2.30 kW – Booster 3.00 kW – Ø 21.0 cm |
|---|
| Automatic switch off when overheat | Yes (overheat protection) |
|---|
| Automatic switch off when overflow | Yes (overfill protection) |
|---|
| Automatic pan detection | Yes |
|---|
| Minimum pan diameter indication | Yes |
|---|
| Selected zone indicator | Yes |
|---|
| Residual heat indicator | Yes (indication of residual heat) |
|---|
| Main oven – number of lights | 1 |
|---|

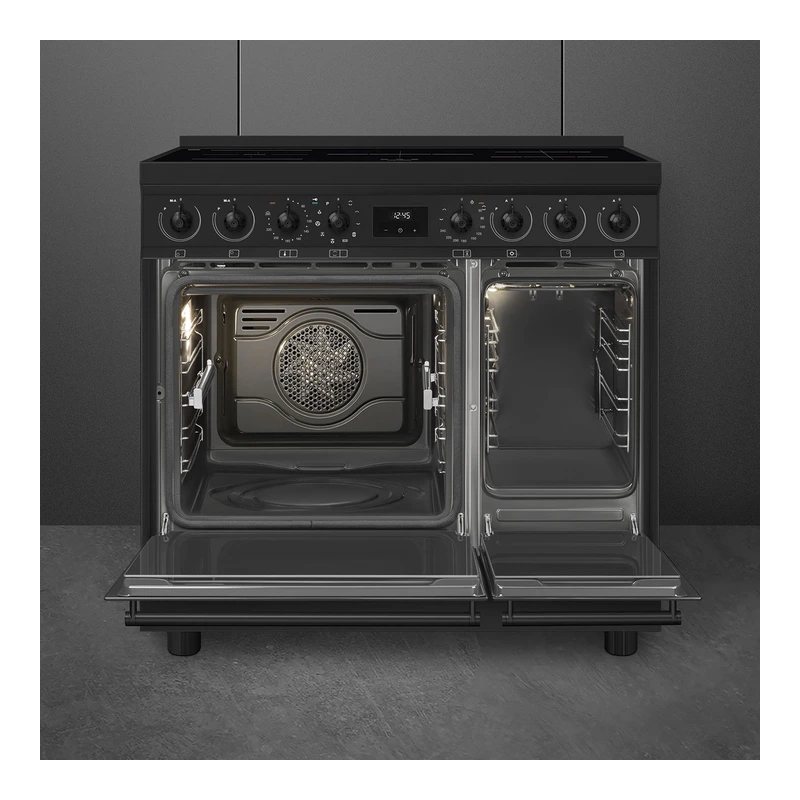

| Main oven – fan number | 1 (single turbine) |
|---|
| Main oven – net volume | 70 litres |
|---|
| Main oven – gross volume | 79 l |
|---|
| Main oven cavity material | Easy clean enamel (enamel interior with antacid lining) |
|---|
| Main oven shelf positions | 5 levels – metal racks; removable roof liner |
|---|
| Main oven light | Halogen, 40 W; multilevel halogen light benefit |
|---|
| Cooking time setting | Start and Stop, timer with end of cooking acoustic alarm |
|---|
| Light when door is open | Yes |
|---|
| Main oven door | Flap down; removable door; full glass inner door; removable inner door |
|---|
| Main oven door glasses | 4 total glasses; 3 thermo–reflective glasses; cold door benefit; all glass inner door; removable inner glass |
|---|
| Main oven safety thermostat | Yes; heating suspended when door is opened |
|---|
| Cooling system | Tangential cooling; tangential fan airflow from door to splashback |
|---|
| Door lock during pyrolysis | Yes |
|---|
| Usable cavity dimensions (HxWxD) | 360x460x425 mm |
|---|
| Temperature control – main oven | Electro–mechanical |
|---|
| Main oven elements | Lower heating element: 1200 W; Upper heating element: 1000 W; Grill element: 1700 W; Large grill: 2700 W; Circular heating element: 2000 W; Grill type: Electric |
|---|
| Main oven temperature range | Minimum 50 °C – Maximum 260 °C |
|---|
| Second oven – net volume | 35 litres |
|---|
| Second oven – gross volume | 36 l |
|---|
| Second oven cavity material | Easy clean enamel |
|---|
| Second oven shelf positions | 4 levels; metal racks |
|---|
| Second oven light | 1 incandescent light, 25 W |
|---|
| Second oven door | Flap down; removable door; full glass inner door; removable inner door |
|---|
| Second oven door glasses | 3 total glasses; 1 thermo–reflective glass |
|---|
| Second oven safety thermostat | Yes |
|---|
| Cooling system – second oven | Tangential |
|---|
| Usable cavity dimensions (HxWxD) – second | 311x206x418 mm |
|---|
| Temperature control – second oven | Electro–mechanical |
|---|
| Second oven elements | Lower heating element: 700 W; Upper heating element: 600 W; Grill element: 1300 W; Large grill: 1900 W; Grill type: Electric |
|---|
| Second oven temperature range | Minimum 50 °C – Maximum 245 °C |
|---|
| Timer | Yes; touch control timer, end of cooking acoustic alarm |
|---|
| Child lock (function) | 1 child lock; benefit: device to lock the programme/cycle |
|---|
| Max power draw | 12000 W |
|---|
| Current | 36 A |
|---|
| Voltage | 220–240 V; Voltage 2: 380–415 V |
|---|
| Frequency | 50/60 Hz |
|---|
| Terminal block | 5 poles |
|---|
