| Model | CX93GMBL |
|---|
| Cooker size | 90x60 cm |
|---|
| Series | Concert |
|---|
| Aesthetics | Classic |
|---|
| Colour / finish | Black, gloss black, enamelled metal command panel |
|---|

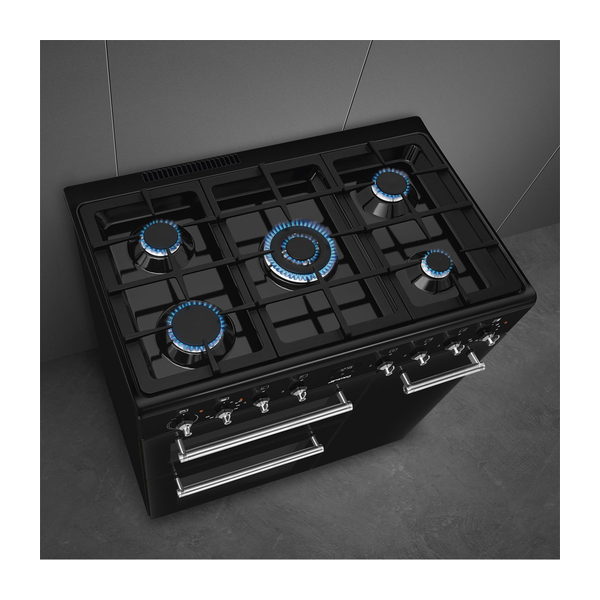

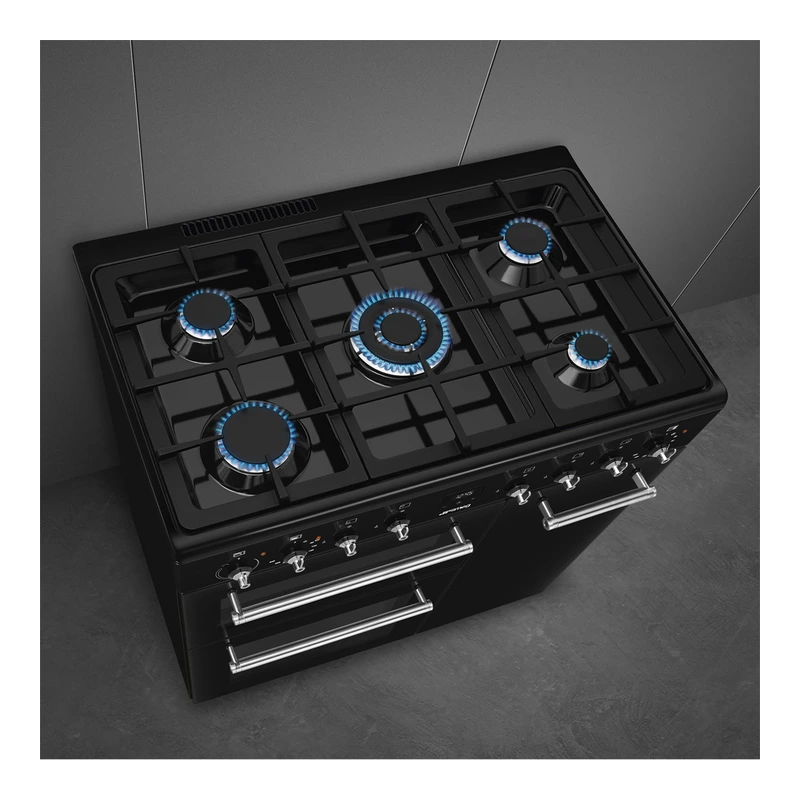

| Hob type | Gas hob, black enamel, standard gas burners |
|---|
| Total number of cook zones | 5 |
|---|
| Front left burner | Gas – Rapid – 2.90 kW |
|---|
| Rear left burner | Gas – Semi Rapid – 1.80 kW |
|---|
| Central burner | Gas – UR – 4.00 kW (ultra rapid burner) |
|---|
| Rear right burner | Gas – Semi Rapid – 1.80 kW |
|---|
| Front right burner | Gas – AUX – 1.00 kW |
|---|
| Pan stands | Cast iron, heavy duty cast iron pan stands |
|---|
| Burner caps | Matte black enamelled |
|---|
| Ignition | Automatic electronic ignition |
|---|
| Gas safety | Gas safety valves, thermocouple cuts supply if flame extinguishes |
|---|
| Number of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|
| Type of main oven | Thermo–ventilated |
|---|
| Main oven net volume | 61 litres |
|---|
| Main oven gross volume | 70 l |
|---|
| Main oven cavity material | Easy clean enamel (Ever Clean enamel with antacid lining) |
|---|
| Main oven shelf positions | 4, metal racks |
|---|
| Main oven light | Halogen, 40 W, multilevel halogen light |
|---|
| Main oven door opening | Side opening |
|---|
| Main oven usable cavity dimensions (HxWxD) | 316x460x412 mm |
|---|
| Main oven fan number | 1 (single turbine) |
|---|
| Main oven circular heating element power | 2000 W |
|---|
| Main oven temperature range | Minimum 50 °C – Maximum 245 °C |
|---|

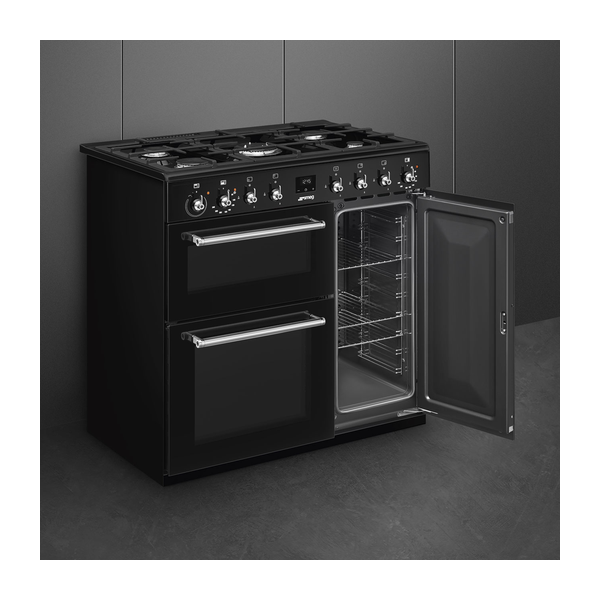

| Type of second oven | Thermo–ventilated |
|---|
| Second oven net volume | 62 litres |
|---|
| Second oven gross volume | 69 l |
|---|
| Second oven cavity material | Easy clean enamel |
|---|
| Second oven shelf positions | 9, metal racks |
|---|
| Second oven door opening | Side opening |
|---|
| Second oven usable cavity dimensions (HxWxD) | 605x275x370 mm |
|---|
| Second oven fan number | 1 |
|---|
| Second oven circular heating element power | 2500 W |
|---|
| Second oven temperature range | Minimum 50 °C – Maximum 245 °C |
|---|
| Third oven type / function | Full grill, large electric grill with tilting grill |
|---|
| Third oven net volume | 35 l |
|---|
| Third oven gross volume | 41 l |
|---|
| Third oven cavity material | Easy clean enamel |
|---|
| Third oven shelf positions | 2, metal racks |
|---|
| Third oven door opening | Flap down |
|---|
| Third oven usable cavity dimensions (HxWxD) | 169x440x443 mm |
|---|
| Large grill power | 2700 W |
|---|
| Third oven grill type | Electric, tilting grill |
|---|
| Third oven temperature range | Minimum 50 °C – Maximum 260 °C |
|---|

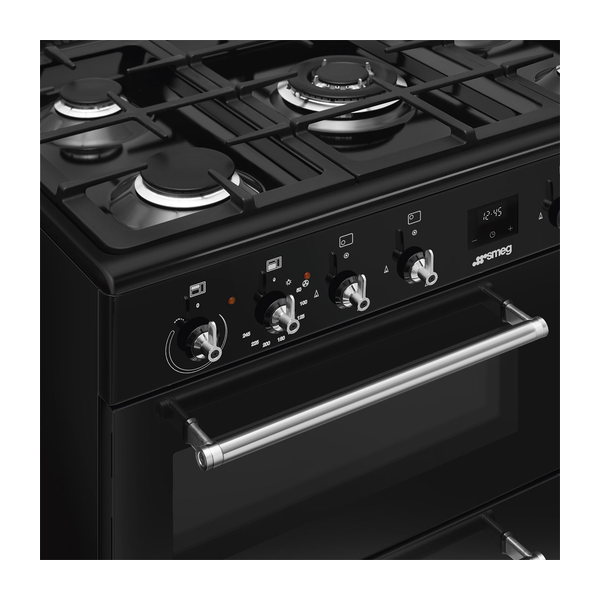

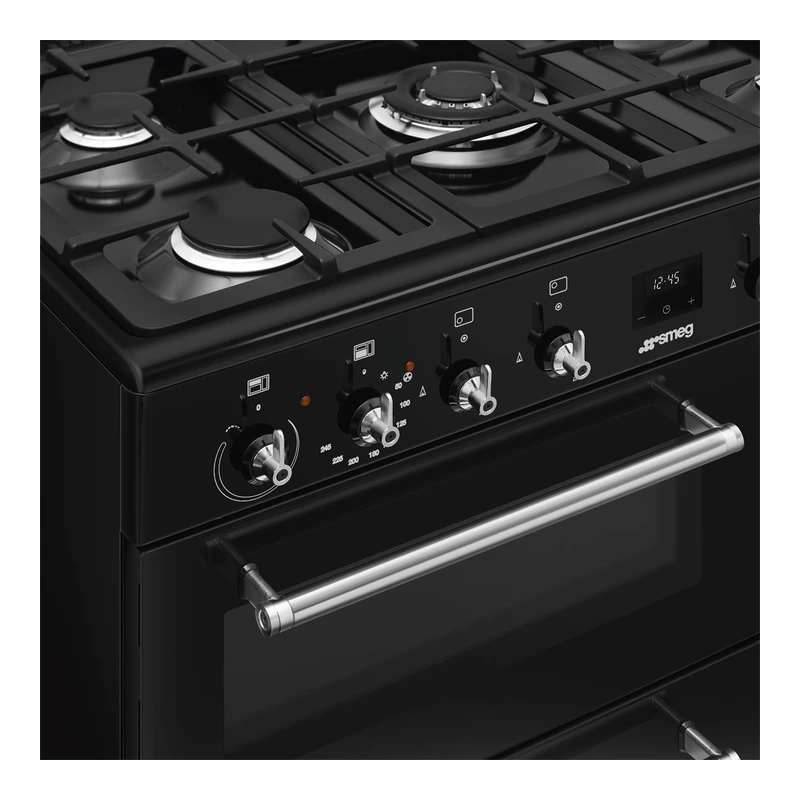

| Controls | Smeg Classic control knobs, touch display, 8 controls, silver serigraphy |
|---|
| Controls colour | Stainless steel |
|---|
| Door construction | Full glass, black glass, cold door |
|---|
| Door glasses main oven | 3 total door glasses, 1 thermo–reflective glass |
|---|
| Door glasses second oven | 2 total door glasses, 1 thermo–reflective glass |
|---|
| Door glasses third oven | 3 total door glasses, 1 thermo–reflective glass |
|---|
| Removability | Removable doors and removable inner glass for cleaning |
|---|
| Handle | Smeg Classic handle, polished stainless steel |
|---|
| Feet | Black, adjustable height |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | B |
|---|
| Safety thermostat | Yes, in all cavities |
|---|
| Cooling system | Tangential cooling with air cooling system |
|---|
| Temperature control | Electro–mechanical |
|---|
| Cooking time setting | Start and Stop, timer with end of cooking acoustic alarm |
|---|
| Max power draw | 7600 W |
|---|
| Current | 33 A |
|---|
| Voltage | 220–240 V |
|---|
| Voltage 2 | 380–415 V |
|---|
| Additional connection modalities | Yes, double and three phase |
|---|
| Frequency | 50/60 Hz |
|---|
| Terminal block | 5 poles |
|---|
| Accessories included for main oven & hob | Chrome shelf with back and side stop (1), 40 mm deep tray (1) |
|---|
| Accessories included for secondary oven | Chrome shelf with back stop (3) |
|---|
| Number of cooking functions (main oven) | 1 – Circulaire traditional cooking function |
|---|
| Cooking functions cavity 2 | 1 |
|---|
| Number of functions third oven | 1 – Full grill |
|---|
| Logo and branding | Smeg logo, silk screen, on command panel |
|---|
