| Product code | CX93IMBL |
|---|

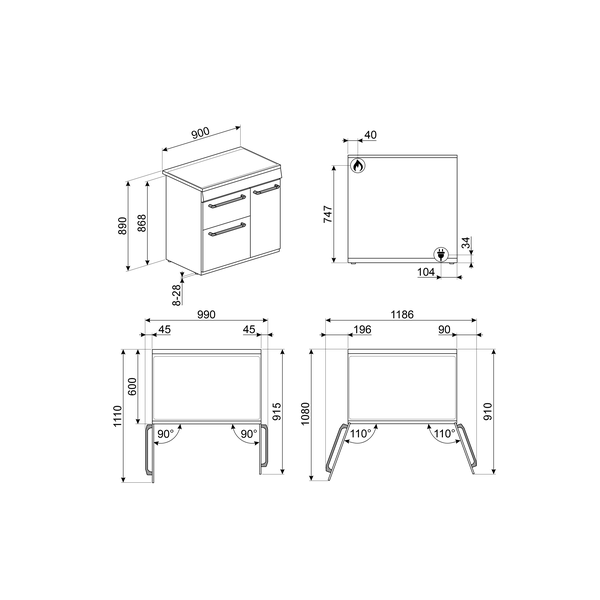

| Cooker size | 90x60 cm |
|---|
| No. of cavities with energy label | 2 |
|---|
| Cavity heat source | Electric |
|---|
| Hob type | Induction |
|---|
| Type of main oven | Thermo–ventilated |
|---|
| Type of second oven | Thermo–ventilated |
|---|
| Energy efficiency class (main cavity) | A |
|---|
| Energy efficiency class (second cavity) | B |
|---|
| Design | Standard |
|---|
| Aesthetics / Series | Classic, Concert |
|---|
| Colour / Finish | Black, gloss black |
|---|
| Command panel finish | Enamelled metal |
|---|
| Hob colour | Black enamel |
|---|

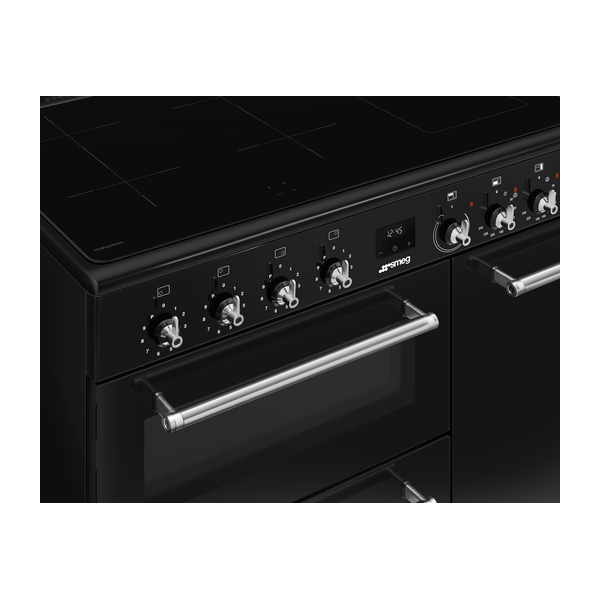

| Type of control setting | Hybrid: Knobs + Digi Touch |
|---|

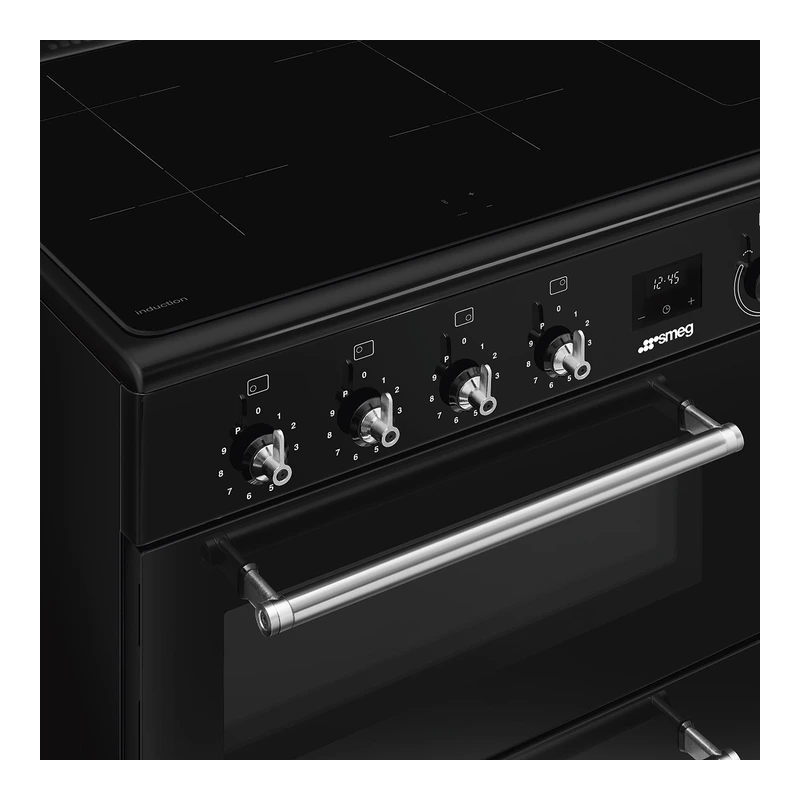

| Control knobs | Smeg Classic, stainless steel colour, 8 controls |
|---|
| Display | Touch (Digi Touch) |
|---|
| Door type | With frame, black glass |
|---|
| Handle | Smeg Classic, brushed stainless steel |
|---|
| Feet | Black, adjustable height |
|---|

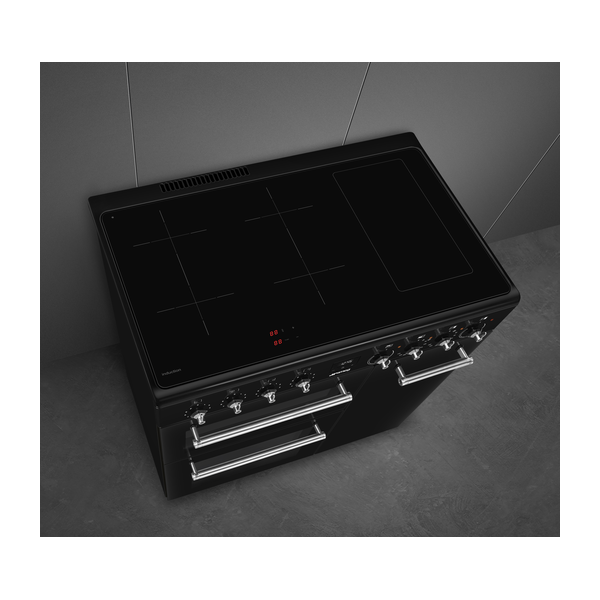

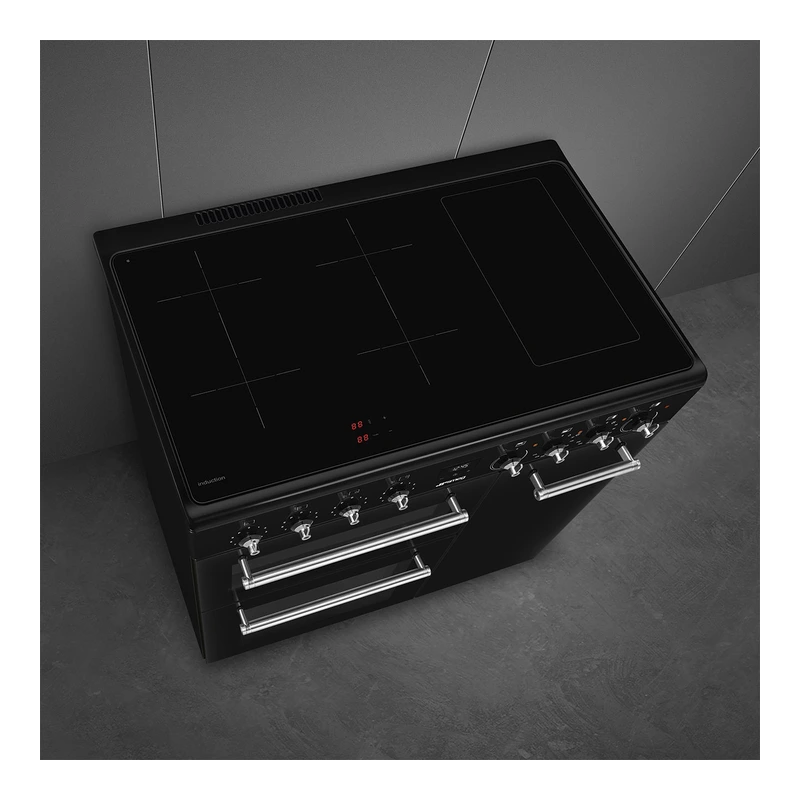

| Total no. of cook zones | 4 induction zones + right warming zone |
|---|
| Front left zone | Induction, single, 1.50 kW, Booster 2.00 kW, Ø 18.0 cm |
|---|
| Rear left zone | Induction, single, 1.50 kW, Booster 2.00 kW, Ø 18.0 cm |
|---|
| Rear right zone | Induction, single, 1.50 kW, Booster 2.00 kW, Ø 18.0 cm |
|---|
| Front right zone | Induction, single, 1.50 kW, Booster 2.00 kW, Ø 18.0 cm |
|---|
| Main oven net volume | 61 litres |
|---|
| Main oven gross volume | 70 l |
|---|
| Main oven cavity material | Easy clean enamel (Ever Clean enamel) |
|---|
| Main oven shelf positions | 4, metal racks |
|---|
| Main oven lighting | 1 halogen light, 40 W |
|---|
| Main oven door | Side opening, removable door, full glass inner door, removable inner door |
|---|
| Main oven door glasses | 3 total door glasses, 1 thermo–reflective glass |
|---|
| Main oven cooling system | Tangential, safety thermostat |
|---|
| Main oven usable space (HxWxD) | 316x460x412 mm |
|---|
| Main oven temperature control | Electro–mechanical |
|---|
| Main oven circular heating element power | 2000 W |
|---|
| Main oven temperature range | Minimum 50 °C – Maximum 245 °C |
|---|
| Second oven net volume | 62 litres |
|---|
| Second oven gross volume | 69 l |
|---|
| Second oven cavity material | Easy clean enamel |
|---|
| Second oven shelf positions | 9, metal racks |
|---|
| Second oven door | Side opening, removable door |
|---|
| Second oven door glasses | 2 total door glasses, 1 thermo–reflective glass |
|---|
| Second oven cooling system | Tangential, safety thermostat |
|---|
| Second oven usable space (HxWxD) | 605x275x370 mm |
|---|
| Second oven temperature control | Electro–mechanical |
|---|
| Second oven circular heating element power | 2500 W |
|---|
| Second oven temperature range | Minimum 50 °C – Maximum 245 °C |
|---|
| Third oven net volume | 35 l |
|---|
| Third oven gross volume | 41 l |
|---|
| Third oven cavity material | Easy clean enamel |
|---|
| Third oven shelf positions | 2, metal racks |
|---|
| Third oven door | Flap down, removable door, full glass inner door, removable inner door |
|---|
| Third oven door glasses | 3 total door glasses, 1 thermo–reflective glass |
|---|
| Third oven cooling system | Tangential, safety thermostat |
|---|
| Third oven usable space (HxWxD) | 169x440x443 mm |
|---|
| Third oven temperature control | Electro–mechanical |
|---|
| Third oven grill type | Electric, large grill 2700 W, tilting grill |
|---|
| Third oven temperature range | Minimum 50 °C – Maximum 260 °C |
|---|
| No. of cooking functions (main oven) | 1 – Circulaire |
|---|
| Cooking functions cavity 2 | 1 |
|---|
| No. of functions third oven | 1 – Oven light / Full grill (as stated) |
|---|
| Cooking time setting (main oven) | Start and Stop, timer, end of cooking acoustic alarm |
|---|
| Accessories included for main oven & hob | Chrome shelf with back and side stop 1; 40 mm deep tray 1 |
|---|
| Accessories included for secondary oven | Chrome shelf with back stop 3 |
|---|
| Max power draw | 15200 W |
|---|
| Current | 41 A |
|---|
| Type of electric cable | Yes, Single phase |
|---|
| Voltage | 220–240 V |
|---|
| Voltage 2 | 380–415 V |
|---|
| Additional connection modalities | Yes, Double and Three Phase |
|---|
| Frequency | 50/60 Hz |
|---|
| Terminal block | 5 poles |
|---|
| EAN code | 8017709340636 |
|---|
