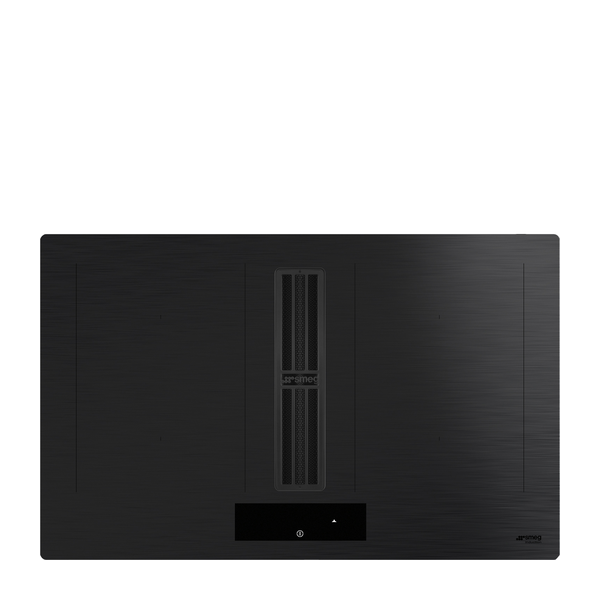

| Product family | Hob |
|---|
| Installation | Built–in, ultra–low profile or fully flushed |
|---|

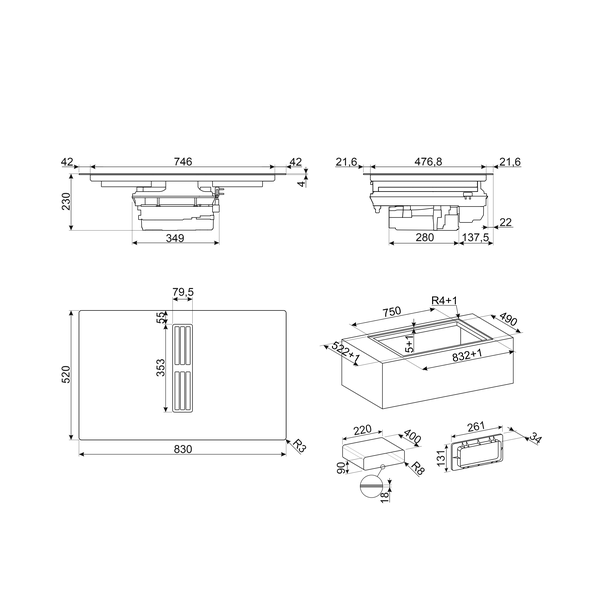

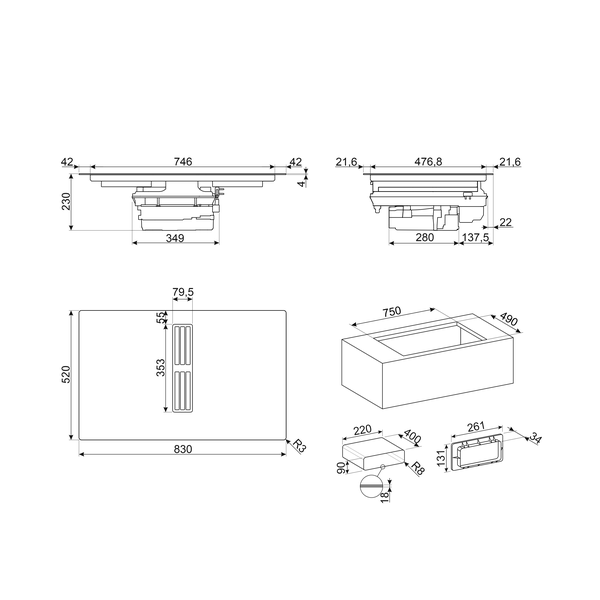

| Dimensions | 83 cm |
|---|
| Standard cut–out size | 490x750 mm |
|---|
| Power supply | Electric |
|---|
| Type | Induction with integrated hood – Extraction expulsion |
|---|
| Electronic control | Yes |
|---|
| Energy efficiency class | A+ |
|---|
| EAN code | 8017709341886 |
|---|
| Aesthetic style | Classic |
|---|
| Colour / finish | Matte Black, glass, ceramic, straight edge |
|---|
| Material | Glass with double ceramization |
|---|
| Pan stands | Stainless steel |
|---|
| Controls | EVO Slider, touch control, white slider, front position, main on/off switch |
|---|
| Logo / serigraphy | Silk screen logo, serigraphy colour grey |
|---|
| Total number of cook zones | 4 induction cook zones, 4 with booster, 2 Flexible MultiZone areas |
|---|
| Power levels | 9 |
|---|
| Front left zone | Induction – Multizone – 2.10 kW – Booster 3.0 kW – 21.0x19.0 cm |
|---|
| Rear left zone | Induction – Multizone – 2.10 kW – Booster 3.00 kW – 21.0x19.0 cm |
|---|
| Rear right zone | 2.10 kW – Booster 3.00 kW – 21.0x19.0 cm |
|---|
| Front right zone | 2.10 kW – Booster 3.00 kW – 21.0x19.0 cm |
|---|
| Multizone left | Booster 3.70 kW – 39.0x21.0 cm |
|---|
| Multizone right | Booster 3.70 kW – 39.0x21.0 cm |
|---|
| Time–setting options | Automatic switch–off, end cooking timer (4), minute minder (1), residual time indicator |
|---|
| Functions (hob) | Keep warm automatic function, Pause option, End of cooking acoustic alarm, Show Room Demo option, Cleaning option, Quick start, Rapid level selection, Automatic setting according to pan dimension, Automatic pan detection (min 9 cm), Permanent Automatic Pot Detection with indication of the relative control, Automatic switch off when overflow, Residual heat indicator, Protection against accidental start up, Limited Power Consumption Mode (advance) |
|---|
| Limited Power Consumption Mode values | 2800, 3500, 4500, 7400 W |
|---|
| Control Lock / Child safety | Yes |
|---|
| Nominal power | 7620 W |
|---|
| Current | 33 A |
|---|
| Voltage | 220–240 V; 380–415 V (single and double phase) |
|---|
| Frequency | 50/60 Hz |
|---|
| Power supply cable | Type of electric cable supplied: Yes, single and double phase – length 120 cm – terminal box 6 poles |
|---|
| Hood control setting | Touch control, Auto–Vent, display, delay function, hood time setting delay |
|---|
| Hood speeds | 8 speeds plus 2 intensive speeds |
|---|
| Led colour | White |
|---|
| Free outlet maximum capacity | 650 m³/h |
|---|
| Motor power (hood) | 220 W |
|---|
| Number of filters | 1 anti–grease filter in stainless steel; charcoal filters included, regenerable |
|---|
| Filter replacement indicator | Yes |
|---|
| Fluid Dynamic Efficiency (FDE) | 32,10 – class A (FDEC) |
|---|
| Grease Filtering Efficiency (GFE) | 85,1 % – class B (GFEC) |
|---|
| Lighting Efficiency (LE) | 0,0 lux/W – Lighting Efficiency Class NA |
|---|
| Air flow at minimum speed (Qmin) | 230 m³/h |
|---|
| Air flow at maximum speed (Qmax) | 500 m³/h |
|---|
| Air flow at boost speed (Qboost) | 630 m³/h |
|---|
| Noise level at minimum speed (SPEmin) | 49 dBA (Airbourne acoustical A–weighted sound power emission) |
|---|
| Noise level at maximum speed (SPEmax) | 68 dBA (Airborne acoustical A–weighted sound power emission) |
|---|
| Noise level at boost speed (SPEboost) | 73 dBA (Airbourne acoustical A–weighted sound power emission) |
|---|
| Energy Efficiency Index (hood) | 44,2 (per first cavity) |
|---|
| Measured air flow rate at best efficiency point (Qbep) | 320 m³/h |
|---|
| Measured air pressure at best efficiency point (Qbep) | 502 Pa |
|---|
| Measured electric power input at best efficiency point (Wbep) | 139 W |
|---|
| Sound power level at highest setting (Lwa) | 68 dBA |
|---|
| Time increase factor (F) | 0,8 |
|---|
| Extraction rate / noise / pressure (various speeds) | Speed 1: 230 m³/h, 49 dBA, 280 Pa, 40 W
Speed 2: 270 m³/h, 51 dBA, 370 Pa, 50 W
Speed 3: 340 m³/h, 55 dBA, 400 Pa, 70 W
Speed 4: 370 m³/h, 60 dBA, 450 Pa, 90 W
Speed 5: 400 m³/h, 62 dBA, 500 Pa, 100 W
Speed 6: 435 m³/h, 63 dBA, 550 Pa, 120 W
Speed 7: 460 m³/h, 65 dBA, 600 Pa, 150 W
Speed 8: 500 m³/h, 68 dBA, 620 Pa, 170 W
Intensive speed: 540 m³/h, 70 dBA, 625 Pa, 180 W
Intensive speed 2: 630 m³/h, 73 dBA, 630 Pa, 220 W |
|---|
| Extraction rate IEC 61591 | Multiple values listed above; example: 230 m³/h (49 dBA, 280 Pa, 40 W) up to 630 m³/h (73 dBA, 630 Pa, 220 W) |
|---|
| Noise level IEC 60704–2–13 | From 49 dBA at minimum to 73 dBA at intensive speed 2 |
|---|
