| Product family | Hob |
|---|
| Installation | Built-in – Traditional |
|---|
| Dimensions | 80 cm |
|---|
| Power supply | Electric |
|---|
| Type | Induction with integrated hood – Extraction: Expulsion |
|---|
| Electronic control | Yes |
|---|
| EAN code | 8017709298692 |
|---|
| Energy efficiency class (hob) | A+++ |
|---|
| Aesthetics line | Dolce Stil Novo |
|---|
| Colour | Black |
|---|
| Finishing | Glass |
|---|
| Material | Glass |
|---|
| Glass type | Ceramic |
|---|
| Glass edge | Straight edge |
|---|
| Frame | Yes – frame colour: Copper |
|---|
| Pan stands | Cast iron |
|---|
| Logo | Silk screen with grey serigraphy |
|---|
| Type of control setting | Multi Slider with slider – controls position: Front |
|---|
| Main on/off switch | Yes |
|---|
| Power levels | 9 |
|---|
| No. of induction cook zones | 4 |
|---|
| Total no. of cook zones | 2 |
|---|
| No. of cooking zones with booster | 4 |
|---|
| No. of Flexible zones | 2 |
|---|
| Flexible zone type | MultiZone |
|---|
| Left zone (single) | Induction – Multizone – 2.10 kW – Booster 3.70 kW – 23.0 × 21.0 cm |
|---|
| Right zone (single) | Induction – Multizone – 2.10 kW – Booster 3.70 kW – 23.0 × 21.0 cm |
|---|
| Additional zones | 2.10 kW – Booster 3.70 kW – 23.0 × 21.0 cm (two zones) |
|---|
| Multizone left | Booster 3.70 kW – 46.0 × 21.0 cm |
|---|
| Multizone right | Booster 3.70 kW – 46.0 × 21.0 cm |
|---|
| Time-setting options | Automatic switch-off |
|---|
| End cooking timer | 4 |
|---|
| Minute minder | 1 |
|---|
| End of cooking acoustic alarm | Yes |
|---|
| Residual time indicator | Yes |
|---|
| Pause option | Yes |
|---|
| Quick start | Yes |
|---|
| Rapid level selection | Yes |
|---|
| Automatic setting according to pan dimension | Yes |
|---|
| Automatic pan detection | Yes – permanent automatic pot detection with indication of the relative control |
|---|
| Control lock / Child safety | Yes |
|---|
| Automatic switch off when overflow | Yes |
|---|
| Residual heat indicator | Yes |
|---|
| Protection against accidental start up | Yes |
|---|

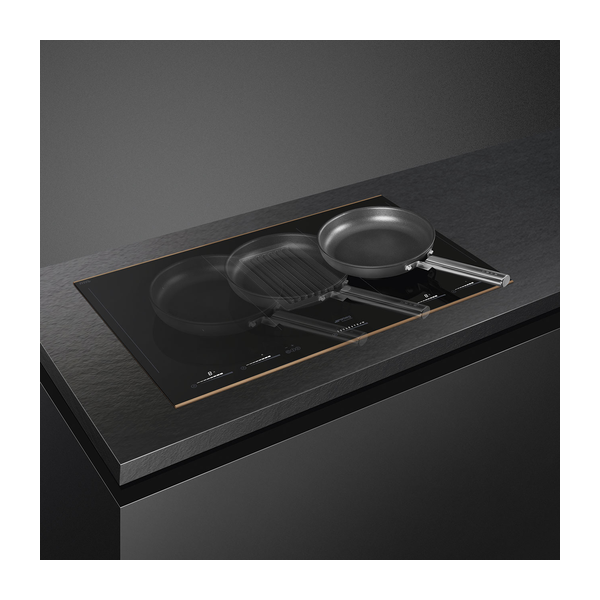

| Multizone option | Yes – allows several pans to be used at once, large or small, with greater flexibility |
|---|
| Simmering function | Yes – ideal for long-cooking recipes, preventing food from boiling over or sticking |
|---|
| Keep warm function | Yes – keeps cooked food heated at minimum capacity for 120 minutes then turns off |
|---|
| Melting/low temperature cooking | Yes – suitable for slowly melting delicate foods such as chocolate or butter |
|---|
| Overfill protection | Yes – shuts down the hob in the presence of overflow of liquids |
|---|
| Timer | Yes – automatically ends cooking after a preset time |
|---|
| Time elapsed display | Shows how long the cooking zone has been in use |
|---|

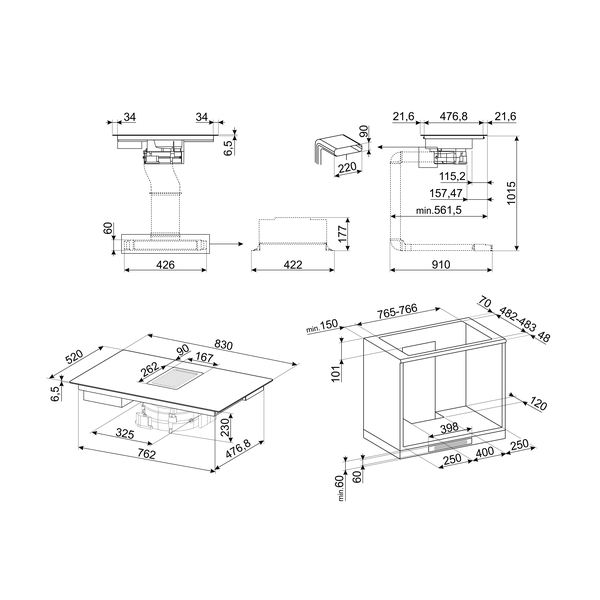

| Standard cut-out | 482–483 × 763–764 mm |
|---|
| Nominal power (hob) | 7545 W |
|---|
| Current | 33 A |
|---|
| Voltage | 220–240 V |
|---|
| Voltage 2 | 380–415 V |
|---|
| Type of electric cable supplied | Yes, Single and Double phase |
|---|
| Frequency (hob) | 50/60 Hz |
|---|
| Power supply cable length | 120 cm |
|---|
| Terminal box | 6 poles |
|---|
| Hood control setting | Touch capacitive |
|---|
| LED colour | White |
|---|
| Display | Yes |
|---|
| No. of speeds | 8 – plus 2 intensive speeds |
|---|
| Delay function | Yes |
|---|
| Other hood functions | AUTOVENT – Auto-Vent: Yes |
|---|
| Free outlet maximum capacity | 750 m³/h |
|---|
| Motor power | 220 W |
|---|
| No. of filters | 1 |
|---|
| Filter type | Aluminium anti-grease filters |
|---|
| Filter replacement indicator | Yes |
|---|
| Fluid Dynamic Efficiency (FDE) | 40.30 – class A (FDEC) |
|---|
| Lighting Efficiency (LE) | 0.0 lux/W – class NA (LEC) |
|---|
| Grease Filtering Efficiency (GFE) | 85.1 % – class B (GFEC) |
|---|
| Air flow at minimum speed (Qmin) | 245 m³/h |
|---|
| Air flow at maximum speed (Qmax) | 505 m³/h |
|---|
| Air flow at boost speed (Qboost) | 700 m³/h |
|---|
| Airborne sound at minimum speed (SPEmin) | 51 dBA |
|---|
| Airborne sound at maximum speed (SPEmax) | 65 dBA |
|---|
| Airborne sound at boost speed (SPEboost) | 72 dBA |
|---|
| Time increase factor (F) | 0.5 |
|---|
| Energy Efficiency Index per first cavity | 27.5 |
|---|
| Measured air flow at best efficiency point (Qbep) | 359 m³/h |
|---|
| Measured air pressure at best efficiency point (Qbep) | 549 Pa |
|---|
| Measured electric power input at best efficiency point (Wbep) | 136 W |
|---|
| Sound power level at highest setting (Lwa) | 65 dBA |
|---|
| Hood frequency | 50–60 Hz |
|---|
| Extraction rates by speed (IEC 61591) | Speed 1: 245 m³/h – 51 dBA – 35 W
Speed 2: 285 m³/h – 55 dBA – 45 W
Speed 3: 350 m³/h – 57 dBA – 60 W
Speed 4: 380 m³/h – 59 dBA – 75 W
Speed 5: 410 m³/h – 62 dBA – 85 W
Speed 6: 445 m³/h – 63 dBA – 105 W
Speed 7: 475 m³/h – 64 dBA – 115 W
Speed 8: 505 m³/h – 65 dBA – 125 W
Intensive: 550 m³/h – 66 dBA – 110 W
Intensive 2: 700 m³/h – 72 dBA – 140 W |
|---|
| Extraction rate IEC 61591 (typical) | 245–505 m³/h depending on speed; up to 700 m³/h at intensive speed 2 |
|---|
| Noise level IEC 60704-2-13 (range) | 51–72 dBA depending on speed |
|---|
| Pressure range | 290–640 Pa depending on speed |
|---|
| Compatible accessory – CON60H | Flat duct connector for tubes 220 × 60 mm, helps connect more tubes of kit KITEHOBD4 |
|---|
| Compatible accessory – FLTHOBD | Ceramic Anti Odour Filter, regenerable spare part suitable for recirculating kit KITF6HOBD for hob models with integrated hood HOBD682D and HOBD682R |
|---|
| Compatible accessory – GRI60H | Rectangular louvred grille, external size 246 × 80 mm and internal 226 × 60 × 50 mm |
|---|
| Compatible accessory – KITEHOBD | Exhaust kit optional for Hobd: tubes for installation in exhaust mode |
|---|
| Compatible accessory – KITEHOBD4 | Filtering kit (lateral outlet) optional for Hobd: tube 1.5 m and curve |
|---|
| Compatible accessory – KITF6HOBD | Recirculating kit for Hobd: tubes plus regenerable anti-odour filter plus stainless steel grid with magnetic fix for plinths of minimum 6 cm |
|---|
| Compatible accessory – RED60H | Reducer from 90 to 60 mm suitable for rectangular tube of 220 mm, size 220 × 90 × 92 mm |
|---|
| Compatible accessory – TPK | Stainless steel grill plate to cook Teppanyaki dishes |
|---|
